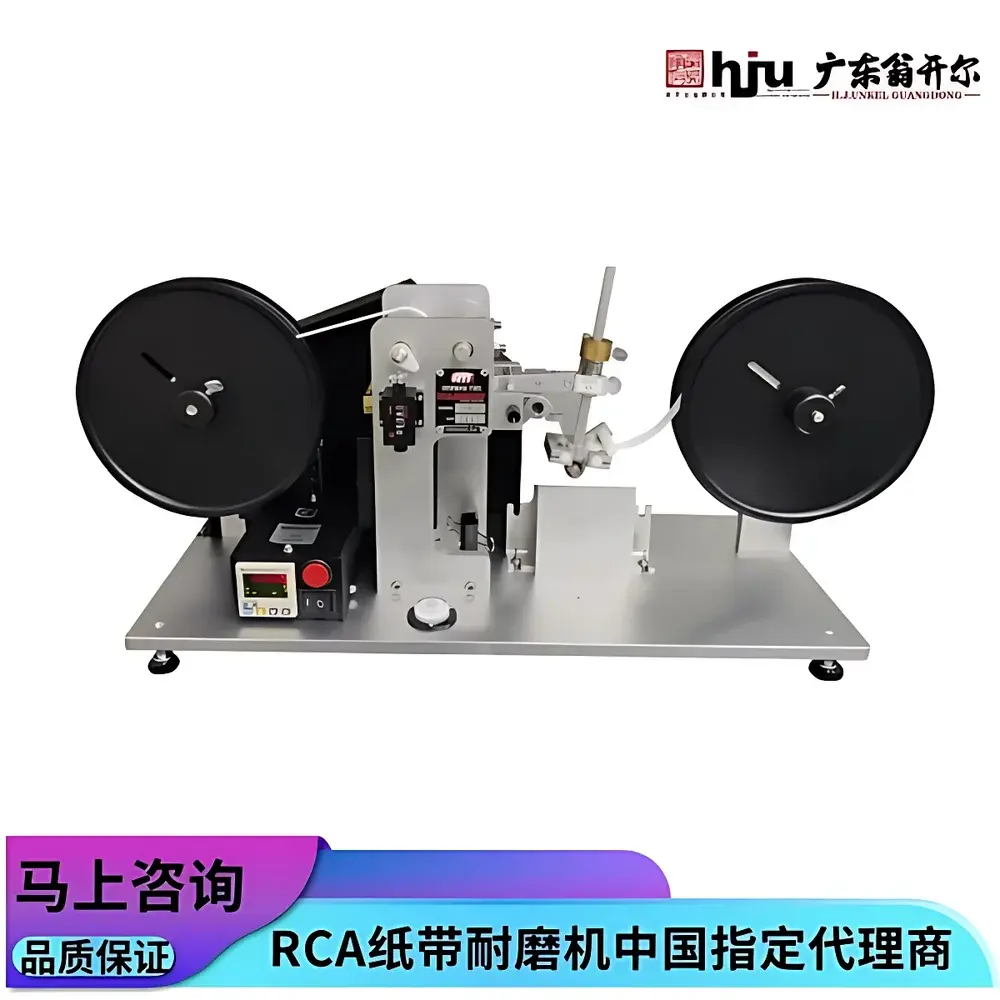

Norman Tool RCA7-IBB Paper Tape Abrasion Tester

Overview

The Norman Tool RCA7-IBB Paper Tape Abrasion Tester is an electromechanical surface wear evaluation instrument engineered for precision, repeatability, and compliance with internationally recognized test standards—including ASTM F2357-04. It operates on the principle of controlled linear reciprocating abrasion using standardized abrasive paper tape as the consumable medium. A motor-driven rotating drum carries the paper tape across a fixed-diameter roller; a weighted abrasion head applies consistent normal force to the test specimen mounted beneath. The system subjects coated or laminated surfaces—such as printed logos on plastic housings, metallized films, or UV-cured inks—to cyclic mechanical stress under defined load, speed, and contact mode (continuous or intermittent). Wear resistance is quantified by counting the number of drum revolutions required to expose substrate material or reach a predefined failure criterion (e.g., loss of gloss, ink delamination, or conductive trace exposure). This method provides objective, quantitative data essential for quality assurance in high-volume consumer electronics manufacturing and packaging R&D.

Key Features

• Three calibrated load options: 55 g, 175 g, and 275 g—selected via interchangeable counterweights and lever-arm configuration; 275 g is the default standard per ASTM F2357-04
• Dual sample mounting configurations: flat-stage fixture for planar specimens and 3D adjustable holder for curved or irregular geometries (e.g., mobile phone casings, PDA bezels)
• Integrated LED magnifier (10×) for real-time visual assessment of surface degradation during or post-test
• Two counter variants: RCA7-IBB uses a mechanical rotary counter (0–999,999 cycles); RCA7-IBB-CC features an LCD digital counter with programmable stop function and non-volatile memory
• Adjustable oscillation mode: continuous contact (abrasion head remains engaged) or intermittent duty cycle (1.5 s down / 2.0 s up), enabling simulation of dynamic handling conditions
• Robust cast-aluminum frame with vibration-dampening base; weighs approximately 17 kg; powered by 220 V AC, 50/60 Hz, 5 A

Sample Compatibility & Compliance

The RCA7-IBB accommodates rigid and semi-rigid substrates up to 150 mm × 150 mm × 30 mm (W × L × H), including polycarbonate, ABS, PMMA, anodized aluminum, and PET-based laminates. Its design supports testing of functional coatings such as silicone rubber keypads, electroplated finishes, screen-printed conductive inks, and anti-fingerprint oleophobic layers. The instrument conforms to ASTM F2357-04 (“Standard Test Method for Measuring Abrasion Resistance of Printed Inks and Coatings Using the RCA Abrasion Tester”) and aligns with functional equivalency assessments referenced in ISO 5470-1 (rubber abrasion) and DIN 53778 (scrub resistance of coatings). While not a GLP/GMP-certified system per se, its mechanical repeatability, traceable calibration plate (supplied with NIST-traceable certificate), and audit-ready operational logs (via RCA7-IBB-CC’s digital counter) support integration into regulated QC environments requiring documented test reproducibility.

Software & Data Management

The RCA7-IBB operates as a standalone hardware platform without embedded firmware or proprietary software. All operation is manual and mechanically governed—ensuring immunity to software obsolescence, cybersecurity vulnerabilities, or driver compatibility issues. The RCA7-IBB-CC variant records cycle counts in non-volatile memory and allows user-defined stop thresholds (0–999,999 revolutions), facilitating unattended endpoint-triggered testing. Data export is manual: users log cycle counts, load settings, tape lot numbers, and visual pass/fail judgments in laboratory notebooks or LIMS-integrated spreadsheets. For regulatory traceability, operators are advised to retain calibration certificates, paper tape lot documentation, and pre/post-test macrophotographs per internal SOPs aligned with ISO/IEC 17025 requirements.

Applications

• Evaluation of printed legend durability on membrane switches, smartphone buttons, and automotive control panels
• Verification of scratch resistance in hard-coated optical lenses and display cover glasses
• Quality control of decorative vacuum-metallized plastic parts (e.g., speaker grilles, appliance fascias)
• Validation of ink adhesion for roll-to-roll printed flexible electronics and RFID tags
• Comparative screening of anti-wear topcoats used in medical device housings subject to repeated disinfection cycles
• Process qualification of plasma-treated or corona-discharged polymer surfaces prior to adhesive bonding

FAQ

What type of abrasive media is required for this tester?
Standardized RCA-grade paper tape (typically 110 mm wide, 100 m length, 120-grit alumina-coated kraft paper) must be used. Substitution with generic sandpaper or non-certified tapes invalidates ASTM F2357-04 compliance and compromises inter-laboratory reproducibility.
Is operator training necessary to achieve repeatable results?
Yes. Proper loading technique—including precise positioning of the sliding pin at mechanical equilibrium and correct tape tensioning—is critical. Norman Tool recommends initial supervised operation and periodic requalification per internal QA protocols.
Can the RCA7-IBB be used for wet abrasion testing?
No. The instrument is designed exclusively for dry abrasion under ambient conditions. Moisture-sensitive samples require environmental chamber integration—not supported natively—and would necessitate custom validation against modified test methods.
How often should the calibration plate be re-certified?
Annual recalibration against NIST-traceable reference standards is recommended. The included certified plate serves as a daily verification tool but does not replace periodic third-party metrological validation.
Are spare parts and consumables readily available outside the U.S.?
Genuine RCA paper tape, O-rings, counterweights, and replacement rollers are stocked by authorized Norman Tool distributors globally—including the China-based representative—ensuring continuity of supply chain integrity and test consistency.
