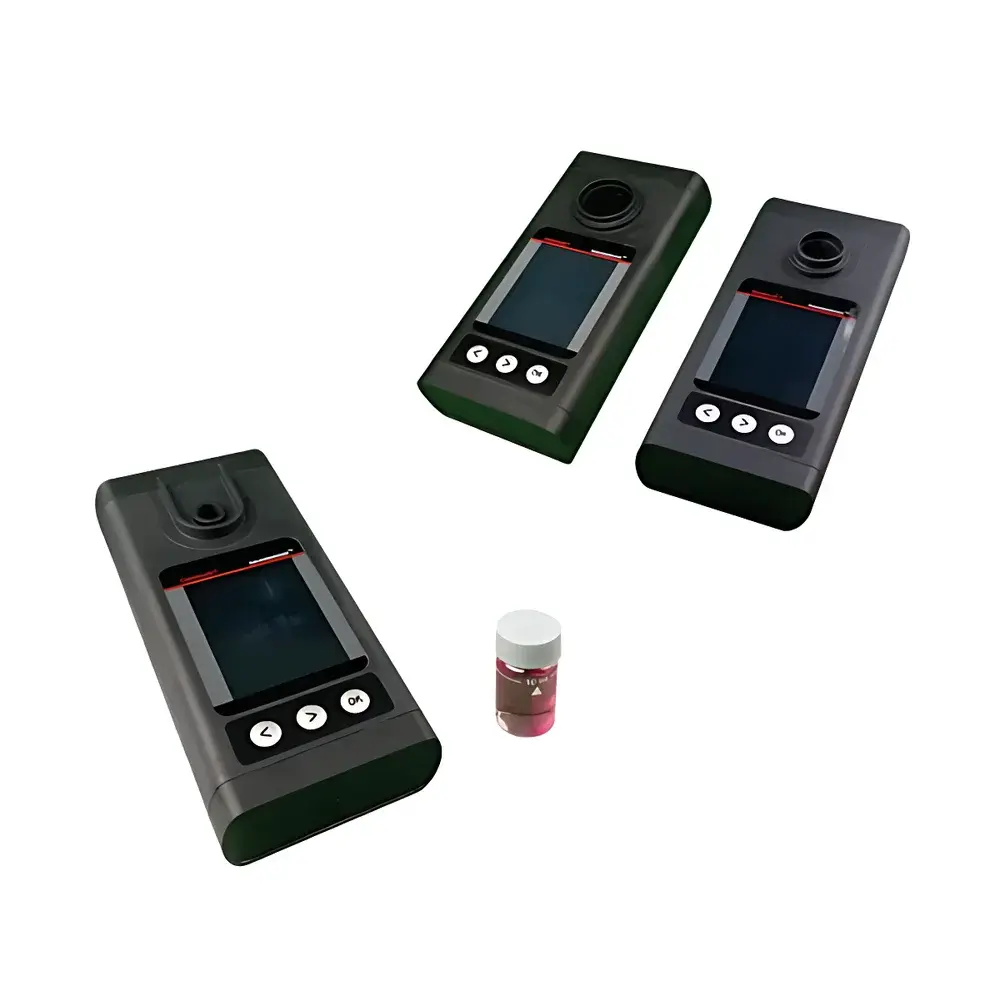

OHAUS AP40WW Aquasearcher™ Portable Industrial-Grade Colorimetric Water Quality Analyzer

Overview

The OHAUS AP40WW Aquasearcher™ Portable Industrial-Grade Colorimetric Water Quality Analyzer is an engineered solution for field-deployable, multi-parameter water analysis in demanding industrial, municipal, and emergency-response environments. Built upon dual-beam colorimetric photometry with integrated conductivity measurement, the AP40WW delivers quantitative results for four critical regulatory and operational water quality indicators: Chemical Oxygen Demand (COD), Total Phosphorus (TP), Total Nitrogen (TN), and Ammonia-Nitrogen (NH₃-N). Its optical architecture employs fixed-wavelength LED sources and matched photodiode detectors calibrated against NIST-traceable standards, ensuring consistent spectral response across measurement cycles. Unlike benchtop spectrophotometers, the AP40WW eliminates manual wavelength selection and calibration drift through factory-locked assay-specific optical channels—each parameter utilizes a dedicated optical path optimized for its respective reaction chemistry and absorbance range (e.g., 610 nm for COD dichromate reduction, 880 nm for TP ascorbic acid–molybdate complex). This design enables rapid, operator-independent analysis without requiring spectroscopic expertise.

Key Features

• Rugged IP67-rated housing with shock-absorbing rubber overmold, certified for operation in ambient temperatures from –10 °C to 50 °C and relative humidity up to 95% non-condensing.
• Integrated conductivity sensor with automatic temperature compensation (ATC), supporting measurement range of 0–200 mS/cm and resolution of 0.01 mS/cm.
• High-capacity rechargeable lithium-ion battery enabling ≥10,000 discrete measurements per full charge under typical field conditions (25 °C, 60% duty cycle).
• Onboard memory storing up to 30,000 test records—including parameter ID, numeric result, unit, date/time stamp (RTC-backed), operator ID, and batch/reagent lot traceability fields.
• Optimized workflow interface with guided on-screen prompts for reagent addition, incubation timing, and cuvette insertion—minimizing procedural errors in uncontrolled environments.
• USB-C port supporting firmware updates and secure data export via encrypted CSV or PDF report generation compliant with ISO/IEC 17025 documentation requirements.

Sample Compatibility & Compliance

The AP40WW accepts standard 16-mm round glass or plastic cuvettes (10-mm pathlength) compatible with OHAUS-certified pre-filled reagent tubes for COD, TP, TN, and NH₃-N assays. All reagent formulations comply with EPA Method 410.4 (COD), EPA Method 365.4 (TP), EPA Method 353.2 (TN), and EPA Method 350.1 (Ammonia), and are validated for use in wastewater influent/effluent, surface water, groundwater, and industrial process streams. The instrument’s metrological performance adheres to ISO 8466-1:2021 (calibration functions for analytical instruments) and supports GLP/GMP audit readiness through full electronic record retention, user access control (3-tier role-based permissions), and FDA 21 CFR Part 11–compliant audit trails for all data modifications.

Software & Data Management

Data transfer and reporting are managed via OHAUS AquaLink™ Desktop Software (v3.2+), which provides bidirectional synchronization, customizable report templates (including facility logo, QA/QC flags, and regulatory disclaimer footers), and automated backup to network drives or cloud storage (AWS S3 or Microsoft Azure Blob). Raw absorbance values, calibration curves, and QC check results are retained alongside final concentration outputs. The software enforces ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) during data archival and supports electronic signature workflows for method validation and release approval.

Applications

• Real-time monitoring of municipal wastewater treatment plant effluent compliance with discharge permits (e.g., NPDES limits for TP & NH₃-N).
• Rapid assessment during environmental incident response (e.g., chemical spill runoff, algal bloom events) where laboratory turnaround time is prohibitive.
• Periodic verification of industrial cooling tower water chemistry to prevent scaling and microbiological fouling.
• Field validation of online analyzers in power generation, pharmaceutical manufacturing, and food & beverage facilities.
• Educational and research deployments requiring robust, low-maintenance instrumentation for longitudinal water quality surveys in remote watersheds.

FAQ

Does the AP40WW require annual recalibration by an authorized service center?
No—factory calibration is stable for 12 months under normal use; users perform daily zero and span verification using supplied calibration standards. Full recalibration is recommended only after physical impact, exposure to extreme thermal cycling, or when QC checks exceed ±5% tolerance.
Can third-party reagents be used with the AP40WW?
Only OHAUS-certified reagent kits and pre-filled tubes are supported; non-OHAUS reagents invalidate assay accuracy claims and void regulatory compliance documentation.
Is the instrument compatible with LIMS integration?
Yes—via AquaLink™ Desktop Software’s HL7 v2.5 and ASTM E1384-compliant export modules, enabling direct ingestion into major laboratory information management systems including Thermo Fisher SampleManager, LabVantage, and Orchard Harvest.
What is the warranty coverage for the AP40WW?
Standard 24-month limited warranty covering parts and labor for defects in materials and workmanship; extended service plans include preventive maintenance and on-site technician support.
