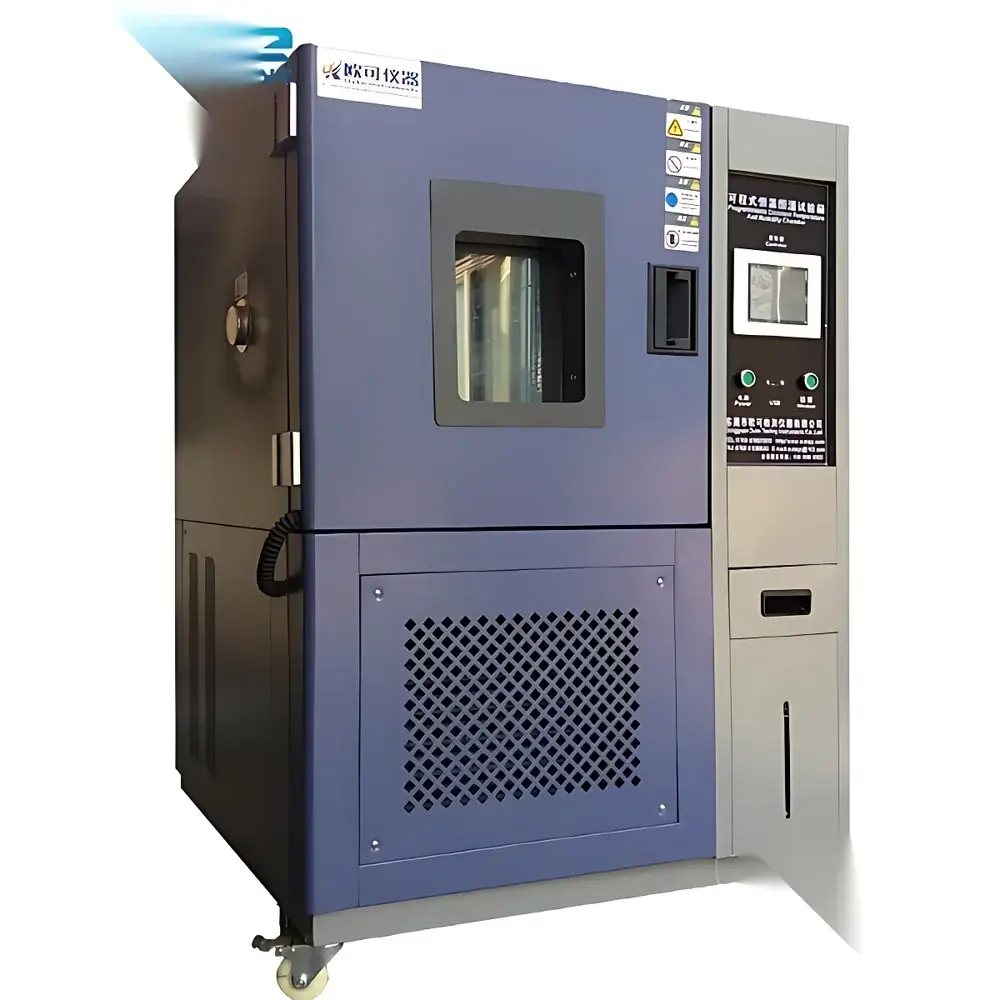

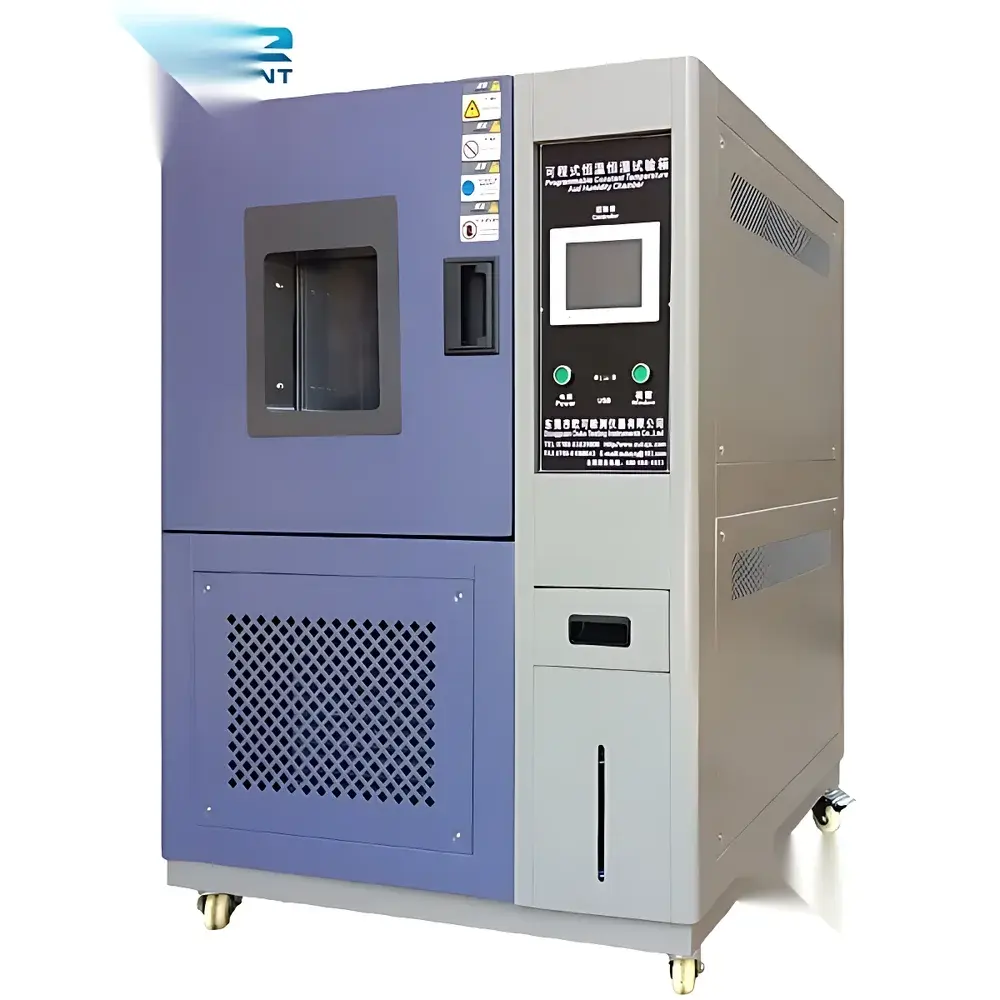

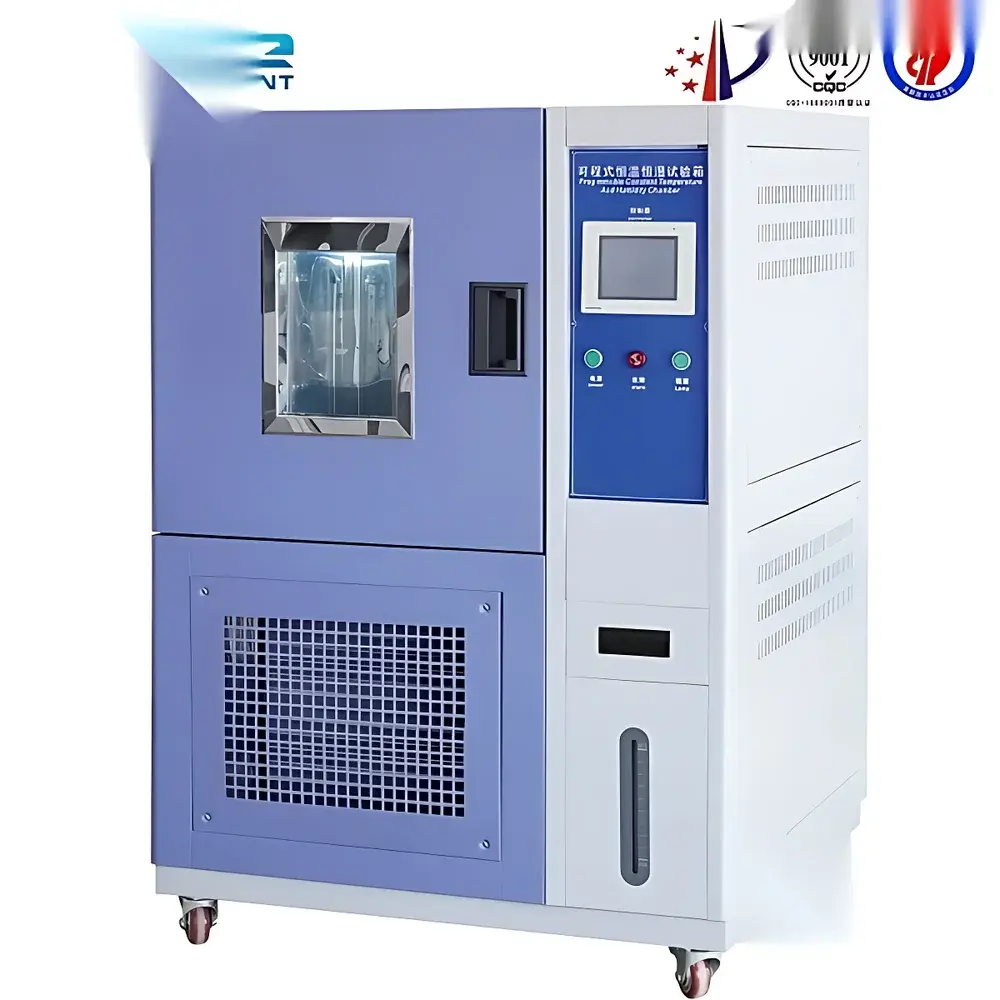

OKE Environmental Test Chamber – High-Low Temperature Chamber Repair & Calibration Service
| Brand | OEM / Third-Party Compatible |
|---|---|
| Origin | Imported |
| Supplier Type | Authorized Distributor & Service Provider |
| Quoted Service Fee | USD 2,950 (excl. parts & on-site labor) |
| Compliance Standards | GB/T 5170.2–1996, GB/T 10592–2008, IEC 60068-3-5, MIL-STD-810G, ASTM D3418 |
Overview
The OKE High-Low Temperature Environmental Test Chamber Repair & Calibration Service is a comprehensive technical support offering designed for laboratories and manufacturing QA/QC facilities operating legacy or in-service environmental test chambers. This service addresses critical operational failures—including temperature uniformity deviation, refrigeration system inefficiency, controller instability, sensor drift, and door seal degradation—while ensuring continued compliance with international environmental testing standards. Unlike generic maintenance packages, this program integrates metrological traceability, root-cause diagnostics, and documented corrective actions aligned with ISO/IEC 17025 principles. The service supports chambers based on dual-stage cascade refrigeration systems, PID-controlled heating circuits, and programmable logic controllers (PLCs) compliant with IEC 61131-3 architecture. It is engineered for precision restoration—not just functional recovery—of thermal performance across the full operational range (–70 °C to +180 °C), with post-repair verification per GB/T 5170.2–1996 temperature uniformity and stability protocols.
Key Features
- Full-system diagnostic assessment including refrigerant pressure profiling, compressor amp-draw analysis, and chamber air distribution mapping using calibrated thermocouple arrays
- Replacement of certified Class A PT100 sensors (IEC 60751) with NIST-traceable calibration certificates
- Controller firmware update and configuration validation against IEC 60751 and IEC 61508 SIL2 requirements
- Door gasket replacement with fluorosilicone elastomer rated for –70 °C to +200 °C continuous operation
- Noise reduction optimization via motor mount recalibration and acoustic insulation reinforcement (meets ISO 7779 noise emission limits)
- Load-testing capability verification: sustained operation under 30%–100% thermal load with real-time power monitoring
Sample Compatibility & Compliance
This service applies to high-low temperature chambers used for environmental stress screening (ESS), accelerated life testing (ALT), and qualification per MIL-STD-810G Method 502.5 (low temperature) and Method 501.6 (high temperature). It supports specimens ranging from PCB assemblies and automotive ECUs to aerospace composite panels and medical device enclosures. All repair procedures adhere to GLP and GMP-aligned documentation practices, including audit-ready service logs, calibration records, and non-conformance reports (NCRs). The restored chamber meets temperature uniformity ≤ ±2.0 °C (at 100 mm from working zone walls) and stability ≤ ±0.5 °C over 2-hour dwell periods—verified per GB/T 5170.2–1996 Annex B and IEC 60068-3-5 Clause 6.2.
Software & Data Management
Post-repair validation includes software-level verification of data logging integrity, alarm threshold consistency, and USB/RS-485 communication handshake reliability. Controller firmware is updated to the latest version supporting CSV export, time-stamped event logging, and password-protected parameter locking. For regulated environments, optional 21 CFR Part 11-compliant audit trail activation is available—enabling electronic signatures, user access control tiers, and immutable change history for all setpoint modifications and calibration events. All calibration certificates are issued with uncertainty budgets calculated per ISO/IEC 17025:2017 Clause 7.6.3.
Applications
This service sustains mission-critical testing in electronics reliability labs (JEDEC JESD22-A108F thermal cycling), automotive Tier-1 supplier validation centers (VW 80101, GM W3177), and aerospace component certification workflows (DO-160 Section 4 & 5). It enables continued use of existing chamber assets during extended procurement cycles for next-generation units, reducing total cost of ownership (TCO) while preserving test method continuity required by ISO 9001:2015 Clause 7.1.5 and AS9100D Clause 8.5.1. Typical use cases include requalification after relocation, performance recovery following extended idle periods, and compliance remediation prior to third-party audit (e.g., TÜV, SGS, UL).
FAQ
Does this service include replacement of major components such as compressors or controllers?
Yes—component-level replacements are included when failure diagnosis confirms irreparable wear or obsolescence; all parts meet original equipment specifications and carry minimum 12-month functional warranty.
Can calibration be performed on-site without chamber removal?
Yes—on-site calibration is standard for chambers ≥ 500 L volume; portable dry-well calibrators (±0.15 °C accuracy) and multi-point thermocouple scanners are deployed with full uncertainty reporting.
Is documentation provided for regulatory submissions (e.g., FDA, FAA)?
Yes—service reports include traceable calibration certificates, preventive maintenance logs, and a Certificate of Conformance stating compliance with applicable clauses of GB/T 10592–2008 and IEC 60068-3-5.
What is the typical turnaround time for chamber repair and certification?
Standard lead time is 5–7 business days from receipt of work order; expedited 72-hour service is available for critical-path applications with prior authorization.
