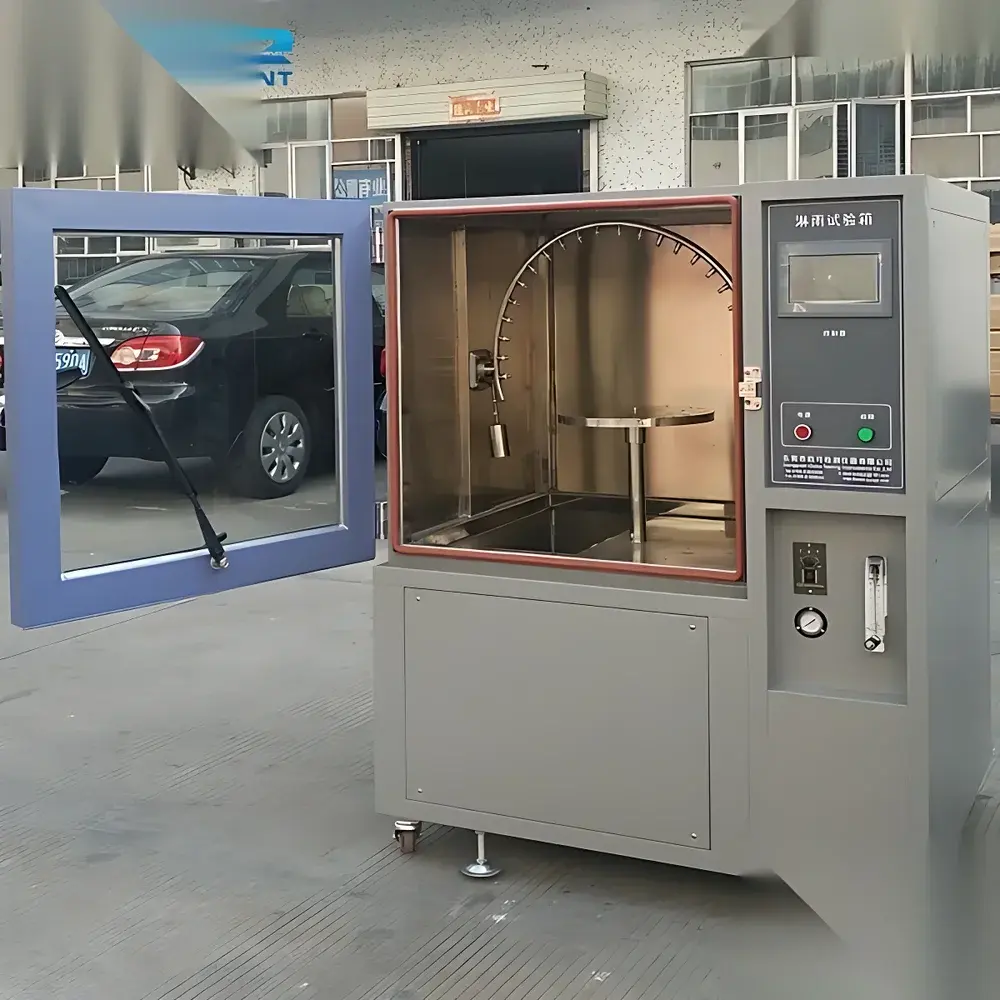

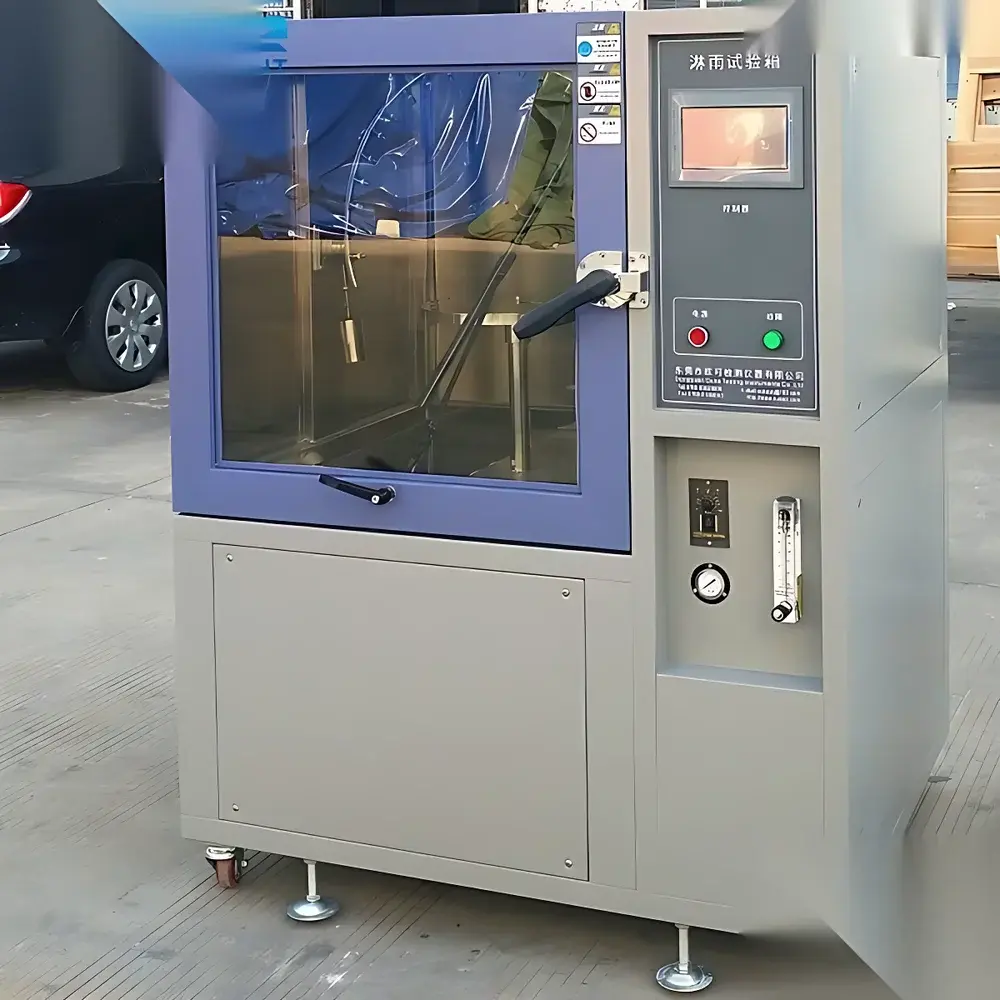

OKE Rain Test Chamber for IPX1–IPX3 Ingress Protection Testing

Overview

The OKE Rain Test Chamber is an engineered environmental test system designed to validate the ingress protection (IP) rating of electrical and electronic enclosures under controlled simulated rainfall conditions—specifically conforming to IPX1 through IPX3 per IEC 60529 and GB/T 2423.38–1995. It implements two standardized test methods: Ra2 (drip box method) for vertical falling water droplets simulating light rain or condensation, and Rb2.2 (hand-held oscillating spray method) for directed water jets at defined pressure, flow rate, and angular incidence. The chamber operates on a closed-loop, filtered water recirculation architecture with calibrated stainless-steel reservoirs, precision nozzles, and real-time monitoring of hydraulic parameters. Its design prioritizes metrological traceability, repeatability across test cycles, and compatibility with laboratory-based GLP-compliant validation workflows.

Key Features

• Two-mode dual-test capability: Independent Ra2 drip-box and Rb2.2 handheld spray configurations, both fully compliant with GB/T 2423.38 Clauses 4.3 and 5.3.3
• Calibrated drip field: Rectangular stainless-steel water tank with 20–25 mm grid-spaced Φ0.4 mm brass nozzles; delivers uniform 200–300 mm/h rainfall intensity over a test area ≥2× sample footprint
• Adjustable height mechanism: Drip box vertical positioning range from 0.2 m to 2.0 m above sample surface, enabling angle-of-incidence control up to ±45° relative to vertical
• Rb2.2 spray assembly: Four independently mounted hand-held nozzles (78° spray cone, 30° upward tilt constraint), each delivering 10 ± 0.5 L/min at 80–100 kPa, with integrated pressure gauges (0–300 kPa) and digital flow monitoring
• Filtered recirculation system: AISI 304 pump, inline 5 µm filtration, temperature-stabilized ambient operation (25 ± 5 °C), and dedicated drainage troughs with sloped floor design
• Integrated control suite: Digital microprocessor timer (0–999.9 min resolution), ambient temperature indicator (0–100 °C), phase-loss protected main power supply, and electromagnetic pump controls with status LEDs

Sample Compatibility & Compliance

The chamber accommodates samples up to 1.5 m in height and 1.2 m in width, mounted on a perforated, adjustable support platform that prevents unintended water accumulation. Fixturing allows for orientation adjustment between 0° and 45° from vertical—critical for validating enclosure sealing integrity under realistic installation angles. All wetted components comply with ASTM A240 and EN 10088-2 standards for corrosion resistance. System-level validation documentation includes calibration certificates for pressure transducers, flow meters, and timer modules, supporting ISO/IEC 17025 traceability. The unit meets structural requirements for laboratory integration under ISO 17025-accredited testing facilities and supports audit-ready records for FDA 21 CFR Part 11–compliant data management when paired with optional software.

Software & Data Management

While the base configuration features standalone analog/digital instrumentation, an optional OKE TestLink™ PC interface module enables automated test sequencing, real-time parameter logging (pressure, duration, ambient temp.), and CSV-exportable reports aligned with ISO/IEC 17025 Annex A.2 requirements. The software enforces user role-based access control, electronic signatures, and full audit trail functionality—including timestamped operator actions, parameter deviations, and system error logs—ensuring compliance with GLP, GMP, and internal quality management systems (QMS). All raw measurement data are stored locally with SHA-256 hash verification to prevent tampering.

Applications

This chamber is routinely deployed in QC laboratories for pre-certification validation of consumer electronics (smartphones, wearables), automotive ECUs, outdoor lighting fixtures, industrial control panels, and medical device housings. It supports failure mode analysis related to gasket compression loss, sealant degradation, and housing seam integrity under cyclic wetting conditions. Research applications include accelerated aging studies correlating IP rating retention with material UV exposure history, thermal cycling, and mechanical vibration profiles. The system is also used by third-party certification bodies (e.g., CNAS-accredited labs) for witness testing under GB 4208–2017 and IEC 60529 harmonized standards.

FAQ

What IP ratings can this chamber verify?

It validates IPX1 (vertical dripping), IPX2 (tilted dripping at 15° increments), IPX3 (oscillating spray or steady stream at 60° from vertical), as defined in IEC 60529 and GB 4208–2017.

Is distilled or deionized water required?

No—clean municipal tap water meeting ISO 3696 Grade 3 specifications is sufficient; however, a 5 µm inline filter is standard to prevent nozzle clogging.

Can the chamber be integrated into an existing environmental test lab network?

Yes—RS-485 Modbus RTU and Ethernet TCP/IP interfaces are available as factory options for SCADA or LIMS integration.

Does the system include calibration documentation?

Each unit ships with NIST-traceable calibration certificates for pressure sensors, flow meters, and timing circuits, valid for 12 months from shipment.

What maintenance is required for long-term reliability?

Quarterly nozzle inspection, biannual filter replacement, and annual verification of drip uniformity per GB/T 2423.38 Annex B—documented in the included Preventive Maintenance Logbook.
