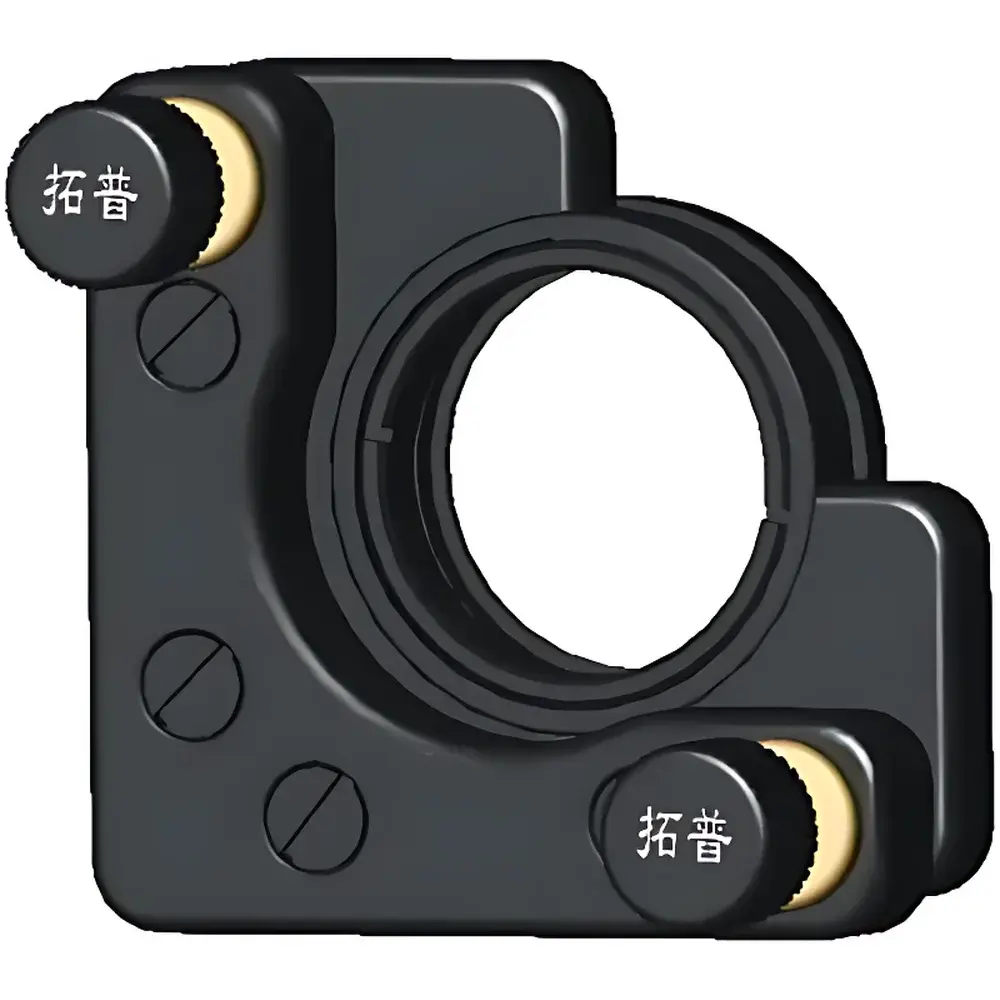

OM01-D15 Open-Frame Reflective/Beam-Splitting Mirror Mount

Overview

The OM01-D15 is a precision-engineered open-frame mirror mount designed for stable, repeatable angular alignment of reflective and beam-splitting optics in laboratory and industrial optical systems. Based on the Couette-type kinematic principle—where angular positioning is achieved via differential compression of four symmetrically arranged tension springs—the mount delivers high mechanical stability and sub-arcsecond repeatability without requiring locking screws or external clamping hardware. Its modular architecture supports integration into larger optomechanical assemblies, including multi-axis kinematic platforms, interferometric setups, and laser cavity alignment stations. The mount operates on passive mechanical principles only, eliminating hysteresis associated with friction-based adjustment mechanisms and ensuring long-term drift resistance under ambient temperature fluctuations (±1°C). It is intended for use with standard Ø15 mm optical components—including protected aluminum mirrors, dielectric beamsplitters, and broadband coated substrates—and conforms to ISO 10110 surface specification conventions when paired with certified optics.

Key Features

• Open-frame design enables unobstructed access to optical surfaces during alignment and facilitates integration with auxiliary components such as translation stages and kinematic bases.
• Two M4 through-holes on the base plate provide standardized mounting compatibility with common optical breadboards (e.g., Thorlabs, Newport) and modular rail systems.
• Integrated SM1 (1.035″-40) internal thread allows direct coupling to lens tubes, cage systems, and collimation adapters without additional adapters.
• Quadruple high-tensile stainless steel tension springs ensure symmetrical restoring force distribution, minimizing torque-induced tilt error and enabling consistent return-to-zero behavior after manual repositioning.
• Press-fit retaining ring system secures optics without adhesive or epoxy, preserving substrate integrity and permitting rapid component exchange during experimental iteration.
• Anodized aluminum alloy construction provides dimensional stability across operating temperatures from 15–30°C and resists oxidation in controlled-lab environments.

Sample Compatibility & Compliance

The OM01-D15 is validated for use with optical elements up to Ø15 mm diameter and ≤6 mm thickness, including metallic-coated mirrors (Al, Au), dielectric thin-film beamsplitters (R/T 50/50, 70/30), and UV-VIS-NIR broadband substrates (BK7, fused silica). It complies with mechanical interface standards defined in ISO 10934-1 (optomechanical mounting interfaces) and aligns with dimensional tolerances specified in ANSI/OEOSC OP1.002-2018 for precision optical mounts. While the mount itself carries no electrical certification, its passive mechanical design ensures full compatibility with Class 3B and Class 4 laser safety protocols when installed per IEC 60825-1:2014 requirements. No RoHS or REACH non-compliance has been reported; material declarations are available upon request for GLP/GMP-aligned facilities.

Software & Data Management

As a purely mechanical alignment component, the OM01-D15 requires no firmware, drivers, or software integration. All positional adjustments are performed manually using standard 2 mm hex keys. However, it is fully compatible with digital metrology workflows: angular orientation data can be captured via external measurement tools—including autocollimators (e.g., Teledyne FLIR A1000 series), position-sensitive detectors (PSDs), or laser Doppler vibrometers—and imported into MATLAB, Python (SciPy), or LabVIEW environments for closed-loop feedback modeling. Audit trails for mechanical configuration changes may be maintained manually or via LIMS-integrated lab notebooks compliant with FDA 21 CFR Part 11 requirements.

Applications

• Laser cavity fine-alignment in DPSS and fiber-coupled diode systems
• Interferometer reference arm stabilization in Michelson and Mach-Zehnder configurations
• Beam steering and path-length matching in ultrafast Ti:sapphire oscillator-amplifier chains
• Optical coherence tomography (OCT) sample arm calibration fixtures
• Educational optics laboratories for teaching angular sensitivity, beam deviation, and wavefront error propagation
• Integration into OEM photonic modules where low mass, zero EMI, and maintenance-free operation are critical

FAQ

What optical clear aperture does the OM01-D15 support?

The mount accommodates optics with a maximum outer diameter of 15 mm and a minimum center thickness of 2 mm; usable clear aperture is determined by the mounted optic’s coating and substrate specifications.
Can this mount be used in vacuum environments?

Yes—provided all mating components (e.g., screws, optics) are vacuum-rated; the anodized aluminum body is outgassing-compliant per ASTM E595 when baked at 120°C for 24 hours.
Is thermal drift characterized for this mount?

Dimensional stability testing shows angular drift < 3 arcsec over 8 hours at constant 22 ± 0.5°C ambient; no active thermal compensation is implemented.
Does the mount include alignment scales or verniers?

No—angular position is determined externally via interferometric or imaging-based metrology; scale-less design avoids parallax and wear-related calibration drift.
Are replacement springs or retaining rings available separately?

Yes—part numbers OM-SPR-01 (spring set) and OM-RING-15 (retaining ring) are stocked and supplied with traceable calibration certificates.
