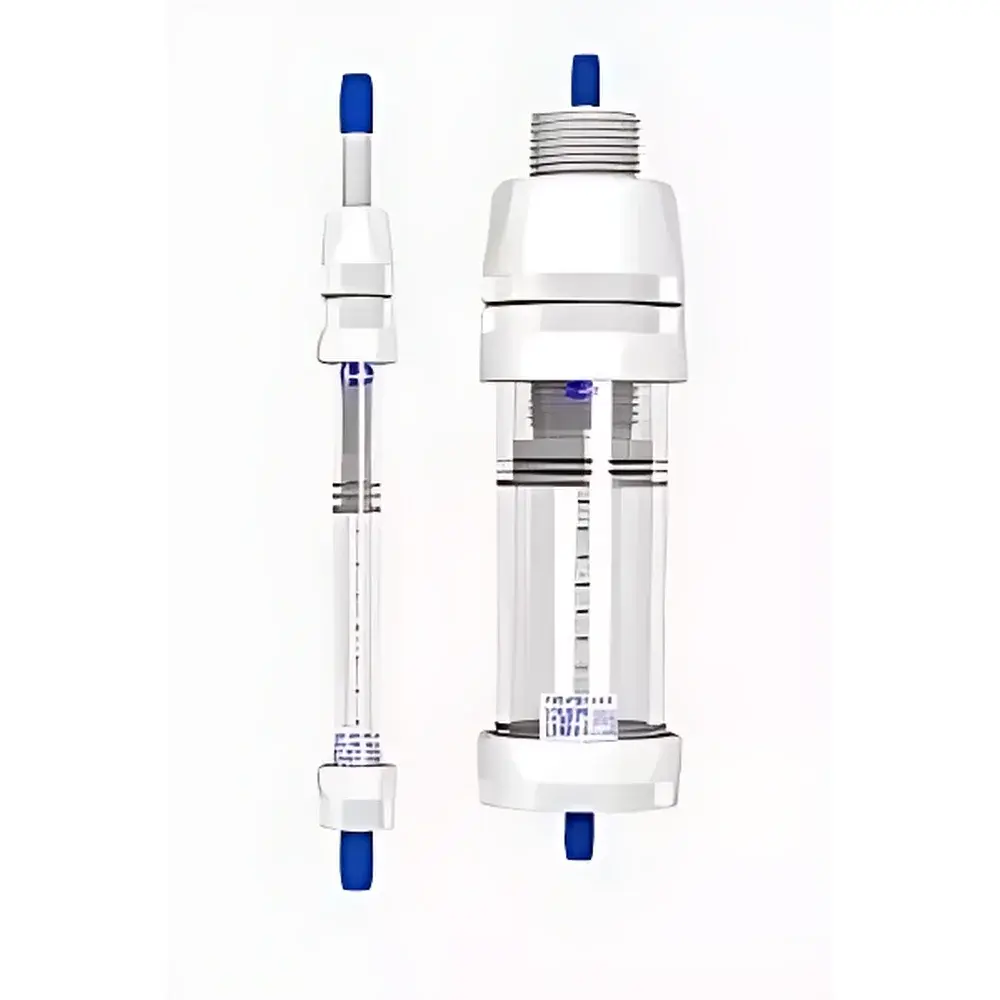

Omnifit EZ Series Axial-Compression Protein Purification Chromatography Column (Model 006EZ-06-15-AF)

Overview

The Omnifit EZ Series Axial-Compression Protein Purification Chromatography Column (Model 006EZ-06-15-AF) is a modular, medium-pressure glass chromatography column engineered for reproducible, scalable protein purification under laboratory and process development conditions. Designed according to classical column chromatography principles—where separation relies on differential partitioning of biomolecules between a stationary phase (e.g., resin bed) and a mobile phase (buffer system)—this column enables precise control over bed geometry, flow uniformity, and mechanical stability during packing and operation. Its borosilicate glass construction ensures optical clarity for visual bed inspection, while the axial-compression mechanism (single-ended adjustable configuration, denoted by suffix “-AF”) maintains consistent resin bed density across repeated runs, minimizing channeling and improving resolution in ion exchange, size exclusion, and affinity chromatography applications.

Key Features

• Modular axial-compression design with single-ended adjustability (one fixed end, one compression-adjustable end), enabling real-time bed height optimization and long-term bed integrity during repeated cycles.
• Borosilicate glass column body (6.6 mm inner diameter × 150 mm length) rated for up to 900 psi (60 bar), compatible with medium-pressure preparative LC systems and gravity-fed or peristaltic pump-driven workflows.
• Chemically resistant construction: PTFE end fittings, polyethylene (PE) frits (10–25 µm pore size), FKM/FPM O-rings, acetal compression nuts, and glass-fiber-reinforced polypropylene (GF-PP) connectors ensure compatibility with aqueous protein purification buffers (e.g., Tris-HCl, phosphate, sodium acetate) and common organic modifiers (e.g., ethanol, isopropanol, acetonitrile ≤20% v/v).
• Wide operational pH range (1–14) and temperature tolerance (4–40 °C) support diverse purification strategies—including denaturing and native conditions—for monoclonal antibodies, recombinant enzymes, fusion proteins, and viral vectors.
• Standardized 1/4-28 UNF threaded connections facilitate rapid integration into existing chromatography manifolds, fraction collectors, and automated purification platforms without custom adapters.

Sample Compatibility & Compliance

The 006EZ-06-15-AF column supports sample loads ranging from microgram-scale analytical prep to multi-milligram purification batches, depending on resin choice and flow rate. It is validated for use with commercially available pre-packed and self-packed resins—including agarose-, silica-, and polymer-based media (e.g., Sepharose CL-4B, Toyopearl, SOURCE, Capto, and POROS). The column’s inert surface and absence of metal leachables meet requirements for Good Laboratory Practice (GLP) and early-stage Good Manufacturing Practice (GMP)-aligned workflows. While not inherently compliant with FDA 21 CFR Part 11, its mechanical traceability (adjustment nut position, visible bed height, pressure monitoring via external transducers) supports audit-ready documentation when integrated into validated purification protocols adhering to ICH Q5A, USP , and ISO 13485 frameworks.

Software & Data Management

As a hardware component—not an instrument with embedded electronics—the 006EZ-06-15-AF operates independently of proprietary software. However, it is fully interoperable with industry-standard chromatography data systems (CDS) including UNICORN (Cytiva), Chromeleon (Thermo Fisher), Empower (Waters), and OpenLab CDS (Agilent). When paired with compatible pumps, UV/Vis detectors, and fraction collectors, users can log pressure, flow rate, UV absorbance at 280 nm, and conductivity in real time. The column’s mechanical repeatability (±0.1 mm bed height adjustment resolution) and pressure-stable architecture contribute to high inter-run reproducibility—critical for method transfer from lab-scale to pilot-scale purification processes.

Applications

• Recombinant protein purification from E. coli, yeast, insect, and mammalian expression systems.
• Polishing steps in mAb downstream processing (e.g., removal of host cell proteins, DNA, aggregates, and leached Protein A).
• Scale-down modeling for process validation: identical geometry and compression behavior enable direct correlation between lab-scale column performance and larger stainless-steel or FRP columns.
• Method development for orthogonal chromatographic techniques—e.g., combining cation exchange (CEX) with hydrophobic interaction chromatography (HIC) using sequential column setups.
• Educational use in graduate-level bioprocessing labs to demonstrate bed compression effects on resolution, backpressure, and mass transfer efficiency.

FAQ

What resin types are compatible with the 006EZ-06-15-AF column?
Standard agarose-based (e.g., Sepharose FF, Capto系列), methacrylate (e.g., Toyopearl), and rigid polymer resins (e.g., POROS) with particle sizes ≥10 µm are mechanically and chemically compatible. Avoid highly compressible soft gels (e.g., Sephadex G-25) unless operated at ≤100 psi.
Can this column be sterilized?
Yes—autoclaving at 121 °C for 20 minutes is permissible for the glass tube and PTFE/PE/FKM components. Acetal and GF-PP parts must be disassembled and sterilized separately via ethylene oxide or gamma irradiation.
How is bed height adjusted and verified?
The adjustable end cap is rotated manually using a calibrated torque wrench; final position is marked on the compression scale etched onto the acetal nut. Bed height is confirmed visually through the transparent glass wall and cross-referenced against the engraved mm scale on the column housing.
Is this column suitable for high-throughput screening?
Yes—its standardized threading, rapid assembly/disassembly (<60 seconds), and compatibility with robotic liquid handlers make it ideal for parallel column screening of resin-ligand combinations in 96-well plate–based purification workflows.
Does the column include a pressure rating chart?
Yes—the manufacturer-provided pressure vs. internal diameter matrix is supplied with each unit and specifies maximum safe operating pressures for all glass diameters (e.g., 900 psi for 6.6 mm ID), based on ASTM E438 Type I Class A borosilicate glass specifications.
