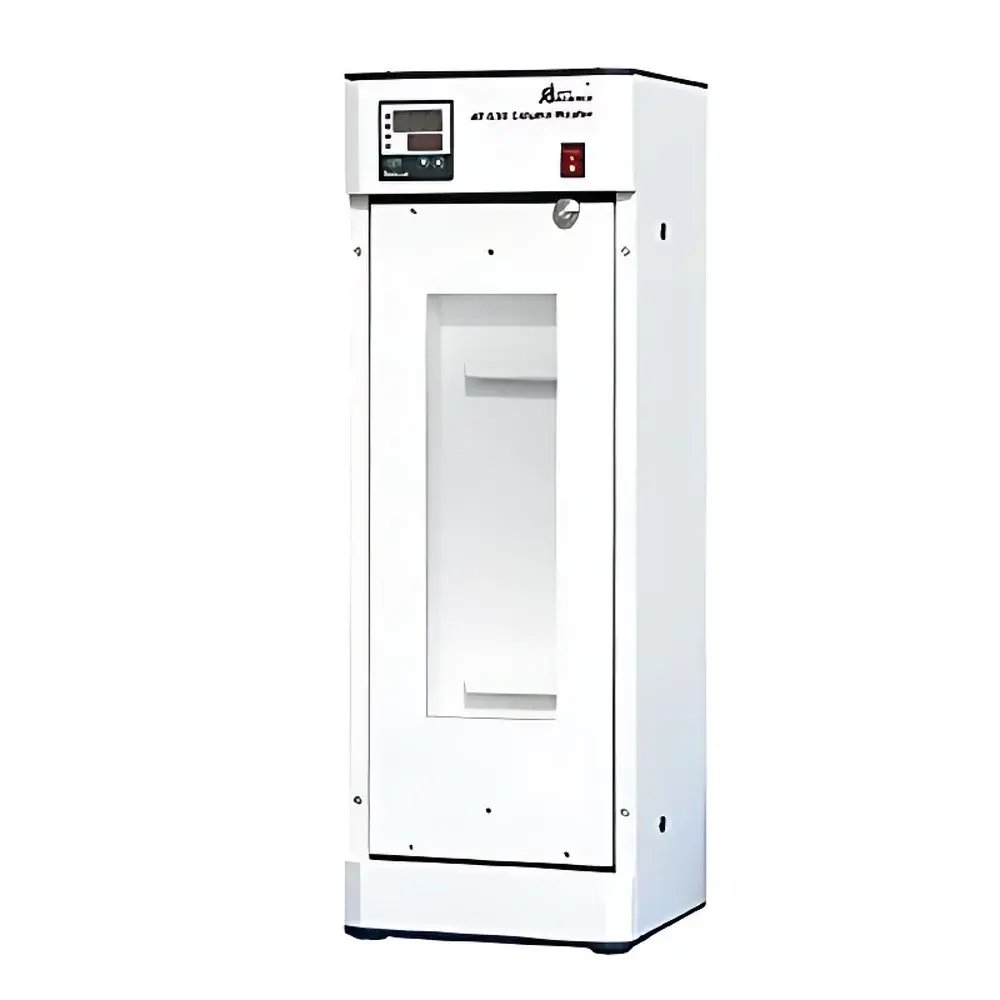

Otosenes AT-630 Prep-Scale Chromatographic Column Oven
| Brand | Otosenes |
|---|---|
| Model | AT-630 |
| Temperature Range | Ambient to 75 °C |
| Over-Temperature Protection | 85 °C |
| Temperature Setting/Display | 3-digit LED, 0.1 °C increment |
| Temperature Accuracy | ±0.3 °C |
| Temperature Stability | ±0.2 °C |
| Chamber Dimensions (H×W×D) | 145 × 380 × 110 mm |
| Power Consumption | 300 W |
| Column Capacity | 1–2 preparative columns |
| Heating Method | Forced-air convection with integrated axial fan |
| Enclosure Design | Magnetic-latch lid with tempered glass viewport |
| Leak Management | Integrated drip tray at chamber base |
| Fluid Path Interface | Chamfered inlet/outlet ports for low-resistance tubing routing |
Overview
The Otosenes AT-630 Prep-Scale Chromatographic Column Oven is an engineered thermal management system designed specifically for preparative liquid chromatography applications where precise, uniform, and stable column temperature control is critical to method reproducibility and separation fidelity. Unlike ambient-condition operation—where fluctuations in laboratory temperature directly affect retention time, peak shape, and resolution—the AT-630 maintains a tightly regulated thermal environment across the full length of large-diameter preparative columns (e.g., 20–50 mm ID). Its forced-air convection architecture—featuring a high-efficiency axial fan and optimized internal airflow path—ensures rapid thermal equilibration and minimal radial or axial temperature gradients (<0.2 °C deviation under steady-state conditions), satisfying the thermodynamic requirements of gradient-elution methods and multi-column parallel purification workflows.
Key Features
- Forced-air convection heating system with adjustable-speed axial fan for uniform thermal distribution across extended column lengths
- High-precision microprocessor-based PID controller with dual 3-digit LED display: one for setpoint, one for real-time chamber temperature; resolution 0.1 °C, accuracy ±0.3 °C
- Robust aluminum alloy chamber with black anodized finish, dimensioned at 145 mm (H) × 380 mm (W) × 110 mm (D) to accommodate standard preparative columns up to 300 mm in length
- Magnetic-latch hinged lid enabling tool-free access while maintaining structural rigidity and thermal seal integrity
- Tempered borosilicate glass viewport (120 × 80 mm) integrated into the front panel for real-time visual monitoring of column packing integrity, solvent flow, and potential air bubble formation
- Drip tray recessed into the chamber base—positioned to capture incidental leakage during column installation, mobile phase switching, or system priming—preventing fluid migration onto bench surfaces or adjacent instrumentation
- Chamfered fluid port transitions (inlet and outlet) with ≥R3 radius to minimize tubing kinking, pressure drop, and mechanical stress on PEEK, stainless steel, or fluoropolymer capillaries
Sample Compatibility & Compliance
The AT-630 is compatible with all common preparative HPLC and flash chromatography column formats, including stainless steel, glass, and composite-bodied columns ranging from 10 mm to 50 mm internal diameter. It supports both upright and horizontal orientation configurations (with optional mounting brackets), and accommodates standard 1/4″-28 and 10-32 threaded fittings. While not certified to IEC 61010-1 or UL 61010B as a standalone safety-certified appliance, its design adheres to fundamental electrical safety principles—including double insulation, thermal cut-off at 85 °C, and grounded chassis construction—and is routinely deployed in GLP-compliant laboratories conducting method development per USP , ICH Q2(R2), and ASTM D7923-19 guidelines for chromatographic stability-indicating assays.
Software & Data Management
The AT-630 operates as a stand-alone analog-controlled instrument with no embedded digital interface or remote communication protocol (e.g., RS-232, USB, or Ethernet). Temperature setpoint and real-time reading are displayed locally via dual LED modules; no data logging, audit trail, or electronic record functionality is provided. For labs requiring 21 CFR Part 11 compliance, integration with external validated data acquisition systems (e.g., LabArchives, Empower 3, or custom SCADA platforms) is achievable via optional analog voltage output (0–5 V DC proportional to chamber temperature), subject to third-party validation per organizational SOPs.
Applications
- Stabilization of preparative reversed-phase separations involving thermally sensitive biomolecules (e.g., peptides, monoclonal antibody fragments)
- Improving resolution and reducing analysis time in chiral preparative chromatography by operating above ambient but below denaturation thresholds
- Enabling reproducible scale-up from analytical to preparative methods through strict thermal parameter transfer
- Supporting continuous chromatography systems (e.g., SMB, MCSGP) where column temperature homogeneity directly impacts switching timing and fraction purity
- Facilitating method robustness testing per ICH Q5C and Q5E by isolating thermal variability as an independent factor
FAQ
Does the AT-630 support external temperature probe input for column-jacket feedback control?
No. The unit relies solely on internal chamber air-sensing thermistor feedback; it does not accept external probe signals or offer PID tuning parameters.
Can the AT-630 be operated in a ventilated fume hood?
Yes, provided ambient humidity remains below 80% RH and ambient temperature stays within 15–30 °C. Airflow from the hood must not impinge directly on the viewport or fan intake.
Is the drip tray removable for cleaning?
Yes—the stainless steel drip tray slides out horizontally from the front-access slot beneath the chamber floor.
What is the warm-up time to reach 60 °C from 25 °C ambient?
Approximately 12–15 minutes under no-load conditions; add 3–5 minutes when housing two 250 × 21.2 mm columns with solvent-filled tubing.
Are replacement glass viewports available as spare parts?
Yes—part number OT-AT630-VIEWGLASS is stocked and supplied with mounting gasket and retaining frame.
