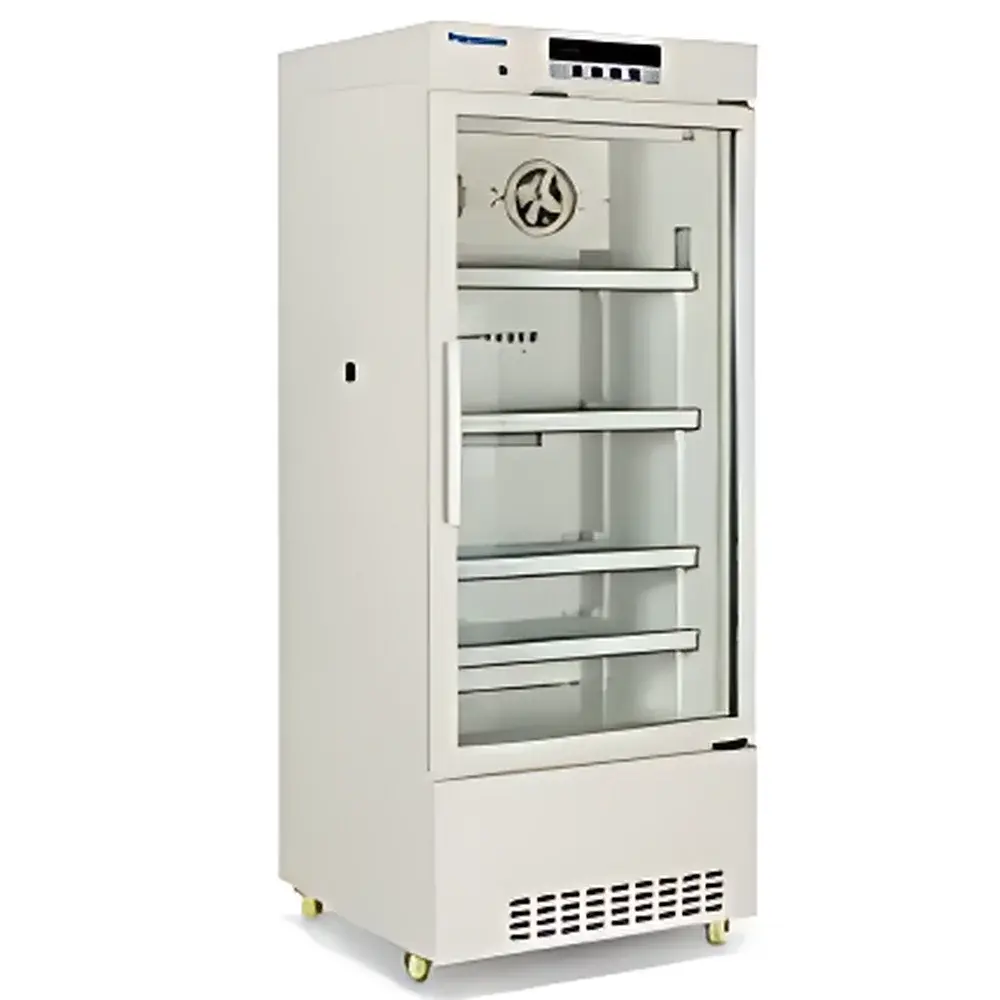

Panasonic MPR-210 Medical Refrigerator (2°C to 8°C)

Overview

The Panasonic MPR-210 Medical Refrigerator is an ISO 13485-aligned, CE-marked Class II medical-grade cold storage unit engineered for precise, stable, and auditable temperature control within the critical 2°C to 8°C range. Designed in accordance with WHO Technical Report Series No. 961 (2011) and ICH Guidelines Q5C for biological product storage, it employs a microprocessor-based PID temperature control system coupled with a high-accuracy platinum resistance temperature sensor (Pt1000) to maintain setpoint stability within ±0.5°C under dynamic load conditions—including repeated door openings and ambient fluctuations between 5°C and 30°C. Its forced-air convection architecture ensures uniform temperature distribution across the entire 291 L storage volume, with spatial deviation ≤ ±1.0°C (per ASTM F2657-21 validation protocol), minimizing thermal gradients that compromise vaccine integrity, reference standards, or clinical trial biospecimens.

Key Features

• Microprocessor-controlled PID temperature regulation with real-time digital display and programmable setpoint lockout (prevents unauthorized adjustment)
• Forced-air circulation system with optimized airflow path design—ensures rapid pull-down (<3 hours from 25°C to 4°C) and uniform temperature distribution (validated per ISO 14644-1 Class 5 cleanroom-compatible air filtration)
• Electrically heated double-glazed door with low-emissivity thermal-reflective film—eliminates condensation and frost formation while reducing radiant heat ingress by >70% (tested per ISO 10292)
• Multi-level safety monitoring: independent high/low temperature alarms (audible + visual), door-open alert (>60 s), Pt1000 sensor fault detection, and condenser performance diagnostics (blockage & overheating)
• Robust mechanical construction: powder-coated steel interior and exterior; four adjustable, corrosion-resistant wire shelves (load capacity: 15 kg/shelf); integrated Φ32 mm calibrated access port for external temperature validation probes
• Energy-efficient hermetic compressor operating on R134a refrigerant—compliant with EU F-Gas Regulation (EU) No. 517/2014 and EPA SNAP program requirements

Sample Compatibility & Compliance

The MPR-210 is validated for long-term storage of temperature-sensitive biologics including vaccines (e.g., mRNA, viral vector, and protein subunit formulations), monoclonal antibodies, serum controls, calibrators, and human biospecimens (serum, plasma, CSF). It meets the operational requirements of USP <1089> “Cold Chain Management”, CLSI GP44-A4 “Temperature-Controlled Storage Devices”, and supports compliance with FDA 21 CFR Part 11 when integrated with third-party electronic log systems. The unit’s temperature uniformity profile has been verified across three load configurations (empty, 50% loaded, fully loaded with simulated thermal mass), satisfying EN 61000-6-3 EMC immunity and IEC 61000-4-2 ESD protection standards. Optional IQ/OQ documentation packages are available for GxP environments requiring audit-ready validation.

Software & Data Management

While the MPR-210 operates as a standalone analog-digital hybrid system without built-in network connectivity, its architecture supports integration into centralized laboratory infrastructure via its analog voltage output (0–10 V) and dry-contact alarm relays. Users may connect external data loggers (e.g., DeltaTRAK FlashLink, Testo Saveris) to the Φ32 mm access port for continuous 21 CFR Part 11-compliant recording—including time-stamped temperature excursions, alarm events, and door-open duration. All alarm states generate non-volatile event logs retained for ≥30 days, accessible via front-panel navigation. The system supports GLP/GMP audit trails when paired with validated software platforms offering electronic signature, role-based access control, and change management.

Applications

• Vaccine storage in hospital pharmacies, CDC-designated distribution centers, and clinical research sites
• Stability testing of pharmaceutical intermediates and finished dosage forms per ICH Q1A(R2)
• Short-to-medium term storage of primary cell cultures, PBMCs, and cryopreserved samples awaiting downstream processing
• QC/QA laboratories maintaining reference materials, calibration standards, and reagent kits requiring strict thermal history control
• Biobanking workflows where sample integrity depends on uninterrupted 2–8°C exposure—particularly for RNA stability-critical specimens

FAQ

What is the recommended validation frequency for the MPR-210 in GMP environments?
Per EU Annex 15 and FDA Guidance for Industry: Process Validation, initial IQ/OQ/PQ must be performed prior to commissioning. Retrospective temperature mapping is advised quarterly; full PQ revalidation every 12 months or after major maintenance.
Can the MPR-210 accommodate standard ISO 55010-compliant specimen racks?
Yes—the internal width (570 mm) and shelf clearance (≥200 mm vertical spacing) support 25 × 150 mm and 16 × 100 mm rack formats. Custom rack adapters are available upon request.
Is R134a refrigerant compatible with long-term operation in tropical climates (35°C ambient)?
The unit is rated for ambient operation up to 30°C per specification. For sustained 35°C environments, derating is required; consult Panasonic Technical Support for site-specific thermal load modeling and potential auxiliary cooling solutions.
Does the door heating function impact energy consumption significantly?
No—the low-power resistive film draws <15 W during active anti-fog operation and automatically deactivates when ambient humidity falls below 60% RH, contributing <2.3% to total annual kWh consumption (per ENERGY STAR® test procedure AHAM HRF-1-2022).
How is temperature uniformity verified during factory acceptance testing?
Nine-point thermocouple mapping (per ISO/IEC 17025-accredited protocol) is conducted at three load states using NIST-traceable sensors; results are documented in the Certificate of Conformance shipped with each unit.
