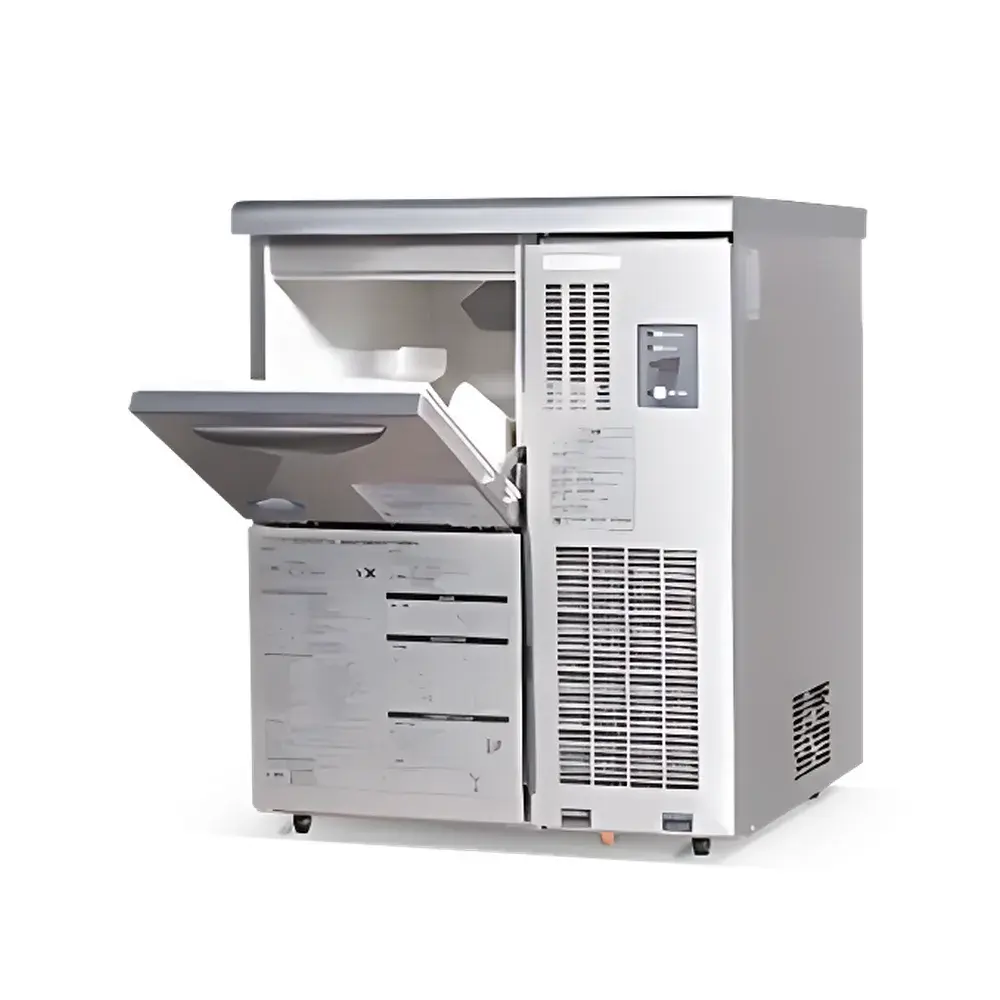

Panasonic Sanyo SIM-F140BDL Laboratory Flake Ice Maker

Overview

The Panasonic Sanyo SIM-F140BDL is a high-precision, laboratory-grade flake ice maker engineered specifically for demanding scientific, clinical, and pharmaceutical applications where consistent ice morphology, microbiological safety, and operational reliability are critical. Unlike conventional cube or nugget ice systems, the SIM-F140BDL employs a dual-screw extrusion freezing principle: water is evenly distributed onto a vertically oriented, refrigerated stainless steel drum; as the drum rotates, thin layers of water freeze rapidly and are scraped off by precision-ground stainless blades to produce uniform, dry, low-density flake ice (typically 1–2 mm thick, 5–15 mm diameter). This process ensures minimal surface moisture (<0.5% residual water content), significantly reducing meltwater accumulation in sample containers and preventing thermal bridging during cold-chain preservation. The unit operates within a tightly controlled thermal envelope—maintaining ice discharge temperature at approximately –5°C ± 1.5°C under standard conditions—enabling reproducible cooling kinetics essential for enzymatic assays, tissue processing, PCR setup, and biobanking workflows.

Key Features

• Patented dual-screw extrusion system with hardened stainless steel drum and self-sharpening ice knives, rated for ≥18,000 hours of continuous motor operation
• World-first antimicrobial integration: silver-ion infused polymeric surfaces on all high-touch components—including door handles, ice scoops, storage bin interior, and water reservoir—certified to JIS Z 2801:2012 for >99.9% reduction of Escherichia coli and Staphylococcus aureus
• Integrated mold-inhibiting formulation in insulation foam and gasket materials, validated per ASTM G21 for resistance to Aspergillus niger, Penicillium funiculosum, and other common environmental fungi
• Compact footprint (600 × 600 × 800 mm) optimized for benchtop or under-bench installation in ISO Class 5–8 cleanrooms and GLP-compliant laboratories
• Microprocessor-based control system with real-time diagnostics, fault logging, and configurable alarm thresholds for water flow, temperature deviation, and compressor overload
• Modular refrigeration unit designed for field-replacement without system evacuation—reducing downtime and service complexity

Sample Compatibility & Compliance

The SIM-F140BDL produces sterile-ready flake ice suitable for direct contact with biological specimens, reagents, and diagnostic samples. Its dry ice output minimizes dilution risk in cryopreservation media and eliminates condensation-induced contamination pathways common with wetter ice forms. All wetted surfaces comply with FDA 21 CFR 177.2420 (food-contact polymers) and ISO 8573-1:2010 Class 2 compressed air purity standards (when used with optional inline filtration). The unit meets IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and its construction adheres to ISO 13485:2016 design controls for medical device support equipment. Antimicrobial certification documentation is provided per batch for audit readiness in FDA 21 CFR Part 11, EU Annex 11, and WHO GMP environments.

Software & Data Management

While the SIM-F140BDL operates via embedded firmware (no external PC dependency), its diagnostic interface supports RS-485 Modbus RTU communication for integration into centralized lab infrastructure monitoring platforms (e.g., LabVantage, Thermo Fisher SampleManager). Event logs—including cycle start/stop timestamps, compressor run hours, temperature excursions, and error codes—are stored internally for ≥12 months and exportable via USB-C port in CSV format. Audit trails conform to ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and support 21 CFR Part 11 electronic signature readiness when paired with validated identity management systems.

Applications

• Cold chain maintenance for blood bank units, platelet concentrates, and stem cell suspensions during transport and preparation
• Temperature-sensitive assay setup—including ELISA, Western blotting, and NGS library prep—where rapid, localized cooling prevents enzyme denaturation
• Pathology specimen fixation and grossing, where flake ice provides conformal thermal contact without mechanical pressure on fragile tissues
• Pharmaceutical stability testing chambers requiring supplemental dry ice loading without introducing humidity fluctuations
• QC/QA labs performing USP sterility testing, where low-moisture ice reduces false-positive microbial growth risk from meltwater carryover

FAQ

What is the expected service life of the ice-making drum and scraper assembly?
Under normal laboratory use (≤10 cycles/day), the drum and blade set maintains dimensional stability and surface finish for ≥5 years; replacement kits include recalibration certificates traceable to NIST standards.
Can the SIM-F140BDL be connected to a reverse osmosis (RO) water supply?
Yes—provided feed water conductivity remains ≤10 µS/cm and particulate load is <1 ppm; an inline 5 µm sediment filter and activated carbon cartridge are mandatory per Panasonic Technical Bulletin ICE-TB-2023-04.
Is remote monitoring available via Ethernet or Wi-Fi?
No native Ethernet/Wi-Fi module is included; however, third-party industrial gateways (e.g., Siemens Desigo CC, Honeywell Experion PKS) may interface via Modbus RTU over RS-485 with proper isolation and protocol mapping.
Does the unit meet UL or CSA safety certification for North American installations?
The SIM-F140BDL carries PSE Mark (Japan) and CE Mark (EU); for U.S./Canada deployment, it requires field evaluation per UL 61010-1 by a Nationally Recognized Testing Laboratory (NRTL) prior to commissioning.
How is ice quality verified during routine qualification?
Users perform quarterly verification using ASTM F2697-21: measuring flake thickness (micrometer), bulk density (ASTM D1895), and residual moisture (gravimetric loss at 25°C/40% RH for 30 min), with acceptance criteria defined in internal SOP-LAB-ICE-001.
