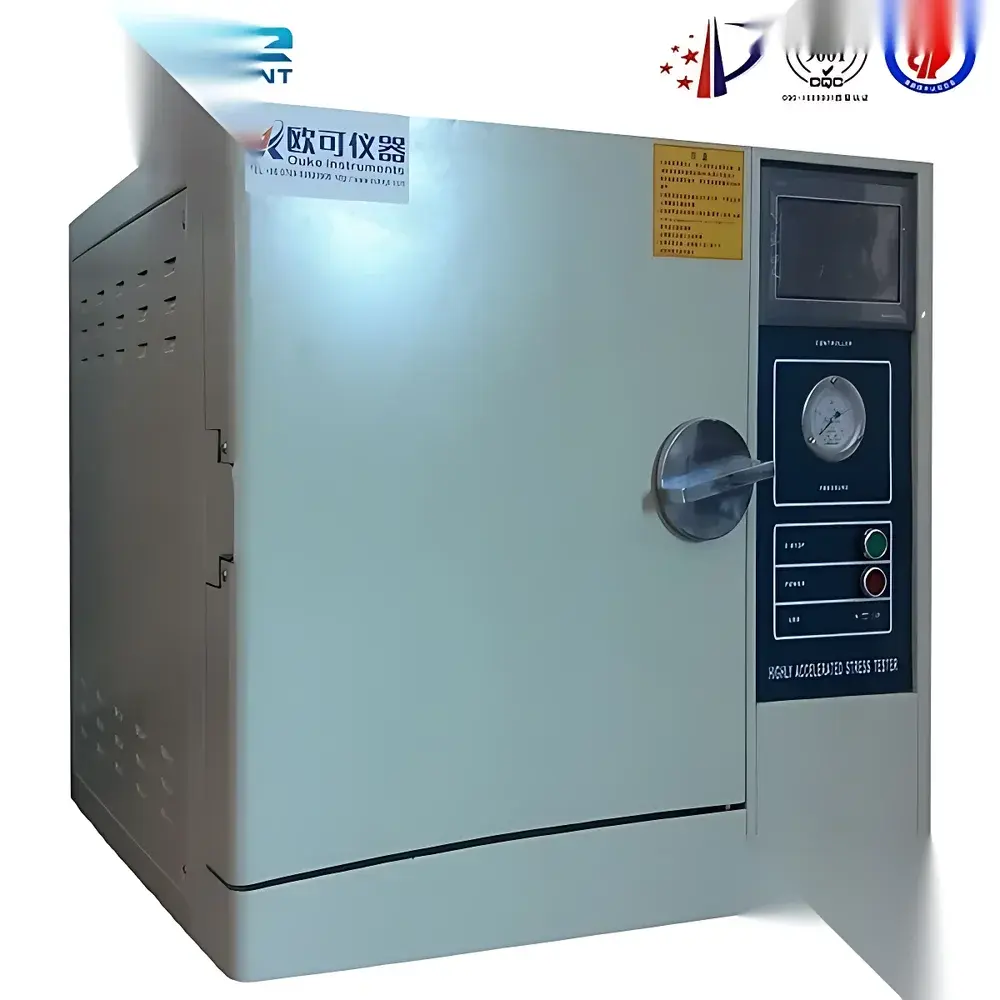

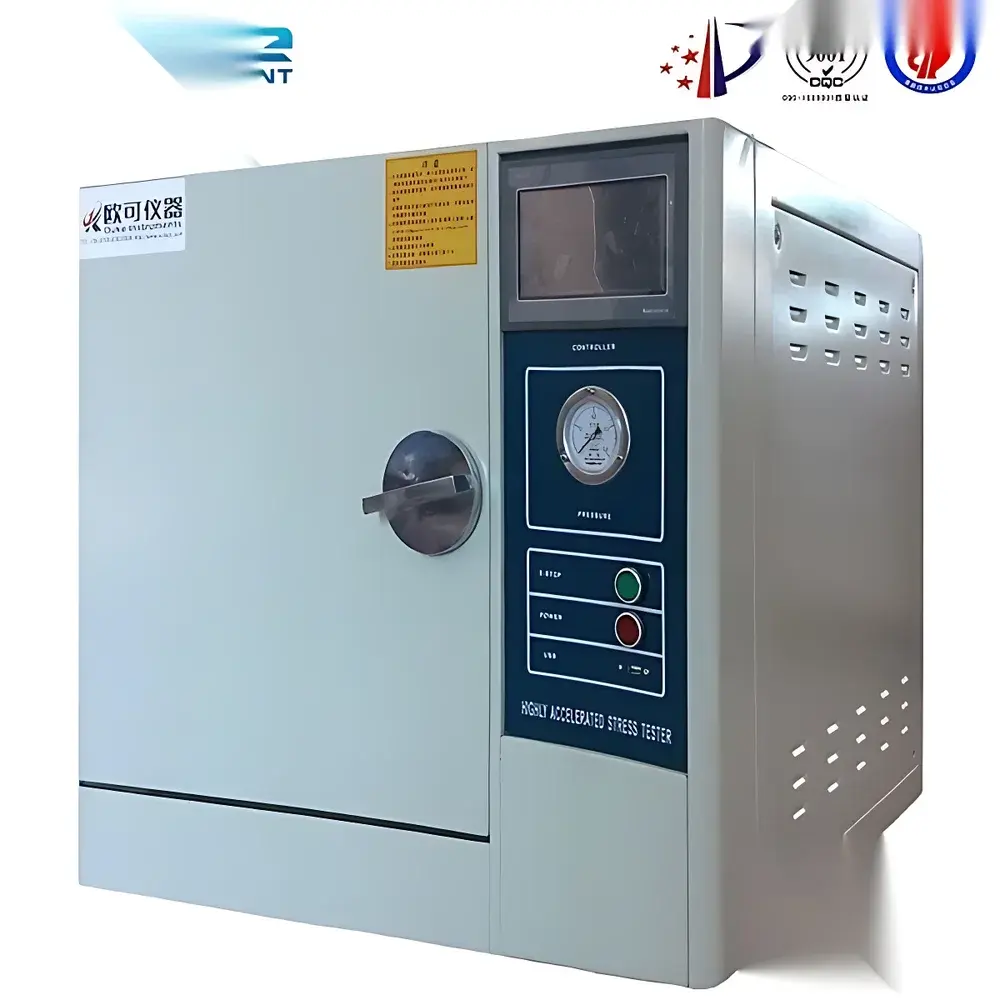

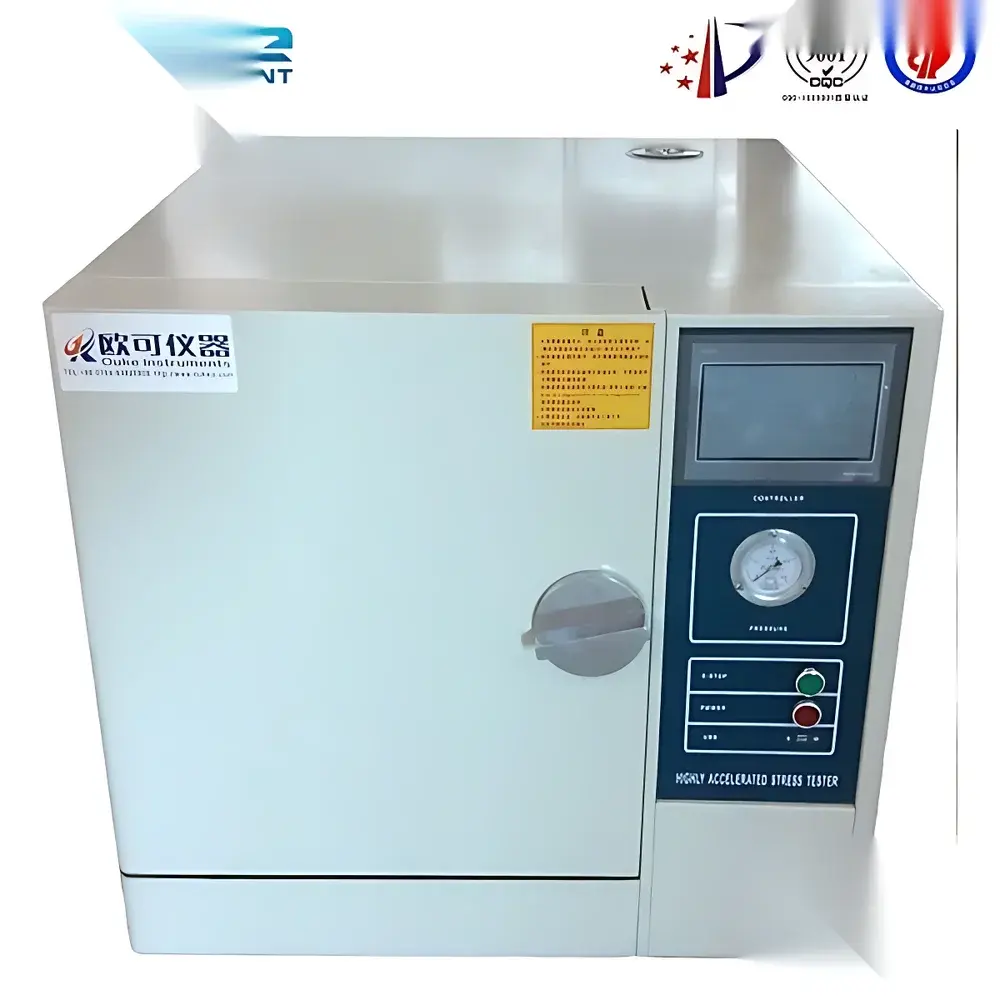

PCT Accelerated Aging Test Chamber

Overview

The PCT Accelerated Aging Test Chamber is a precision-engineered environmental stress test system designed for highly controlled pressure-cooker testing (PCT) of electronic components, semiconductor packages, PCBs, and hermetically sealed devices. It operates on the principle of saturated steam aging under elevated temperature and pressure conditions—typically 121°C / 2 atm (100% RH) or 130°C / 2.65 kg/cm²—to accelerate moisture ingress and evaluate long-term reliability against moisture-induced failure mechanisms such as wire bond corrosion, delamination, popcorning, and intermetallic growth. Its cylindrical chamber geometry conforms to industrial autoclave standards, minimizing thermal gradients and ensuring uniform steam distribution while eliminating condensate drip onto test specimens—a critical requirement for high-fidelity accelerated life testing per JEDEC JESD22-A102, MIL-STD-883 Method 1008, and AEC-Q200 qualification protocols.

Key Features

• Cylindrical inner chamber (Ø300 mm × L500 mm) fabricated from 3 mm-thick SUS316 stainless steel, providing superior corrosion resistance against acidic condensate and chloride-laden steam environments.
• Dual-path high-reliability solenoid valves reduce operational downtime and extend service intervals compared to single-valve configurations.
• Separate steam generation chamber isolates heating elements from the test zone, preventing direct thermal shock and localized overheating of samples—critical for maintaining structural integrity during extended exposure cycles.
• Patented cold-air purge system evacuates ambient air before pressurization and continuously removes non-condensable gases during operation, improving pressure stability, repeatability, and test validity across multiple runs.
• Integrated water-level sensing with automatic refill capability enables uninterrupted 400-hour continuous operation without manual intervention or chamber opening.
• Two-stage pressure safety architecture combines microprocessor-monitored digital pressure control with redundant mechanical pressure relief valves, compliant with ASME BPVC Section VIII Div. 1 design criteria for pressure vessels.
• Ergonomic door locking mechanism replaces legacy rotary handles with low-torque cam-action latches, reducing operator fatigue and ensuring consistent sealing force across repeated cycles.

Sample Compatibility & Compliance

The chamber accommodates standard JEDEC trays, 8”/12” wafer carriers, and custom fixtures for IC packages (QFP, BGA, CSP), MEMS sensors, medical implants, and automotive-grade connectors. All wetted surfaces meet ISO 13485 material compatibility requirements for medical device validation. The system supports full traceability for GLP/GMP-regulated environments: time-stamped temperature/pressure logs, audit-ready event history, and configurable pass/fail thresholds aligned with IPC-J-STD-020, IEC 60068-2-66, and USP package integrity testing guidelines. Structural integrity has been verified via hydrostatic testing at 6 kg/cm² (85 psi), exceeding nominal operating pressure by >125%.

Software & Data Management

The embedded microcontroller features a real-time PID algorithm optimized for saturated steam thermodynamics, using PT-100 platinum resistance thermometers calibrated to ±0.3°C accuracy. LED-based interface displays setpoint, actual temperature, elapsed time, and pressure in dual units (kg/cm² / psi). Optional RS-485 Modbus RTU output enables integration into LabVIEW, MATLAB, or MES platforms for automated data acquisition, statistical process control (SPC), and 21 CFR Part 11-compliant electronic records—including user authentication, change logging, and digital signature support when paired with validated third-party software.

Applications

This chamber is routinely deployed in semiconductor qualification labs for HAST (Highly Accelerated Stress Test) screening, automotive electronics validation per AEC-Q100, aerospace component humidity resistance verification (MIL-STD-202G), and packaging integrity assessment of sterile medical devices. It also serves pharmaceutical secondary packaging studies where moisture permeation through barrier films must be quantified under worst-case storage conditions. Research institutions utilize it for fundamental studies on hygroscopic swelling kinetics in polymer composites and nanoscale diffusion barriers.

FAQ

What is the maximum allowable test duration without refilling the water reservoir?

Up to 400 hours of continuous operation is achievable with initial fill volume and ambient humidity ≤60% RH.

Does the chamber support programmable multi-step profiles (e.g., ramp-hold-ramp)?

No—this model implements fixed-point saturated steam control; programmable ramping requires optional external controller integration via Modbus.

Is calibration documentation included with shipment?

Yes—factory calibration certificate for PT-100 sensor and analog pressure gauge is provided, traceable to NIST standards.

Can the chamber be used for unsaturated humidity testing (e.g., 85°C/85% RH)?

No—this unit is specifically engineered for saturated steam environments only; unsaturated conditions require dedicated climate chambers.

What maintenance intervals are recommended for the steam generator heater?

Annual inspection and descaling of the finned-tube heater is advised when using deionized water; tap water usage requires quarterly maintenance.
