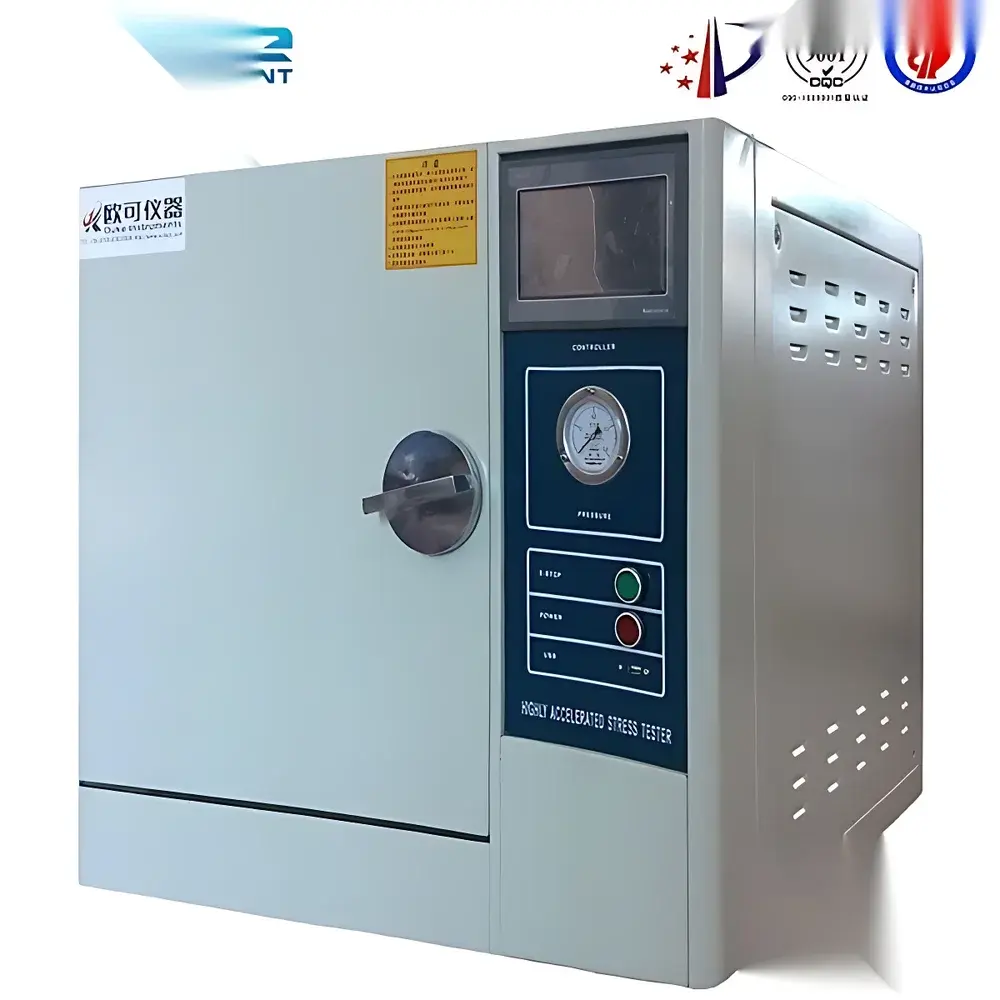

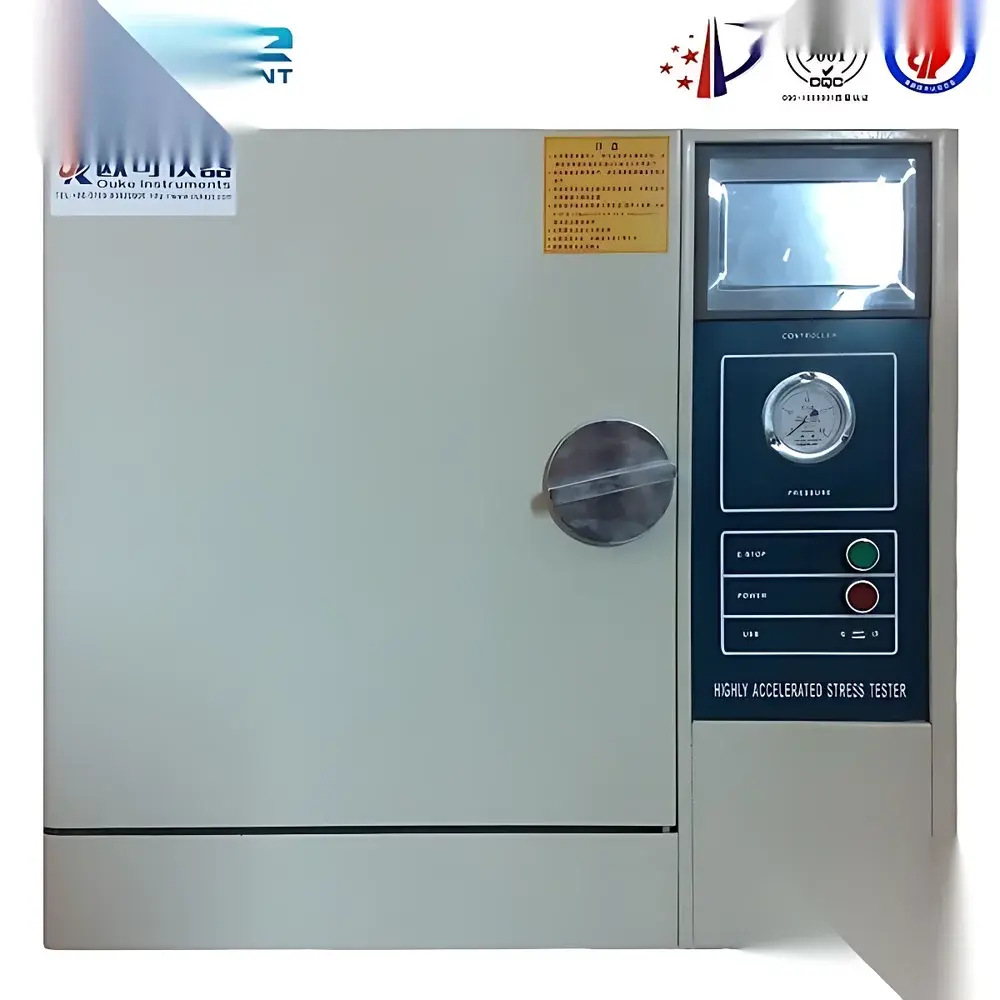

PCT Accelerated Aging Test Chamber (HAST Chamber) – Generic Industrial Grade
| Brand | Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | General Distributor |
| Price | USD 4,100 (approx.) |
| Temperature Range | 110°C / 132°C (saturated steam) |
| Humidity Range | 100% RH |
| Pressure Range | 0.5–2.0 kg/cm² (max safety capacity: 3.5 kg/cm²) |
| Test Duration | 0–999 hours |
| Temperature Uniformity | ±2.0°C |
| Temperature Control Accuracy | ±0.5°C |
| Temperature Resolution | 0.1°C |
| Ramp Time to 132°C | ≤35 min |
| Pressure Ramp Time to 2.0 kg/cm² | ≤40 min |
Overview
The PCT Accelerated Aging Test Chamber—commonly referred to as a Highly Accelerated Stress Test (HAST) chamber—is an industrial-grade environmental stress screening system engineered for reliability qualification of electronic components, PCB assemblies, and hermetically sealed packages under elevated temperature, saturated humidity, and controlled pressure conditions. Unlike conventional temperature-humidity chambers, this chamber operates on the principle of saturated steam pressurization, enabling accelerated moisture diffusion into encapsulated devices without condensation-induced mechanical stress. It replicates long-term field failure mechanisms—including corrosion, intermetallic growth, wire bond degradation, and delamination—in significantly compressed test durations (hours vs. months), making it indispensable for AEC-Q200-compliant automotive electronics validation, MIL-STD-883 Method 1030 qualification, and JEDEC JESD22-A110 stress testing protocols.
Key Features
- Robust stainless-steel inner chamber with reinforced door sealing and dual-safety pressure relief valves compliant with ASME BPVC Section VIII requirements.
- Microprocessor-based PID controller with SSR output for precise saturated steam temperature regulation (±0.5°C accuracy, 0.1°C resolution).
- Dual independent monitoring: LED digital display for real-time temperature/time tracking; analog pressure gauge with calibrated scale for immediate visual verification of chamber pressure (0.5–2.0 kg/cm² range).
- Controlled pressurization system utilizing high-purity deionized water vapor generation—eliminating mineral deposits and ensuring repeatable saturation conditions.
- Thermal uniformity maintained at ±2.0°C across working volume per IEC 60068-3-5, verified via NIST-traceable thermocouple mapping.
- Programmable test duration from 0 to 999 hours with automatic shutdown and data logging capability (via optional RS-485 interface).
Sample Compatibility & Compliance
This chamber accommodates standard JEDEC trays (JEDEC MO-178), 24-pin DIP carriers, QFP/QFN packages up to 20 mm × 20 mm, and small-form-factor PCBAs (<300 mm × 300 mm). It supports both unsaturated (uHAST) and saturated (sHAST) test modes per JESD22-A118 and JESD22-A110. The system meets or exceeds key international standards including ISO/IEC 17025 calibration traceability requirements, ASTM E1545 (moisture permeation), IEC 60749-28 (integrated circuit reliability), and MIL-STD-202G Method 108 (humidity resistance). All operational parameters—including pressure ramp rate, dwell stability, and thermal soak profiles—are documented in accordance with GLP audit requirements for regulated industries.
Software & Data Management
While the base configuration features standalone microcontroller operation, optional firmware upgrades support Modbus RTU communication (RS-485) for integration into centralized lab management systems. Logged data includes timestamped temperature, pressure, and elapsed time—exportable as CSV for post-test statistical analysis (e.g., Weibull lifetime modeling, Arrhenius acceleration factor calculation). For FDA-regulated environments, optional 21 CFR Part 11-compliant software modules provide electronic signatures, audit trails, and user access control—fully aligned with GMP documentation expectations for medical device component validation.
Applications
- Qualification of plastic-encapsulated microcircuits (PEMs) per MIL-PRF-38535 Class K requirements.
- Failure mode analysis of solder joint integrity in lead-free assemblies exposed to moisture-induced popcorning.
- Accelerated life testing of MEMS sensors, optocouplers, and power modules under combined thermo-hygro-mechanical stress.
- Process validation for conformal coating adhesion and underfill curing efficacy in high-reliability aerospace electronics.
- Supplier qualification audits requiring third-party witnessed HAST execution per AEC-Q100 Rev H Annex C.
FAQ
What is the maximum allowable sample load volume relative to chamber capacity?
Maximum recommended loading is 40% of internal chamber volume to ensure adequate steam circulation and thermal uniformity per IEC 60068-3-5 Annex B.
Does the chamber support ramp-hold-ramp (RHR) pressure profiles?
Standard configuration supports only fixed-pressure dwell; RHR profiles require optional programmable pressure module (P/N HAST-PM-2024).
Is calibration certification included with shipment?
Yes—a factory-issued calibration report traceable to NIST standards is provided, covering temperature sensor linearity and pressure transducer accuracy at three points within the operating range.
Can the chamber be operated continuously for >72 hours without intervention?
Yes—designed for unattended operation up to 999 hours, with integrated overpressure cutoff, dry-run protection, and thermal cutout redundancy.
What maintenance intervals are recommended for long-term reliability?
Deionized water reservoir cleaning every 50 test hours; O-ring inspection and lubrication every 200 hours; full pressure vessel inspection per ASME guidelines every 24 months.
