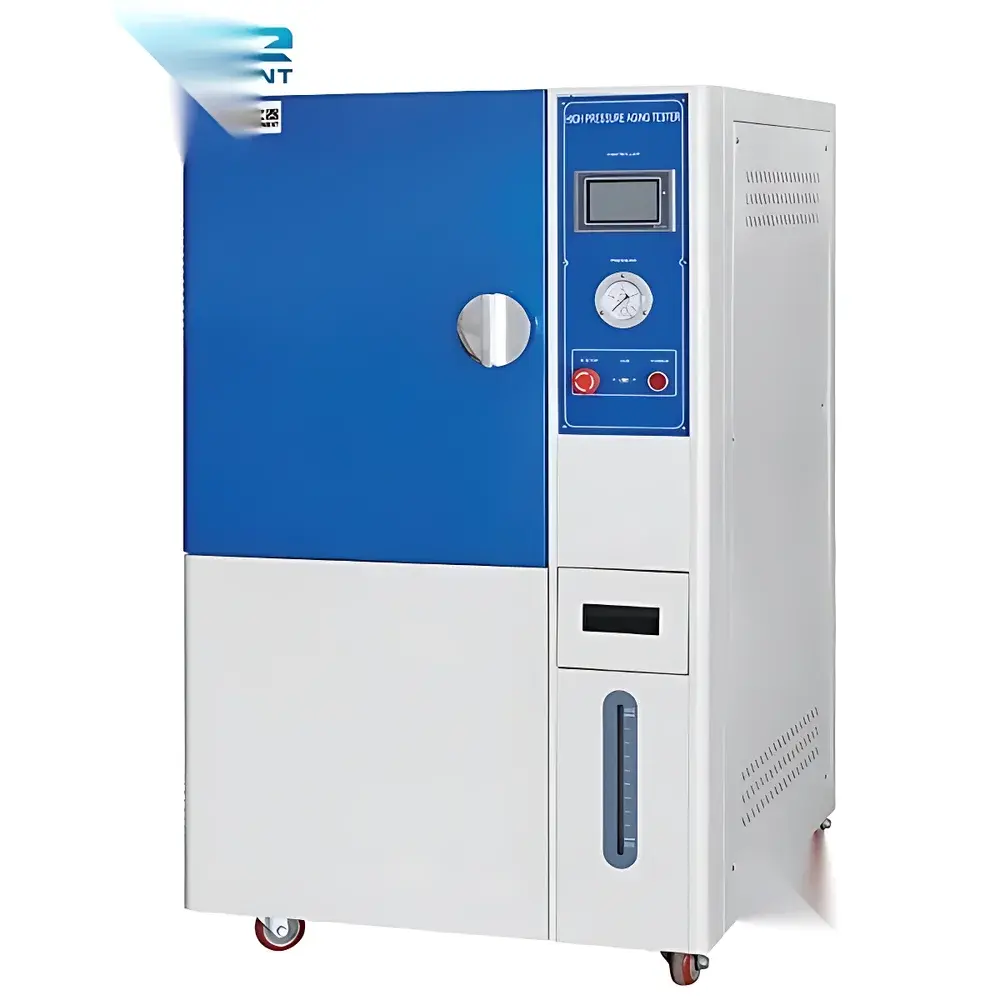

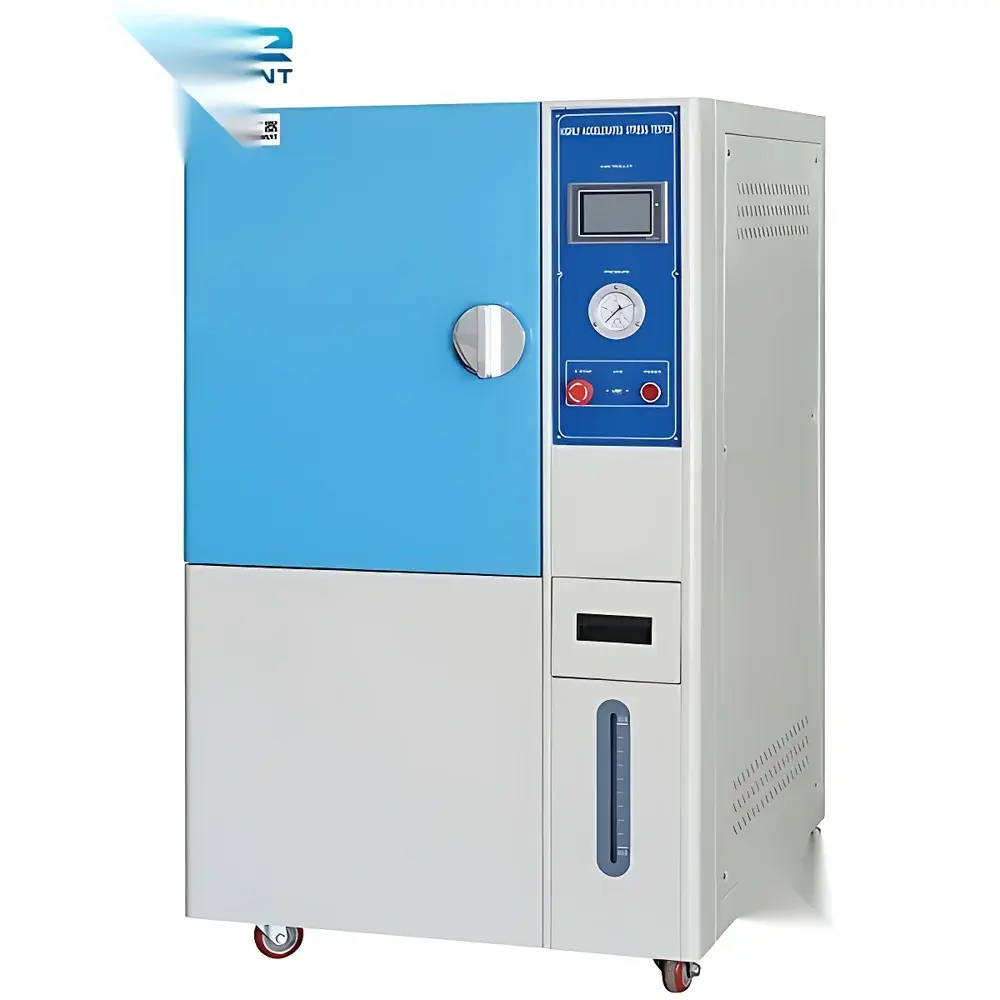

PCT Accelerated Life Aging Chamber
| Brand | Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | General Distributor |
| Price | USD 4,100 (approx.) |
Overview
The PCT Accelerated Life Aging Chamber is a precision-engineered environmental stress screening system designed to perform Pressure Cooker Test (PCT) protocols in accordance with international reliability standards such as JEDEC JESD22-A102, MIL-STD-883 Method 1008, and IEC 60068-2-66. It subjects electronic components, semiconductor packages, PCB assemblies, and hermetic or semi-hermetic encapsulated devices to accelerated aging under controlled high-pressure saturated steam conditions—typically at 121 °C and 2 bar (absolute) pressure—to evaluate moisture ingress resistance, intermetallic growth, wire bond integrity, and package delamination mechanisms. Unlike conventional humidity chambers, this system integrates vacuum pre-conditioning, precise steam saturation control, and real-time pressure–temperature correlation to replicate thermodynamic conditions that accelerate failure modes associated with moisture-induced corrosion and popcorning during reflow soldering. Its robust pressure vessel architecture complies with ASME BPVC Section VIII Div. 1 design principles for Class I pressure equipment.
Key Features
- Stainless-steel cylindrical inner chamber with seamless, radius-formed lining—eliminates sharp corners and prevents direct impingement of latent heat from saturated steam onto test specimens, ensuring uniform thermal distribution and minimizing localized overheating.
- Vacuum pre-purge cycle prior to pressurization: evacuates ambient air and replaces it with filtered ambient air (particulate <1 µm), maintaining internal cleanliness per ISO Class 8 (Class 100,000) requirements for contamination-sensitive reliability testing.
- Critical limit monitoring system with dual independent safety interlocks: continuously monitors chamber pressure, temperature, and door seal integrity; triggers automatic depressurization and visual/audible fault indication upon deviation beyond preset thresholds.
- Self-sealing elastomeric gasket design: utilizes pressure-assisted sealing—gasket compression increases proportionally with internal pressure—reducing mechanical wear and extending service life significantly compared to static compression seals.
- Integrated low-consumption water management: optimized condensate recovery and insulated reservoir design enables continuous operation up to 200 hours on a single fill, reducing operator intervention and improving test continuity.
Sample Compatibility & Compliance
The chamber accommodates standard JEDEC trays (e.g., 336-pin QFP, 15×15 mm BGA, SOIC-8), wafer-level packages, and small-form-factor modules (≤300 mm × 300 mm footprint). All internal surfaces are electropolished 316L stainless steel, compliant with USP for extractables profiling. The system meets CE marking requirements for Machinery Directive 2006/42/EC and Pressure Equipment Directive 2014/68/EU. Optional validation kits support IQ/OQ documentation aligned with GLP and GMP environments, including traceable NIST-calibrated PT100 sensors and audit-ready calibration logs.
Software & Data Management
Equipped with a touchscreen HMI controller featuring embedded real-time logging (1-second resolution), the system records pressure (±0.01 bar), temperature (±0.2 °C), and vacuum level (±0.1 kPa) throughout each test cycle. Data export is supported via USB 2.0 or Ethernet (Modbus TCP) for integration into LIMS or MES platforms. Optional software add-ons provide automated report generation per ASTM E2927-22, including pass/fail evaluation against user-defined acceptance criteria, statistical process control (SPC) charts, and electronic signature capability compliant with FDA 21 CFR Part 11.
Applications
This chamber supports qualification and reliability screening across aerospace avionics (DO-160 Section 25), automotive electronics (AEC-Q200), medical device packaging (ISO 11607), and high-reliability microelectronics. Typical use cases include: moisture sensitivity level (MSL) grading per J-STD-020, solderability validation after storage, lead-free assembly process qualification, and accelerated corrosion testing of conformal-coated assemblies. It is routinely deployed in third-party test labs accredited to ISO/IEC 17025 and in internal QA/QC labs supporting PPAP submissions.
FAQ
What is the maximum allowable operating pressure and temperature?
The chamber is rated for continuous operation at 2.0 bar (abs) and 121 °C, with safety relief valves set at 2.5 bar (abs) per PED 2014/68/EU.
Does the system support automated test sequencing?
Yes—the controller supports multi-step profiles including vacuum hold, steam ramp, dwell, and controlled depressurization with programmable rates.
Is external cooling water required?
No—integrated air-cooled condenser and refrigeration circuit eliminate dependency on facility cooling water, enabling standalone installation.
Can the chamber be validated for ISO/IEC 17025 accreditation?
Yes—full validation documentation packages (IQ/OQ/PQ templates), sensor calibration certificates, and uncertainty budgets are available upon request.
What electrical supply specifications are required?
Three-phase AC 380 V ±10%, 50 Hz ±0.5 Hz, with protective earth grounding (<4 Ω) and dedicated circuit breaker (≥32 A).
