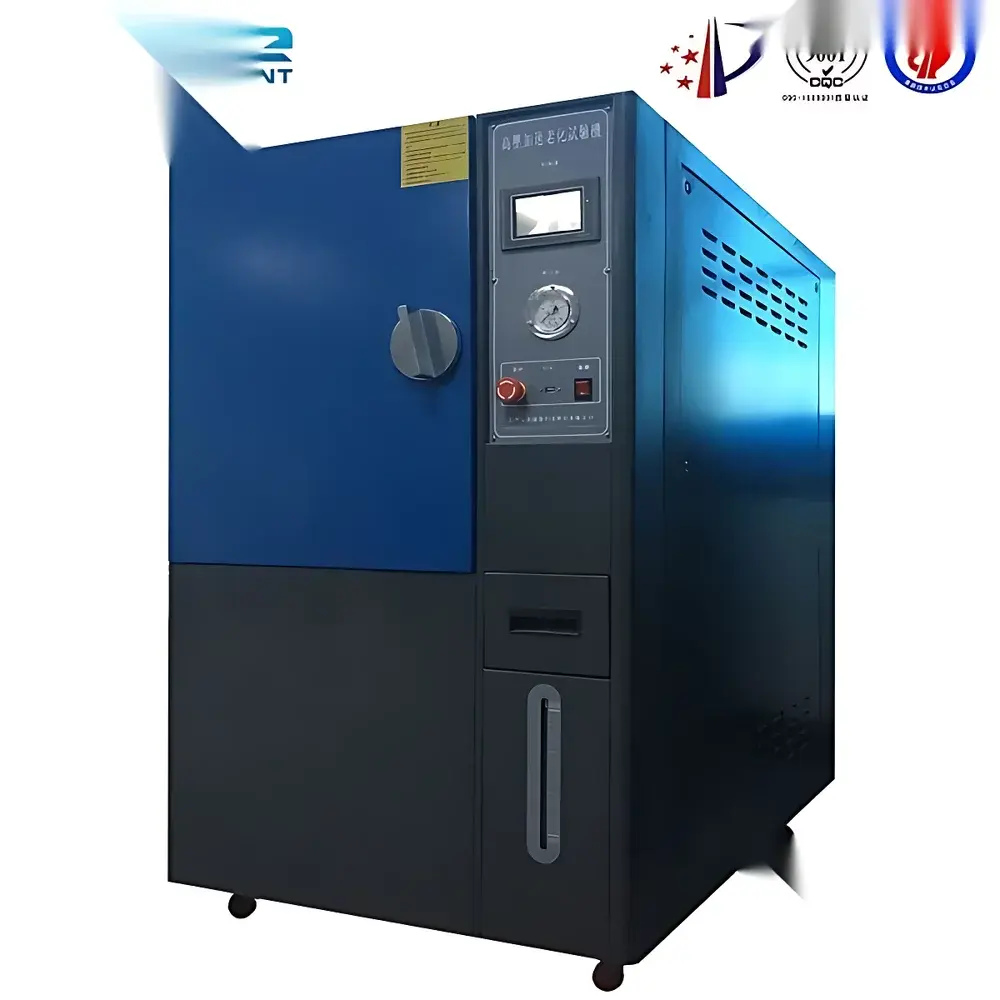

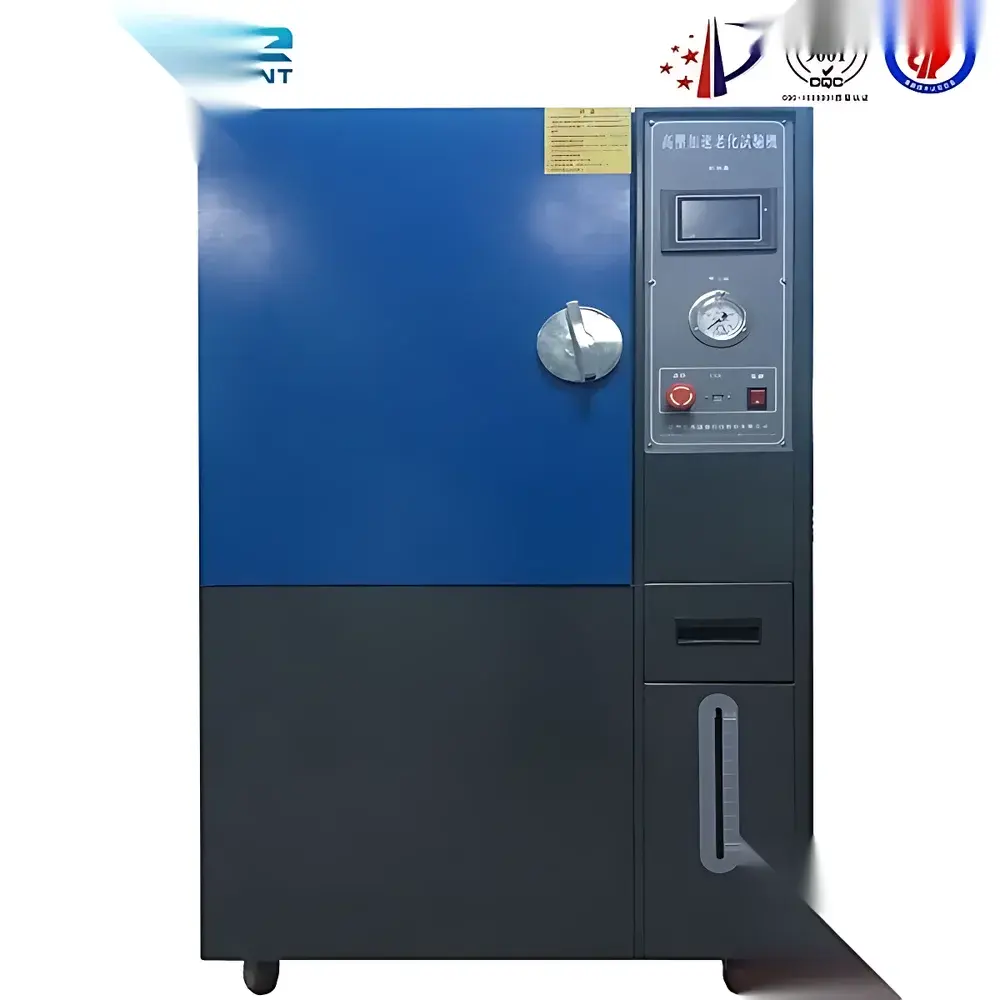

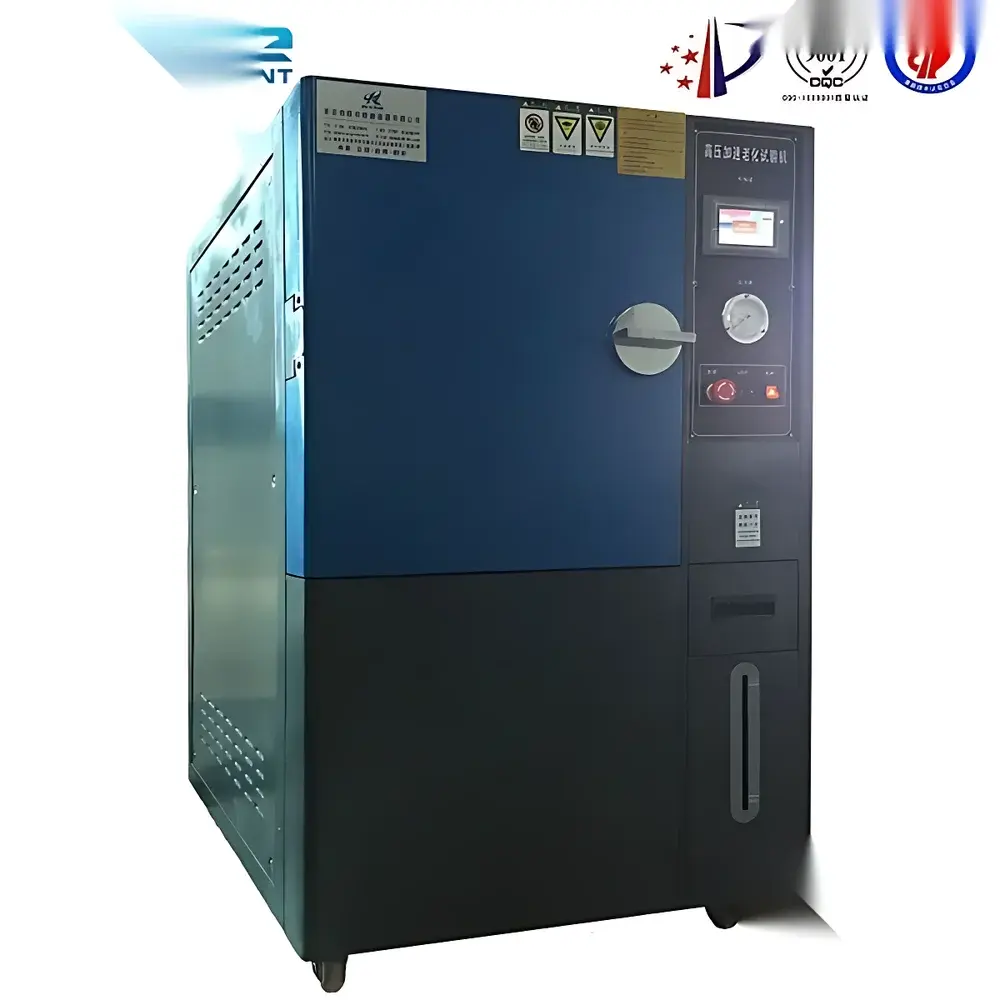

PCT High-Pressure Accelerated Aging Test Chamber

Overview

The PCT High-Pressure Accelerated Aging Test Chamber is an engineered environmental stress test system designed for highly accelerated stress testing (HAST) and pressure cooker test (PCT) protocols in accordance with industry-standard reliability qualification methods—including JEDEC JESD22-A102F, JESD22-A110E, and IEC 60068-2-66. It subjects electronic components, PCBs, IC packages, LED modules, and hermetically sealed devices to elevated temperature, high relative humidity, and controlled overpressure conditions—accelerating moisture diffusion and electrochemical degradation mechanisms such as corrosion, wire bond lift-off, and die attach delamination. Unlike conventional damp heat testing (e.g., 85 °C / 85 % RH), the PCT chamber operates at saturated steam conditions above atmospheric pressure (up to 2.0 kg/cm² gauge), enabling significantly reduced test durations—typically 96–168 hours—to replicate years of field-level moisture-induced failure modes under controlled, repeatable laboratory conditions.

Key Features

• Microprocessor-based 7-inch touch HMI with P.I.D. algorithm for precise saturated steam temperature regulation (±0.5 °C stability) across 105–135 °C range; optional 143 °C configuration available for ultra-accelerated evaluation.
• Integrated pressure monitoring via analog pressure gauge (±0.05 kg/cm² resolution) and digital LED timer with programmable soak duration (1 min to 999 h).
• Cylindrical stainless-steel inner chamber (AISI 304) conforming to ASME BPVC Section VIII Div. 1 design principles for pressure containment; seamless weld construction ensures long-term structural integrity and leak-tightness.
• Radial inner liner geometry minimizes direct impingement of latent heat from condensing steam onto test specimens—reducing thermal shock and improving test uniformity per IEC 60068-3-5.
• Optimized water management architecture: low-consumption vapor generation system supports continuous operation up to 200 hours per fill; automatic water-level detection triggers visual/audible alarm and halts heating if reservoir falls below safe threshold.
• Interlocked safety door mechanism: mechanical and pneumatic pressure-sensing lock prevents opening when internal pressure exceeds ambient by >0.05 kg/cm²; dual-action latch and ergonomic handle comply with ISO 13857 clearance requirements.

Sample Compatibility & Compliance

The chamber accommodates a broad spectrum of sample geometries—from bare die and QFN packages to multi-layer PCBAs, OLED lighting modules, and automotive-grade connectors—via adjustable stainless-steel shelves (standard two-tier configuration). All models meet CE marking requirements for machinery (2006/42/EC) and electromagnetic compatibility (2014/30/EU). The test methodology aligns with critical reliability standards including MIL-STD-883 Method 1030.8, AEC-Q200 stress verification, and IPC-9701A performance classification for printed board assemblies. Optional calibration documentation traceable to NIST standards supports GLP/GMP audit readiness.

Software & Data Management

While the base unit operates via embedded controller, optional RS-485 or Ethernet interface enables integration with LabVIEW, MATLAB, or enterprise MES platforms via Modbus RTU/TCP protocol. Real-time logging of chamber pressure, saturation temperature, and elapsed time is supported at 1-second intervals. Data export in CSV format facilitates post-test statistical analysis (Weibull, Arrhenius modeling) and compliance reporting. Audit trail functionality—including operator ID, parameter changes, and alarm events—meets FDA 21 CFR Part 11 requirements when paired with validated software add-ons.

Applications

• Qualification of moisture sensitivity level (MSL) for plastic-encapsulated microcircuits per J-STD-020.
• Failure mode acceleration for solder joint fatigue, tin whisker growth, and mold compound blistering.
• Validation of conformal coating integrity and hermetic seal performance in MEMS sensors and RF modules.
• Reliability screening of medical electronics subject to ISO 14971 risk management frameworks.
• Process capability assessment of reflow profiles and underfill cure cycles in advanced packaging lines.

FAQ

What is the maximum allowable test pressure for standard configurations?

Standard units are rated for continuous operation at 0–2.0 kg/cm² (gauge); 3.0 kg/cm² variants require reinforced vessel certification and are supplied under special order.
Does the chamber support automated data recording without external PC?

The embedded controller stores time-stamped pressure and temperature logs internally (up to 30 days at 10-sec interval); USB export is available via optional module.
Can custom internal dimensions be fabricated?

Yes—custom cylindrical chambers (Φ200–Φ1000 mm × H300–H1200 mm) are engineered per client specifications, with full ASME code documentation and third-party hydrostatic test reports.
Is distilled water mandatory for operation?

Deionized or ASTM Type II water is strongly recommended to prevent scale buildup on heating elements and pressure transducers; tap water use voids the 24-month pressure system warranty.
How is overpressure protection implemented?

A redundant safety system includes both a spring-loaded mechanical relief valve (set at 2.2 kg/cm² for 2.0 kg/cm²-rated units) and an electronic pressure cutoff that de-energizes heaters at 95% of maximum rated pressure.
