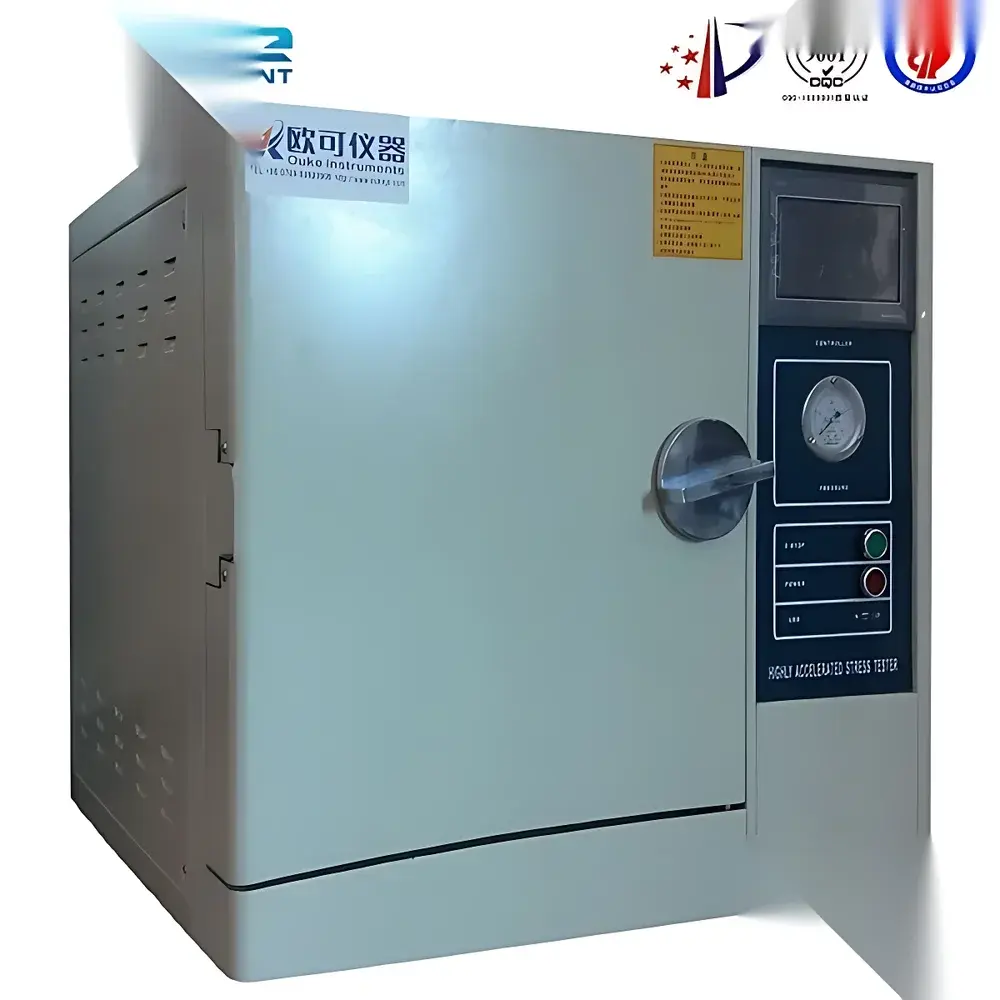

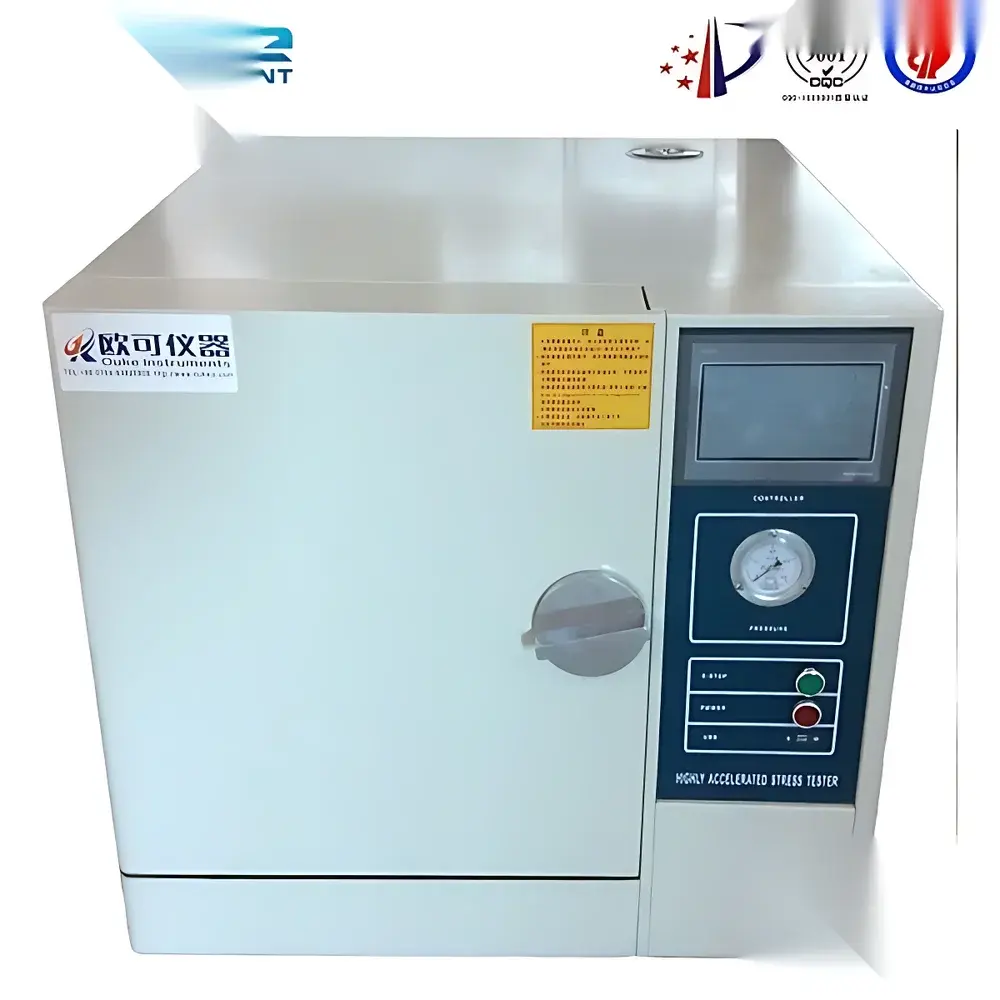

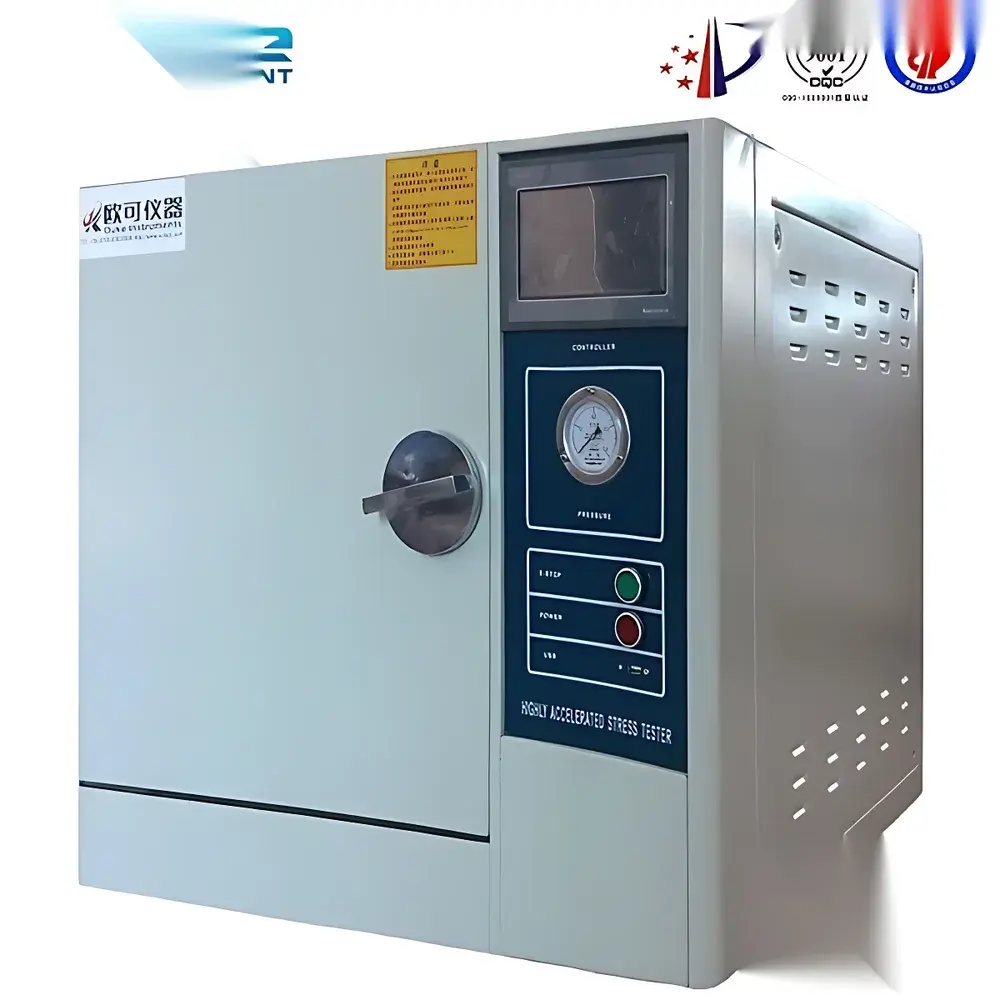

PCT High-Pressure Accelerated Aging Test Chamber

Overview

The PCT High-Pressure Accelerated Aging Test Chamber is a precision-engineered environmental stress testing system designed to evaluate the long-term reliability and moisture resistance of electronic components, packaging materials, PCBs, and hermetic seals under accelerated conditions. Operating on the principle of saturated steam pressurization—where elevated temperature, full saturation humidity, and controlled overpressure synergistically accelerate hydrolytic degradation—the chamber replicates years of field exposure in days or weeks. This methodology aligns with industry-standard accelerated stress testing protocols including JEDEC JESD22-A102 (Pressure Cooker Test), IPC-9701, and AEC-Q200 qualification requirements. The chamber’s robust stainless-steel construction, fully sealed vapor environment, and real-time pressure–temperature correlation ensure thermodynamic consistency across test cycles, enabling statistically valid failure mode analysis for quality assurance and product development teams.

Key Features

• Programmable PID temperature control with ±0.1 °C stability and LED digital display for precise setpoint management and monitoring.
• Dual independent overheat protection circuitry: primary controller cutoff and secondary mechanical thermal fuse, triggering audible alarm and immediate power interruption upon exceedance.
• Interlocked door safety mechanism—equipment remains de-energized unless the lid is fully seated and sealed, preventing accidental operation during loading/unloading.
• Automated condensate purge system continuously evacuates non-saturated vapor to maintain optimal steam quality and eliminate cold spots within the chamber.
• Intelligent water-level management: integrated level sensor initiates automatic replenishment from an external reservoir when detected below operational threshold—ensuring uninterrupted test continuity and eliminating manual intervention.
• Mechanical safety valve rated for maximum working pressure (4 kg/cm² gauge), providing passive overpressure relief independent of electronic controls.
• Heat-resistant ABS door guard and one-piece molded silicone gasket ensure operator safety and long-term sealing integrity under repeated thermal cycling.
• Digital timer activated only after chamber reaches target temperature—eliminating timing errors caused by ramp-up periods and ensuring accurate exposure duration per test standard.

Sample Compatibility & Compliance

The chamber accommodates diverse sample configurations—including trays, carriers, and bulk-mounted assemblies—across four standard internal volumes (Φ25×40 cm to Φ50×70 cm). Its design conforms to key regulatory and industry frameworks governing accelerated reliability validation: JEDEC JESD22-A102 (for moisture sensitivity level classification), IPC-TM-650 2.6.25 (PCB moisture resistance), MIL-STD-883 Method 1008 (hermeticity screening), and ISO/IEC 17025-accredited laboratory practice requirements. All safety-critical components—including pressure relief valves, door interlocks, and temperature sensors—are traceably calibrated and documented per ISO/IEC 17025 guidelines. The system supports audit-ready operation under GLP and GMP environments, with optional configuration for FDA 21 CFR Part 11-compliant electronic records and signature functionality.

Software & Data Management

While the base model features standalone LED-based control, optional PC-integrated software enables full data logging, remote supervision, and automated report generation. Logged parameters include real-time temperature, pressure, elapsed time, and alarm events—with timestamped CSV export compliant with ISO 13485 and IATF 16949 documentation requirements. Audit trail functionality captures user actions, parameter changes, and system status transitions—meeting traceability mandates for automotive and medical device qualification. Data encryption, role-based access control, and electronic signature workflows are available for regulated industries requiring validated data integrity.

Applications

• Moisture Sensitivity Level (MSL) grading of surface-mount devices per JEDEC J-STD-020.
• Qualification of conformal coatings, underfill materials, and encapsulants for automotive electronics.
• Validation of wafer-level packaging and MEMS device hermeticity.
• Accelerated corrosion testing of metal-plated contacts and solder joints.
• Reliability screening of flexible printed circuits (FPCs) and high-density interconnect substrates.
• Process capability studies for reflow and molding operations where moisture-induced defects (e.g., popcorning, delamination) are critical failure modes.

FAQ

What standards does this PCT chamber support?

It is configured to meet JEDEC JESD22-A102, IPC-TM-650 2.6.25, MIL-STD-883 Method 1008, and ISO 9001-aligned operational protocols.

Is installation support included?

Yes—on-site commissioning, mechanical and electrical integration verification, and operator training are provided by qualified field engineers as part of standard delivery terms.

Can the chamber be integrated into an existing LIMS or MES platform?

With optional communication modules (RS-485/Modbus TCP or Ethernet/IP), it supports bidirectional data exchange and centralized monitoring in industrial automation ecosystems.

How is calibration maintained over time?

The unit includes NIST-traceable calibration certificates for temperature and pressure transducers; annual recalibration services and preventive maintenance plans are available under extended service agreements.

Does the system support unattended overnight operation?

Yes—its redundant safety architecture, auto-refill function, and event-triggered email/SMS alerts enable secure 24/7 operation without manual oversight.
