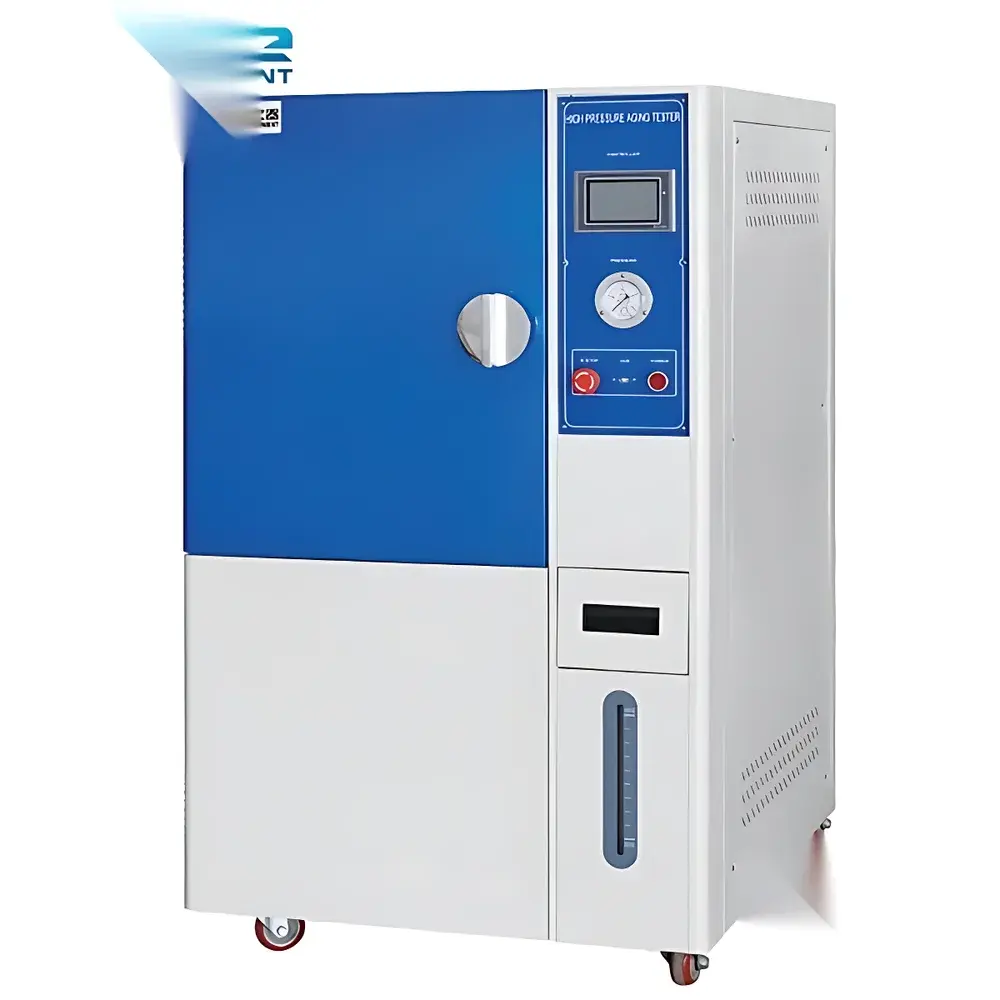

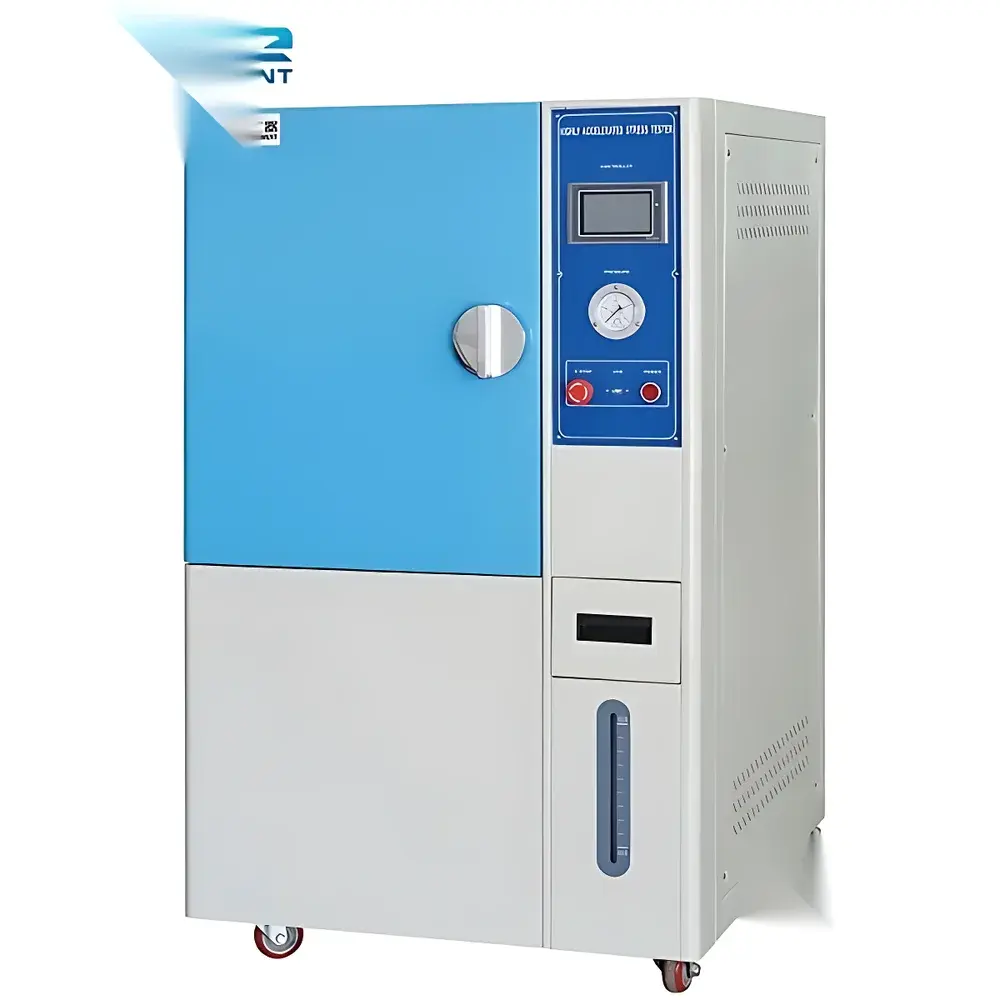

PCT High-Pressure Lifetime Test Chamber

Overview

The PCT High-Pressure Lifetime Test Chamber is a precision-engineered environmental stress test system designed for accelerated reliability evaluation of electronic components, packaging materials, and semiconductor devices under high-pressure saturated steam conditions. Operating on the principle of Pressure Cooker Test (PCT), it subjects samples to elevated temperature (+100 °C to +132 °C) and saturated humidity (100% RH) at pressures up to 2–3 bar absolute—simulating long-term moisture ingress effects in condensed environments. This chamber complies with industry-standard test protocols including JEDEC JESD22-A102 (PCT), MIL-STD-202 Method 108, and IPC/JEDEC-95 for moisture sensitivity level (MSL) qualification. Its robust stainless-steel construction (SUS#304 interior and electrostatically coated exterior), integrated safety architecture, and microprocessor-controlled thermal-hygrometric regulation ensure repeatable, auditable, and GLP-compliant test execution.

Key Features

• Interlocked door mechanism: Equipment remains inoperable unless the ABS-insulated door is fully sealed—preventing accidental exposure to high-temperature, high-pressure steam.
• Automatic pressure relief valve: Activates when internal pressure exceeds maximum rated working pressure, ensuring mechanical integrity and operator safety.
• Dual-stage overheat protection: Primary thermal cutoff and secondary independent sensor trigger audible alarm and immediate heating power disconnection.
• Auto-refill system: Monitors water level during operation and replenishes with RO or distilled water via solenoid-controlled inlet—eliminating manual intervention and maintaining stable vapor saturation.
• PID-controlled temperature regulation: LED-display microcontroller enables precise setpoint definition, real-time monitoring, and single-point temperature stabilization with minimal overshoot.
• Saturated steam generation: Surface-evaporation humidification system includes dedicated drain port for periodic cleaning; continuous venting of non-saturated vapor ensures consistent steam quality per IEC 60068-2-66 requirements.
• High-integrity sealing: One-piece molded silicone gasket provides uniform compression force, long service life, and >99.9% vapor retention across thermal cycles.
• Polished SUS#304 chamber interior: Mirror-finish surface resists corrosion, facilitates visual inspection, and prevents residue accumulation—critical for cleanroom-compatible validation workflows.

Sample Compatibility & Compliance

The chamber accommodates standard JEDEC trays, wafer carriers, and component-level test fixtures within its Φ25 cm × 40 cm cylindrical work volume. It supports both static and dynamic PCT test profiles per JEDEC J-STD-020 and J-STD-033 specifications. All electrical and thermal safety systems conform to IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use). The control firmware maintains audit-ready operational logs—including temperature, pressure, duration, and fault events—supporting FDA 21 CFR Part 11 compliance when deployed in regulated GMP/QSR environments. Calibration traceability follows ISO/IEC 17025 guidelines via NIST-traceable reference sensors.

Software & Data Management

While the base configuration utilizes a standalone LED/PID controller, optional RS-485 or Ethernet interfaces enable integration with laboratory information management systems (LIMS) or SCADA platforms. Real-time data streaming includes chamber temperature, pressure, elapsed time, and status flags (e.g., refill event, alarm activation). Event-triggered logging records timestamps for all safety interventions—essential for root-cause analysis and regulatory review. Firmware supports password-protected parameter locking to prevent unauthorized modification during qualification runs.

Applications

• Moisture sensitivity level (MSL) grading of plastic-encapsulated microcircuits (PEMs)
• Qualification testing of die-attach adhesives, underfill materials, and mold compounds
• Reliability screening of automotive-grade electronics subjected to under-hood thermal cycling
• Failure mode analysis of solder joint delamination and popcorn cracking mechanisms
• Process validation for wafer-level packaging and fan-out wafer-level packaging (FOWLP)
• Accelerated aging studies of medical device encapsulants per ISO 10993-12

FAQ

What water purity is required for stable PCT operation?
RO-purified water (resistivity ≥1 MΩ·cm) or distilled water must be used to prevent scaling on heating elements and maintain consistent steam quality.

Does the chamber support automated test sequencing?
Yes—the timer initiates only after chamber temperature reaches setpoint, ensuring accurate soak time; combined with auto-refill and pressure-regulated venting, full cycle autonomy is achieved.

How is calibration verified for regulatory audits?
Independent PT100 sensors (traceable to NIST standards) are installed at multiple chamber locations; calibration certificates and as-found/as-left reports are provided upon request.

Can this unit be integrated into a centralized lab monitoring network?
Optional communication modules (RS-485 Modbus RTU or TCP/IP) allow bidirectional data exchange with LIMS, MES, or building automation systems.

What safety certifications does the unit carry?
Complies with IEC 61010-1, CE marking (EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU), and meets UL 61010-1 recognition criteria for laboratory equipment.
