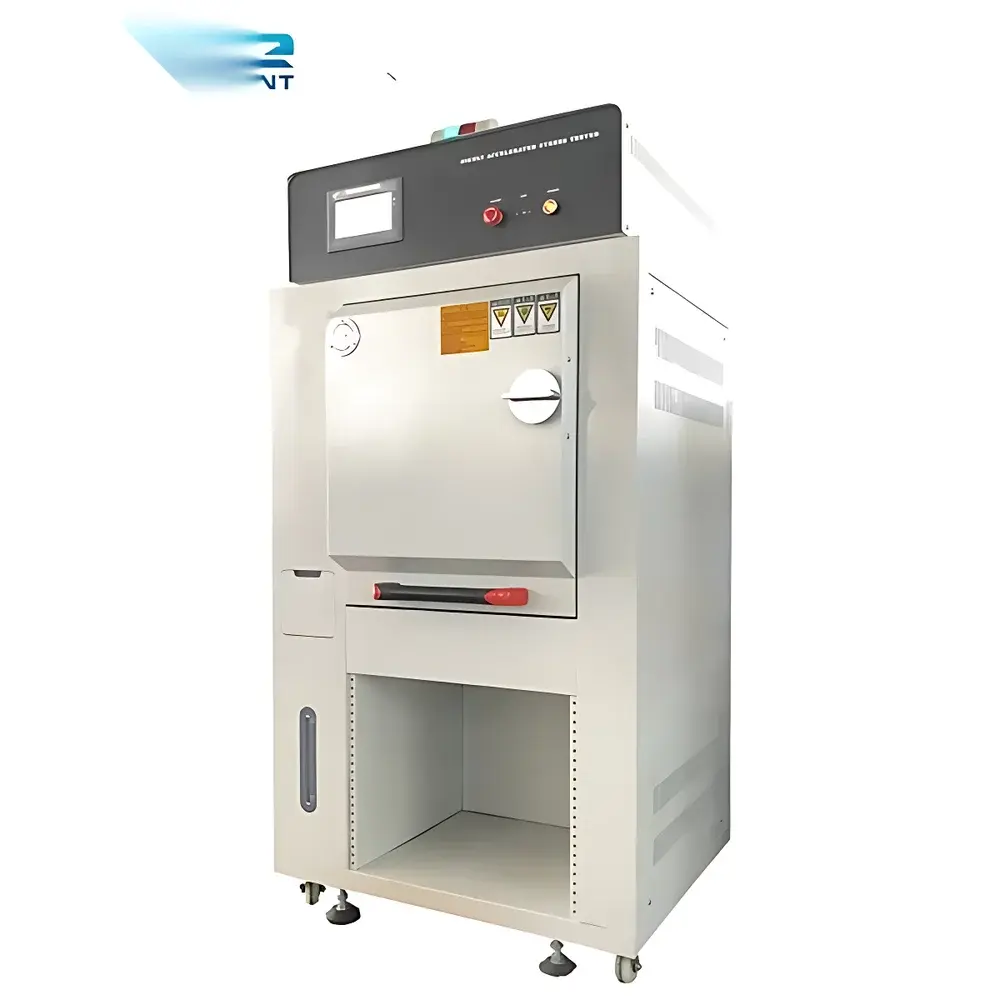

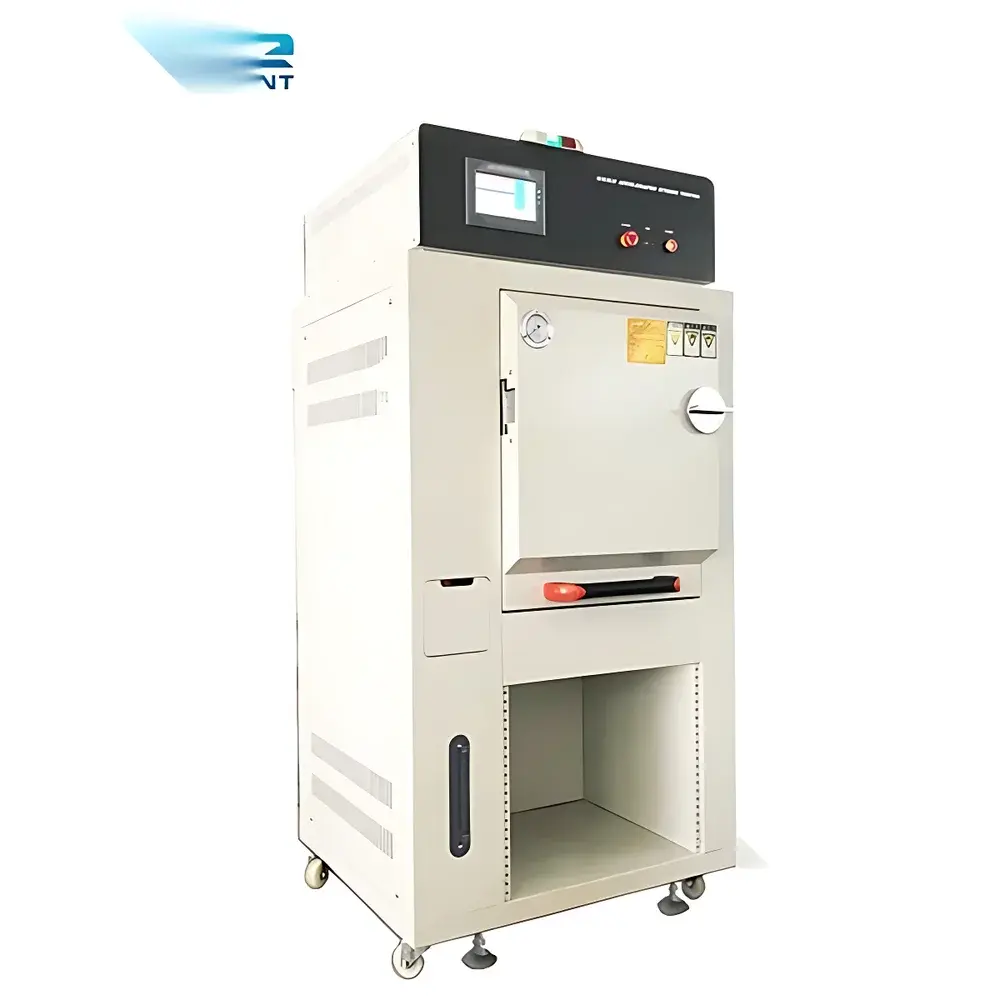

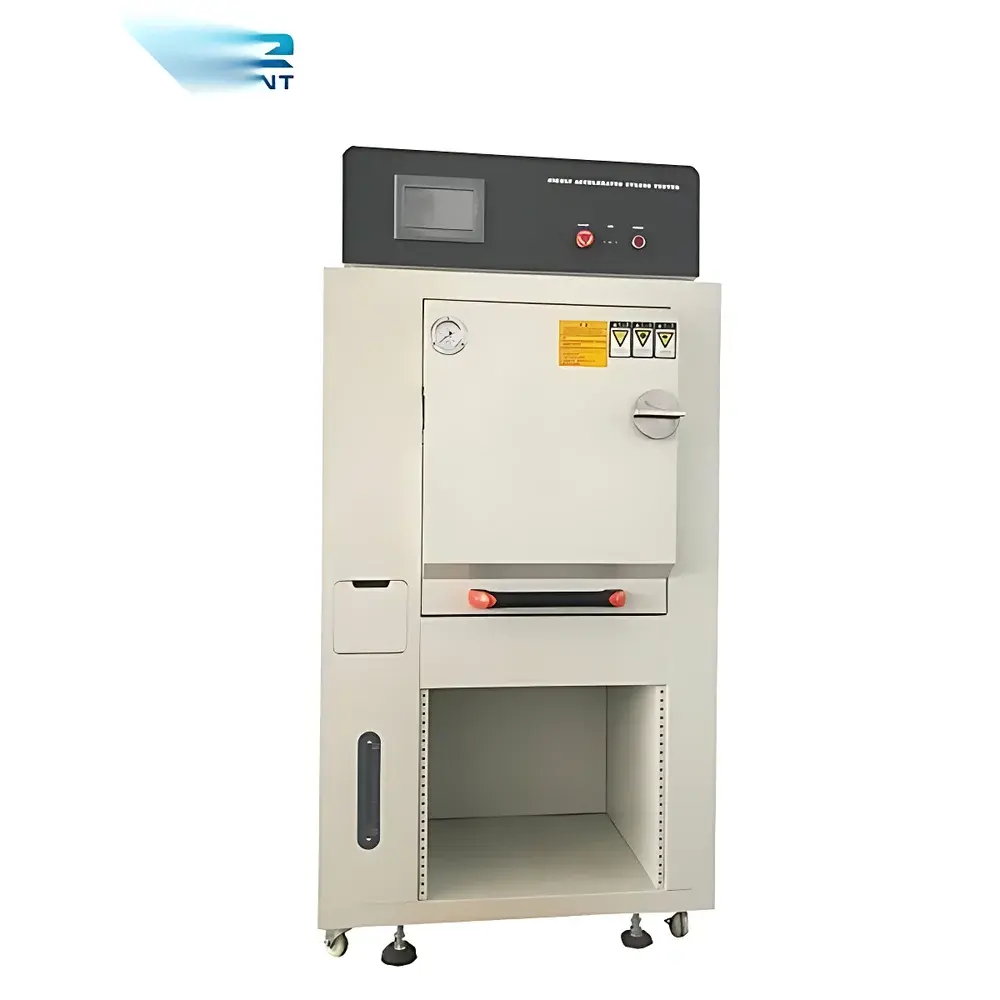

PCT High-Pressure Steam Aging Chamber

Overview

The PCT High-Pressure Steam Aging Chamber is an environmental stress test system engineered for accelerated reliability assessment of electronic components, printed circuit boards (PCBs), semiconductor packages, and polymeric materials under elevated temperature, high humidity, and saturated steam pressure conditions. Operating on the principle of pressurized saturated steam exposure—commonly referred to as Pressure Cooker Test (PCT) per JEDEC JESD22-A102 and IPC-TM-650 2.6.25—it subjects specimens to controlled thermal-hygric stress environments exceeding atmospheric boiling point (typically 121 °C at 2 bar absolute pressure). This enables rapid diffusion of moisture into encapsulants and interfaces, accelerating failure mechanisms such as wire bond corrosion, die attach delamination, popcorning, and intermetallic growth. The chamber’s cylindrical stainless-steel construction and integrated safety architecture ensure operational integrity during extended high-pressure cycles, supporting qualification testing in accordance with IEC 60068-2-66, MIL-STD-202 Method 108, and AEC-Q200 stress requirements.

Key Features

• Robust dual-layer cylindrical chamber: Inner liner fabricated from 3 mm-thick SUS316 stainless steel; outer shell from 1 mm SUS316, providing superior resistance to chloride-induced stress corrosion cracking under humid steam environments.
• Integrated multi-level safety protection system: Includes non-fuse circuit breakers, overtemperature cut-off devices, ceramic E-16 fast-acting fuses, compressor high/low-pressure and overheat protection switches, real-time water level monitoring with short-term alarm and long-term automatic shutdown, and zero-crossing thyristor-based power control for precise heater regulation.
• Optimized air-steam circulation: Equipped with sealed, oil-free multi-wing centrifugal fans and a custom-designed adjustable vane-type airflow system that ensures uniform radial and axial distribution of saturated vapor—minimizing thermal stratification and condensation asymmetry across test loads.
• High-efficiency thermal insulation: Dual-layer insulation comprising mineral wool and rigid polyurethane foam (density ≥35 kg/m³), achieving thermal loss <0.8 K/h at 121 °C under steady-state operation.
• Corrosion-resistant steam generation: Finned seamless stainless-steel heating tubes with platinum-plated surface finish, ensuring stable steam output and extended service life in aggressive condensate environments.

Sample Compatibility & Compliance

The chamber accommodates cylindrical test volumes of Ø300 mm × L500 mm (internal), suitable for standard JEDEC trays, wafer carriers, PCB assemblies, molded IC packages (QFP, BGA, CSP), and polymer-coated substrates. Its design conforms to fundamental mechanical and electrical safety requirements outlined in IEC 61010-1 and EN 61000-6-3 (EMC emissions). While not certified to UL or CSA standards out-of-the-box, it supports integration into GLP/GMP-compliant laboratories when paired with documented calibration procedures, traceable temperature/pressure sensors, and audit-ready operational logs. Users are advised to validate chamber performance per ISO/IEC 17025 guidelines prior to use in regulated product qualification workflows.

Software & Data Management

The unit operates via a programmable digital controller with real-time display of chamber temperature, pressure, and cycle time. Data logging is supported through RS485 Modbus RTU interface for integration with third-party SCADA or LIMS platforms. While no proprietary software suite is bundled, the controller firmware stores up to 100 user-defined test profiles with ramp/soak segments and supports manual override lockout for SOP-controlled environments. For FDA-regulated applications (e.g., medical device packaging validation), optional 21 CFR Part 11-compliant data acquisition modules—including electronic signatures, audit trails, and password-protected parameter editing—are available via qualified vendors.

Applications

• Accelerated moisture sensitivity level (MSL) screening per JEDEC J-STD-020
• Reliability qualification of automotive electronics (AEC-Q100/Q200)
• Humidity resistance testing of conformal coatings and potting compounds
• Failure analysis root cause isolation in plastic-encapsulated microcircuits
• Validation of hermeticity and seal integrity in MEMS and sensor housings
• Material compatibility studies for high-temperature solder reflow and lead-free assembly processes

FAQ

What standards does this PCT chamber support?
It is configured to meet core operational parameters specified in JEDEC JESD22-A102, IPC-TM-650 2.6.25, and IEC 60068-2-66. Full compliance requires user-performed verification of temperature uniformity, pressure accuracy, and soak stability per each standard’s annexes.
Can the chamber be used for unsaturated humidity testing?
No—it is optimized exclusively for saturated steam environments at pressures ≥1 bar(g); it lacks independent humidity control or dry-air purge capability.
Is calibration documentation included?
Factory calibration certificates for temperature and pressure transducers are provided; however, periodic recalibration against NIST-traceable references is required per ISO/IEC 17025 or internal QA protocols.
What maintenance intervals are recommended?
Monthly inspection of water quality, drain line integrity, and safety fuse status; annual replacement of steam generator heating elements and verification of thermostat hysteresis and pressure relief valve function.
