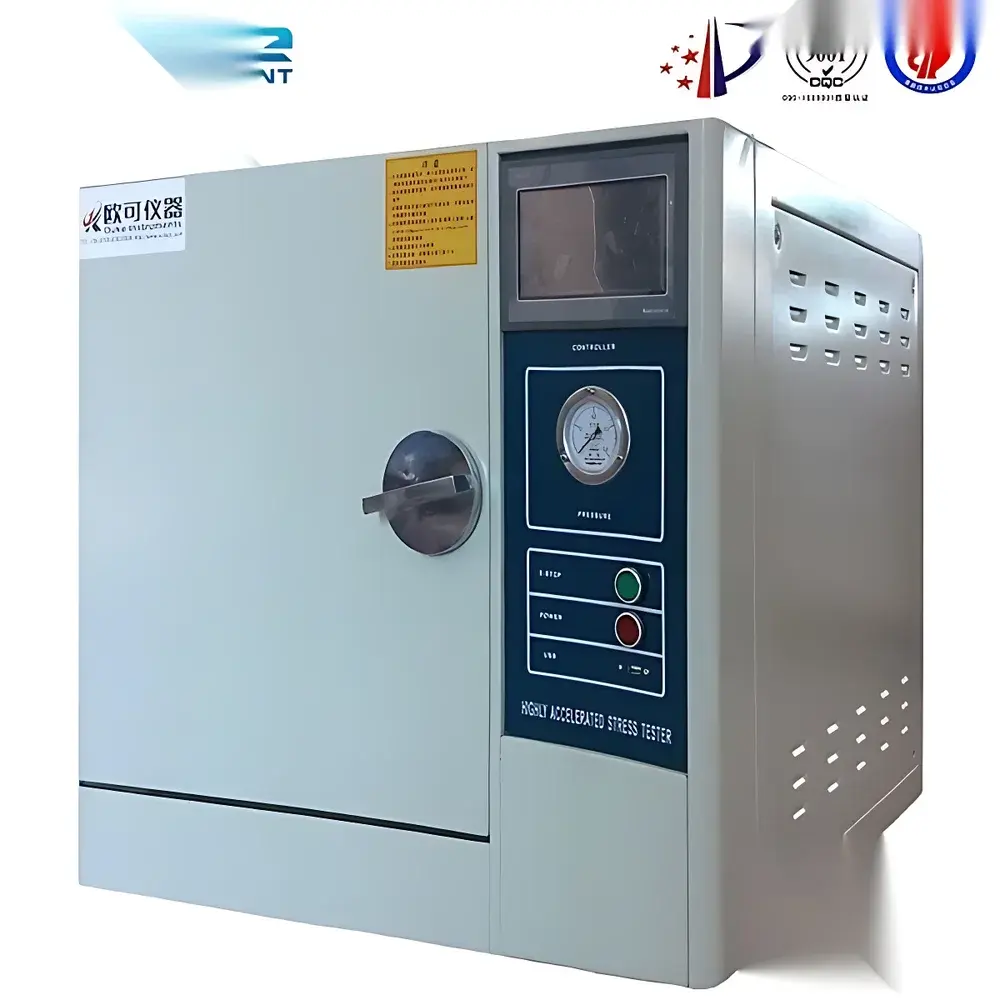

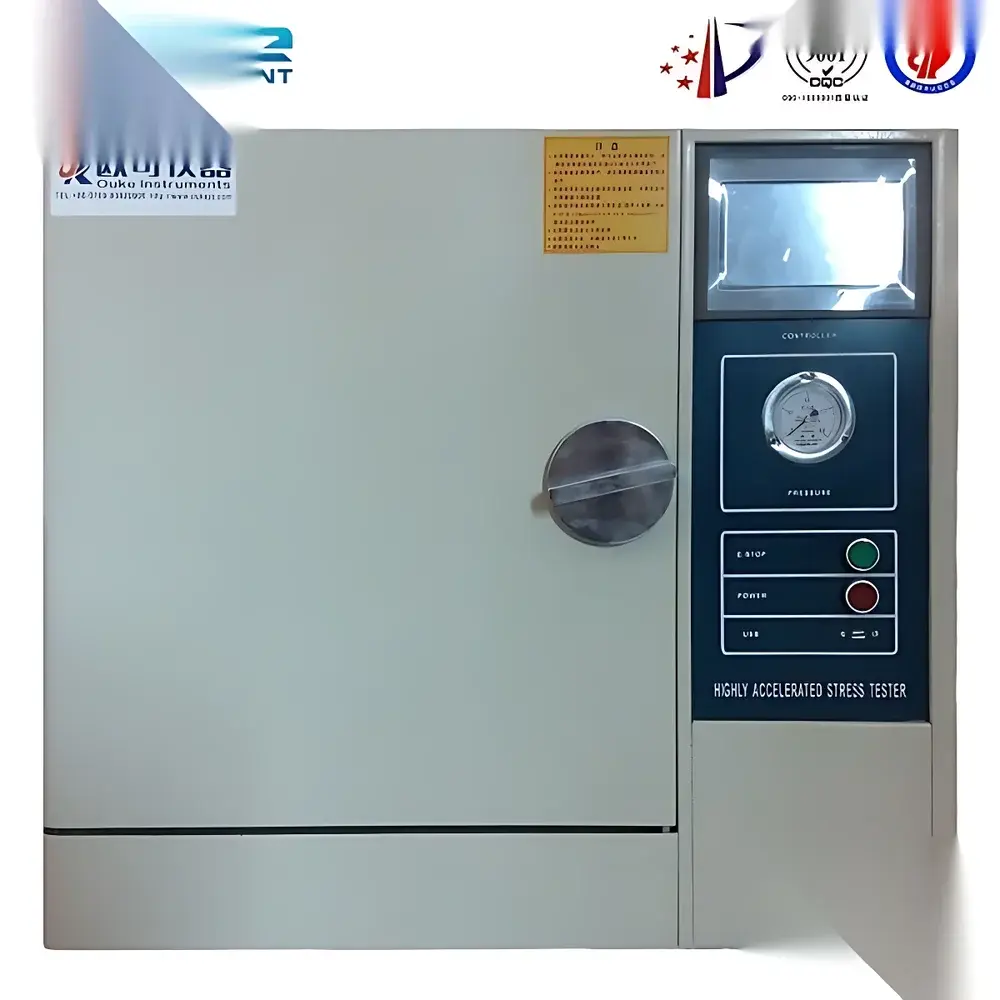

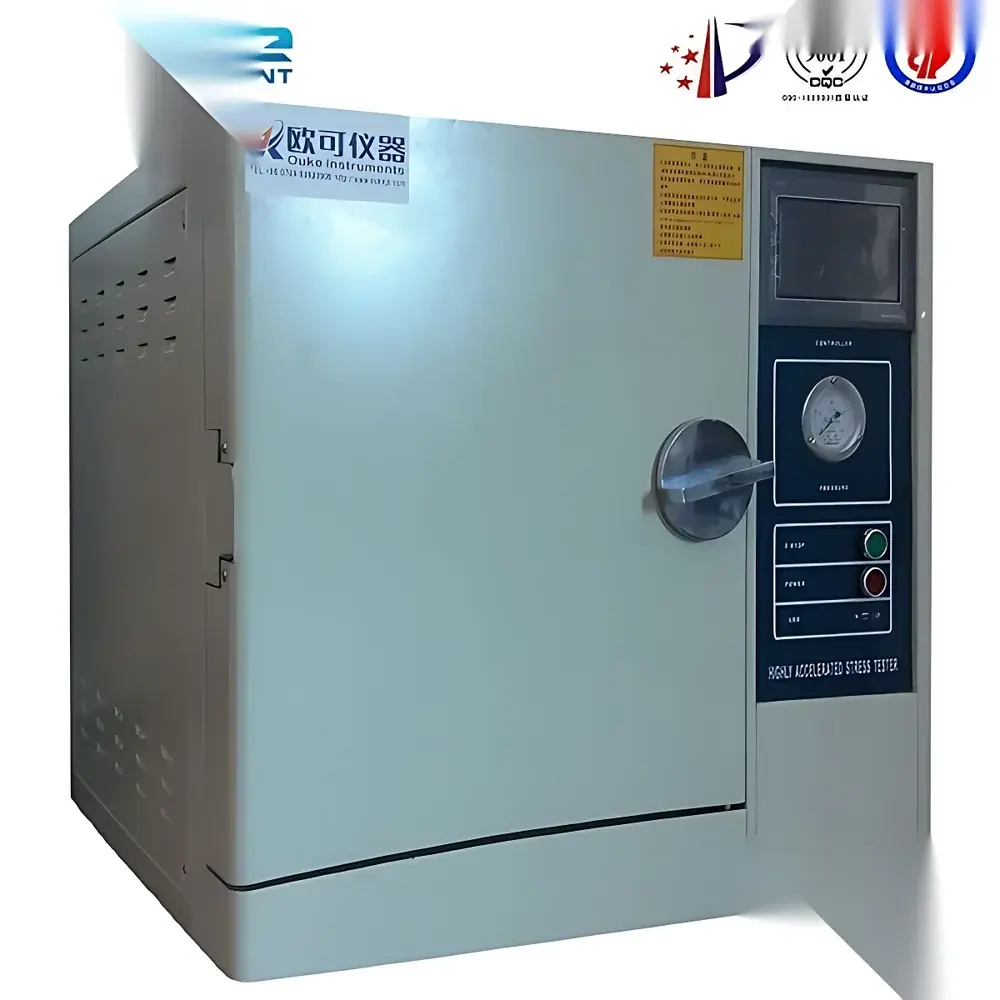

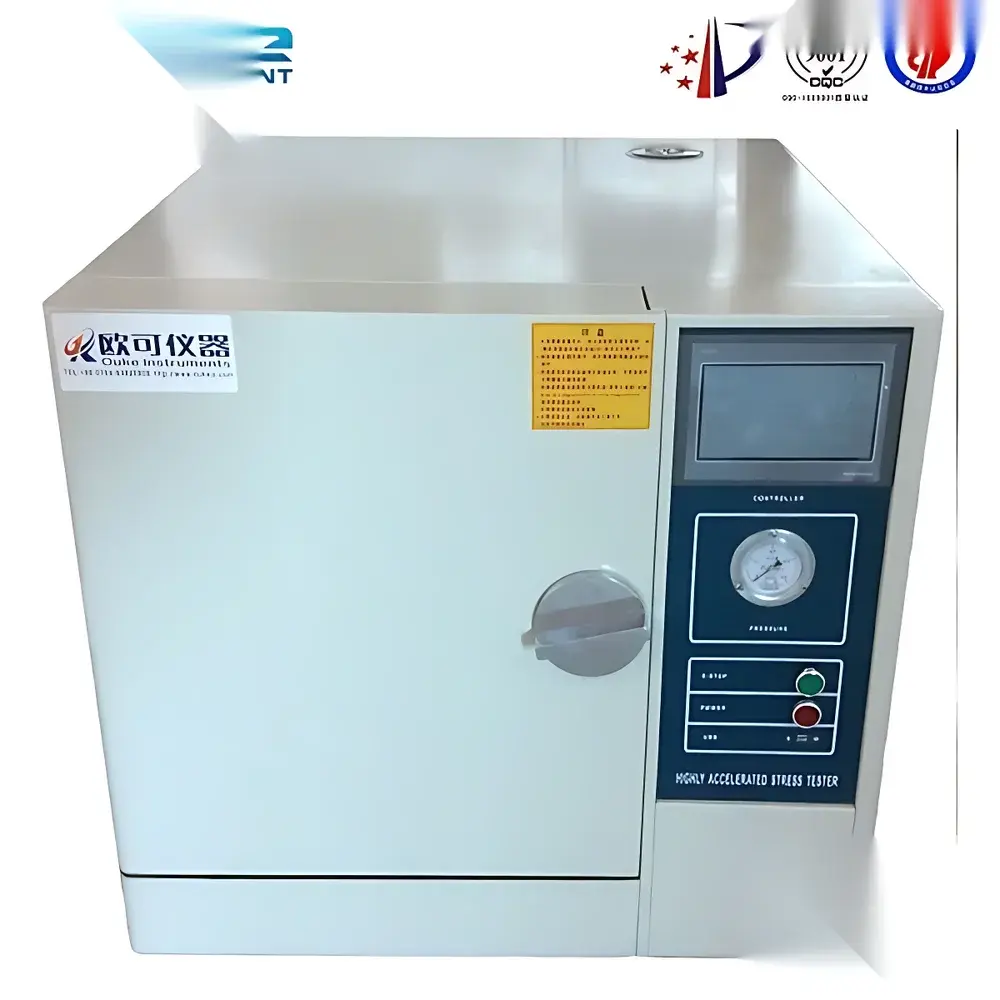

PCT Pressure Cooker Test Chamber for Accelerated Moisture Resistance Testing

Overview

The PCT Pressure Cooker Test Chamber is an engineered environmental stress test system designed specifically for accelerated moisture resistance evaluation of electronic components, printed circuit boards (PCBs), semiconductor packages, and encapsulated materials under high-pressure saturated steam conditions. Operating on the principle of accelerated hydrolytic degradation—where elevated temperature, 100% relative humidity, and superatmospheric pressure synergistically drive moisture diffusion into microstructures—the chamber replicates years of field-level moisture ingress in a controlled laboratory timeframe. It complies with industry-standard test protocols including JEDEC JESD22-A102 (Pressure Cooker Test), MIL-STD-202 Method 108, and IPC/JEDEC-95 for reliability qualification of moisture-sensitive devices (MSL-rated components). The chamber’s sealed stainless-steel inner tank maintains thermodynamic equilibrium between liquid water and saturated vapor, ensuring reproducible exposure conditions critical for pass/fail criteria in qualification testing.

Key Features

• Microprocessor-controlled PID temperature regulation using dual PT-100 platinum resistance thermometers for real-time feedback; control accuracy within ±0.1 °C of setpoint.
• Integrated LED digital timer synchronized with temperature stabilization—countdown initiates only after chamber reaches target saturated steam temperature, eliminating premature test initiation.
• Simultaneous analog pressure gauge and digital pressure display for cross-verification; mechanical safety valve calibrated to open at 4.0 kg/cm² absolute pressure.
• Interlocked door mechanism prevents power-on unless door is fully latched, satisfying IEC 61000-4-11 and ISO 13857 safety distance requirements.
• Auto-refill water system with solenoid-controlled inlet valve enables uninterrupted multi-day operation without manual intervention or chamber depressurization.
• ABS polymer door shield and one-piece molded silicone gasket provide thermal insulation and long-term sealing integrity (>5000 cycles per ASTM D1056).
• Condensate purge system actively removes non-saturated vapor during pressurization, ensuring consistent steam quality and minimizing superheat-induced thermal gradients.

Sample Compatibility & Compliance

The chamber accommodates standard JEDEC trays (up to 305 mm × 305 mm footprint), component carriers, and bare die wafers mounted on ceramic or metal carriers. Internal dimensions support stacked sample racks while maintaining ≥50 mm clearance from chamber walls for uniform steam circulation. All wetted surfaces are electropolished SUS316 stainless steel, compliant with USP Class VI biocompatibility and ISO 10993-5 cytotoxicity screening prerequisites. The system meets GLP documentation requirements for test traceability: each run logs timestamped temperature, pressure, and elapsed time to internal non-volatile memory; audit trails support FDA 21 CFR Part 11 compliance when paired with validated software interfaces.

Software & Data Management

While the base configuration includes standalone microcontroller operation with local LED readouts, optional RS-485/Modbus RTU or Ethernet TCP/IP interfaces enable integration with LabView, MATLAB, or enterprise LIMS platforms. Data export supports CSV format with millisecond-resolution timestamps. Firmware includes configurable alarm thresholds (e.g., pressure deviation >±0.3 kg/cm² for >60 s triggers audible/visual alert and automatic hold mode). Calibration certificates traceable to NIST standards are provided with initial delivery; annual verification procedures align with ISO/IEC 17025 accredited laboratories.

Applications

This chamber is routinely deployed in semiconductor qualification labs for MSL level validation (per J-STD-020), failure analysis of delamination in flip-chip assemblies, evaluation of conformal coating barrier performance, and reliability screening of automotive-grade power modules subjected to AEC-Q200 stress profiles. It also serves in photovoltaic R&D for encapsulant adhesion testing under damp heat (IEC 61215-2 MQT 11), and in medical device packaging validation per ISO 11607-2 cycle development. Its deterministic saturation environment eliminates ambiguity associated with humidity-controlled ovens, making it indispensable for root-cause analysis of moisture-induced corrosion, wire bond lift-off, and intermetallic growth kinetics.

FAQ

What standards does this PCT chamber comply with?

It is configured to meet JEDEC JESD22-A102, MIL-STD-202 Method 108, IPC/JEDEC-95, and supports method development for IEC 60068-2-66.

Can the chamber operate continuously for 999 hours without supervision?

Yes—provided sufficient deionized water volume is loaded and ambient cooling capacity meets 25 °C/60% RH ambient specification; auto-refill and thermal cutout safeguards ensure unattended operation.

Is third-party calibration included with purchase?

A factory-issued calibration certificate (traceable to NIST) is supplied; ISO/IEC 17025-accredited field calibration services are available as an add-on option.

How is steam quality maintained during extended tests?

A dedicated condensate purge line activates during pressurization and stabilizes steam phase purity by venting subcooled vapor, ensuring thermodynamic saturation per ASME PTC 19.3.

What maintenance intervals are recommended?

Quarterly inspection of gasket compression set, annual verification of pressure transducer linearity, and biannual cleaning of water reservoir and drain lines per manufacturer’s technical bulletin TB-PCT-2023.
