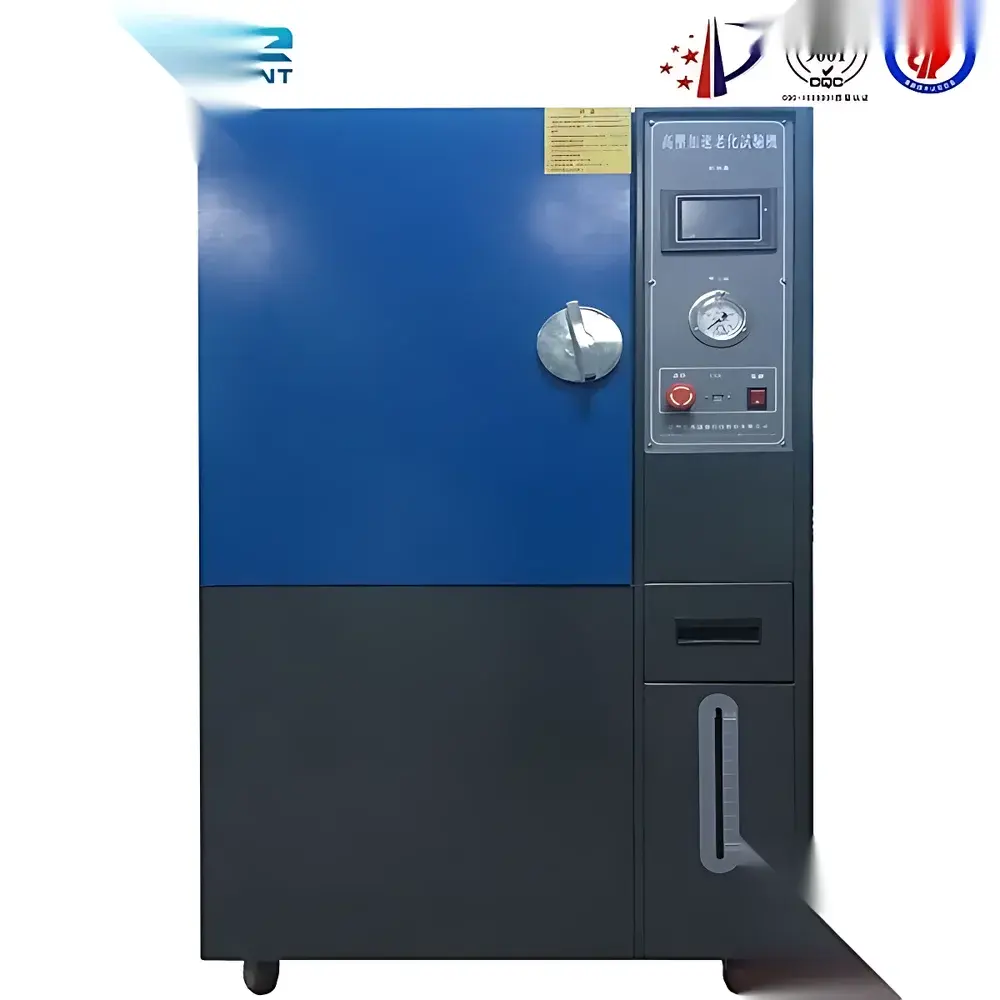

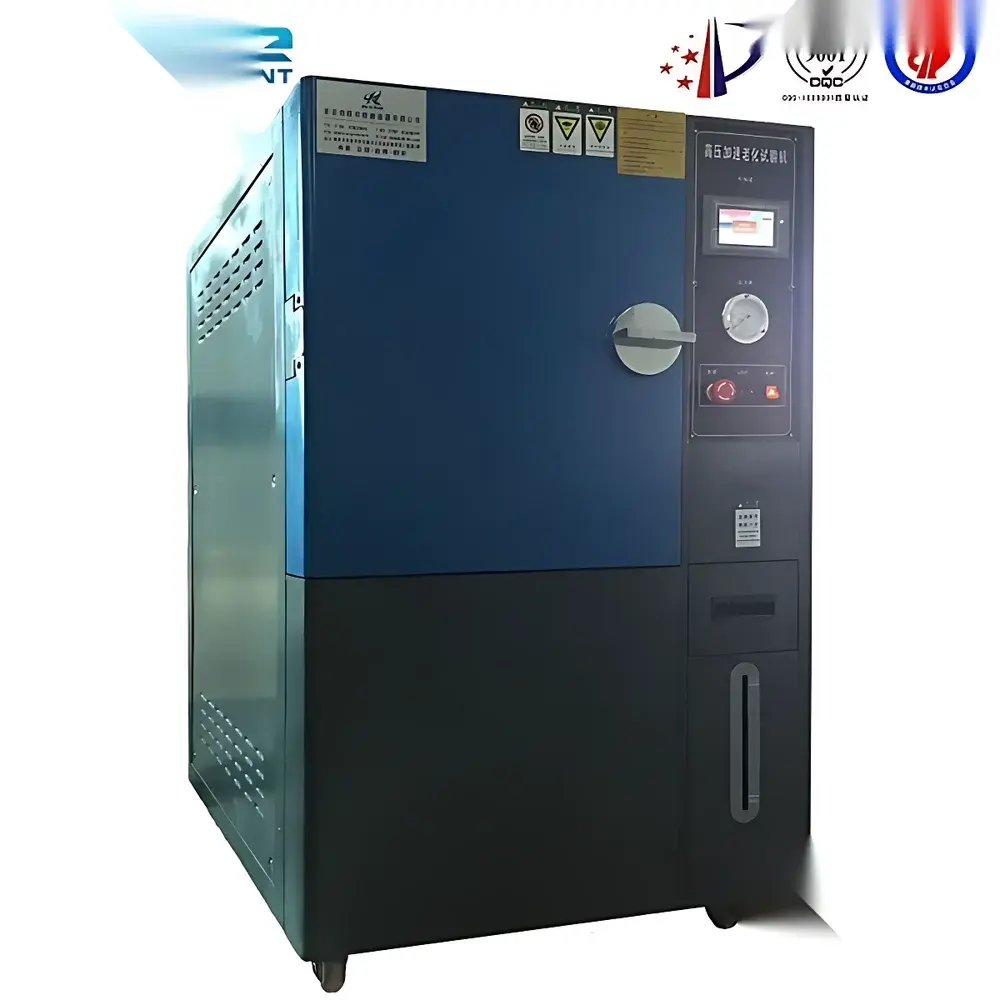

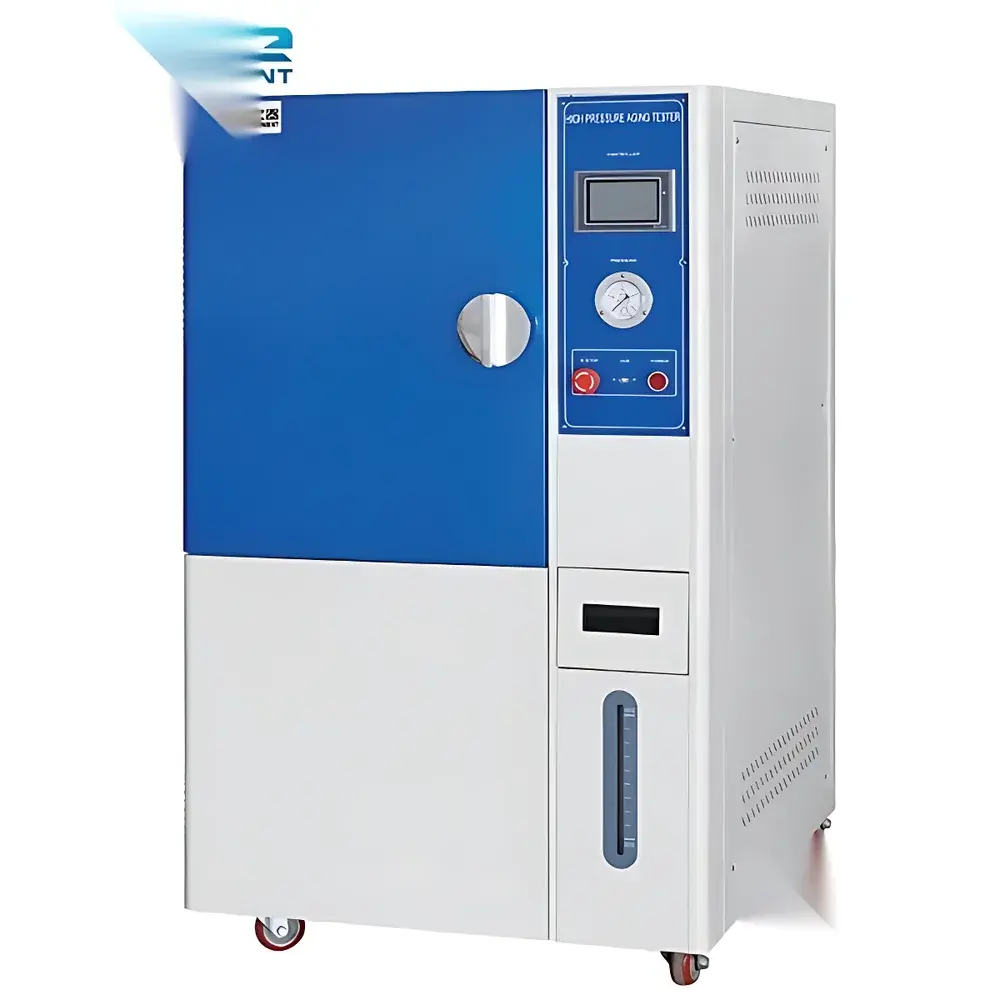

OK-PCT Series High-Pressure Accelerated Aging Test Chamber

Overview

The OK-PCT Series High-Pressure Accelerated Aging Test Chamber is an engineered environmental stress test system designed for accelerated reliability evaluation of hermetically sealed and moisture-sensitive components under controlled saturated steam conditions. Operating on the principle of high-pressure saturated steam exposure—commonly referenced in JEDEC JESD22-A102 (HAST) and IEC 60068-2-66—this chamber subjects devices to elevated temperature and pressure simultaneously, dramatically increasing the rate of moisture diffusion into encapsulated packages without condensation-induced mechanical stress. Unlike conventional autoclave-based aging systems, the OK-PCT series integrates precision P.I.D. control of saturation thermodynamics, ensuring stable vapor-phase equilibrium throughout test cycles. It is widely deployed during design validation, qualification testing, and failure analysis in semiconductor packaging, multilayer PCB manufacturing, LED lighting modules, medical electronics, and aerospace-grade connectors where long-term hermeticity and interfacial delamination resistance are mission-critical performance criteria.

Key Features

• 7-inch industrial-grade touchscreen HMI with embedded microcontroller for real-time P.I.D. regulation of saturation temperature and pressure setpoints
• Integrated safety interlock architecture: door remains mechanically locked when internal absolute pressure exceeds 101.3 kPa; automatic positive-pressure sealing enhances gasket longevity and leak integrity
• Cylindrical stainless-steel inner chamber (SUS304) conforming to ASME BPVC Section VIII Division 1 design standards for pressure vessels
• Double-wall insulated construction with vapor barrier lining to minimize thermal gradient-induced condensate formation
• Self-regulating water level management: ultrasonic sensor-triggered auto-refill maintains ≥200 h continuous operation per fill cycle
• Dual independent monitoring: LED digital temperature controller (±0.5 °C accuracy) and calibrated pressure transducer (0–300 kPa range, ±1 kPa repeatability)
• Steam quality optimization: non-saturated vapor purge system ensures >99.5 % dryness fraction at operating conditions
• Fail-safe redundancy: dual thermal cutoffs, mechanical pressure relief valve (set at 310 kPa), and audible/visual alarm for low-water, overtemp, and overpressure events

Sample Compatibility & Compliance

The OK-PCT chamber accommodates a broad range of sample geometries—including IC packages (QFN, BGA, WLCSP), flexible printed circuits, MEMS sensors, OLED display modules, and sterilizable medical device housings—within its cylindrical test volume. Its uniform steam circulation (natural convection mode) eliminates hot/cold spots and ensures reproducible moisture ingress kinetics across heterogeneous loads. The system supports compliance-driven test protocols including MIL-STD-883 Method 1008.5 (Moisture Resistance), AEC-Q200 stress testing for passive components, and internal qualification standards aligned with ISO/IEC 17025-accredited laboratories. All control firmware logs timestamped temperature, pressure, and operational status data traceable to NIST-traceable calibration records—enabling audit readiness for GLP, GMP, and FDA 21 CFR Part 11 environments when paired with optional electronic signature-capable software.

Software & Data Management

Standard configuration includes local data logging to internal flash memory (10,000+ cycle storage capacity) with USB export capability. Optional PC-based software provides remote supervision, multi-chamber fleet monitoring, and automated report generation compliant with ASTM E2911-20 Annex A1 requirements for environmental test documentation. All logged parameters include UTC timestamps, operator ID fields, and configurable alarm thresholds. Audit trail functionality records user login/logout events, parameter modifications, and emergency stop activations—meeting minimum ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) data integrity expectations for regulated industries.

Applications

• Accelerated Moisture Sensitivity Level (MSL) screening per J-STD-020
• Failure mode identification in plastic-encapsulated microcircuits (PEMs) under bias-HAST conditions
• Validation of conformal coating integrity and solder mask adhesion on HDI PCBs
• Reliability assessment of wafer-level chip-scale packages (WLCSP) prior to board assembly
• Qualification of automotive-grade power modules exposed to under-hood thermal-humidity cycling
• Stability testing of pharmaceutical primary packaging materials per USP

FAQ

What pressure and temperature combinations are supported?

Standard configurations support 121 °C @ 200 kPa abs (101.3 kPa ambient + 98.7 kPa gauge) and 132 °C @ 270 kPa abs. Custom calibrations up to 143 °C @ 304 kPa abs are available upon request.

Is the chamber suitable for testing samples with internal cavities or voids?

Yes—provided external seals remain intact during pressurization. Internal trapped air pockets may delay equilibration; pre-vacuum assist option is recommended for such cases.

How is steam purity maintained during extended runs?

A dedicated venting cycle expels non-condensable gases before reaching target pressure, and continuous low-flow purge during hold phases prevents dissolved oxygen accumulation.

Can the system be integrated into a lab-wide LIMS or MES platform?

Yes—Modbus TCP and RS-485 interfaces are standard; OPC UA integration is available via optional gateway module.

What maintenance intervals are recommended?

Quarterly verification of pressure transducer linearity, annual recalibration of temperature sensors, and biannual inspection of silicone door gasket compression set per manufacturer’s service manual.
