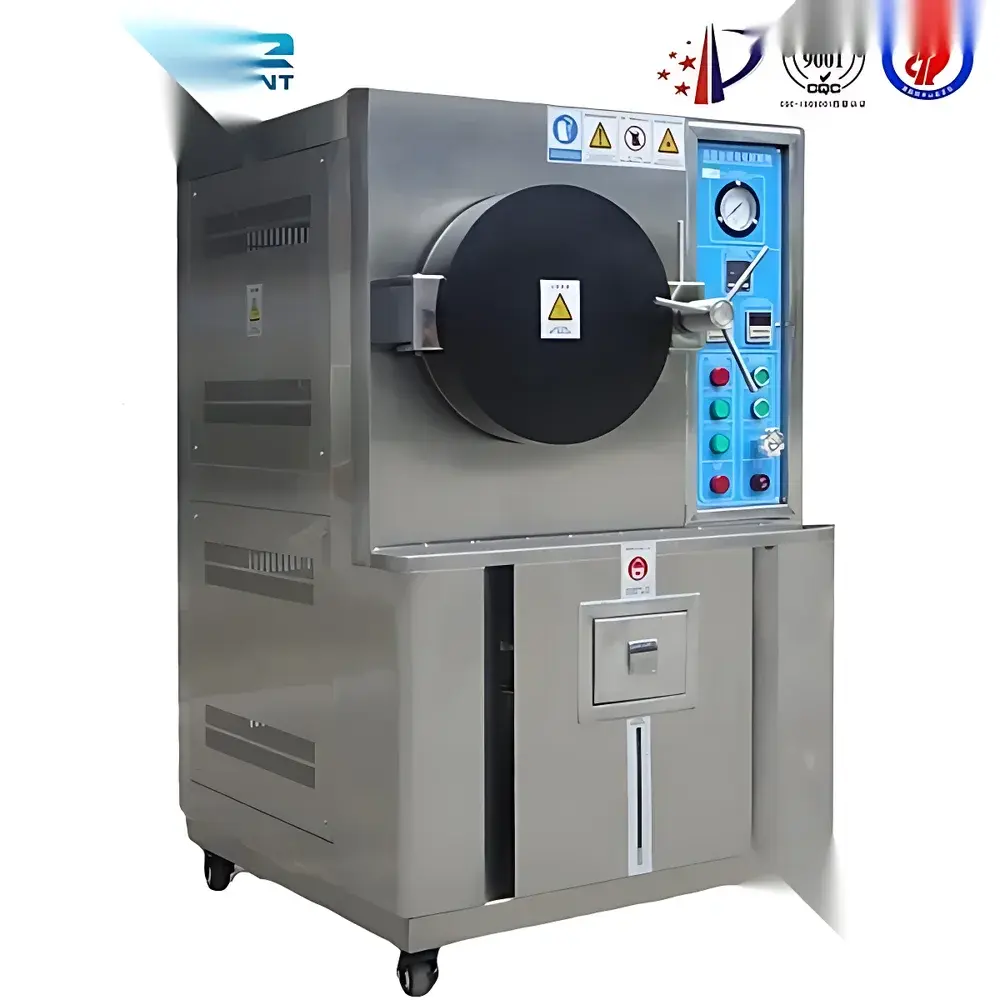

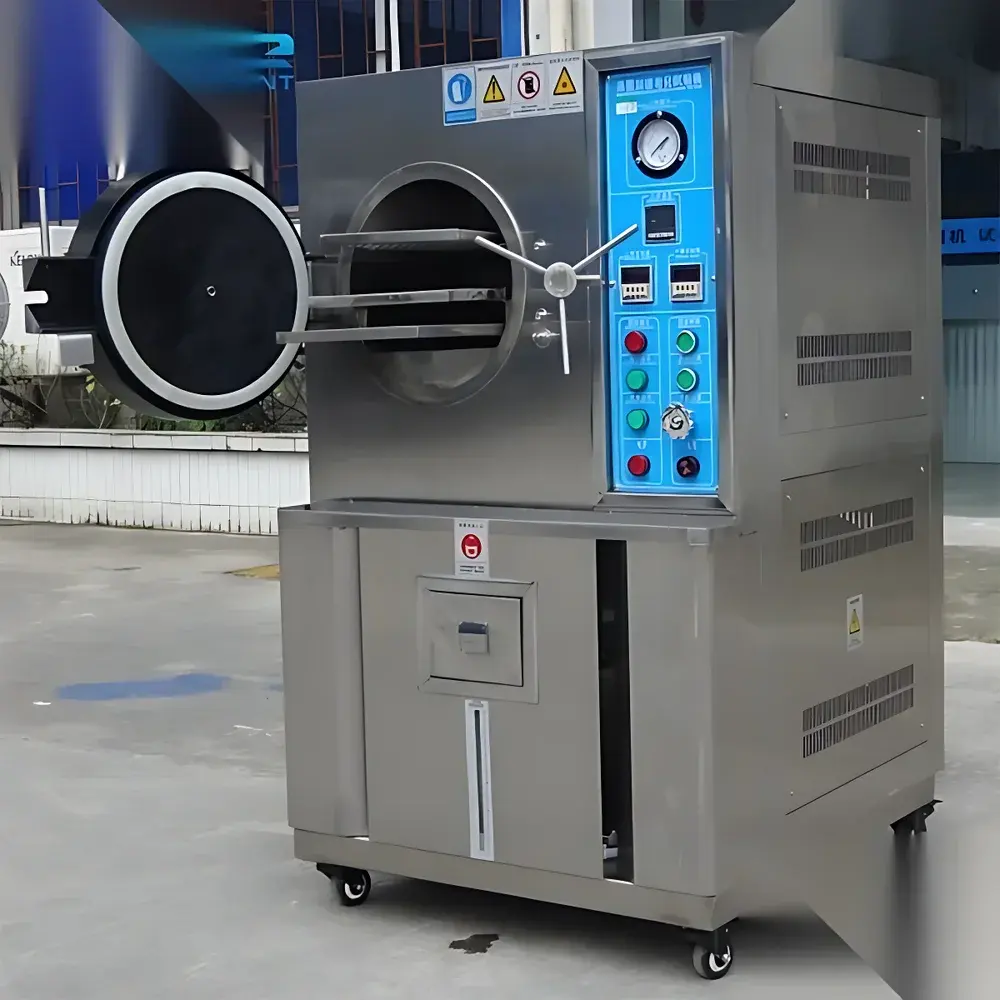

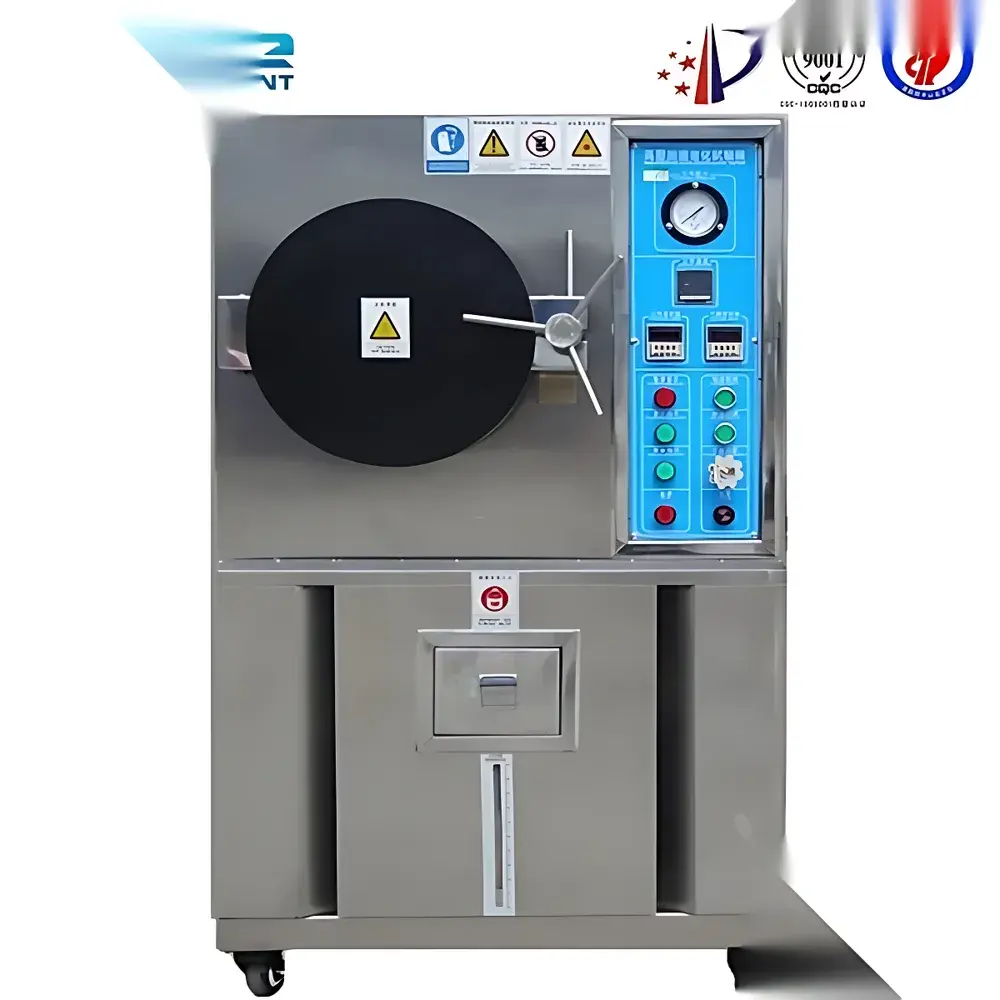

OK-PCT Series High-Pressure Saturated Steam Accelerated Aging Test Chamber

Overview

The OK-PCT Series High-Pressure Saturated Steam Accelerated Aging Test Chamber is an engineered environmental stress test system designed to evaluate the long-term reliability and hermetic integrity of electronic components, multilayer PCBs, IC packages, LED assemblies, medical device housings, and polymer-based sealed enclosures under accelerated high-pressure saturated steam conditions. It operates on the principle of pressurized saturated steam aging—leveraging elevated temperature and partial pressure of water vapor to accelerate moisture diffusion, hydrolytic degradation, and interfacial delamination mechanisms in encapsulated or laminated structures. Unlike conventional thermal aging or humidity chambers, the OK-PCT series subjects samples to controlled thermodynamic states defined by the saturated steam table (e.g., 121 °C at ~2.0 kg/cm² gauge pressure), enabling rapid identification of latent defects such as microcracks, solder joint corrosion, die attach voiding, and sealant permeability failures within hours rather than months. This makes it indispensable during design validation, qualification testing per JEDEC JESD22-A102 (Pressure Cooker Test), and failure analysis workflows in R&D and QA/QC laboratories serving aerospace, automotive electronics, and medical device manufacturing sectors.

Key Features

• Microprocessor-based PID controller with digital setpoint programming for precise regulation of saturated steam temperature and pressure—ensuring thermodynamic consistency across test cycles.
• Integrated safety interlock system: Automatic door locking activated only when internal pressure equals ambient; mechanical reverse-pressure sealing enhances gasket compression as chamber pressure rises, extending silicone gasket service life beyond 2,000 cycles.
• Cylindrical stainless-steel inner chamber conforming to ASME BPVC Section VIII Division 1 structural requirements for low-pressure vessels—optimized to eliminate cold spots and prevent condensate drip onto test specimens.
• Dual-stage steam conditioning: Continuous purge of non-saturated vapor via automated condensate drain ensures >99.5 % steam quality (dryness fraction ≥0.95), critical for reproducible moisture ingress kinetics.
• Self-contained water management: Precision float-level sensor triggers auto-refill from external reservoir; single fill supports up to 200 h of uninterrupted operation without manual intervention.
• Digital instrumentation suite: LED-display time controller synchronized to temperature stabilization (start timing only after chamber reaches setpoint), dual-scale pressure/temperature gauge with real-time analog + digital readout, and programmable alarm thresholds for low water, overpressure, and overtemperature events.

Sample Compatibility & Compliance

The OK-PCT chamber accommodates a broad range of sample geometries—from bare dies and QFN packages to fully assembled automotive ECUs and implantable sensor modules—via adjustable stainless-steel dual-tier trays. Its cylindrical geometry and natural convection steam circulation ensure uniform thermal and hygric exposure per IEC 60068-2-66 and MIL-STD-202G Method 108. The system supports test protocols aligned with JEDEC JESD22-A102 (PC-T), IPC-9701A (Moisture Sensitivity Level qualification), and AEC-Q200 stress verification. All electrical controls comply with CE marking directives (EMC Directive 2014/30/EU and LVD Directive 2014/35/EU); pressure vessel design documentation is available upon request for internal GLP/GMP audit compliance.

Software & Data Management

While the base configuration employs embedded digital controllers, optional RS-485 Modbus RTU interface enables integration with LabVIEW, MATLAB, or enterprise MES platforms for remote monitoring and data logging. Time-stamped temperature, pressure, and cycle status data are exportable in CSV format. For regulated environments, the optional compliant software package provides 21 CFR Part 11–enabled user access control, electronic signatures, and full audit trail generation—including operator ID, parameter changes, alarm events, and door open/close timestamps.

Applications

• Qualification of moisture-sensitive devices (MSL) per J-STD-020 prior to surface-mount reflow.
• Evaluation of conformal coating integrity and adhesion durability under cyclic steam exposure.
• Accelerated life testing of hermetically sealed sensors, MEMS oscillators, and optical modules.
• Failure mode analysis of solder interconnects subjected to steam-induced popcorning or wire bond lift-off.
• Validation of packaging material permeability (e.g., epoxy molding compounds, silicone gels) against moisture vapor transmission rate (MVTR) acceleration models.

FAQ

What standards does the OK-PCT chamber support?

It is configured to meet JEDEC JESD22-A102 (Pressure Cooker Test), IPC-9701A, and IEC 60068-2-66 requirements. Full traceable calibration certificates and pressure vessel documentation are provided.

Can the chamber operate at 143 °C?

Yes—143 °C is available as a factory-configured option requiring reinforced pressure-rated components and recalibrated safety margins; contact technical support for specification review.

Is the water refill system compatible with deionized water?

Yes—use of DI water (resistivity ≥1 MΩ·cm) is recommended to minimize mineral buildup in heating elements and steam lines; distilled water is also acceptable.

How is steam quality maintained during extended runs?

An integrated condensate purge valve automatically vents sub-saturated vapor at fixed intervals, ensuring consistent dryness fraction and eliminating false-negative results due to insufficient moisture activity.

Does the chamber include validation documentation for IQ/OQ/PQ?

Standard delivery includes Factory Acceptance Test (FAT) report and calibration certificate for temperature and pressure sensors; IQ/OQ protocol templates and PQ support services are available under separate service agreement.
