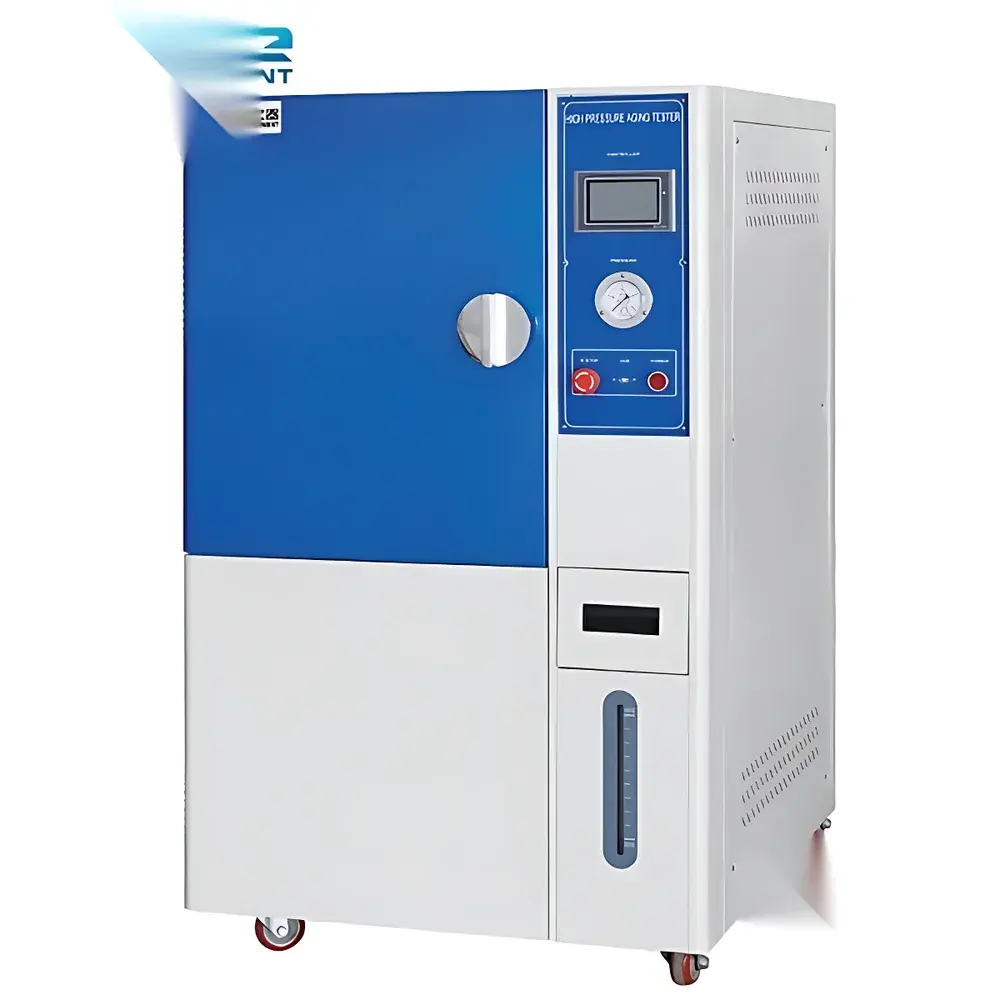

OK-PCT Series High-Pressure Saturated Steam Aging Test Chamber

Overview

The OK-PCT Series High-Pressure Saturated Steam Aging Test Chamber is engineered for accelerated reliability evaluation of electronic components, packaging materials, adhesives, and polymer-based assemblies under controlled high-pressure saturated steam environments. Operating on the principle of pressurized saturated steam aging—distinct from dry heat or humidity-only exposure—the chamber subjects test specimens to elevated temperature and pressure conditions that significantly accelerate hydrolytic degradation mechanisms. This methodology aligns with industry-standard stress testing protocols such as JESD22-A102 (Failure Mechanism and Dielectric Withstand Voltage of Non-Hermetic Surface Mount Devices) and IPC/JEDEC-95 (Test Methods Manual for Reliability Evaluation of Solid State Surface Mount Devices). The chamber achieves true thermodynamic saturation by maintaining precise equilibrium between temperature and absolute vapor pressure, eliminating superheated steam artifacts and ensuring reproducible, physics-based aging kinetics.

Key Features

• 7-inch microprocessor-based controller with PID algorithm for high-stability saturated steam temperature regulation (±0.5 °C setpoint accuracy)
• Dual-safety interlocked door system: automatic pressure-actuated mechanical lock prevents opening when internal gauge pressure exceeds atmospheric; reinforced sealing increases contact force proportionally with internal pressure
• Cylindrical stainless-steel inner chamber (AISI 304) conforming to ASME BPVC Section VIII Div. 1 design criteria for pressure vessels; seamless construction eliminates crevices and enhances corrosion resistance
• Steam-diffusing inner liner geometry minimizes direct impingement of latent heat onto samples, reducing thermal shock and improving test uniformity
• Integrated auto-water replenishment system with float-level sensors and audible/visual low-water alerts; supports >200 hours of continuous operation per fill under standard test cycles
• Redundant safety architecture: independent overpressure relief valve (ASME-certified), dual overtemperature cutoffs, and real-time water level monitoring with fail-safe shutdown
• LED digital timer display and analog pressure gauge (±0.05 kg/cm² resolution) for immediate operational verification and audit-ready manual logging

Sample Compatibility & Compliance

The OK-PCT chamber accommodates a broad range of sample geometries—including PCB assemblies, molded IC packages (QFP, BGA, QFN), medical device housings, and automotive connectors—via adjustable stainless-steel sample trays. Its cylindrical cavity design ensures uniform steam circulation without forced convection, preserving natural condensation dynamics critical for moisture diffusion modeling. The system complies with key regulatory and industry frameworks including ISO 9001:2015 (process control documentation), IEC 60068-2-66 (damp heat, accelerated aging), and JEDEC Standard J-STD-020 (moisture sensitivity level classification). Optional calibration certificates traceable to NIST standards are available for GLP/GMP environments requiring documented metrological integrity.

Software & Data Management

While the base configuration features standalone microcontroller operation for simplicity and robustness in production-line settings, optional RS-485/Modbus RTU interface enables integration into centralized environmental test management systems. Logged parameters—including chamber temperature, pressure, elapsed time, and water level status—are timestamped and exportable via USB flash drive in CSV format. Audit trail functionality supports 21 CFR Part 11 compliance when paired with validated third-party software platforms, providing electronic signatures, user access controls, and immutable record retention for quality assurance departments.

Applications

• Moisture sensitivity level (MSL) qualification per JEDEC J-STD-020
• Plastic encapsulated microcircuit (PEM) reliability screening for aerospace and automotive electronics
• Accelerated life testing of conformal coatings and underfill materials
• Validation of hermeticity and seal integrity in medical device packaging (ISO 11607)
• Hydrolytic stability assessment of biodegradable polymers and composite laminates
• Process qualification for reflow soldering and post-mold curing workflows

FAQ

What pressure ranges are supported, and how is pressure calibrated?

The standard OK-PCT series operates from ambient to 2.0 kg/cm² (gauge), equivalent to ~3.0 bar absolute at 132 °C. Pressure transducers are factory-calibrated against deadweight testers and include annual recalibration intervals specified in the maintenance manual.

Can the chamber be used for non-saturated steam applications?

No—this chamber is specifically designed for saturated steam conditions only. It does not support dry heat, unsaturated humidity, or vacuum modes. For multi-mode environmental testing, consider hybrid chambers with separate humidity and thermal subsystems.

Is custom internal volume design available?

Yes. OK Instruments offers OEM engineering support for non-standard internal dimensions, specialized tray configurations, and integration of inline pressure/temperature sensors per customer specification.

How is water purity managed to prevent scaling?

Use of deionized (DI) or distilled water is mandatory. The chamber includes a built-in scale-resistant heating element design and drain port for periodic descaling per maintenance schedule.

Does the system meet CE or UL certification requirements?

The OK-PCT series carries CE marking per EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU. UL 61010-1 certification is available upon request for North American deployments.
