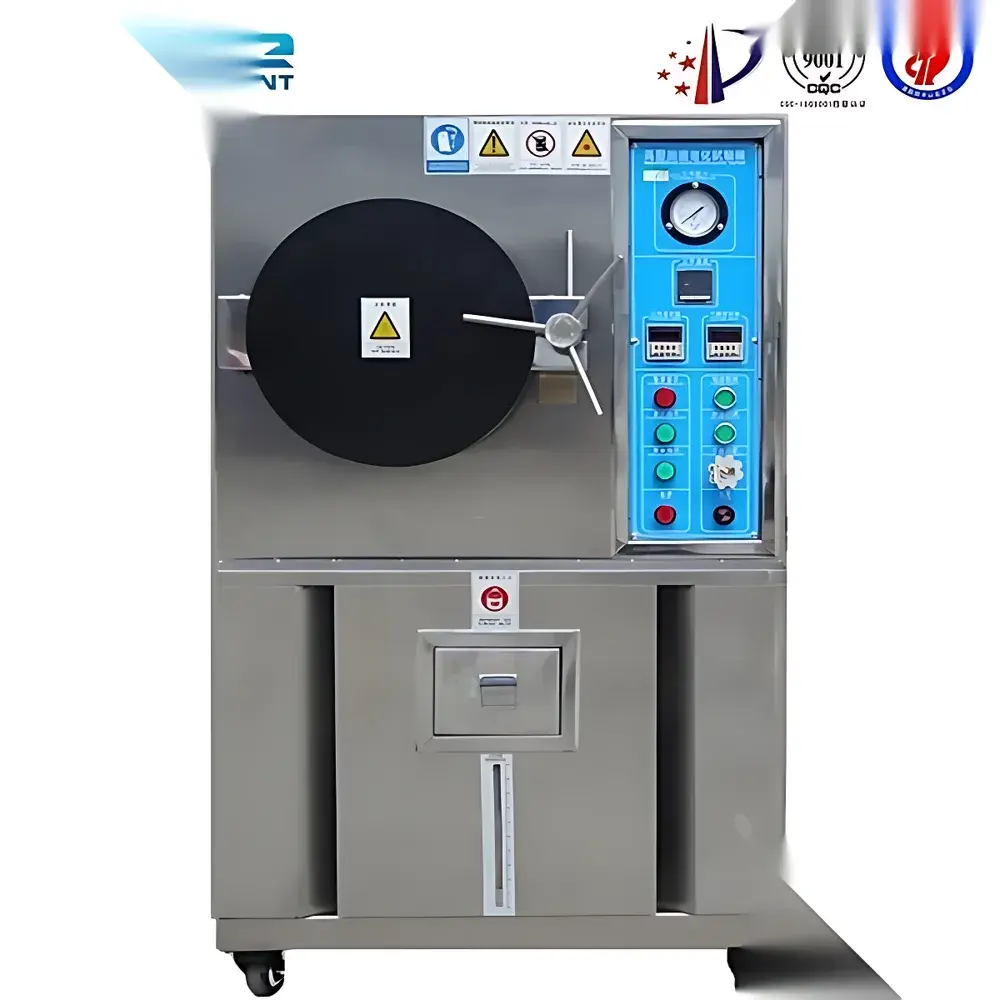

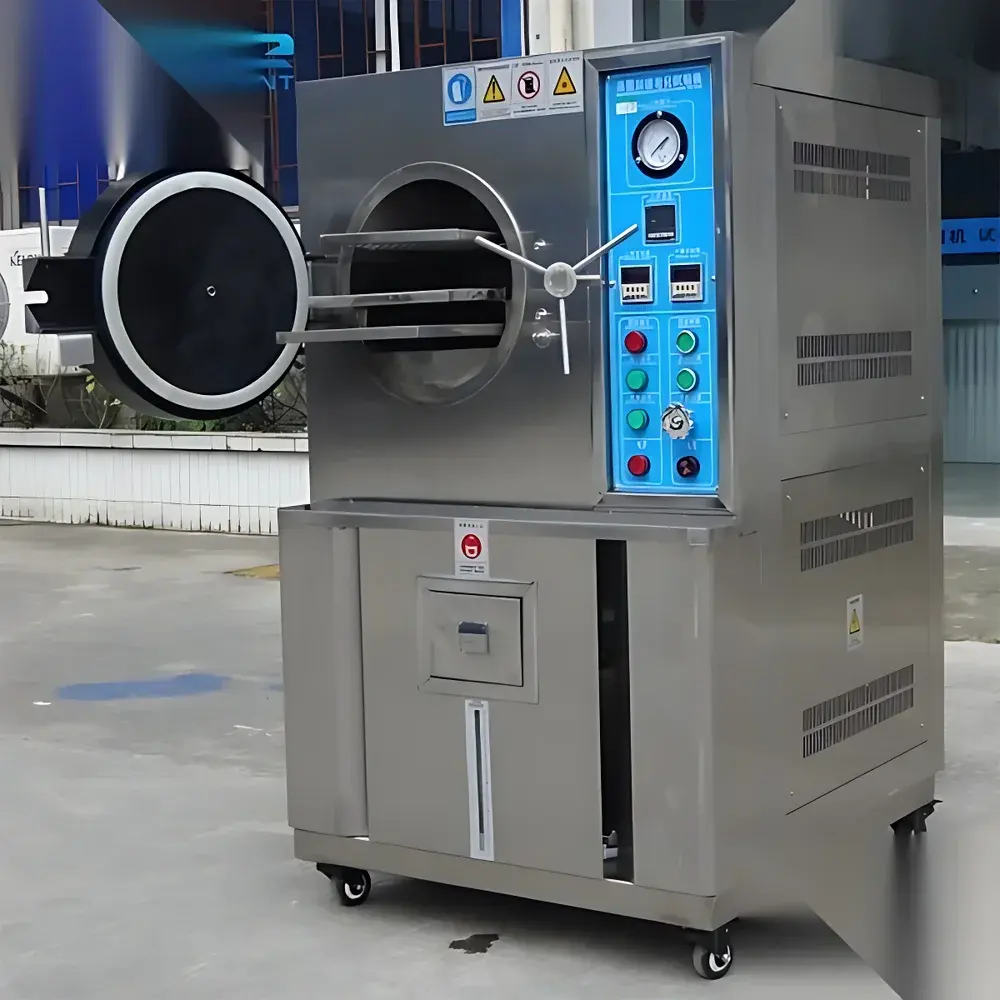

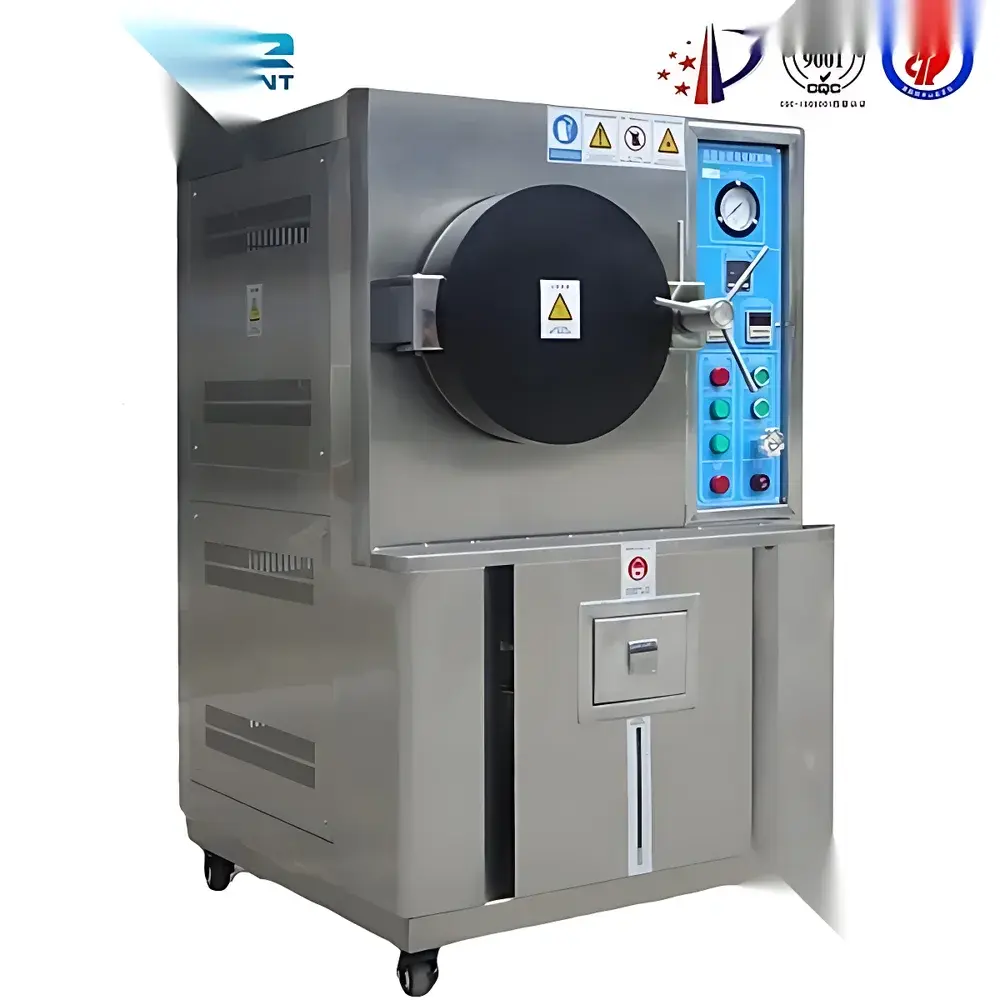

OK-PCT Series High-Pressure Saturated Steam Autoclave (PCT) for Accelerated Reliability Testing

Overview

The OK-PCT Series High-Pressure Saturated Steam Autoclave is an engineered environmental stress test system designed for accelerated reliability evaluation of hermetically sealed and moisture-sensitive components under controlled high-pressure saturated steam conditions. Operating on the principle of pressurized saturated steam exposure—where temperature, pressure, and relative humidity are thermodynamically coupled—the instrument subjects samples to accelerated moisture ingress and thermal stress, simulating years of field-level degradation in hours or days. This methodology is widely adopted in qualification testing per industry standards including JESD22-A102 (Failure Mechanism and Dielectric Withstand Voltage of Nonhermetic Surface Mount Devices), MIL-STD-883 Method 1008 (Moisture Resistance), and AEC-Q200 stress requirements for passive electronic components. The unit maintains strict traceability of process parameters—pressure, temperature, and exposure duration—to support GLP-compliant validation protocols and internal reliability gate reviews during product development.

Key Features

• ASME-styled cylindrical stainless steel inner chamber with seamless weld construction, conforming to industrial pressure vessel safety codes (e.g., PED 2014/68/EU for Category I equipment)
• Dual-sensor monitoring: precision analog pressure gauge with dual-scale (positive/negative) indication + digital LED time controller with programmable soak duration (up to 200 h continuous operation)
• Integrated automatic water replenishment system with conductive level sensing; alarm-triggered visual/audible warning upon low-water condition
• High-integrity silicone door gasket with compression-molded cross-section, rated for >10,000 sealing cycles at 2.0 kg/cm² (abs) and 132°C
• Steam quality optimization via continuous venting of non-condensable gases and sub-saturated vapor during pressurization phase
• Thermally insulated double-wall housing with rear-mounted power inlet, minimizing ambient heat emission and ensuring operator safety
• Comprehensive safety interlock architecture: independent mechanical pressure relief valve (set at 10% above max operating pressure), thermal cut-off switch, and dry-run sensor

Sample Compatibility & Compliance

The OK-PCT series accommodates a broad range of sample geometries—from discrete IC packages (QFN, BGA, SOIC) and multilayer PCB assemblies to automotive sensors, LED modules, medical-grade encapsulated electronics, and aerospace-grade connectors. Its cylindrical chamber design eliminates dead-air zones and ensures uniform steam distribution without forced convection, critical for repeatable moisture diffusion kinetics. All models meet ISO/IEC 17025 preconditions for laboratory accreditation when operated within defined calibration intervals. Test records—including real-time pressure/temperature logs, cycle start/stop timestamps, and manual intervention events—are structured to satisfy FDA 21 CFR Part 11 audit-trail requirements when paired with compliant data acquisition software (optional add-on).

Software & Data Management

While the base configuration features standalone hardware controls, optional PC-based data logging software enables CSV-exportable time-series capture of pressure, chamber temperature, and elapsed time at user-defined intervals (1–60 s). Raw data files include embedded metadata (operator ID, test ID, chamber serial number, calibration expiry date) to support traceability in regulated environments. The software supports configurable pass/fail thresholds and auto-generates summary reports aligned with JEDEC J-STD-020 and IPC-9701 formats. For GMP-regulated labs, validated versions of the software package include electronic signature capability, role-based access control, and immutable log archiving.

Applications

• Qualification of moisture sensitivity level (MSL) for surface-mount devices prior to reflow soldering
• Accelerated life testing of conformal-coated PCBs and potting-compound-encapsulated assemblies
• Evaluation of seal integrity in MEMS packages, optical sensors, and hermetic relays
• Process validation of vapor-phase reflow ovens and nitrogen-purged storage cabinets
• Root-cause analysis of popcorning, wire bond lift-off, and intermetallic delamination induced by moisture expansion
• Supporting failure analysis workflows in conjunction with SAM (Scanning Acoustic Microscopy) and X-ray CT post-test inspection

FAQ

What pressure units does the OK-PCT use, and how are they referenced?

The unit displays pressure in kg/cm² (absolute), referenced to ambient atmospheric pressure (i.e., 1.0 kg/cm² abs ≈ 0.1 MPa or 100 kPa). Optional calibration certificates provide NIST-traceable conversion to bar or psi.

Can the chamber be customized for non-standard sample heights?

Yes—OK Instruments offers bespoke chamber depth extensions (±10 cm increments) and adjustable stainless steel shelf configurations while maintaining structural integrity and thermal uniformity per ASTM E2234.

Is steam purity monitored during operation?

The system continuously vents non-condensable gases during ramp-up and holds saturated steam equilibrium via dynamic condensate management; no external steam quality analyzer is required for standard qualification testing.

How often must the pressure relief valve be certified?

Per ASME BPVC Section VIII and local regulatory requirements, mechanical relief valves should undergo functional verification annually and full recalibration every two years by an accredited third-party service provider.

Does the unit comply with IEC 60068-2-66 for damp heat testing?

While optimized for high-pressure saturated steam (PCT), it meets the environmental profile of IEC 60068-2-66 when operated at 121°C/100% RH and 2.0 kg/cm² (abs); full compliance documentation is available upon request.
