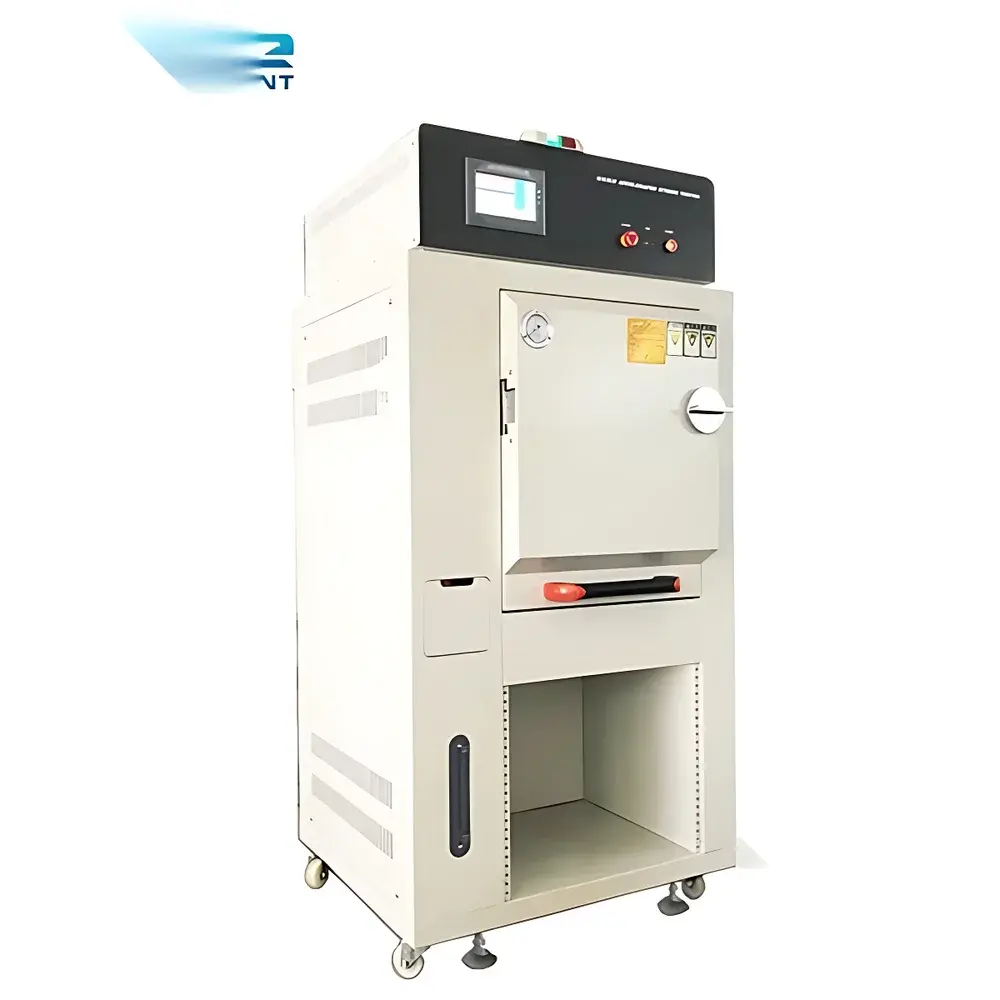

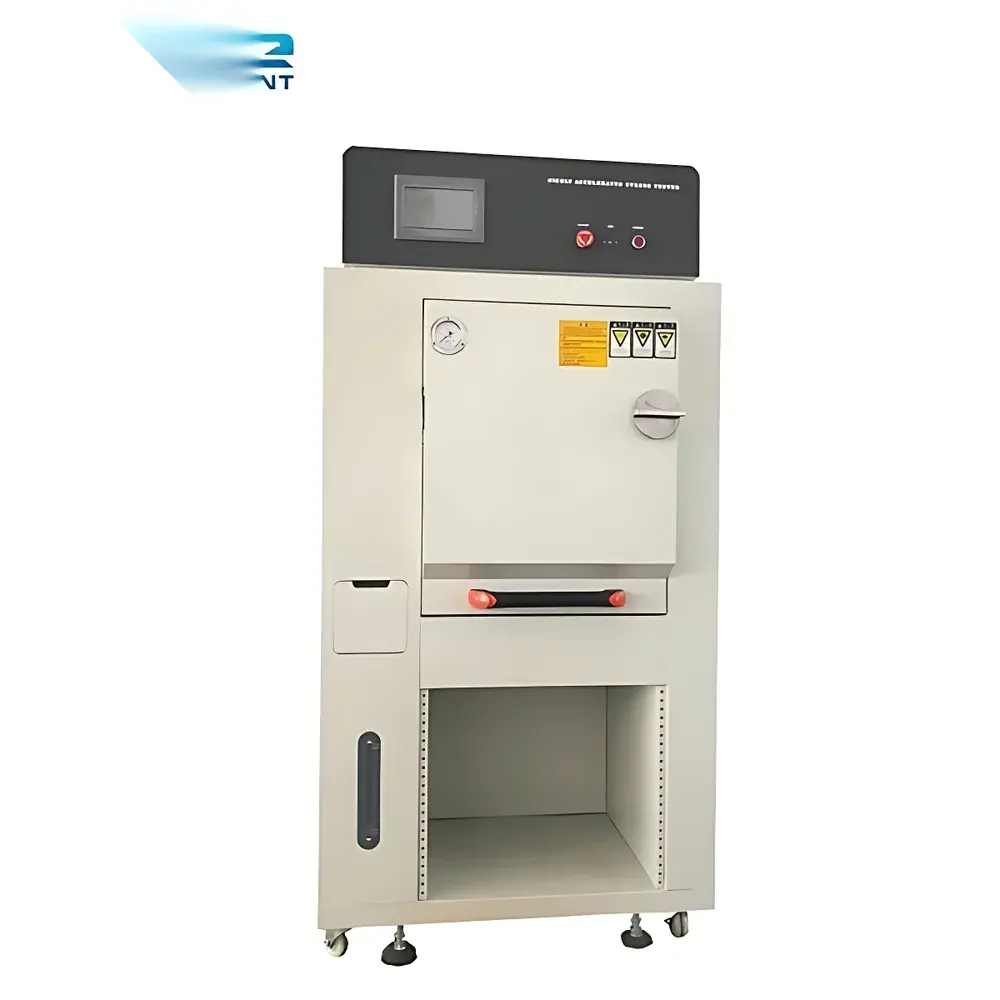

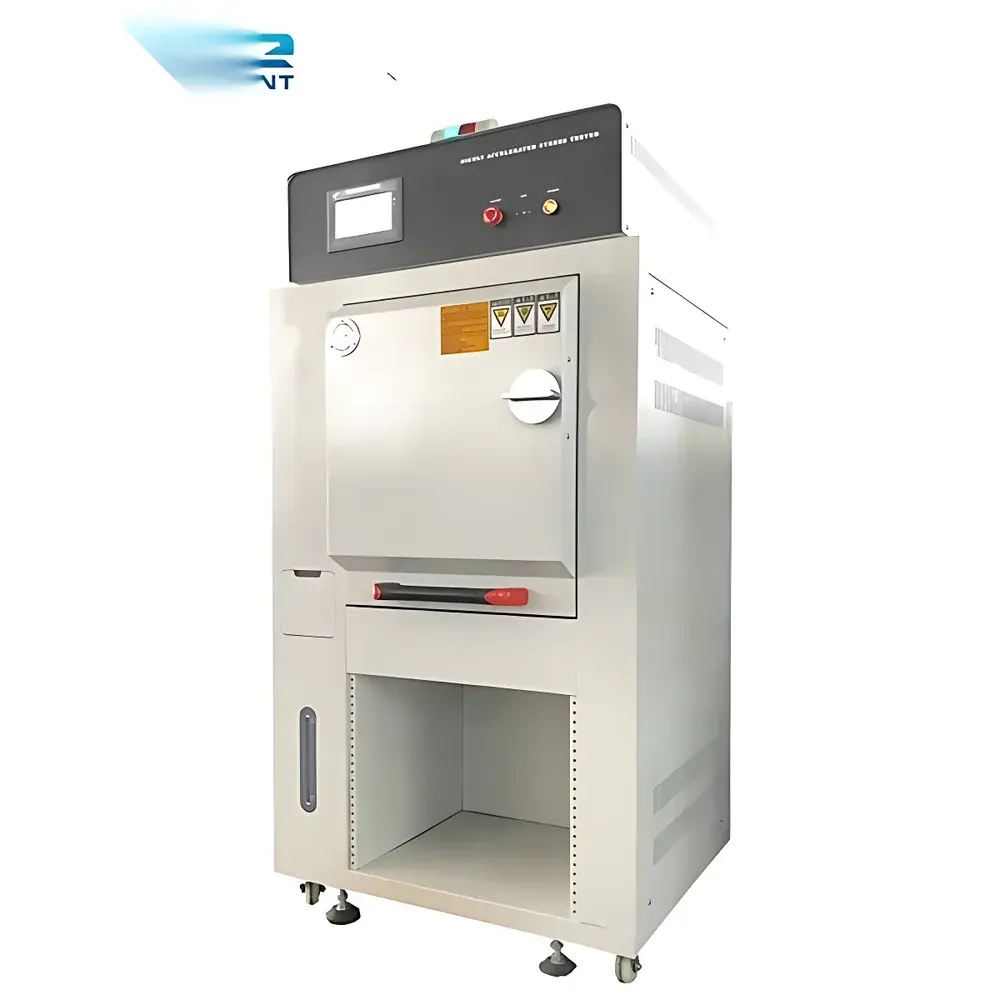

OK-PCT Series Low-Pressure Accelerated Aging Test Chamber

Overview

The OK-PCT Series Low-Pressure Accelerated Aging Test Chamber is a precision-engineered environmental stress test system designed to evaluate the long-term reliability and hermetic integrity of electronic components, multilayer printed circuit boards (PCBs), IC packages, LED modules, medical device housings, and polymer-based enclosures under controlled saturated steam conditions at elevated temperature and sub-atmospheric to moderately elevated pressure. Unlike conventional autoclave-style high-pressure steam chambers, the OK-PCT operates within a defined low-pressure range (0.0–2.0 kg/cm² gauge), enabling accelerated moisture ingress testing while minimizing mechanical stress on delicate assemblies. Its core methodology aligns with standardized Pressure Cooker Test (PCT) protocols—specifically IPC-TM-650 2.6.25 and JEDEC JESD22-A102—to simulate decades of field exposure in days or weeks. The chamber utilizes natural convection of saturated steam to ensure uniform thermal and humidity distribution, eliminating forced-air turbulence that could compromise condensate formation dynamics critical to failure mode replication.

Key Features

• Microprocessor-based PID temperature controller with LED digital display for precise saturation temperature regulation (121°C, 132°C, or 143°C upon request)
• Stainless-steel cylindrical inner chamber and dome-shaped liner engineered to deflect latent heat transfer and prevent direct vapor impingement on test specimens
• Integrated pressure–temperature monitoring via dual-scale analog gauge and real-time digital readout, synchronized with elapsed time tracking
• Auto-locking safety door mechanism activated by internal pressure differential—increasing sealing force proportionally with chamber pressure to extend gasket service life and eliminate traditional clamp-based compression fatigue
• Self-regulating water level management system with audible/visual low-water alarm and fully automatic refill capability during active test cycles
• High-integrity silicone door gasket (one-piece molded) providing >10,000-cycle durability and leak-tight performance per ISO 10648-2 Class 3 requirements
• Natural steam circulation design ensures stable 100% RH saturation without superheating artifacts or localized dry zones
• Overpressure relief valve calibrated to open at factory-set maximum working pressure; redundant overtemperature cutoff and dry-run protection circuits

Sample Compatibility & Compliance

The OK-PCT accommodates a wide range of sample geometries—from discrete SMD passives and QFN packages to full-size automotive control units and medical-grade sealed assemblies—within its four standard chamber configurations (OK-PCT-35 through OK-PCT-65). All models comply with international standards governing accelerated moisture resistance validation, including IEC 60068-2-66 (damp heat, cyclic, PCT method), MIL-STD-202 Method 108 (moisture resistance), and JIS C 60068-2-66. The system supports GLP/GMP-aligned operation when integrated with compliant data logging: timestamped temperature, pressure, and runtime parameters are traceable and exportable for audit readiness. Optional calibration certificates (NIST-traceable) and IQ/OQ documentation packages are available for regulated environments requiring FDA 21 CFR Part 11–compliant validation.

Software & Data Management

While the base configuration features standalone LED-based controllers, an optional PC interface module enables RS-485 or Ethernet connectivity for remote monitoring and automated data capture via OK-LogSuite™ software. This platform logs all operational parameters at user-defined intervals (minimum 1-second resolution), generates CSV reports with embedded metadata (operator ID, test ID, chamber serial number), and supports configurable alarm thresholds with email/SMS notifications. Audit trails include full change history for setpoint modifications, manual interventions, and system status transitions—meeting ALCOA+ principles for data integrity in quality-critical applications.

Applications

This chamber is routinely deployed in R&D labs and manufacturing QA departments for: evaluating delamination susceptibility in stacked-die packages; validating mold compound adhesion under thermal–hygric stress; screening conformal coating effectiveness on flexible PCBs; qualifying hermetic seals in MEMS sensors and implantable electronics; assessing corrosion initiation in solder joints exposed to chloride-laden condensate; and supporting root-cause analysis of early-life failures in automotive ADAS modules. Its low-pressure architecture makes it especially suitable for thin-film devices, micro-optical assemblies, and battery cell housings where excessive mechanical loading must be avoided.

FAQ

What standards does the OK-PCT chamber support?

It conforms to IPC-TM-650 2.6.25, JEDEC JESD22-A102, IEC 60068-2-66, MIL-STD-202 Method 108, and JIS C 60068-2-66 for pressure cooker testing.

Can the chamber operate continuously for extended durations?

Yes—its optimized water retention design allows up to 200 hours of uninterrupted operation per fill, supported by automatic replenishment and real-time level monitoring.

Is the door interlock compliant with functional safety requirements?

The pressure-actuated mechanical lock meets ISO 13857 safety distance criteria and incorporates dual-channel verification to prevent inadvertent opening above 0.05 kg/cm² gauge pressure.

How is temperature and pressure uniformity validated?

Uniformity is verified per IEC 60068-3-5 using nine calibrated PT100 sensors distributed across the working volume during qualification testing; results are documented in the Factory Acceptance Test (FAT) report.

Does the system support custom chamber dimensions?

Yes—OK Instruments offers engineering consultation and bespoke chamber fabrication for non-standard specimen footprints or integration into automated test lines.
