OK-PCT Series Pressure Cooker Test Chamber for Accelerated Life Aging and Hermeticity Evaluation

Overview

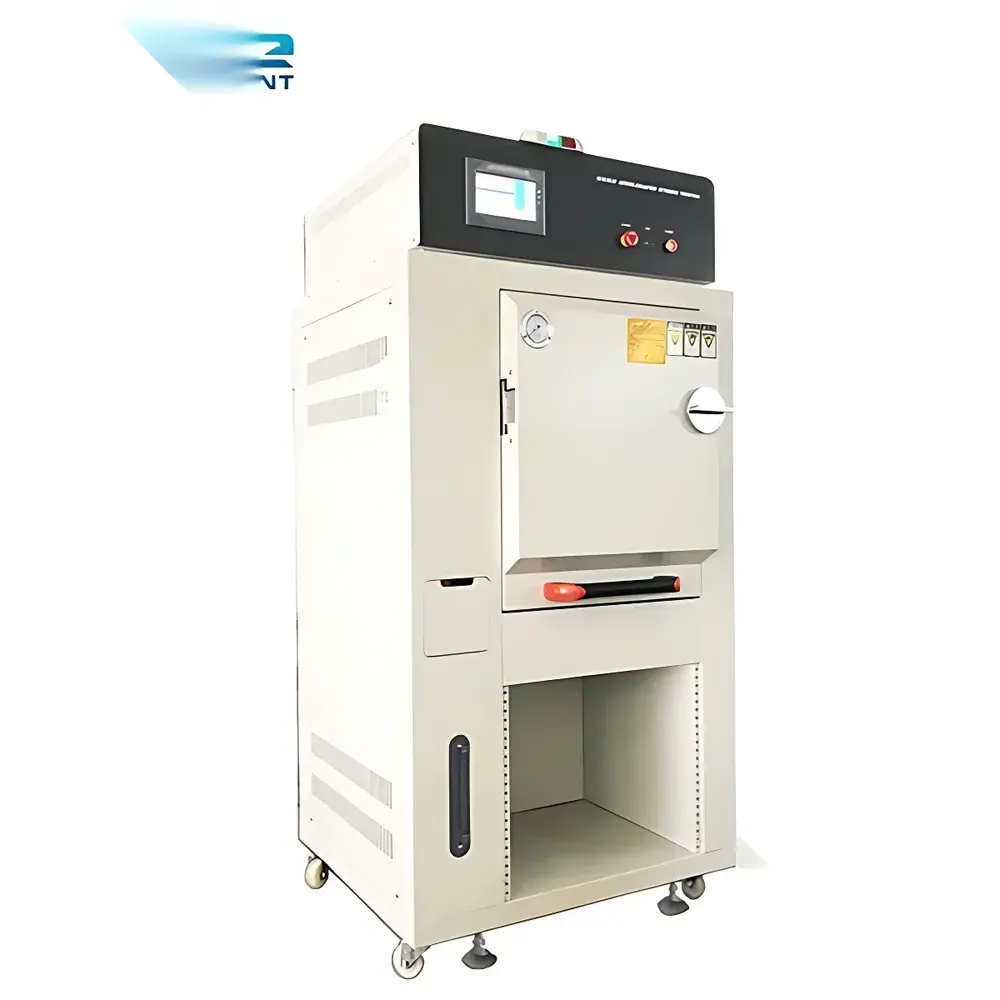

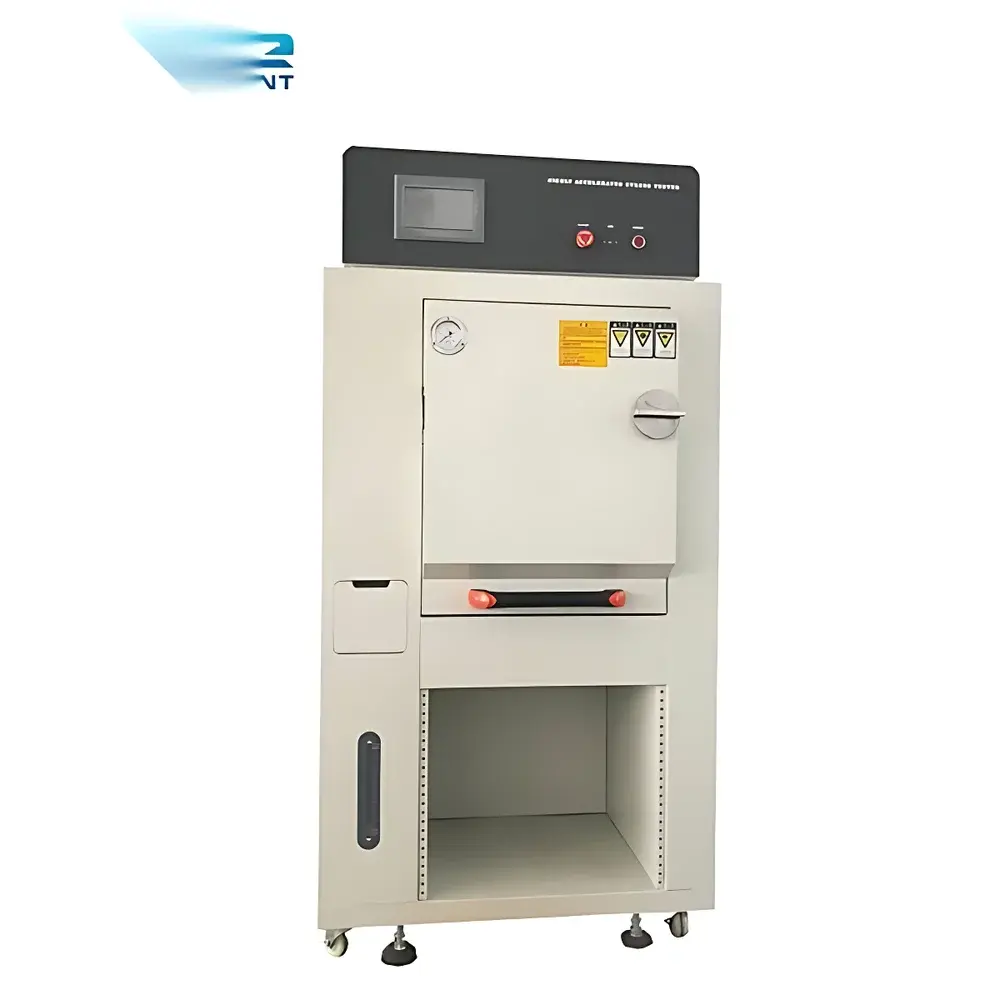

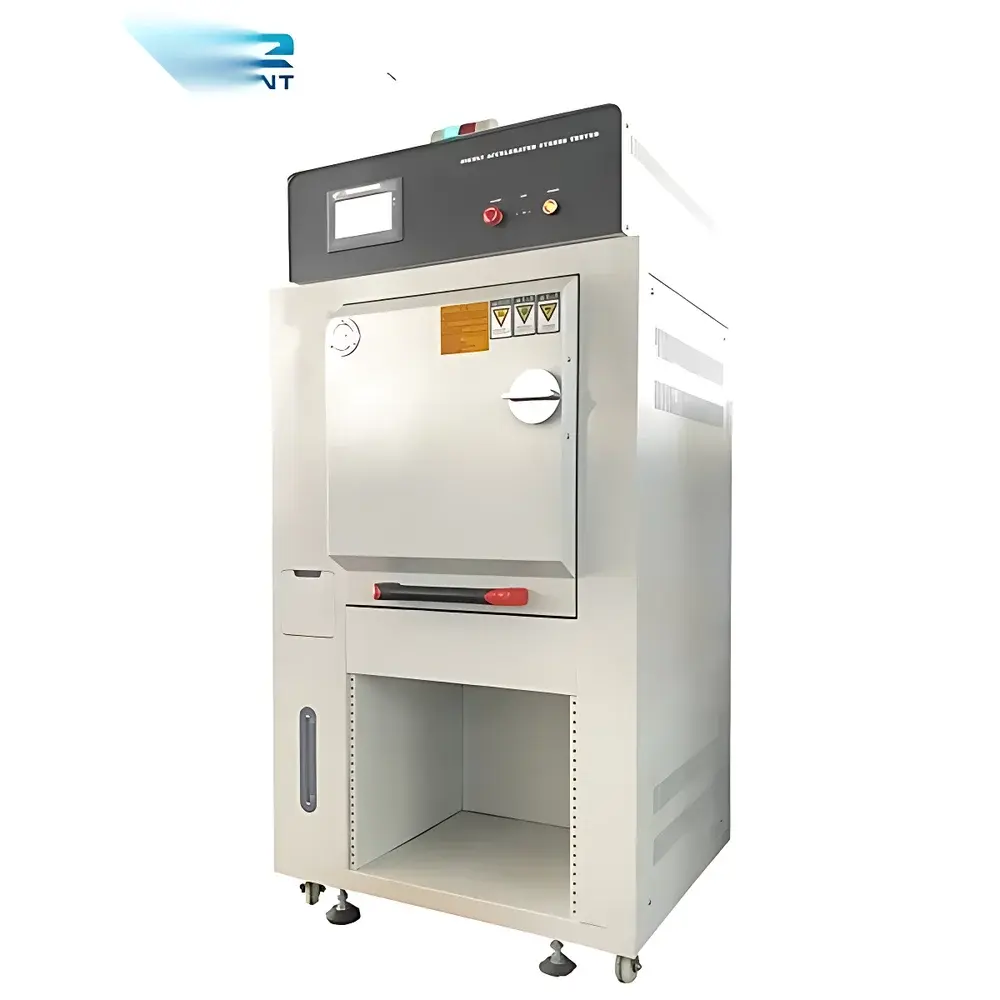

The OK-PCT Series Pressure Cooker Test Chamber is an engineered environmental stress test system designed for accelerated life aging, hermeticity validation, and moisture ingress resistance evaluation under controlled high-pressure saturated steam conditions. Based on the fundamental principles of pressure-assisted humidity aging—where elevated temperature and pressure synergistically drive water vapor diffusion into micro-gaps, seals, and layered structures—the chamber replicates years of field-level moisture exposure in days or weeks. It operates strictly within defined thermodynamic saturation curves (e.g., 121 °C @ ~2.0 kg/cm² gauge pressure, corresponding to ~200 kPa absolute), ensuring traceable, repeatable test conditions aligned with industry-standard accelerated stress protocols such as JESD22-A102 (Moisture Resistance), MIL-STD-202 Method 108 (Humidity Aging), and IPC-TM-650 2.6.25 (Pressure Pot Test). Its sealed cylindrical stainless-steel chamber geometry minimizes thermal gradients and eliminates condensate drip risk—critical for evaluating multi-layer PCBs, hermetically sealed IC packages, optoelectronic assemblies, and medical device housings where localized corrosion or delamination must be detected early in design verification.

Key Features

• Microprocessor-based PID controller for precise saturated steam temperature regulation, maintaining setpoint stability within ±0.5 °C under dynamic load conditions.
• Integrated pressure–temperature monitoring with dual LED digital displays: one for chamber temperature (121/132/143 °C selectable), another for elapsed test time—activated only after thermal equilibrium is confirmed.
• Cylindrical 304 stainless-steel inner chamber and arc-shaped liner minimize steam turbulence and prevent direct latent heat impact on test specimens, enhancing test reproducibility across batches.
• Self-sealing door mechanism: internal pressure actively compresses the integrated silicone gasket against the flange, improving seal integrity with increasing pressure—distinct from conventional clamp-style designs and extending gasket service life by >300%.
• Automated water management system with float-level sensor, audible/visual low-water alarm, and continuous top-up capability supporting uninterrupted operation for up to 200 hours per fill cycle.
• Steam purity assurance via continuous venting of non-saturated vapor through a dedicated condensate drain line, ensuring only fully saturated steam contacts samples.
• Comprehensive safety architecture: ASME-certified pressure relief valve (set at 110% of max working pressure), redundant overtemperature cutoff, and interlocked door that remains mechanically locked until pressure drops below 0.05 kg/cm².

Sample Compatibility & Compliance

The OK-PCT chamber accommodates diverse sample geometries—including stacked PCBs, wafer-level packages, MEMS sensors, automotive connectors, pharmaceutical blister packs, and implant-grade polymer housings—via two-tier adjustable stainless-steel shelves. Its cylindrical cavity ensures uniform steam distribution without dead zones, critical for statistical validity in qualification testing. The system supports compliance workflows requiring audit-ready documentation: all operational parameters (temperature, pressure, duration) are logged internally with timestamped records; optional RS-485/Modbus interface enables integration with LIMS or MES platforms. Test methods executed in this chamber align with ISO/IEC 17025-accredited laboratories’ requirements and satisfy evidence criteria for FDA 21 CFR Part 11 (electronic records), GLP, and IECQ QC 080000 hazardous substance process control audits.

Software & Data Management

While the base configuration features embedded LED controllers, optional PC-based software (OK-Control Suite v3.2) provides full remote supervision, real-time graphing of T/P profiles, automated report generation (PDF/CSV), and user-access-level authentication. All data entries include operator ID, test ID, calibration status flags, and deviation alerts—supporting 21 CFR Part 11-compliant electronic signatures and audit trail retention for ≥10 years. Calibration certificates (NIST-traceable RTD and pressure transducer) are provided with each unit shipment.

Applications

• Qualification of conformal coatings and underfill materials on HDI PCBs subjected to thermal–hygric cycling.
• Evaluation of solder joint reliability in lead-free assemblies exposed to moisture-induced popcorning during reflow.
• Hermeticity screening of MEMS oscillators, RF modules, and medical sensor housings prior to final packaging.
• Accelerated aging of lithium-ion battery cell seals and electrolyte containment systems.
• Validation of sterilization barrier integrity in Class II/III reusable surgical instruments.
• Process development support for vapor-phase reflow and steam-assisted curing of adhesives.

FAQ

What standards does the OK-PCT chamber support?

It is configured to execute JESD22-A102, MIL-STD-202 Method 108, IPC-TM-650 2.6.25, and JEDEC J-STD-020 compliant test profiles out-of-the-box.

Can the chamber operate continuously for extended durations?

Yes—its auto-refill system and 200-hour water autonomy enable unattended operation; however, periodic inspection of gasket integrity and pressure relief valve function is recommended per 500 operational hours.

Is third-party calibration available?

OK Instruments provides annual on-site calibration services with ISO/IEC 17025-accredited certificates, including uncertainty budgets for temperature (±0.3 °C) and pressure (±0.5 kPa).

How is steam saturation verified during operation?

Via continuous venting of sub-saturated vapor through the dedicated steam purge line, monitored by differential pressure across the condensate trap—ensuring >99.5% saturation level per ASME PTC 19.3TW guidelines.

Does the system meet CE or UL safety directives?

All models carry CE marking (2014/30/EU EMC Directive, 2014/35/EU LVD Directive) and comply with UL 61010-1:2012 Edition 3 for laboratory equipment safety.
