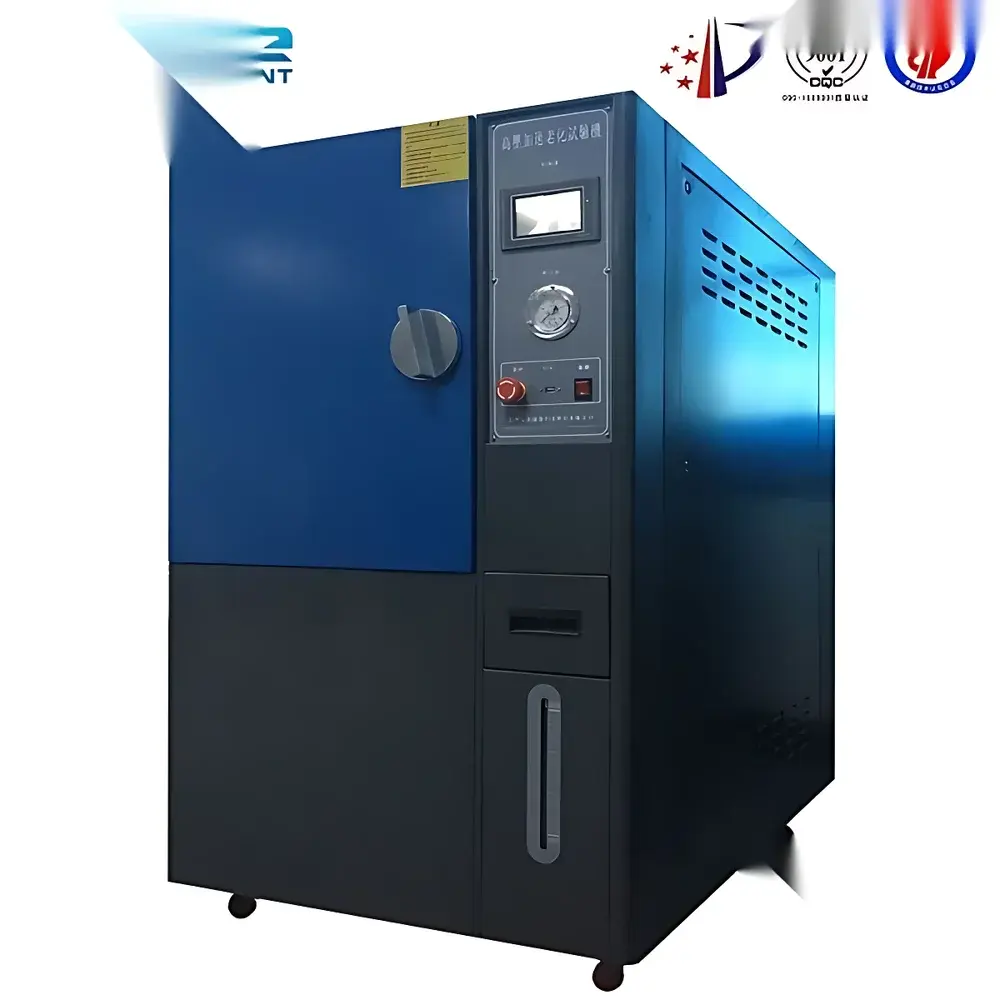

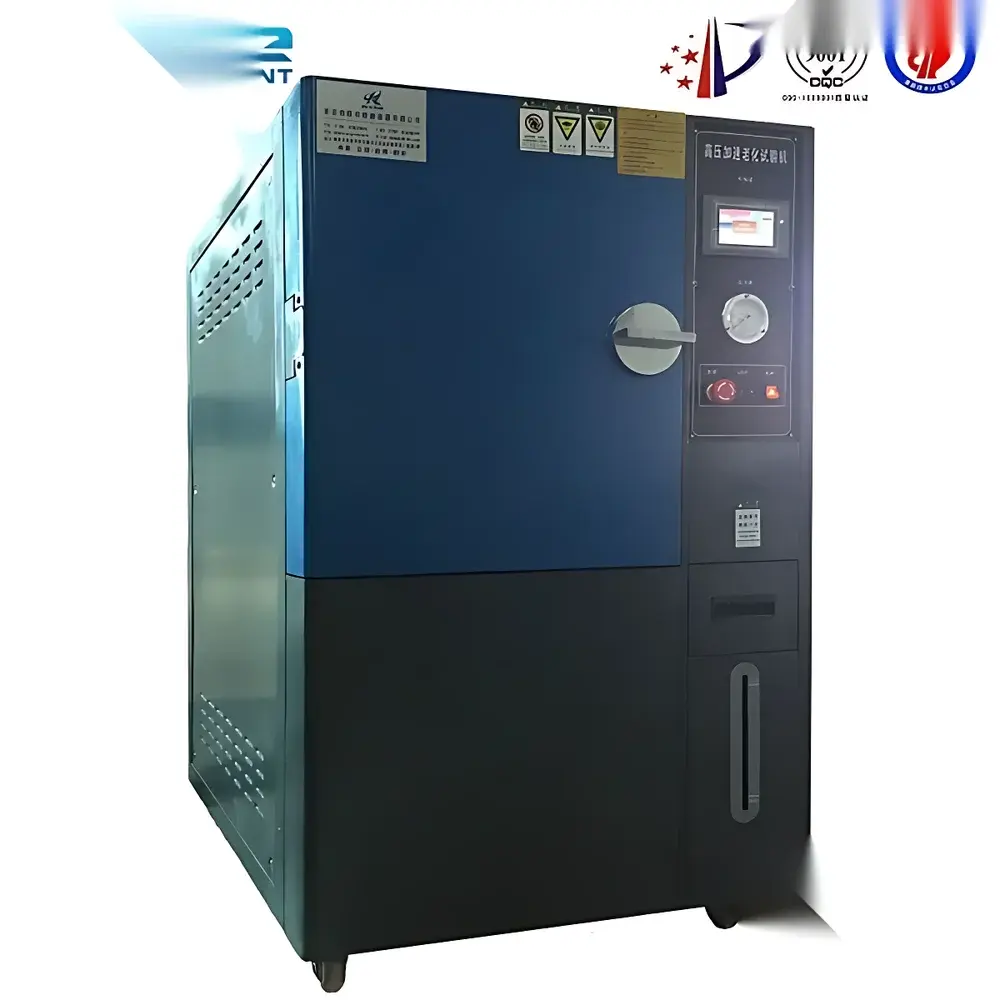

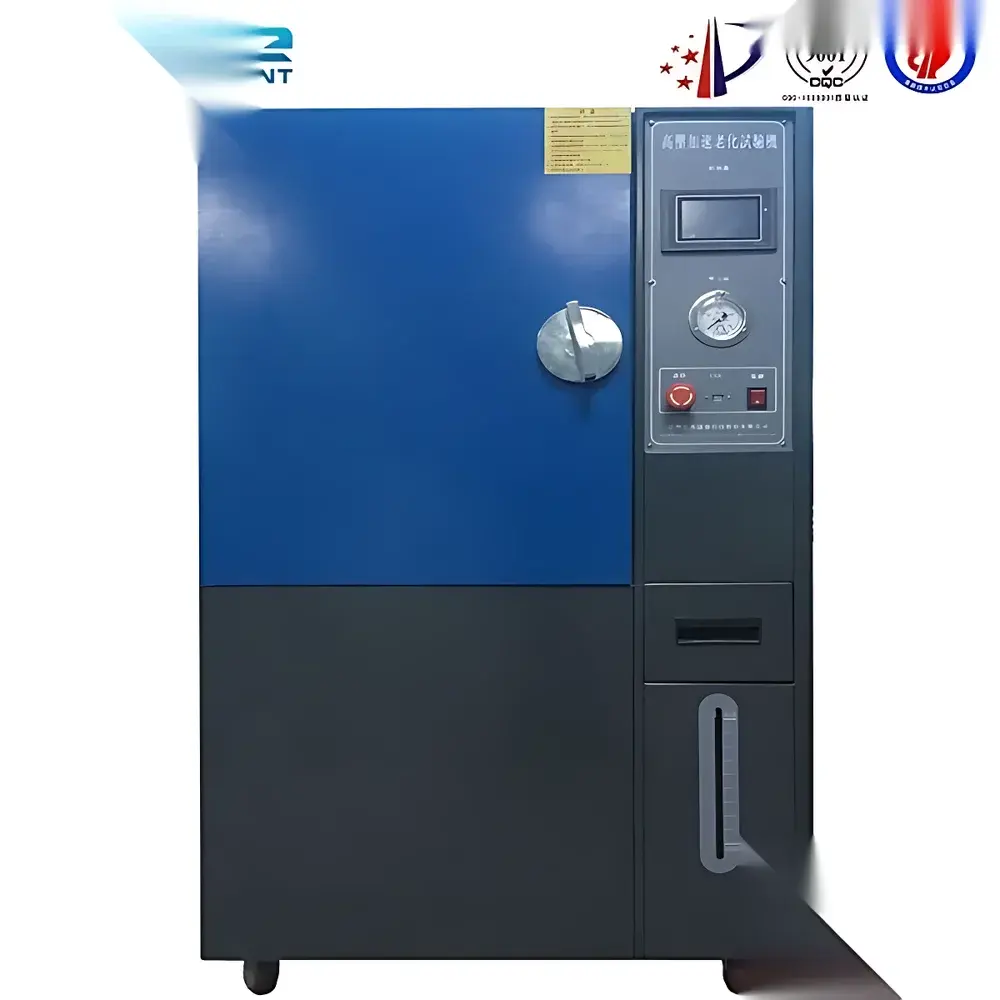

PCT Steam Aging Pressure Chamber

Overview

The PCT Steam Aging Pressure Chamber is a precision-engineered environmental stress test system designed for accelerated reliability evaluation of electronic components, semiconductor packages, PCB assemblies, and hermetically sealed devices under high-pressure saturated steam conditions. Operating on the principle of Pressure Cooker Test (PCT), it subjects samples to elevated temperature (typically 100–130 °C) and pressure (up to 2–3 bar absolute) in a controlled saturated steam atmosphere—accelerating moisture diffusion into encapsulants, die attach interfaces, and wire bond regions. Unlike conventional Temperature-Humidity-Bias (THB) testing, PCT significantly reduces test duration by leveraging vapor-phase condensation kinetics and enhanced water activity at elevated partial pressure, enabling rapid detection of moisture-induced failure mechanisms such as delamination, corrosion, popcorning, and intermetallic degradation. The chamber complies with industry-standard test protocols including JEDEC JESD22-A102 (PCT), MIL-STD-883 Method 1008, and AEC-Q200 qualification requirements for automotive electronics. Its robust stainless-steel construction, integrated safety architecture, and thermodynamic stability ensure repeatable, auditable, and GLP-compliant test execution.

Key Features

• Interlocked door safety mechanism: System remains de-energized unless the lid is fully closed and mechanically engaged—preventing accidental pressurization.
• Redundant overpressure protection: Dual-stage safety valve with certified setpoint (e.g., 3.0 bar abs) and independent mechanical relief path.
• Dual thermal cutoff system: Primary thermostat + secondary bimetallic thermal fuse; automatic heater shutdown and audible alarm upon exceeding preset temperature limit.
• Heat-resistant ABS door guard: Insulated perimeter housing minimizes surface temperature exposure (<45 °C) during operation, meeting IEC 61000-4-2 ergonomic safety guidelines.
• Auto-fill water reservoir with level sensor: Maintains optimal water volume throughout test cycles; initiates refill only when level drops below operational threshold—preventing dry-heating events.
• LED digital PID temperature controller: ±0.5 °C accuracy, programmable ramp/soak profiles, real-time display of setpoint and chamber core temperature.
• Steam-synchronized digital timer: Starts timing only after chamber reaches target saturation temperature—ensuring accurate dwell time per JEDEC specifications.
• Integrated steam purging cycle: Automatically vents non-condensable gases (e.g., air) prior to pressurization, guaranteeing >99.5% saturated steam purity for consistent test severity.
• One-piece silicone gasket seal: Molded-in-place, FDA-grade elastomer with compression-set resistance >10,000 cycles; maintains leak rate <1 × 10⁻⁶ mbar·L/s per ISO 10648-2.
• Electropolished 316L stainless steel interior: Ra ≤ 0.4 µm surface finish resists oxidation, facilitates cleaning, and prevents cross-contamination between test runs.

Sample Compatibility & Compliance

The chamber accommodates standard JEDEC trays (JEDEC MO-178), 8-inch wafers (with optional carrier), QFN/QFP packages, BGA substrates, and small-form-factor modules up to 300 mm × 300 mm footprint. It supports both static and bias-enabled PCT configurations (with optional external DC power feedthroughs). All control logic and data logging functions are designed to support audit-ready documentation per ISO/IEC 17025 and FDA 21 CFR Part 11 requirements—including user authentication, electronic signatures, and immutable audit trails for temperature, pressure, and duration parameters. Calibration certificates traceable to NIST standards are provided with each unit.

Software & Data Management

While the base configuration features standalone LED-based controls, an optional Ethernet-enabled data logger (model PCT-LOG-EN) provides continuous acquisition of temperature, pressure, and elapsed time at 1-second intervals. Exportable CSV files include timestamped metadata, alarm event logs, and calibration history. Firmware supports configurable alarm thresholds, email/SNMP notifications on fault conditions, and integration with LIMS platforms via Modbus TCP. All stored data retains integrity through cyclic redundancy checks (CRC-32) and write-once archival modes compliant with GLP retention mandates.

Applications

• Qualification of mold compound adhesion and package-level moisture sensitivity (MSL) per J-STD-020.
• Failure analysis root-cause investigation of solder joint voiding and underfill delamination.
• Reliability screening for automotive radar modules, power inverters, and ADAS ECUs exposed to humid environments.
• Process validation of wafer-level encapsulation and wafer-bonding techniques.
• Accelerated life testing of MEMS sensors, optoelectronic housings, and medical-grade hermetic seals.

FAQ

What is the maximum allowable operating pressure and temperature?

Rated for continuous operation up to 3.0 bar absolute pressure and 130 °C saturated steam temperature—validated per ASME BPVC Section VIII Div. 1 design criteria.

Does the system meet international safety certifications?

Yes—CE-marked per Machinery Directive 2006/42/EC and PED 2014/68/EU; electrical safety compliant with IEC 61010-1.

Can humidity be monitored independently of pressure?

No—humidity is intrinsically defined by saturation conditions at given pressure/temperature; relative humidity is maintained at 100% by design.

Is third-party calibration support available?

Yes—authorized service centers provide annual recalibration with NIST-traceable pressure transducers and Class A PT100 sensors.

What maintenance intervals are recommended?

Gasket inspection every 200 cycles; full preventive maintenance—including valve verification and water quality assessment—every 12 months or 1,000 operational hours.
