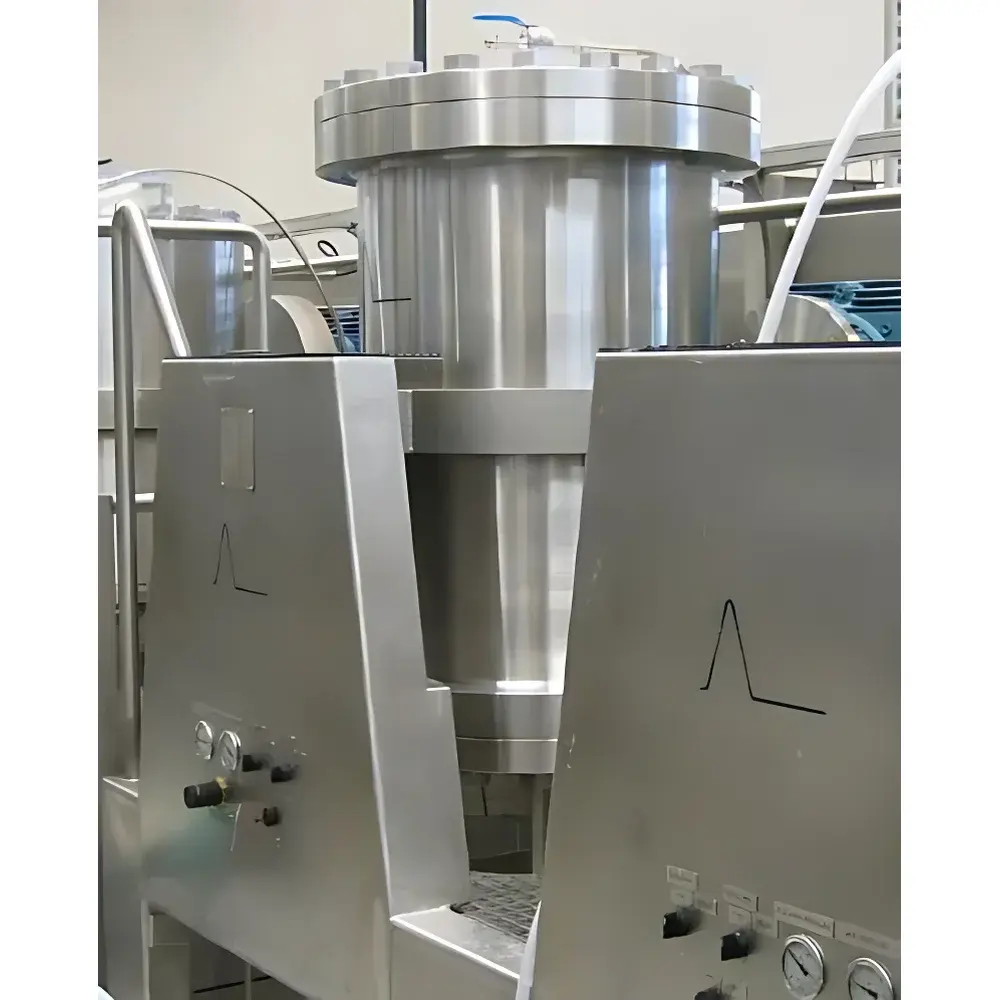

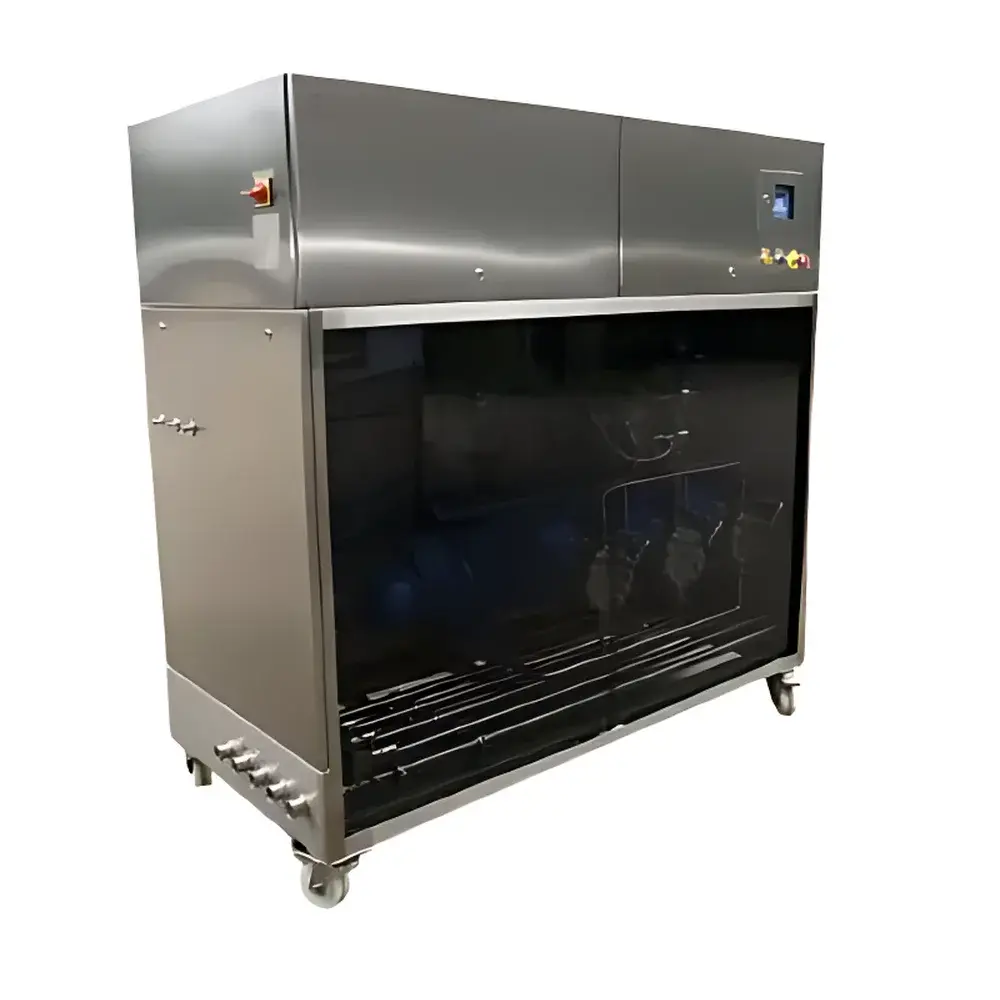

Peak Biotech A/S Axial Compression Prep Columns and Prep Systems (Distributed Globally by GRACE)

Overview

The Peak Biotech A/S Axial Compression Prep Columns and Integrated Prep Systems represent a high-integrity, scalable solution for preparative liquid chromatography in pharmaceutical development, bioprocessing, and fine chemical synthesis. Engineered around dynamic axial compression (DAC) technology, these systems maintain uniform bed density under operational pressure by applying continuous, programmable axial force to the column piston—eliminating radial channeling and ensuring reproducible retention times, peak symmetry, and resolution across batch-to-batch and scale-up runs. Unlike static-packed or manually compressed columns, DAC architecture enables real-time bed re-compaction during method development and production, mitigating void formation and supporting long-term column stability—even with compressible media such as silica gels, polymer-based resins, and functionalized monoliths. Designed for compliance-critical environments, the entire platform adheres to fundamental principles of process analytical technology (PAT) and is structurally certified to PED 97/23/EC or ASME Section VIII Div. 1 standards.

Key Features

• Dynamic axial compression mechanism with pneumatically actuated piston and integrated load cell feedback for precise, repeatable bed consolidation (50–1000 mm i.d.)
• Modular, ergonomic column design featuring removable frits and PTFE/PEEK-sealed interfaces—enabling rapid disassembly, cleaning, and media replacement without specialized tools
• Uniform fluid distribution via multi-point inlet manifolds and perforated stainless-steel distributor plates (1.4404 / 1.4435 / SS316L / SAF2205 construction)
• Integrated leak detection system with pressure-decay monitoring and automated shutdown protocol
• Elimination of manual seal adjustment through self-aligning, spring-loaded sealing assemblies compliant with ISO 15848-1 fugitive emission limits
• Full scalability from lab-scale (50 mm i.d.) to industrial production (up to 300 mm i.d. for flexible manufacturing; up to 1000 mm i.d. for fixed-site installations)
• High-pressure HPLC system with dual-range pump capability: mid-pressure mode (6–5000 L/h, 0–20 bar) and high-pressure mode (6–1000 L/h, 0–80 bar)
• Four solvent inlets, one sample injection port, and five fraction collection outlets—all with PTFE-wetted surfaces and sanitary tri-clamp connections

Sample Compatibility & Compliance

These systems accommodate a broad range of stationary phases—including reversed-phase C18/C8, ion-exchange, size-exclusion, chiral, and affinity media—as well as viscous or particulate-laden feed streams common in monoclonal antibody purification and oligonucleotide synthesis. All wetted materials meet USP Class VI and FDA 21 CFR 177.2600 requirements. Structural alloys conform to ASTM A240/A276 specifications for corrosion resistance in aggressive solvents (e.g., TFA, acetonitrile/water gradients, acidic eluents). System validation packages include IQ/OQ documentation, FAT/SAT reports, and full traceability per GAMP 5 guidelines. Pressure vessels are CE-marked under PED and stamped with ASME U-stamp where applicable.

Software & Data Management

Control is executed via Siemens PCS 7 DCS, configured to comply with 21 CFR Part 11 requirements—including electronic signatures, audit trails, role-based access control, and immutable data archiving. The system implements S88-compliant modular automation, enabling recipe-driven operation across multiple column configurations and purification protocols. Gradient generation supports real-time synchronization with inline detectors (NIR, UV-Vis, conductivity, MS-compatible flow cells), with all signals timestamped and correlated in a single acquisition timeline. Data export formats include CSV, HDF5, and vendor-neutral XML for integration into LIMS and MES platforms. Full system qualification includes cybersecurity hardening per IEC 62443-3-3.

Applications

• Purification of therapeutic proteins, peptides, and ADC intermediates under cGMP conditions
• Scale-up of synthetic API purification from mg-to-kg batches using identical column packing logic
• Process development of continuous chromatography trains with periodic counter-current (PCC) integration readiness
• Recovery and polishing of viral vectors and plasmid DNA in gene therapy workflows
• High-throughput screening of novel stationary phases using parallel column switching
• Recycling and regeneration of expensive ligand-based media via in-situ cleaning-in-place (CIP) sequences

FAQ

What regulatory standards does the system support out-of-the-box?
The system is delivered with pre-validated firmware, documented IQ/OQ protocols, and 21 CFR Part 11-compliant audit trail functionality. It meets GAMP 4 classification and supports GLP/GMP-aligned operations including electronic signature enforcement and change control tracking.
Can the DAC column be operated with aqueous buffers at pH extremes?
Yes—wetted components use high-purity austenitic and duplex stainless steels (SS316L, SAF2205) and chemically inert PTFE/PEEK seals, enabling stable operation from pH 1 to pH 13 over extended cycles.
Is remote monitoring and predictive maintenance supported?
Via optional OPC UA server integration, real-time performance metrics—including piston displacement drift, pressure differential trends, and pump pulse deviation—are accessible through enterprise SCADA or cloud-based analytics platforms.
How is method transfer between different column diameters ensured?
The system’s embedded scaling engine applies linear velocity and residence time normalization algorithms based on column cross-sectional area and bed height—ensuring consistent mass transfer coefficients and minimizing re-optimization effort during tech transfer.
