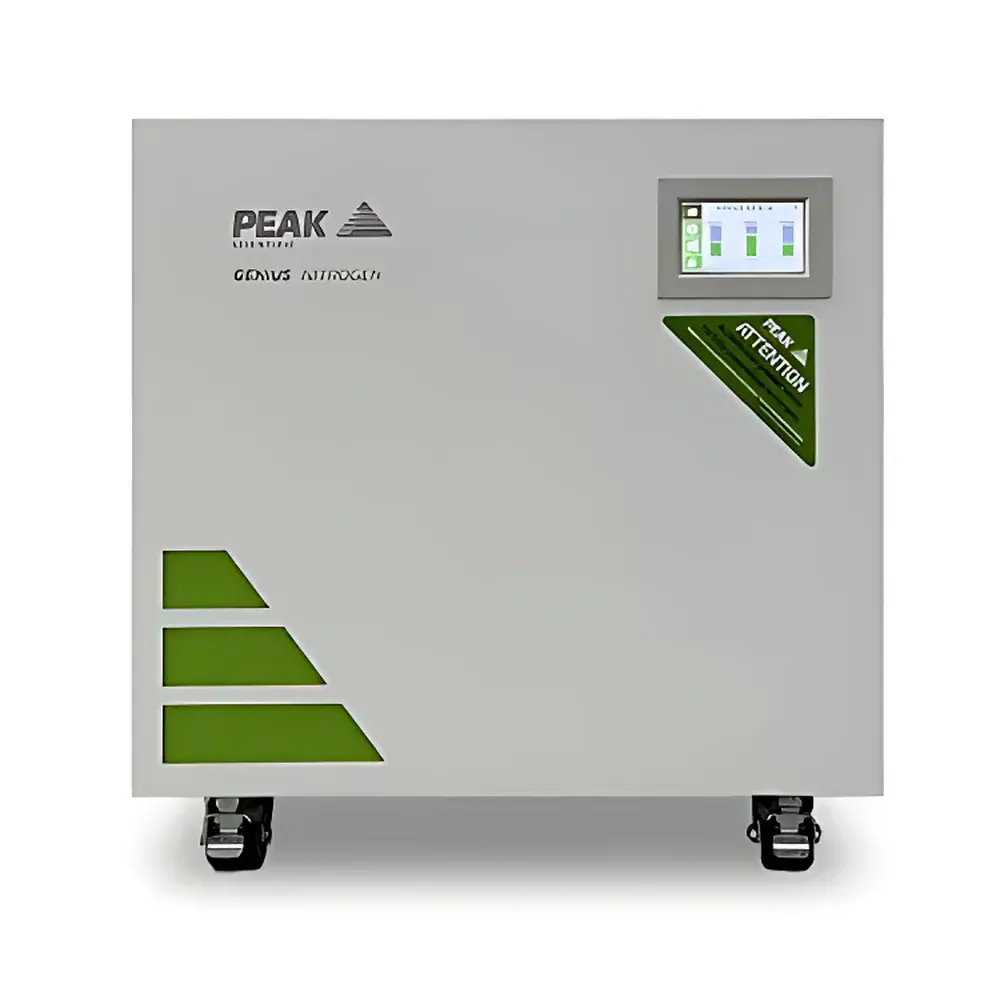

PEAK Genius AE 1024 Nitrogen & Dry Air Generator for SCIEX LC-MS Systems

Overview

The PEAK Genius AE 1024 is an integrated nitrogen and dry air generator engineered exclusively for SCIEX liquid chromatography–mass spectrometry (LC-MS) platforms. It delivers high-purity nitrogen (≥99.5% N₂, dew point ≤ −40 °C) as curtain gas and instrument-grade dry air (dew point ≤ −40 °C, oil-free, particle-filtered to 0.01 µm) as source gas and exhaust gas—meeting the stringent, application-specific gas requirements of SCIEX TripleTOF®, QTRAP®, and X500B systems. Unlike conventional cylinder-based or centralized gas supply solutions, the Genius AE 1024 employs a validated hollow-fiber membrane separation process to extract nitrogen from compressed ambient air, eliminating reliance on high-pressure cylinders, external compressors, or complex piping infrastructure. Its compact footprint (W × D × H: 320 × 420 × 440 mm), under-bench form factor, and fully integrated oil-free scroll air compressor enable seamless deployment in space-constrained analytical laboratories without compromising gas quality, flow stability, or operational continuity.

Key Features

• SCIEX-optimized gas delivery architecture: Dedicated nitrogen channel for curtain gas (flow range: 10–30 L/min at 100 kPa(g)) and dual independent dry air channels for source/exhaust gas (combined capacity up to 40 L/min total at 100 kPa(g))
• Integrated oil-free scroll air compressor with thermal overload protection and automatic condensate drainage
• HMI touchscreen interface (7-inch capacitive display) enabling real-time monitoring of inlet pressure, membrane stack temperature, nitrogen purity estimate, airflow rates, and maintenance alerts
• Modular membrane stack design with field-replaceable cartridges—no tools required for routine service
• Passive cooling system with intelligent fan control to maintain optimal membrane operating temperature (25–35 °C) across ambient conditions (15–35 °C)
• Compliance-ready firmware supporting audit trail logging and user-access level configuration (admin/operator modes)

Sample Compatibility & Compliance

The Genius AE 1024 is validated for continuous operation with all current-generation SCIEX LC-MS instruments requiring nitrogen curtain gas and regulated dry air for ion source management and vacuum system support. Gas output meets ISO 8573-1:2010 Class 2:2:2 specifications for particulate, water, and oil content—ensuring compatibility with SCIEX’s recommended inlet air quality thresholds. The unit adheres to IEC 61000-6-3 (EMC emission) and IEC 61000-6-2 (immunity) standards. Its firmware architecture supports configurable data logging intervals and exportable CSV reports, facilitating alignment with GLP and GMP environments where traceability of gas supply parameters is required per FDA 21 CFR Part 11 Annex 11 guidance.

Software & Data Management

The built-in embedded controller provides local data acquisition and storage for up to 30 days of operational history—including compressor runtime, membrane stack duty cycle, pressure differentials, and alarm event timestamps. Data export is supported via USB-C port (CSV format) or optional Ethernet interface (Modbus TCP protocol) for integration into laboratory information management systems (LIMS) or building automation platforms. Remote diagnostics capability allows authorized PEAK service engineers to perform preliminary fault analysis without on-site visits, reducing mean time to repair (MTTR). No third-party software installation is required; all configuration and calibration functions are accessible through the native HMI interface.

Applications

• Routine QC/QA analysis in pharmaceutical, biotech, and clinical research labs utilizing SCIEX LC-MS for small-molecule quantitation, metabolite identification, and peptide mapping
• High-throughput screening workflows where uninterrupted gas supply prevents instrument downtime during overnight acquisitions
• Regulated environments requiring documented gas quality assurance—particularly where cylinder logistics introduce contamination risk or scheduling bottlenecks
• Multi-instrument labs consolidating gas infrastructure: one Genius AE 1024 can support up to two SCIEX LC-MS systems operating in parallel, provided total gas demand remains within rated capacity
• Mobile or modular lab deployments where portability, plug-and-play operation, and minimal utility dependencies are critical

FAQ

Does the Genius AE 1024 require external compressed air?
No. It features a fully integrated, oil-free scroll air compressor—no external air source or compressed air lines are needed.
What is the expected lifetime of the membrane stack?
Under typical laboratory conditions (20–25 °C ambient, 40–60% RH), the membrane cartridge is rated for ≥12,000 hours of continuous operation, equivalent to approximately 5 years at 24/7 usage.
Can it be used with non-SCIEX mass spectrometers?
While optimized for SCIEX LC-MS gas interfaces, its output specifications comply with general LC-MS nitrogen and dry air requirements; however, compatibility verification with vendor-specific inlet pressure and flow profiles is recommended prior to deployment.
Is the unit compliant with electrical safety standards for North America and EU markets?
Yes. It carries CE marking (EN 61010-1) and is UL Listed (UL 61010-1) for use in both regions.
What maintenance is required during the 12-month on-site warranty period?
Routine tasks include quarterly visual inspection of the auto-drain trap and annual replacement of the pre-filter cartridge; all procedures are guided step-by-step via the HMI interface.
