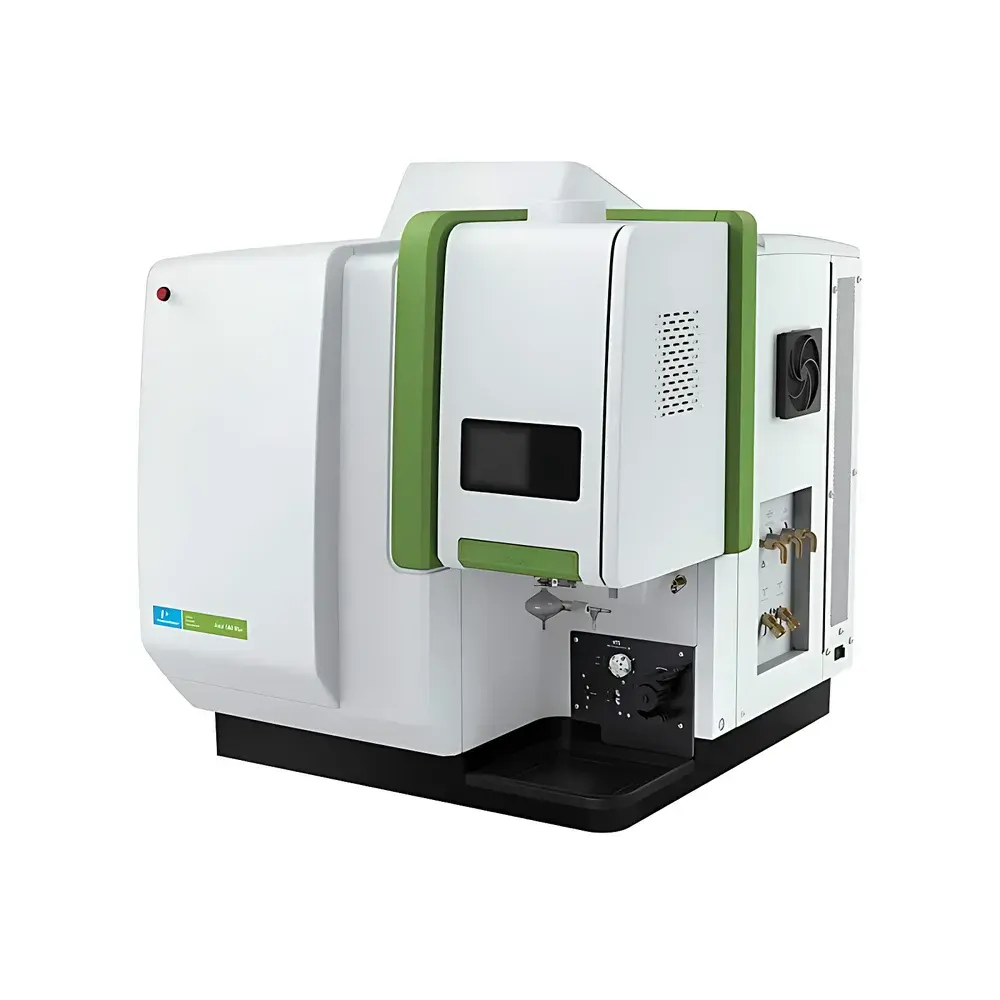

PerkinElmer Avio 550/560 Inductively Coupled Plasma Optical Emission Spectrometer (ICP-OES)

Overview

The PerkinElmer Avio 550/560 is a high-performance, full-spectrum simultaneous inductively coupled plasma optical emission spectrometer (ICP-OES) engineered for precision elemental analysis across diverse sample matrices. Utilizing a robust flat-flame plasma architecture and a solid-state echelle spectrometer with a high-resolution CCD detector array, the Avio platform delivers true simultaneous multi-element detection across the full ultraviolet to near-infrared spectral range (165–900 nm). Its vertically oriented, tool-free plasma torch operates without water cooling or consumable cones—eliminating routine maintenance associated with traditional ICP-OES systems. The integrated tail-flame suppression system removes spectral interference from the plasma’s outer flame region without auxiliary argon gas, enhancing signal-to-background ratios for elements prone to ionization interference (e.g., alkali and alkaline earth metals). Dual-view plasma observation—both axial and radial—is implemented via a single optical path, enabling real-time optimization of viewing height to mitigate matrix-induced spectral overlaps and polyatomic interferences.

Key Features

• Vertical, maintenance-free plasma torch with no water cooling, no extractors, and no cones requiring periodic cleaning or replacement
• Ultra-low argon consumption (typically <10 L/min for plasma gas), reducing operational cost and dependency on high-purity gas supplies
• Integrated color plasma torch camera providing real-time visual feedback of torch alignment, injector condition, and plasma stability during method development and routine analysis
• Dual-view capability with automated radial height optimization—enabling rapid elimination of easily ionized element (EIE) interferences through empirical adjustment of observation zone
• Full-spectrum simultaneous acquisition (UDA – Universal Data Acquisition): captures all wavelengths in a single exposure, eliminating sequential scanning delays and ensuring identical integration times for all analytes
• 4-channel, 12-roller peristaltic pump delivering stable, pulse-free sample introduction across variable viscosity and suspended solids content
• Compact footprint (76 × 84 × 87 cm) designed for space-constrained laboratories without compromising optical path length or thermal stability
• Remote diagnostics and predictive health monitoring support extended instrument uptime and reduce unplanned service interventions

Sample Compatibility & Compliance

The Avio 550/560 demonstrates exceptional matrix tolerance, supporting direct analysis of complex samples including environmental waters, soil digests, geological leachates, pharmaceutical excipients, petrochemical fuels, and food extracts—without mandatory dilution or matrix-matching in many cases. Its robust plasma design maintains stability under high total dissolved solids (TDS) loads up to 25% w/v, minimizing drift and signal suppression. The system complies with key regulatory frameworks for analytical instrumentation, including ISO/IEC 17025 requirements for method validation, ASTM D1976 and D5174 for trace metal analysis in water, USP for elemental impurities in pharmaceuticals, and EPA Methods 200.7 and 6010D for environmental compliance testing. Data integrity features align with FDA 21 CFR Part 11 expectations when paired with PerkinElmer’s Syngistix software, supporting audit trails, electronic signatures, and secure user access controls.

Software & Data Management

Syngistix for ICP-OES provides an intuitive, workflow-driven interface for method setup, calibration, QC monitoring, and reporting. It supports fully automated background correction, internal standard normalization, and multi-point calibration with polynomial fitting. The software enables seamless integration with LIMS environments via ASTM E1384-compliant data export formats (e.g., .csv, .xml). All acquisition parameters—including plasma power, nebulizer gas flow, viewing height, and integration time—are stored with each dataset, ensuring full traceability. Audit trail functionality records all user actions, parameter modifications, and result approvals, satisfying GLP and GMP documentation requirements. Raw spectral data are retained in proprietary but convertible format, allowing retrospective reprocessing without re-acquisition.

Applications

The Avio 550/560 serves as a core elemental analysis platform in environmental monitoring labs performing routine compliance testing for regulated metals (As, Cd, Cr, Pb, Hg, Ni, Cu, Zn) in drinking water and wastewater; in contract testing laboratories supporting pharmaceutical quality control under ICH Q3D guidelines; in mining and metallurgical R&D for rapid assay of ores and concentrates; and in academic research labs studying trace metal speciation, bioavailability, and geochemical partitioning. Its dual-view flexibility allows users to switch between high-sensitivity axial mode for ultra-trace detection (sub-ppt LODs for most elements) and robust radial mode for high-matrix applications—all within a single run sequence.

FAQ

Does the Avio 550/560 require daily torch alignment or recalibration?

No—its rigid, tool-free vertical torch mount ensures mechanical repeatability after removal and reinstallation. Alignment is verified optically via the integrated camera, and wavelength calibration is maintained through internal neon reference lines.
Can the system analyze high-salt or organic matrices without clogging?

Yes—the 4-channel peristaltic pump accommodates viscous and particulate-laden samples, and the cone-free torch design eliminates common clogging points found in conventional sampler/skimmer cone interfaces.
Is method transfer possible between Avio models and legacy PerkinElmer ICP-OES systems?

Method parameters (wavelengths, viewing heights, RF power) are largely transferable; however, full-spectrum UDA acquisition enables new quantitation strategies not available on sequential instruments, requiring minor optimization for maximum reproducibility.
What level of technical support and service coverage is available globally?

PerkinElmer offers factory-certified field service engineers, remote diagnostic support, and preventive maintenance contracts aligned with ISO/IEC 17025 laboratory accreditation requirements in over 70 countries.
