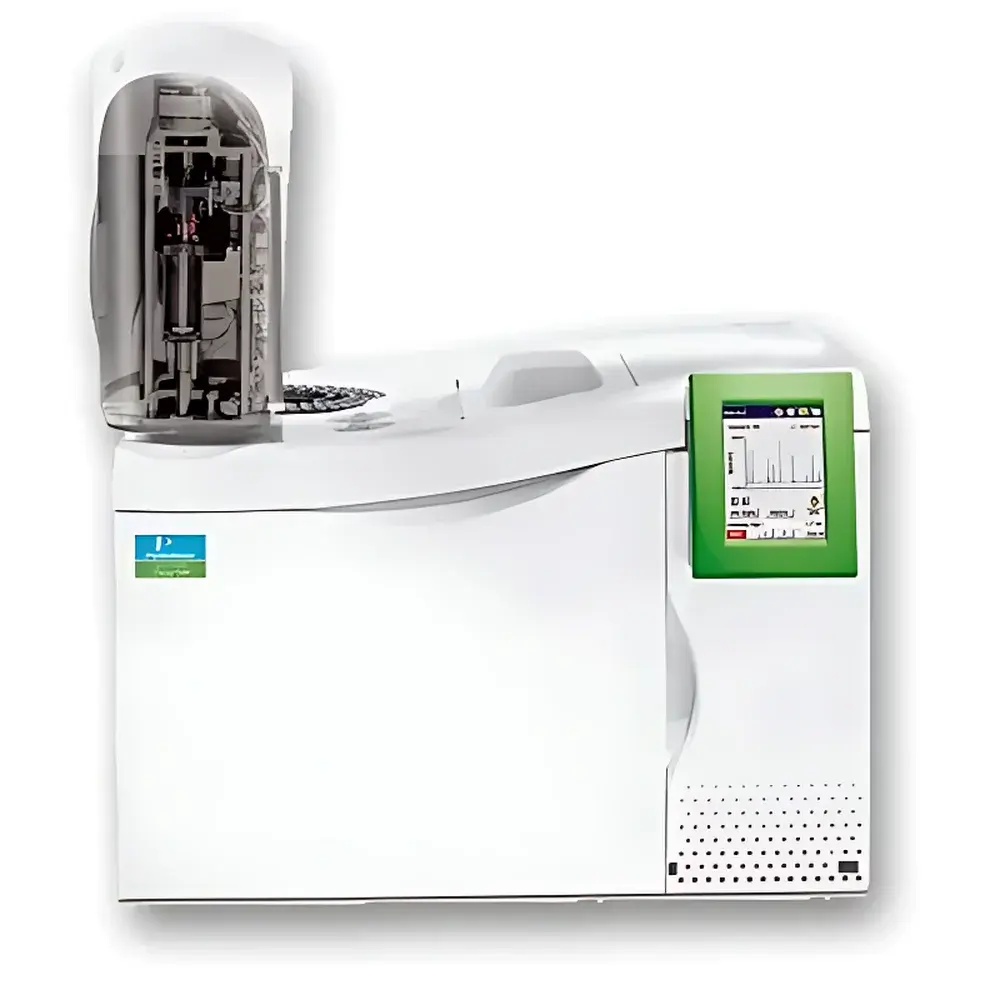

PerkinElmer Clarus 580 Gas Chromatograph

Overview

The PerkinElmer Clarus 580 Gas Chromatograph is a robust, laboratory-grade analytical platform engineered for precision, reproducibility, and long-term operational stability in routine and regulated environments. Leveraging over five decades of gas chromatography (GC) system design expertise, the Clarus 580 implements classical capillary GC separation principles—based on differential partitioning of analytes between a mobile phase (inert carrier gas) and a stationary phase (column coating)—to deliver high-resolution, quantitative separations across diverse sample matrices. Its modular architecture supports dual-channel operation, enabling parallel analysis or method verification workflows without hardware duplication. Designed for continuous use in quality control laboratories, environmental monitoring facilities, forensic labs, and academic research settings, the Clarus 580 integrates thermally stable oven compartments, precision pressure/flow control electronics (though specific ranges are configuration-dependent), and a mechanically rigid chassis to minimize thermal drift and mechanical vibration—key contributors to retention time stability and peak shape fidelity.

Key Features

• Dual-channel real-time signal display via integrated high-resolution capacitive touchscreen interface—enabling immediate visual assessment of chromatographic performance during method development or routine runs.
• Modular detector compatibility including Flame Ionization Detection (FID), Thermal Conductivity Detection (TCD), Electron Capture Detection (ECD), and Nitrogen-Phosphorus Detection (NPD), with optional integration paths for mass spectrometric detection (e.g., Clarus SQ 8 MS).
• Flexible inlet configuration supporting split/splitless, cool-on-column, and programmable temperature vaporizing (PTV) injection modes—optimized for volatile, semi-volatile, and thermally labile compounds.
• Multi-language UI support (English, Spanish, French, German, Chinese, Japanese) compliant with international laboratory staffing requirements and aligned with ISO/IEC 17025 documentation expectations.
• Standard compliance-ready architecture: designed to operate within GLP/GMP frameworks when paired with validated TotalChrom CDS software; supports audit trail generation, electronic signatures, and 21 CFR Part 11–compliant data handling protocols.
• Interoperability with third-party chromatography data systems (CDS), including Waters Empower™ 2 and Agilent EZChrom Elite™, via standard ASTM E1394 and ASTM E2524-compliant communication protocols.

Sample Compatibility & Compliance

The Clarus 580 accommodates a broad spectrum of sample types—from gaseous refinery streams (e.g., ASTM D1945, D1946 for natural gas analysis) and liquid biofuels (e.g., EN 14103 for biodiesel FAME profiling) to complex environmental extracts (e.g., EPA Method 8260C for VOCs in soil/water) and forensic toxicology specimens. Its inert flow path materials (siliconized glass liners, deactivated transfer lines, high-purity stainless-steel tubing) minimize adsorption and catalytic degradation of polar or reactive analytes. All configurations adhere to IEC 61010-1 safety standards for electrical equipment used in laboratory environments. When deployed with validated methods and documented instrument qualification (IQ/OQ/PQ), the system meets regulatory expectations for pharmaceutical stability testing (ICH Q2(R2)), environmental compliance reporting (ISO 17025), and forensic chain-of-custody integrity (SWGDAM guidelines).

Software & Data Management

TotalChrom Chromatography Data System (CDS) serves as the native acquisition, processing, and reporting engine for the Clarus 580. Version 6.5 and later provide full 21 CFR Part 11 compliance—including role-based access control, secure electronic signatures, immutable audit trails, and automated backup/recovery routines. The software supports multi-instrument network deployment, centralized method library management, and customizable report templates aligned with ISO/IEC 17025 clause 7.8 requirements. Raw data files (.ch, .cdf) are stored in vendor-neutral formats compatible with long-term archival standards (e.g., NIST SRD 1a). Optional modules enable automated calibration curve fitting (linear, quadratic, weighted least-squares), peak purity assessment via spectral deconvolution (when coupled to MS), and statistical process control (SPC) charting for QC trend analysis.

Applications

• Petrochemical & Energy: Analysis of refinery gases (C1–C5 hydrocarbons), LPG composition, gasoline oxygenates (ASTM D4815), and biodiesel FAME profiles (EN 14103).
• Environmental Monitoring: Quantification of volatile organic compounds (VOCs) in air, water, and soil per EPA Methods 8240/8260C; polycyclic aromatic hydrocarbons (PAHs) per EPA Method 8310.
• Food & Beverage: Residual solvent testing (ICH Q3C), pesticide residue screening (AOAC 2007.01), and flavor/aroma compound profiling.
• Forensic Toxicology: Blood alcohol quantification (ASTM E2909), drug metabolite identification, and ignitable liquid residue analysis (NFPA 921).
• Academic & Method Development Labs: Teaching GC fundamentals, optimizing separation conditions, and validating new column chemistries or detector configurations.

FAQ

Is the Clarus 580 compatible with mass spectrometry?
Yes—the Clarus 580 features standardized transfer line interfaces and timing synchronization protocols for seamless integration with PerkinElmer’s Clarus SQ 8 single-quadrupole mass spectrometer or third-party GC-MS systems.

Does the instrument support unattended operation?
When equipped with an autosampler (e.g., PerkinElmer TurboMatrix HS or ATC series), the Clarus 580 supports fully automated sequence execution, including vial tray handling, injection, and method switching—ideal for high-throughput QC labs.

What validation documentation is available?
PerkinElmer provides comprehensive IQ/OQ/PQ protocol templates, installation checklists, and performance qualification test procedures aligned with ASTM E2656, USP , and ISO/IEC 17025 Annex A.2 requirements.

Can the Clarus 580 be retrofitted with newer detectors or inlets?
Yes—its open chassis design and standardized electrical/mechanical interfaces allow field-upgradeable detector modules and inlet assemblies without requiring full system replacement.

Is remote monitoring supported?
Via TotalChrom Enterprise Server and secure HTTPS-enabled web client, authorized users can monitor run status, view real-time chromatograms, and receive email/SNMP alerts for completion or fault conditions.
