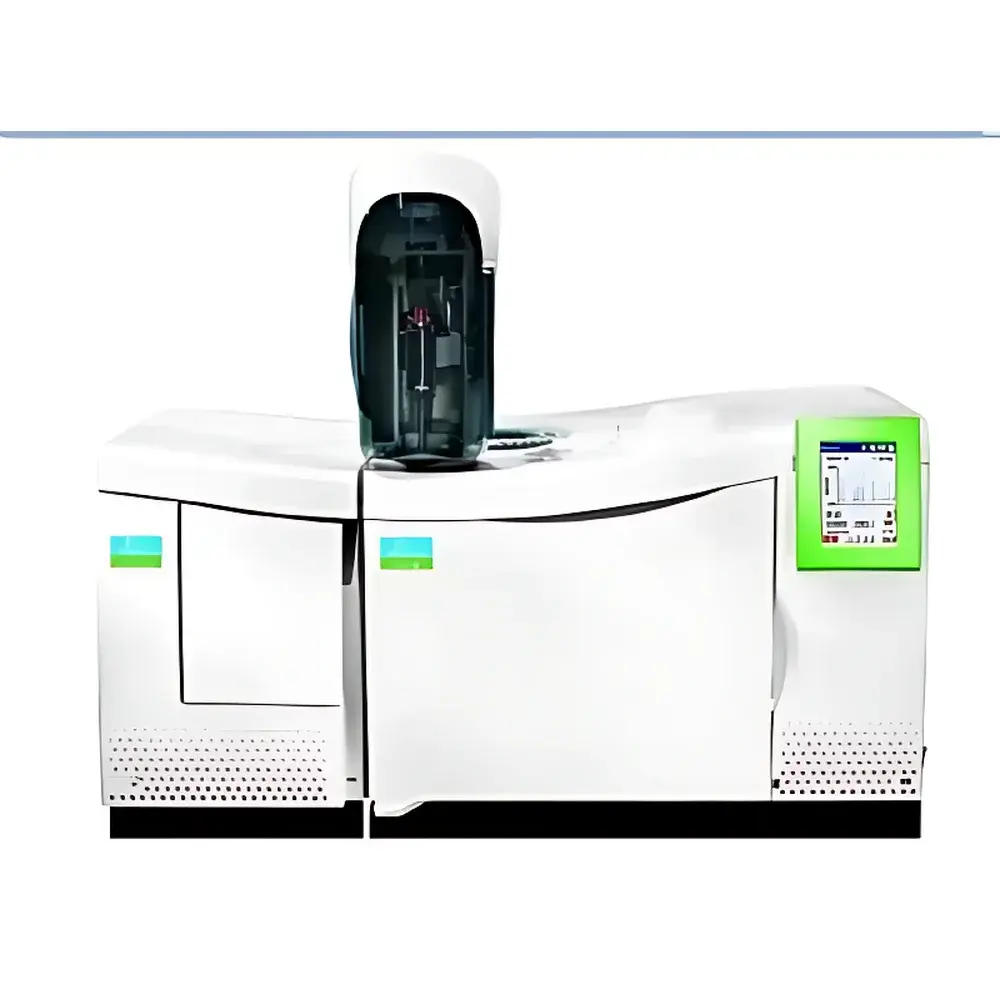

PerkinElmer Clarus SQ 8 Single Quadrupole Gas Chromatography Mass Spectrometer

Overview

The PerkinElmer Clarus^® SQ 8 is a purpose-engineered single quadrupole gas chromatography–mass spectrometry (GC/MS) system designed for laboratories requiring robust, reproducible performance across diverse analytical workflows. Operating on the fundamental principle of electron ionization (EI) coupled with quadrupole mass filtering, the Clarus SQ 8 delivers high-fidelity spectral acquisition synchronized with high-resolution gas chromatographic separation. Its architecture supports routine qualitative identification and quantitative analysis of volatile and semi-volatile organic compounds in complex matrices—ranging from environmental water and soil extracts to pharmaceutical residual solvents and food safety contaminants. Unlike research-grade high-resolution instruments, the Clarus SQ 8 prioritizes operational stability, ease of method transfer, and long-term signal consistency—making it especially suited for regulated environments where data integrity, audit readiness, and day-to-day throughput are mission-critical.

Key Features

• SMARTsource™ Ion Source: A field-serviceable, self-aligning electron ionization source engineered for rapid maintenance without realignment or recalibration—reducing instrument downtime and preserving mass axis stability over extended operational cycles.
• High-Speed Scanning Capability: Capable of acquiring up to 12,500 atomic mass units per second, enabling full-spectrum capture across narrow GC peaks (e.g., ≤0.5 s wide), which improves peak fidelity, deconvolution accuracy, and quantitative precision in co-eluting regions.
• Integrated GC-MS Platform: Fully synchronized operation between the Clarus^® GC and SQ 8 MS ensures precise retention time locking, consistent dwell times, and automated tuning/calibration routines compliant with routine QC protocols.
• Robust Vacuum Architecture: Dual-stage turbomolecular pumping system with intelligent pressure monitoring maintains optimal ion transmission across variable sample loads and column flow rates—supporting both standard and low-bleed capillary columns.
• Modular Hardware Design: Tool-free access to key components—including the ion source, detector, and quadrupole assembly—facilitates preventive maintenance and extends service intervals without compromising calibration history or system validation status.

Sample Compatibility & Compliance

The Clarus SQ 8 accommodates a broad spectrum of sample introduction methods, including split/splitless injection, programmable temperature vaporization (PTV), and headspace autosampling—enabling direct analysis of aqueous, solid, and gaseous matrices following standard EPA, ASTM, and ISO extraction protocols (e.g., EPA Method 8270D, ISO 17993:2022). Its firmware and control software support 21 CFR Part 11-compliant user authentication, electronic signatures, and audit-trail logging. The system meets GLP/GMP documentation requirements for regulated laboratories performing environmental monitoring, clinical toxicology screening, or pharmaceutical impurity profiling. All calibration and performance verification procedures align with manufacturer-recommended standards (e.g., perfluorotributylamine, PFTBA) and can be integrated into laboratory quality management systems (QMS) for periodic requalification.

Software & Data Management

The Clarus SQ 8 operates exclusively via PerkinElmer’s TurboMass^® software—a validated, Windows-based platform supporting method development, real-time data acquisition, spectral library searching (NIST, Wiley), and quantitative report generation. TurboMass includes built-in tools for peak deconvolution, background subtraction, and isotopic ratio analysis. Data files adhere to open-standard formats (e.g., .CDF, .RAW), ensuring interoperability with third-party LIMS and statistical analysis packages. Audit trail functionality records all user actions—including method edits, integration parameter changes, and calibration events—with timestamps, operator IDs, and reason-for-change fields. Software validation packages—including IQ/OQ documentation templates—are available for GxP-aligned deployment.

Applications

• Environmental analysis: PAHs, PCBs, pesticides, and chlorinated hydrocarbons in wastewater, sediment, and air samples per EPA SW-846 and ISO 17993.
• Food and beverage testing: Residual solvents, mycotoxins, flavor compounds, and adulterants under FDA, EU Commission Regulation (EC) No 1881/2006, and AOAC guidelines.
• Pharmaceutical quality control: Residual solvent quantification (ICH Q3C), extractables/leachables profiling, and stability-indicating assays compliant with USP and ICH Q2(R2).
• Forensic and clinical toxicology: Rapid screening of drugs of abuse, metabolites, and volatiles in blood, urine, and tissue homogenates.
• Polymer and materials science: Additive identification, degradation product analysis, and monomer purity assessment using thermal desorption-GC/MS coupling.

FAQ

What regulatory standards does the Clarus SQ 8 support?
The system supports compliance with 21 CFR Part 11, ISO/IEC 17025, GLP, and GMP frameworks through its secure user management, electronic signature capability, and comprehensive audit-trail logging.
Is the Clarus SQ 8 compatible with third-party GC systems?
While optimized for seamless integration with PerkinElmer Clarus GC platforms, the SQ 8 can interface with select external GCs via analog/digital trigger signals and standardized RS-232/Ethernet communication protocols—subject to configuration validation.
How often does the ion source require cleaning or replacement?
Under typical usage (≤50 samples/day, clean matrices), SMARTsource™ enables cleaning intervals of 2–4 weeks; extended intervals are achievable with proactive inlet maintenance and appropriate liner selection.
Can TurboMass software be validated for use in a regulated environment?
Yes—PerkinElmer provides IQ/OQ documentation templates, installation checklists, and protocol guidance aligned with GAMP 5 principles to support software qualification within a formal validation lifecycle.
Does the Clarus SQ 8 support selected ion monitoring (SIM) mode?
Yes—SIM acquisition is fully supported with customizable dwell times, ion groups, and internal standard referencing to maximize sensitivity and dynamic range for targeted analyses.
