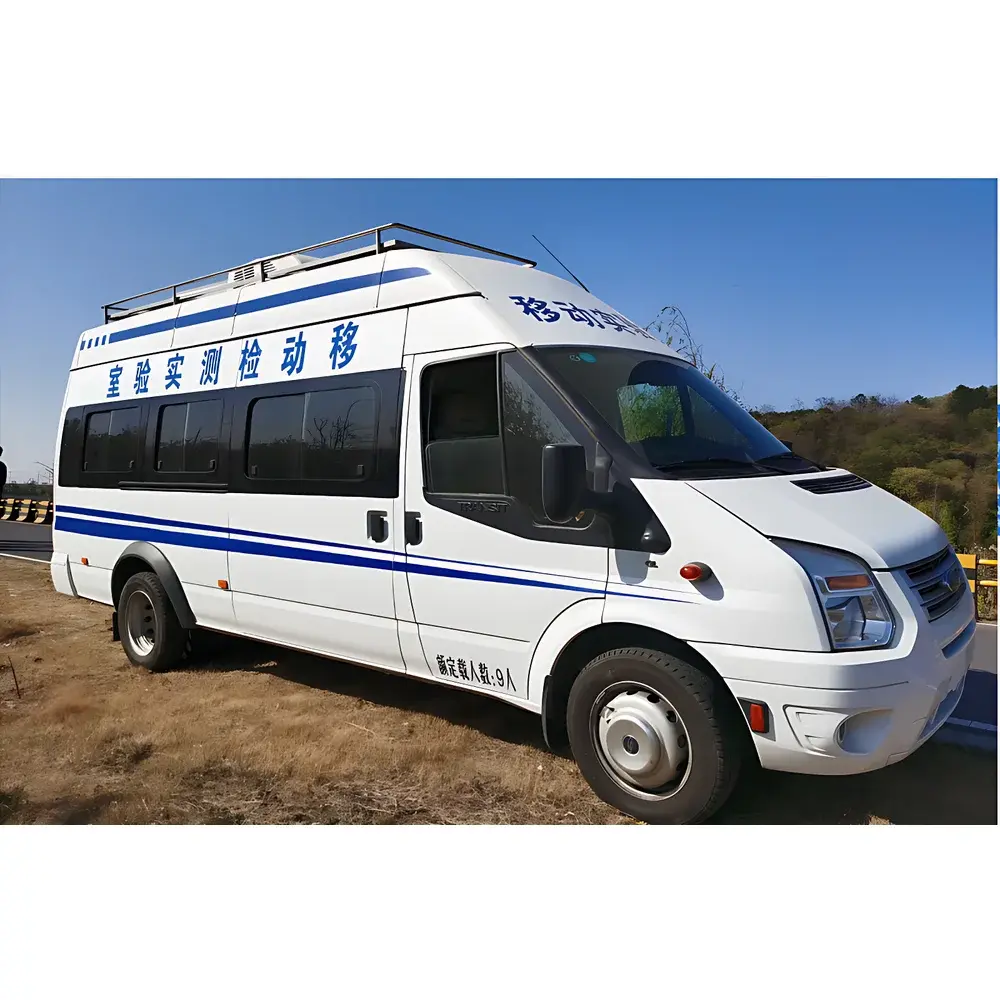

PerkinElmer Custom Mobile Environmental Monitoring System (Vehicle-Mounted)

Overview

The PerkinElmer Custom Mobile Environmental Monitoring System is a fully integrated, vehicle-mounted analytical platform engineered for real-time, high-mobility environmental surveillance across air, water, and soil matrices. Built upon a robust Class 8 chassis with climate-controlled, ISO 17025–compatible instrumentation cabin, the system implements standardized physical-chemical measurement principles—including UV-Vis and FTIR spectroscopy for gaseous pollutants (e.g., NO_x, SO₂, VOCs), electrochemical and ion-selective electrode arrays for aqueous analytes (e.g., NH₄⁺, NO₃⁻, heavy metals), and field-portable XRF and PID-based screening for soil-borne contaminants. Unlike static monitoring stations, this mobile system operates under dynamic sampling conditions while maintaining traceable calibration chains aligned with EPA Methods TO-15, Method 8260D, and ISO 10304-1 for multi-parameter quantification. Its architecture supports both continuous plume mapping and discrete point-source characterization—enabling rapid response during chemical spills, industrial emissions events, or post-disaster environmental triage.

Key Features

• Modular instrument rack accommodating up to four simultaneous analytical modules (e.g., GC-MS, ICP-OES, DO/EC/pH probe array, particulate matter samplers)
• Onboard GPS-IMU georeferencing with sub-meter spatial accuracy and time-synchronized data stamping (UTC-aligned, NTP-synchronized)
• Real-time telemetry via LTE-Advanced + dual-SIM failover, transmitting raw spectra, chromatograms, and QA/QC metadata to centralized cloud infrastructure
• Automated calibration verification using onboard permeation tubes, certified gas standards, and NIST-traceable liquid reference materials
• Shock-dampened optical tables and active temperature stabilization (±0.1 °C) for spectrometers and mass analyzers during transit
• Integrated power management: dual lithium-iron-phosphate battery bank (8 kWh) + auxiliary diesel generator (5 kW continuous), supporting 72-hour unattended operation

Sample Compatibility & Compliance

The system is validated for direct analysis of ambient air (gaseous and PM_2.5/PM₁₀ fractions), surface water (rivers, lakes, estuaries), groundwater (via onboard peristaltic pump and filtration module), drinking water distribution systems, and soil/sediment slurries (using field homogenization and leaching protocols). All measurement workflows comply with U.S. EPA SW-846 methods, ISO 5667 series for water sampling, ISO 18400-201 for soil investigation, and EU Directive 2008/50/EC for ambient air quality assessment. Data integrity meets FDA 21 CFR Part 11 requirements through electronic signature-enabled audit trails, immutable raw file hashing, and role-based access control within the embedded LIMS interface.

Software & Data Management

The proprietary PerkinElmer EnviroTrack™ software suite provides unified control of all onboard instruments, real-time spectral deconvolution (using chemometric libraries trained on >12,000 reference spectra), and automated anomaly detection via multivariate statistical process control (MSPC). All datasets are structured in ASTM E2983-compliant XML format and ingested into a secure, FIPS 140-2 encrypted cloud repository. Integration with national environmental information platforms—including China’s National Environmental Monitoring Network (NEMN) and the U.S. EPA AirNow API—is supported via RESTful webhooks and OGC SensorThings API v1.1 endpoints. Full GLP/GMP audit logs—including method version history, operator ID, environmental chamber conditions, and calibration drift reports—are retained for ≥15 years.

Applications

• Rapid source attribution during fugitive emission events from petrochemical facilities, landfills, or wastewater treatment plants
• Dynamic boundary layer profiling of ozone precursors and secondary organic aerosol formation along urban-rural gradients
• Time-resolved contaminant migration mapping in aquifer systems following accidental chemical releases
• Regulatory compliance verification for Tier II and Risk Management Plan (RMP) reporting under Clean Air Act Section 112(r)
• Pre- and post-remediation validation of soil excavation zones using field XRF and volatile organic compound (VOC) headspace analysis
• Supporting national-scale environmental emergency drills mandated by China’s Ministry of Ecology and Environment (MEE) Circular No. 152 (2018)

FAQ

Can the system operate in extreme ambient temperatures (e.g., −20 °C to 50 °C)?
Yes—the cabin HVAC maintains internal setpoints between 18–25 °C with humidity control (40–60% RH), and all critical sensors undergo extended-range thermal qualification per MIL-STD-810G.
Is remote instrument reconfiguration possible during deployment?
Yes—authorized users may push updated method files, calibration curves, or spectral libraries over secure TLS 1.3 channels without interrupting ongoing acquisition.
How is data chain-of-custody ensured during transmission?
Each data packet includes SHA-256 hash, digital certificate signature, and timestamp signed by an onboard hardware security module (HSM), satisfying ISO/IEC 17025:2017 clause 7.7.2.
Does the system support integration with third-party GIS platforms such as ArcGIS Pro or QGIS?
Yes—georeferenced results are exported in ESRI Shapefile and GeoJSON formats, including attribute tables with uncertainty estimates and detection limits.
What maintenance intervals are recommended for onboard consumables and calibration standards?
Gas cylinders require replacement every 90 days; electrochemical sensors are validated daily and replaced quarterly; optical components undergo biannual alignment verification per manufacturer SOP-EMM-004.
