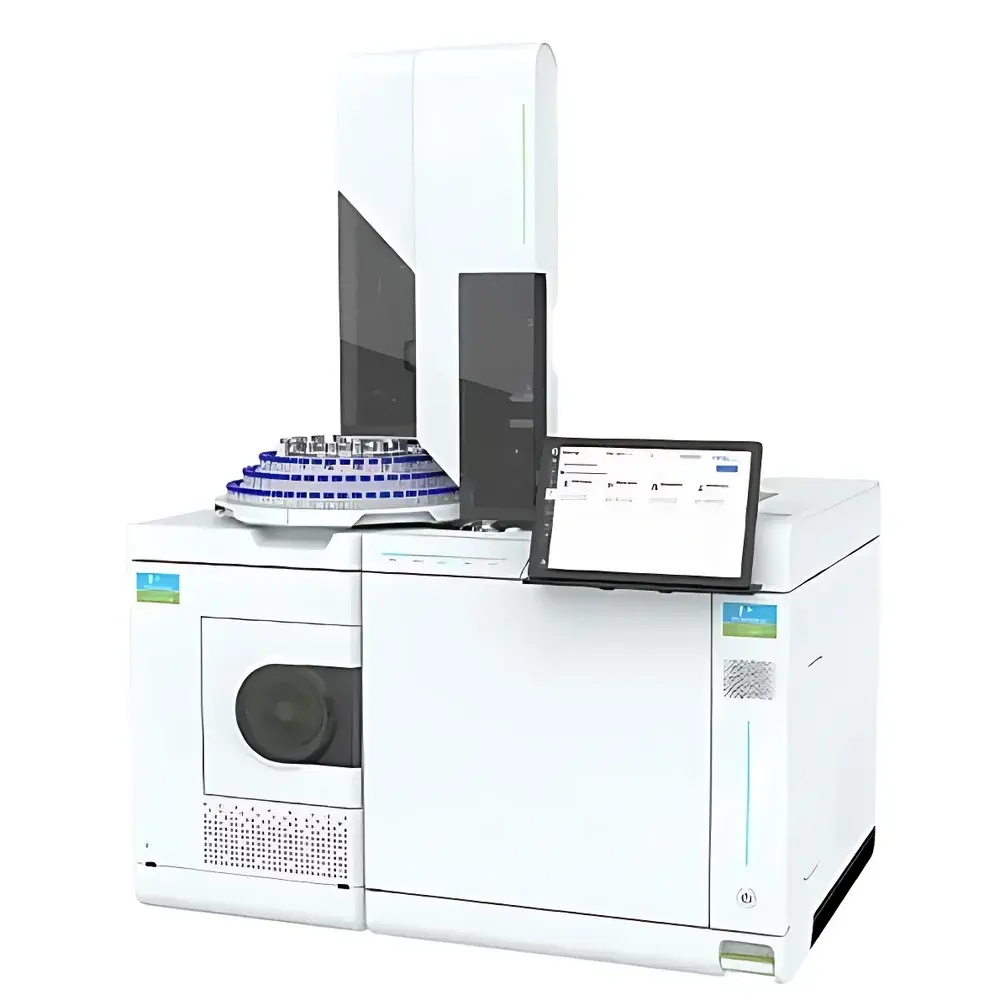

PerkinElmer GCMS 2400 System

Overview

The PerkinElmer GCMS 2400 System is a fully integrated gas chromatography–mass spectrometry (GC-MS) platform engineered for precision, robustness, and operational continuity in regulated and high-throughput analytical laboratories. Built upon the GC 2400 gas chromatograph and MS 2400 single quadrupole mass spectrometer, this system employs electron ionization (EI) and optional chemical ionization (CI) sources to deliver reproducible spectral acquisition across a mass range of m/z 10–1000. The quadrupole mass analyzer operates with unit-mass resolution and supports both full-scan and selected ion monitoring (SIM) acquisition modes—enabling reliable qualitative identification and quantitative determination of volatile and semi-volatile organic compounds with boiling points up to 450 °C. Its design emphasizes thermal stability, vacuum integrity, and signal-to-noise optimization, resulting in sub-pg-level detection limits for target analytes under routine conditions.

Key Features

• Modular GC 2400 platform featuring swappable touchscreen interface with real-time status monitoring of injectors, detectors, oven, and auxiliary modules
• MS 2400 single quadrupole mass spectrometer with high-efficiency EI/CI source, fast polarity switching, and optimized ion optics for enhanced sensitivity
• Intelligent sample handling architecture supporting split/splitless injection, PTV, and direct coupling to headspace autosamplers or thermal desorption units
• Robust vacuum system with dual-stage turbomolecular pumping and active pressure regulation for stable operation during extended runs
• Field-serviceable components—including replaceable ion source assemblies, detector dynodes, and column ferrules—designed to minimize downtime and extend service intervals
• Compliance-ready hardware architecture supporting audit trails, electronic signatures, and secure user access control per FDA 21 CFR Part 11 requirements

Sample Compatibility & Compliance

The GCMS 2400 System accommodates a broad range of sample matrices without derivatization, including aqueous extracts, organic solvent eluates, headspace vapors, and thermally desorbed air samples. It meets performance criteria outlined in ASTM D5845 (determination of volatile organic compounds in water), EPA Method 8260D (VOCs in solids and liquids), USP <621> (chromatographic separations), and ISO 17025-accredited laboratory workflows. All firmware and CDS software modules are validated for GxP environments, with built-in calibration verification, system suitability testing (SST), and automated reporting of retention time locking (RTL) metrics.

Software & Data Management

Controlled by PerkinElmer SimplicityChrom™ CDS, the system provides unified method development, instrument control, data acquisition, processing, and reporting within a single validated environment. The software supports NIST MS Search integration for library-based compound identification, retention index calculation, and customizable report templates compliant with GLP/GMP documentation standards. Raw data files (.ch) are stored with embedded metadata—including instrument configuration, calibration history, and operator log entries—to ensure traceability. Audit trail functionality records all user actions, parameter changes, and result modifications with timestamped, non-erasable entries.

Applications

• Residue analysis: Pesticides, plasticizers (e.g., phthalates), melamine, residual solvents in pharmaceuticals
• Environmental monitoring: VOCs and SVOCs in drinking water, soil leachates, and indoor air (e.g., vehicle cabin emissions)
• Food & flavor science: Headspace-GC/MS profiling of aroma compounds in beverages, dairy, and fermented products
• Materials safety: Brominated flame retardants (PBBs, PBDEs) in polymers and electronics
• Clinical toxicology: Quantitative ethanol analysis in blood using static headspace sampling
• Packaging migration studies: Organic solvent residues in food-contact materials per EU 10/2011 regulations
• Tobacco product characterization: Volatile organic impurities in cigarette packaging films and adhesives

FAQ

Does the GCMS 2400 System support regulatory compliance for pharmaceutical QC labs?

Yes—it is preconfigured for 21 CFR Part 11 compliance, with role-based access control, electronic signatures, and immutable audit trails required for FDA-submitted data packages.
Can the system be upgraded to include tandem mass spectrometry capabilities?

No—the GCMS 2400 is a dedicated single quadrupole platform; tandem MS functionality requires migration to the PerkinElmer AxION® iQT or similar triple quadrupole systems.
What maintenance intervals are recommended for the MS 2400 detector?

Ion source cleaning is advised every 200–300 sample injections under typical environmental or food residue workloads; detector replacement is typically required after 18–24 months of continuous operation.
Is SimplicityChrom™ compatible with LIMS integration?

Yes—via standard ODBC and ASTM E1394 interfaces, enabling bidirectional transfer of sample lists, methods, and results to enterprise laboratory information management systems.
Does the system support retention time locking (RTL) across multiple instruments?

Yes—RTL calibration is implemented at the method level and maintained across GC 2400 platforms equipped with identical column chemistries and temperature programs.
