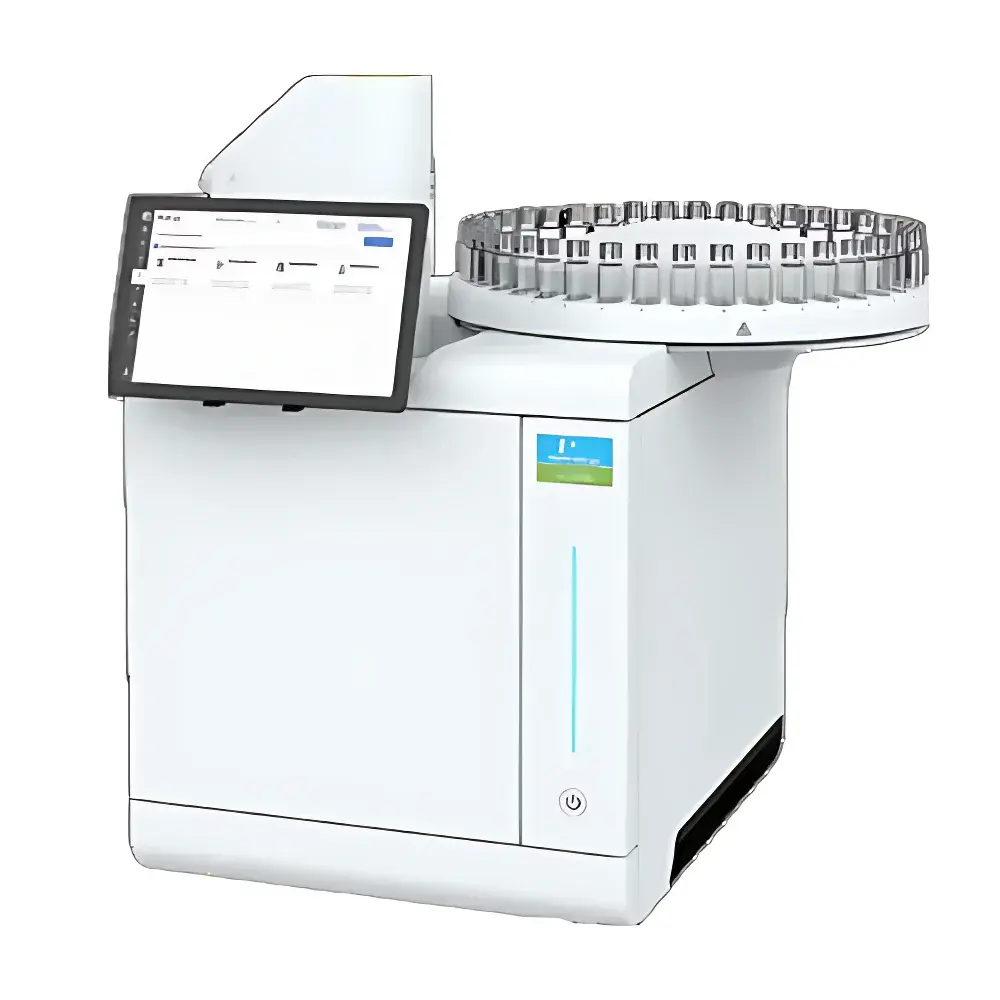

PerkinElmer HS2400 Headspace Sampler

Overview

The PerkinElmer HS2400 Headspace Sampler is a fully automated, dynamic headspace sampling system engineered for high-reproducibility volatile organic compound (VOC) analysis in conjunction with gas chromatography (GC). Unlike conventional static headspace systems, the HS2400 implements a patented pressure-balanced sampling mechanism—eliminating reliance on septum-sealed syringes, multi-port injection valves, or fixed-volume loops. This design ensures quantitative transfer of headspace vapor directly into the GC column with minimal carryover, reduced maintenance, and inherent robustness against pressure fluctuations across diverse sample matrices. The system is purpose-built for method development acceleration, routine QC/QA workflows, and regulated environments where trace-level VOC detection (e.g., residual solvents, environmental contaminants, flavor volatiles) demands strict adherence to ISO 17025, USP , and ICH Q3C guidelines.

Key Features

• Fully automated operation with integrated carousel accommodating up to 120 standard 10–22 mL headspace vials, supporting unattended overnight runs.
• Pressure-balanced sampling architecture: maintains equilibrium between vial headspace and transfer line during pressurization and injection—ensuring stoichiometric vapor transfer without mechanical valving artifacts.
• Detachable, high-resolution capacitive touchscreen interface enabling wireless local control; supports sequence creation, real-time status monitoring, run initiation/termination, and diagnostic access without PC dependency.
• Programmable thermal control: precise temperature regulation of vial oven (30–200 °C, ±0.1 °C), transfer line (50–220 °C), and injection port (up to 300 °C) with independent PID tuning for each zone.
• Dynamic purge-and-trap capability: configurable carrier gas flow (0–100 mL/min He/N₂) and trap desorption parameters for enhanced sensitivity in low-concentration applications.
• Modular hardware design compliant with 21 CFR Part 11-ready CDS integration—supports electronic signatures, audit trails, and user role-based access control when paired with validated chromatography data systems.

Sample Compatibility & Compliance

The HS2400 accommodates standard crimp-top and screw-cap headspace vials (10, 20, and 22 mL), including those with PTFE/silicone septa meeting ASTM D6866 and ISO 11843-7 specifications. It supports aqueous, semi-solid, polymeric, and viscous samples—including pharmaceutical formulations, polymer pellets, food homogenates, and environmental soil extracts—without requiring derivatization or solvent extraction. System validation documentation aligns with GLP and GMP requirements, and performance qualification protocols include repeatability testing per ISO 8573-1 (vapor phase consistency), carryover assessment (<0.05% for chloroform), and linearity verification across three orders of magnitude (0.1–100 ppm).

Software & Data Management

The HS2400 operates natively via its embedded Linux-based firmware and seamlessly integrates with third-party Chromatography Data Systems—including Waters Empower™ (v3.x and later), Thermo Chromeleon™, Agilent OpenLab CDS, and Shimadzu LabSolutions™—through standardized ASCII command protocols and Ethernet TCP/IP communication. All instrument parameters, run logs, and error events are timestamped and exportable in CSV or XML format. Audit trail functionality records operator ID, parameter changes, sequence modifications, and system alerts—fully traceable for FDA inspection readiness. Optional PerkinElmer TurboMatrix™ software provides advanced method optimization tools, including equilibrium time modeling, purge flow optimization algorithms, and automated calibration curve generation.

Applications

• Residual solvent analysis in active pharmaceutical ingredients (APIs) and final drug products per USP and ICH Q3C.
• Volatile impurity profiling in polymers, adhesives, and packaging materials per ASTM D3960 and ISO 16000-6.
• Environmental VOC screening in water, soil, and air samples compliant with EPA Method 502.2, 524.4, and 8260D.
• Flavor and fragrance release kinetics in beverages, dairy, and confectionery products using dynamic headspace-GC-MS coupling.
• Forensic toxicology screening for ethanol, acetone, and volatile narcotics in biological fluids.

FAQ

Does the HS2400 support both static and dynamic headspace modes?

Yes—the system operates exclusively in dynamic mode but emulates static conditions via programmable equilibration hold times and zero-flow trapping, enabling method translation from legacy static platforms.
Is method transfer from other PerkinElmer headspace systems straightforward?

Yes—HS2400 inherits TurboMatrix™ method syntax and parameter mapping conventions, allowing direct import of HS40/HS50 methods with minor thermal ramp adjustments.
Can the HS2400 be validated under 21 CFR Part 11 requirements?

Yes—when operated with a validated CDS and configured with user authentication, electronic signatures, and immutable audit trails, the system meets full 21 CFR Part 11 compliance for regulated laboratories.
What maintenance intervals are recommended for routine operation?

Vial carousel alignment verification every 6 months; transfer line bake-out weekly; septum replacement after 100 injections; full system performance check annually per PQ protocol.
Is remote monitoring supported beyond local wireless touchscreen control?

Yes—via Ethernet connection, the HS2400 exposes SNMP-compatible status variables and accepts HTTP-based API calls for integration into enterprise LIMS or lab automation frameworks.
