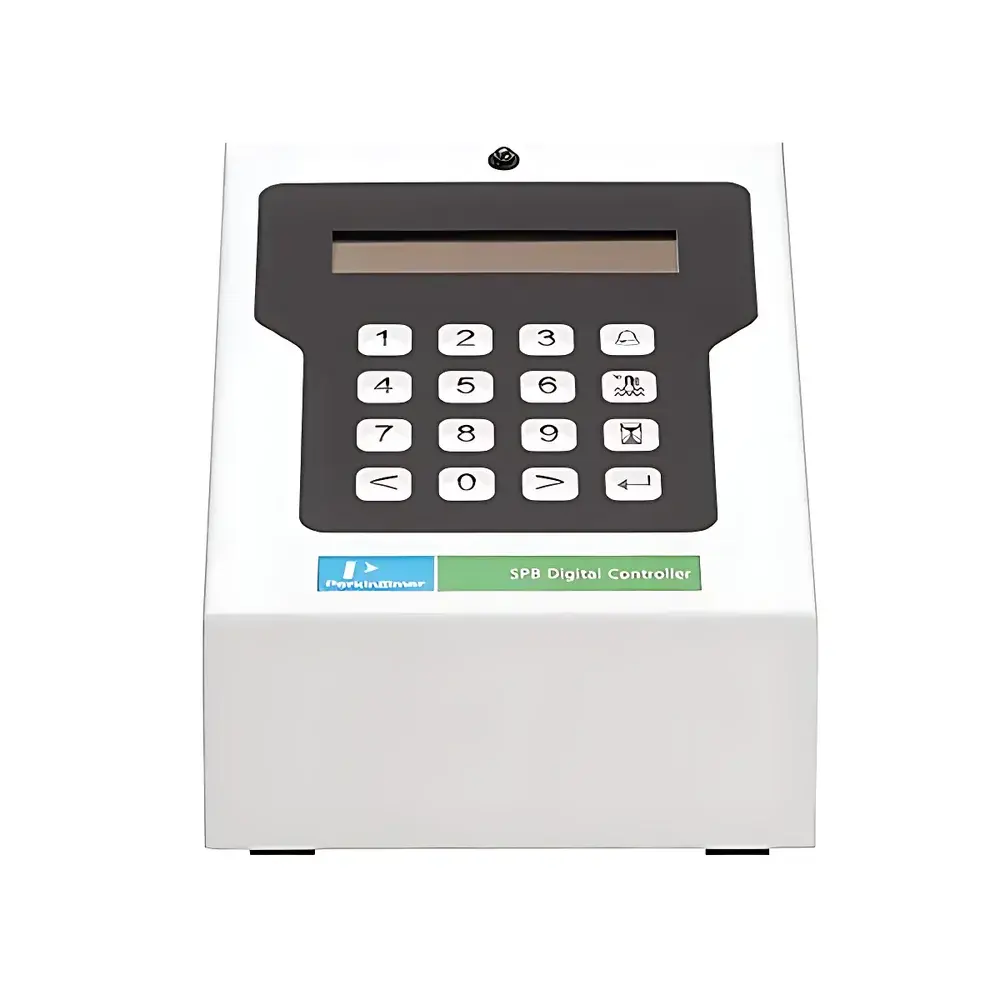

PerkinElmer SPB Digital Controller N9300808

Overview

The PerkinElmer SPB Digital Controller (Model N9300808) is a precision-engineered thermal management interface designed exclusively for use with PerkinElmer’s DigiPROBE series of sample preparation blocks. It operates on the principle of closed-loop PID temperature control, delivering stable and repeatable thermal profiles across programmable heating and holding segments. Unlike generic benchtop controllers, the SPB integrates natively with PerkinElmer’s modular sample preparation architecture—ensuring synchronized thermal response, traceable calibration, and deterministic sequencing logic required in regulated analytical workflows. Its primary function is to govern block-level temperature uniformity, dwell time accuracy, and safety-critical termination conditions during solid-phase extraction (SPE), derivatization, solvent evaporation, or thermal desorption protocols.

Key Features

• Precision temperature control with 0.1 °C setpoint resolution and real-time display of both block and sample-equivalent temperature (when used with calibrated thermocouple input)
• Programmable multi-segment timer with automatic shut-off upon sequence completion—preventing unattended overheating or extended dwell beyond protocol specifications
• Configurable end-of-segment audible and visual alarm, supporting audit-ready process verification in GLP- and GMP-compliant laboratories
• Built-in calibration routine compliant with PerkinElmer DigiPROBE system requirements; enables field verification of thermal accuracy without external reference standards
• Intuitive user interface supporting 10 selectable languages—including English, German, French, Spanish, Japanese, Chinese (Simplified), Korean, Portuguese, Italian, and Russian—to accommodate multinational laboratory operations
• Dual-voltage design (115/230 V, 50/60 Hz) for global deployment without hardware modification or external transformers
• Safety messaging system that displays context-aware warnings (e.g., “Heating Active”, “Cooling in Progress”, “Calibration Required”) to reduce operator error and support ISO/IEC 17025 documentation requirements

Sample Compatibility & Compliance

The SPB Digital Controller is validated for use only with PerkinElmer DigiPROBE Sample Preparation Blocks—including 24-, 48-, and 96-position formats—and is not interoperable with third-party thermal blocks or non-DigiPROBE accessories. Its firmware enforces hardware handshake protocols to prevent mismatched configurations. From a regulatory standpoint, the controller supports data integrity requirements under FDA 21 CFR Part 11 when paired with PerkinElmer’s compliant software ecosystem (e.g., Multi-Channel Control Suite). While the unit itself does not carry CE marking as a standalone device, it conforms to IEC 61010-1:2010 for electrical safety when installed per manufacturer instructions and used within its specified environmental operating range (15–35 °C, ≤80% RH non-condensing). It meets ASTM D3418 for thermal transition instrumentation verification procedures when deployed in polymer characterization workflows requiring precise ramp-and-hold thermal conditioning.

Software & Data Management

The SPB Digital Controller operates as an embedded subsystem—not a networked instrument—and does not generate raw data files or connect to LIMS directly. All operational parameters (setpoints, segment durations, alarm states, calibration timestamps) are retained in non-volatile memory and accessible via front-panel navigation. For laboratories requiring electronic record retention, PerkinElmer recommends integration with the optional Multi-Channel Control Suite v3.2+, which logs controller events—including start/stop timestamps, temperature deviations >±0.5 °C, and calibration initiation—with user ID attribution and tamper-evident audit trails compliant with ALCOA+ principles. The controller supports export of session metadata via USB flash drive (FAT32 formatted) in CSV format for external QA review. No cloud connectivity, remote access, or firmware-over-the-air updates are supported—ensuring air-gapped security for high-assurance environments.

Applications

• Automated thermal conditioning of SPE cartridges prior to elution in environmental and pharmaceutical residue analysis
• Controlled solvent evaporation from microplate wells in bioanalytical sample cleanup prior to LC-MS/MS injection
• Temperature-programmed derivatization reactions (e.g., silylation, acylation) requiring precise hold times at 60–120 °C
• Standardized drying protocols for soil, sediment, or tissue homogenates in EPA Method 8270-compliant labs
• Pre-heating and stabilization of internal standards in isotope dilution workflows to minimize thermal mass effects
• Validation of thermal uniformity across multi-well blocks per USP guidance for dissolution apparatus qualification

FAQ

Is the SPB Digital Controller compatible with non-PerkinElmer sample blocks?
No. It is engineered exclusively for DigiPROBE-branded blocks and will not initialize or communicate with third-party hardware.
Does the controller support external temperature probes for sample monitoring?
Yes—when used with PerkinElmer-certified K-type thermocouple adapters (P/N N9302127), it displays real-time probe-measured temperature alongside block setpoint.
Can calibration data be exported for quality audits?
Calibration event logs (date, operator ID, pass/fail status, deviation values) are stored internally and exportable via USB in timestamped CSV format.
What is the operating temperature range of the controller itself (not the block)?
Ambient operation is specified between 15 °C and 35 °C; storage range is –10 °C to 50 °C.
Is firmware upgrade capability available?
Firmware updates require physical connection to PerkinElmer service tools and authorized technician intervention—no user-accessible update path exists.
