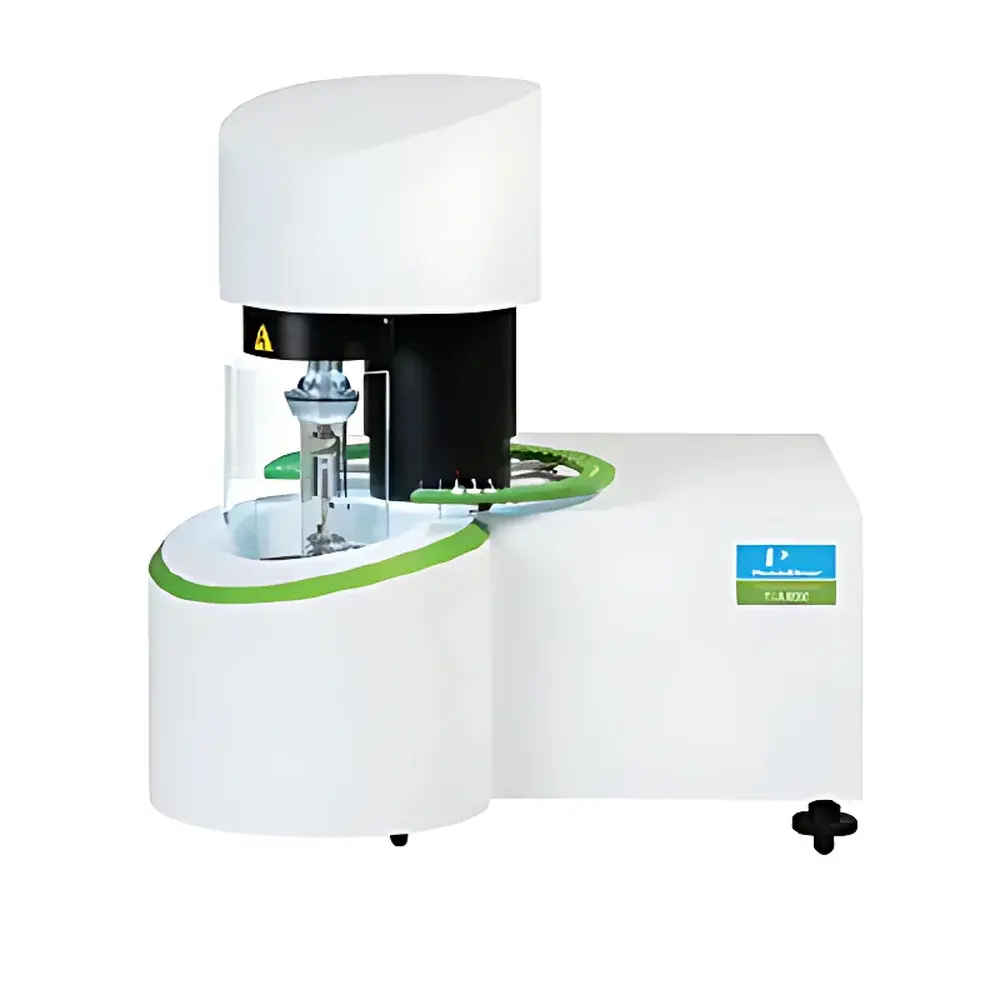

PerkinElmer TGA 8000 Thermogravimetric Analyzer

Overview

The PerkinElmer TGA 8000 is a high-performance, general-purpose thermogravimetric analyzer engineered for precision, reproducibility, and seamless hyphenation in modern materials characterization laboratories. Based on the fundamental principle of measuring real-time mass change as a function of temperature or time under controlled atmospheric conditions, the TGA 8000 delivers quantitative insight into thermal decomposition, volatilization, oxidation, reduction, and adsorption/desorption phenomena. Its core architecture integrates a low-mass, reinforced platinum-alloy furnace with dual-zone heating control, enabling rapid thermal response and exceptional temperature stability across its full operational range of –20 °C to 1200 °C. The system adheres to ASTM E1131, ISO 11358, and USP <631> guidelines for thermogravimetric analysis, supporting GLP-compliant workflows through audit-trail-enabled software and hardware-level calibration traceability.

Key Features

• Ultra-broad temperature capability: –20 °C to 1200 °C, supported by cryogenic cooling and high-temperature furnace design
• Programmable linear heating rates from 0.1 °C/min to 500 °C/min, with sub-0.1 °C/min isothermal stability
• Dual independent gas control system: separate mass flow controllers for balance purge and sample purge streams, each calibrated to ±0.5% FS accuracy
• Optional 3-channel gas mixing module for precise binary or ternary atmosphere synthesis (e.g., N₂/O₂/He blends) with dynamic ratio adjustment during run
• Heated transfer line interface (up to 300 °C) with integrated divert valve and sniffer—both actively temperature-controlled to prevent condensation of labile volatiles
• 48-position robotic autosampler with vibration-damped loading mechanism, compatible with standard platinum, alumina, and quartz crucibles (including AccuPik™ micro-vial holders for volatile or hydrated samples)
• Modular hardware architecture enabling field-upgradable hyphenation without recalibration or downtime

Sample Compatibility & Compliance

The TGA 8000 accommodates solid, powder, fiber, thin-film, and semi-solid samples weighing 0.1–200 mg, with crucible options optimized for inert, oxidative, or reducing atmospheres. It supports routine compliance with FDA 21 CFR Part 11 requirements via Pyris™ software’s electronic signature, role-based access control, and immutable audit trails. All gas delivery components meet ISO 8573-1 Class 2 purity standards for compressed gases. System validation documentation—including IQ/OQ/PQ protocols—is available per customer request and aligns with ISO/IEC 17025 and GMP Annex 15 frameworks. The instrument has been independently verified by the U.S. Environmental Protection Agency (EPA) as the reference platform for solvent residue quantification in carbon nanotube manufacturing per Method 8270D.

Software & Data Management

Pyris™ Thermal Analysis Software provides unified control, real-time visualization, and post-run kinetic modeling (e.g., Kissinger, Ozawa-Flynn-Wall, Friedman methods). Data files are stored in vendor-neutral .tdf format compliant with ASTM E1981 and searchable via metadata tagging (operator, method, sample ID, gas composition, ramp rate). Batch processing supports automated baseline correction, derivative (DTG) calculation, and multi-curve overlay with statistical comparison (ANOVA, t-test). Raw data export is supported in CSV, ASCII, and XML formats for integration with LIMS or third-party analytics platforms such as MATLAB® or Python-based SciPy workflows. Secure remote monitoring is enabled via TLS 1.2–encrypted web interface with configurable alert thresholds for temperature deviation or gas flow anomaly.

Applications

• Determination of decomposition onset temperature, char yield, and residual ash content in polymers, composites, and pharmaceutical excipients
• Quantitative moisture/solvent loss profiling in lyophilized biologics and battery electrode slurries
• Oxidative stability assessment of lubricants, fuels, and elastomers under programmed air/N₂ switching
• Kinetic modeling of solid-state reactions—including catalytic decomposition and metal oxide reduction—for process optimization
• Hyphenated TGA-FTIR for functional group identification of evolved gases (e.g., NH₃, HCl, CO, CO₂)
• TGA-GC/MS analysis of complex organic volatiles from polymer degradation or contaminated soil matrices
• Multi-step thermal cycling studies for thermal aging simulation in aerospace-grade resins

FAQ

What temperature calibration standards are supported?
The TGA 8000 supports NIST-traceable calibration using high-purity metals (In, Sn, Pb, Zn, Al) and certified ceramic standards (α-Al₂O₃). Calibration routines include temperature, weight, and buoyancy correction per ASTM E2550.
Can the autosampler handle corrosive or reactive samples?
Yes—when used with chemically resistant crucibles (e.g., Pt-Rh, Ta, or SiC) and appropriate gas purging, the 48-position autosampler maintains integrity during extended runs with halogenated or acidic volatiles.
Is the heated divert valve compatible with GC/MS interfaces from non-PerkinElmer vendors?
The divert valve features standardized 1/8″ Swagelok® ports and programmable actuation timing; mechanical and electrical integration with third-party GC/MS systems requires custom cabling and synchronization logic, but no proprietary firmware lock-in.
How does the system ensure data integrity during unattended overnight operation?
Pyris™ enforces automatic file checksum generation, disk-space pre-check, and hardware watchdog timers that trigger safe shutdown upon communication loss or thermal excursion beyond user-defined limits.
Does the TGA 8000 support dynamic gas switching during a single run?
Yes—via the dual MFC architecture and programmable gas sequence editor, users can define up to 16 discrete gas environment segments per method, including ramped O₂ concentration profiles for oxidation kinetics.
