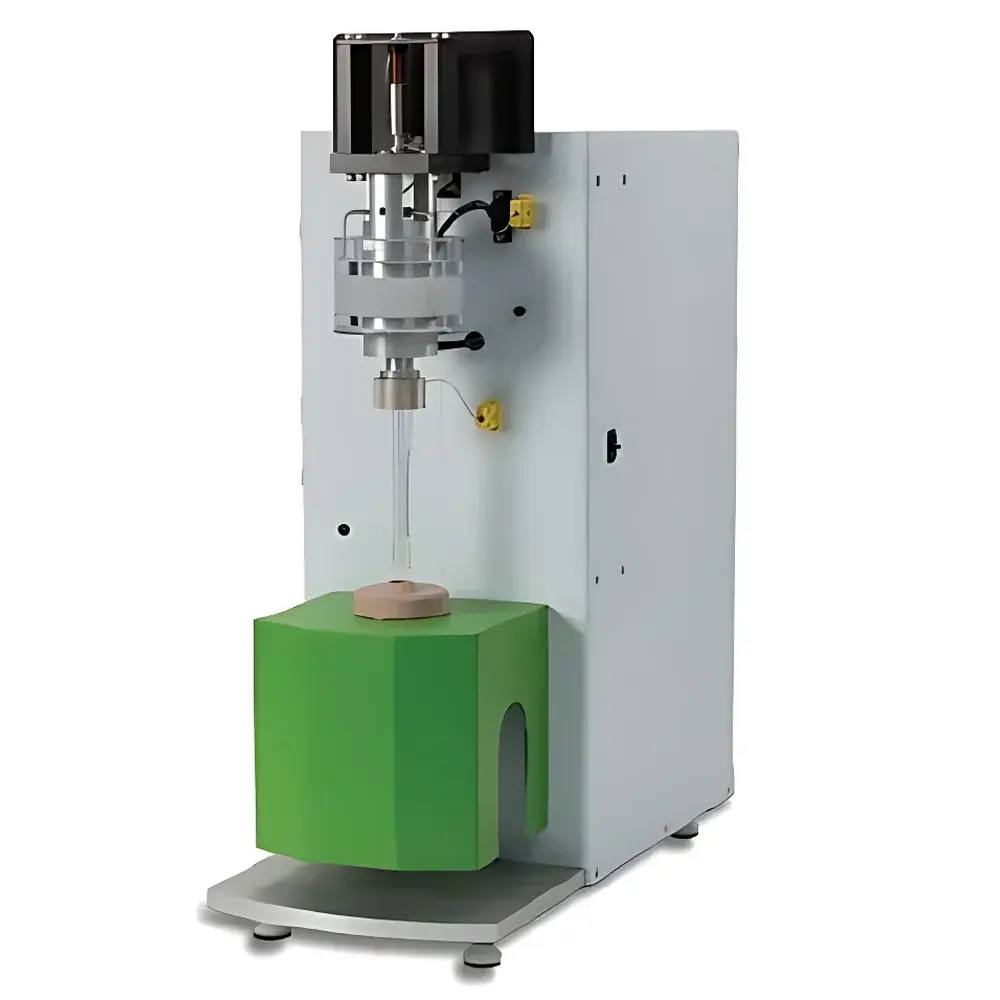

PerkinElmer TMA 4000 Thermomechanical Analyzer
| Brand | PerkinElmer |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Origin Category | Imported |
| Model | TMA 4000 |
| Pricing | Available Upon Request |
Overview
The PerkinElmer TMA 4000 is a high-precision thermomechanical analyzer engineered for quantitative measurement of dimensional changes in solid and semi-crystalline materials as a function of temperature, time, and applied force. It operates on the fundamental principle of controlled-force, contact-mode thermal expansion analysis—where a calibrated probe applies a defined static or dynamic load to a sample while precisely monitoring its axial displacement using a linear variable differential transformer (LVDT). This architecture enables accurate determination of coefficients of thermal expansion (CTE), glass transition temperatures (Tg), softening points, and stress-relaxation behavior across a broad thermal range—from sub-ambient conditions up to 800 °C. Designed specifically for laboratories requiring regulatory-compliant data in electronics, polymer development, packaging R&D, and advanced materials qualification, the TMA 4000 integrates robust thermal control, mechanical isolation, and traceable metrology into a single platform.
Key Features
- Durable all-metal furnace with uniform temperature distribution across a 40 mm active zone; validated operational stability over thousands of hours within 0 °C to 800 °C.
- Archimedes-style suspended probe system: fully counterbalances probe and holder mass to eliminate gravitational bias, enabling true net-force application and vibration isolation from ambient mechanical noise.
- Motorized furnace lift with integrated displacement sensor ensures repeatable, SOP-driven positioning—critical for GLP/GMP workflows and multi-user lab environments.
- Modular probe architecture supporting interchangeable configurations: expansion, compression, bending, and tensile modes—including dedicated fixtures for fibers and thin films compliant with ASTM E831, ISO 11359-2, and USP <640>.
- High-sensitivity LVDT transducer with sub-nanometer resolution and extended dynamic range (±1 mm full scale), optimized for both low-expansion alloys (e.g., Invar) and highly compliant polymers.
- Integrated recirculating chiller interface (bolt-mounted) for rapid cooling cycles and precise sub-ambient testing down to –100 °C when paired with optional cryogenic accessories.
Sample Compatibility & Compliance
The TMA 4000 accommodates specimens ranging from micrometer-scale thin films (<5 µm) to bulk samples up to 10 mm in height and 12 mm in diameter. Its open-sample chamber design allows direct access for in-situ mounting and real-time visual verification. All probe geometries conform to international standard test methods, including ASTM D696 (CTE of plastics), ASTM E228 (CTE of metals), ISO 11359-2 (thermomechanical analysis of polymers), and IPC-TM-650 2.4.24 (CTE for printed circuit board laminates). The system supports audit-ready operation under FDA 21 CFR Part 11 via optional electronic signature and secure user-access protocols within Pyris™ software.
Software & Data Management
Controlled exclusively through PerkinElmer’s Pyris™ TMA software, the TMA 4000 delivers full computerization of instrument operation, calibration, and reporting. Key capabilities include real-time displacement/temperature curve visualization, automated zero-point compensation, dynamic baseline correction, multi-curve overlay and derivative analysis, CTE calculation with user-defined reference intervals, and export of ASCII, CSV, and XML formats for LIMS integration. Calibration routines are traceable to NIST-certified standards; temperature accuracy is maintained ±0.5 °C across the full range after factory calibration. Software modules support method validation, report generation with metadata tagging, and secure data archiving aligned with ISO/IEC 17025 documentation requirements.
Applications
- Electronics: CTE matching validation for die attach materials, underfill epoxies, PCB substrates, and solder joint reliability assessment.
- Polymers & Composites: Quantification of Tg, coefficient of linear expansion (CLTE), and filler-matrix interfacial effects in thermoplastics, thermosets, and fiber-reinforced composites.
- Packaging & Food Science: Dimensional stability evaluation of multilayer films, seal integrity analysis under thermal cycling, and texture–temperature correlation studies.
- Automotive & Aerospace: Thermal deformation behavior of gaskets, elastomeric seals, and lightweight structural composites under service-relevant load profiles.
- Metallurgy & Welding: Post-weld microstructural expansion anomalies in high-performance alloys and dissimilar metal joints.
FAQ
What temperature range is supported by the TMA 4000?
The standard furnace operates from 0 °C to 800 °C; with optional cryogenic accessories and chiller integration, testing can extend down to –100 °C.
Does the system comply with regulatory data integrity standards?
Yes—when configured with Pyris™ software and appropriate user access controls, it supports 21 CFR Part 11 compliance for electronic records and signatures.
How is force accuracy maintained during long-duration experiments?
The Archimedes suspension eliminates gravitational drift; force is applied directly via a calibrated electromagnetic actuator with closed-loop feedback and real-time load monitoring.
Can the TMA 4000 be used for dynamic mechanical measurements?
No—it is optimized for static and quasi-static thermomechanical analysis; for dynamic modulus and damping characterization, PerkinElmer’s DMA 8000 or DMA 8500 platforms are recommended.
Is hardware calibration required between experiments?
No—temperature and displacement calibrations are performed at installation and remain stable; routine verification uses certified reference materials per ISO 11359-1 guidelines.
