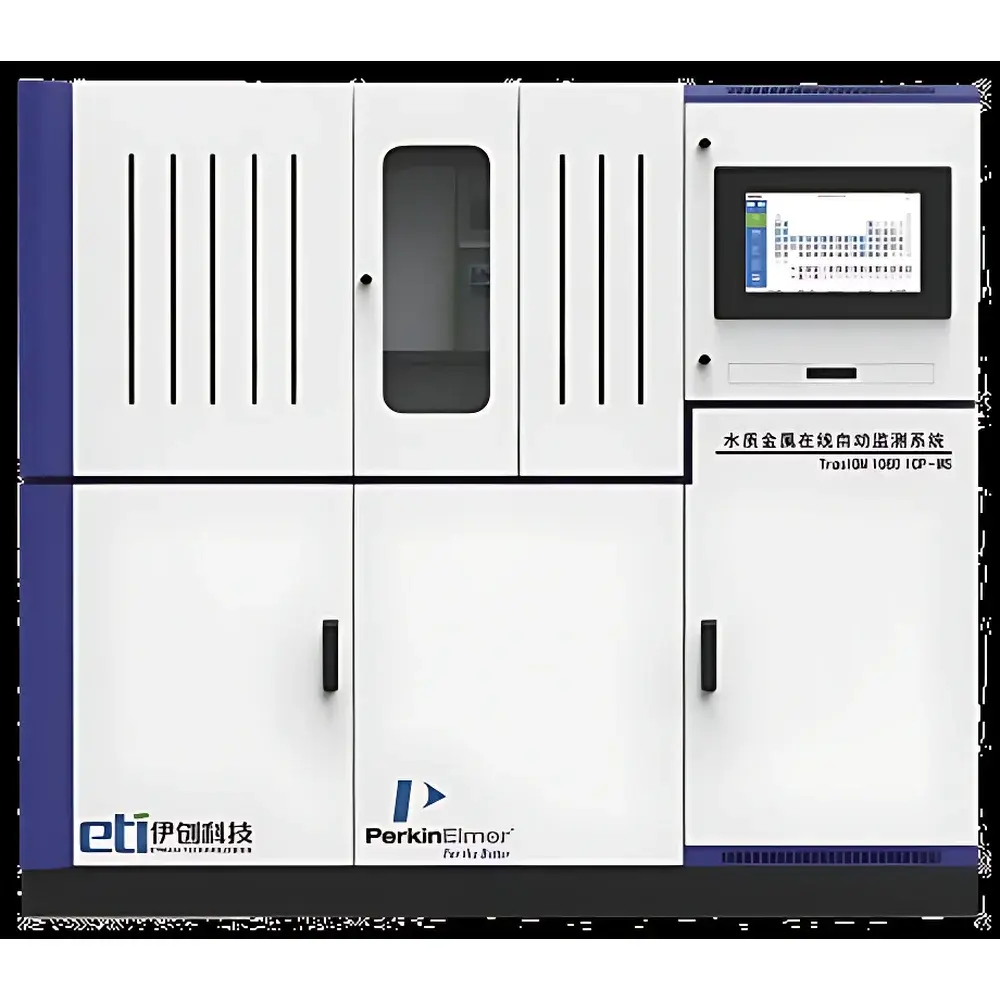

PerkinElmer TrasION 1080 ICP-MS Online Automated Water Metal Monitoring System

Overview

The PerkinElmer TrasION 1080 ICP-MS Online Automated Water Metal Monitoring System is an integrated, turnkey solution engineered for continuous, unattended elemental analysis of trace metals in aqueous environmental matrices. Built upon the NexION® triple-quadrupole inductively coupled plasma mass spectrometry (ICP-MS/MS) platform, the system leverages tandem mass spectrometry to eliminate polyatomic interferences—such as ⁴⁰Ar¹⁶O⁺ on ⁵⁶Fe⁺ or ⁴⁰Ar³⁵Cl⁺ on ⁷⁵As⁺—through mass-shift or on-mass reaction cell modes. This architecture enables sub-femtogram-per-liter (fg/L) detection limits for over 70 elements across drinking water, surface water, wastewater effluent, and industrial process streams. The system operates under ISO/IEC 17025-aligned measurement principles and supports regulatory compliance with EPA Methods 200.8 and 6020B, as well as ISO 17294-2:2016 for multi-element water analysis.

Key Features

• Triple-quadrupole ICP-MS/MS architecture with dynamic reaction cell (DRC) and mass-shift capability for interference-free quantification of As, Se, Cr, V, Co, Ni, Cd, Pb, U, and rare earth elements
• Fully automated online sample introduction: integrated peristaltic pumping, real-time filtration (0.45 µm), acidification (HNO₃), and internal standard addition (e.g., ¹¹⁵In, ¹⁸⁷Re)
• Modular front-end pre-treatment unit co-developed with Yichuang Technology, featuring programmable dilution, UV digestion for organometallic speciation support, and matrix-matched calibration delivery
• Robust hardware design for 24/7 operation: corrosion-resistant fluidics (PTFE, PFA, quartz), sealed RF generator, and active cooling for plasma stability in ambient temperature fluctuations (15–35 °C)
• Self-diagnostic monitoring: real-time plasma status logging, torch alignment verification, detector voltage trending, and vacuum integrity alerts via embedded sensor network

Sample Compatibility & Compliance

The TrasION 1080 accepts raw, filtered, or pretreated water samples with total dissolved solids (TDS) ≤ 0.2% w/v and suspended solids < 1 mg/L. It accommodates variable flow rates (1–5 mL/min) and supports automated multi-point calibration using NIST-traceable CRM standards (e.g., SPEX CertiPrep®). System validation follows EPA SW-846 Chapter 1, Method 200.8 Appendix A protocols, including MDL determination, spike recovery (85–115%), and long-term calibration stability (≤ 3% RSD over 72 h). Data integrity meets FDA 21 CFR Part 11 requirements through electronic signatures, audit trails, and role-based access control within the instrument control software.

Software & Data Management

Control and data acquisition are managed by PerkinElmer’s Syngistix™ for ICP-MS v5.5+, extended with Yichuang’s TrasION-specific modules for online workflow orchestration. The software provides scheduled auto-calibration, adaptive dwell-time optimization per element, real-time interference correction mapping, and automatic report generation compliant with ISO 14001 and EU WFD (Water Framework Directive) Annex V reporting templates. All raw spectral data, method parameters, and QC logs are stored in a relational SQLite database with optional export to LIMS via ASTM E1467-compliant XML or ODBC connectivity. Audit trail records include operator ID, timestamp, parameter changes, and result approvals—retained for ≥ 15 years per GLP archival guidelines.

Applications

• Continuous monitoring of regulated metals at drinking water intake points (e.g., As, Pb, Cd, Cr(VI)) per WHO Guidelines and EU Directive 98/83/EC
• Real-time effluent compliance tracking for municipal wastewater treatment plants against NPDES permit limits
• Early-warning detection of heavy metal leaching from landfill leachate or mining runoff
• Process water quality assurance in semiconductor fabrication and pharmaceutical manufacturing (USP / elemental impurities)
• Research-grade time-series studies of bioavailable metal fluxes in estuarine and riverine ecosystems

FAQ

What sample preparation is required prior to online analysis?
No manual sample preparation is needed. The integrated front-end module performs inline filtration, acidification, and internal standard spiking. Samples must be pre-filtered to ≤ 0.45 µm if particulate load exceeds 1 mg/L.
Can the system quantify isotopic ratios for source apportionment studies?
Yes. The TrasION 1080 supports high-mass-resolution isotope ratio measurements (e.g., ²⁰⁶Pb/²⁰⁷Pb, ⁸⁷Sr/⁸⁶Sr) with reproducibility < 0.1% RSD (n = 10) using Faraday cup detection mode.
Is remote diagnostics and software update supported?
Yes. Secure TLS 1.2-enabled remote access allows PerkinElmer Field Application Scientists to perform health checks, firmware updates, and method troubleshooting without on-site visits.
How is calibration drift compensated during extended unattended runs?
The system executes automated bracketing calibrations every 2–4 hours and applies real-time drift correction using internal standard response normalization and memory-effect compensation algorithms.
Does the system comply with cybersecurity standards for critical infrastructure?
It supports NIST SP 800-53 Rev. 5 controls including encrypted data-at-rest (AES-256), secure boot, and configurable firewall rules; validated for deployment in SCADA-integrated water utility networks.
