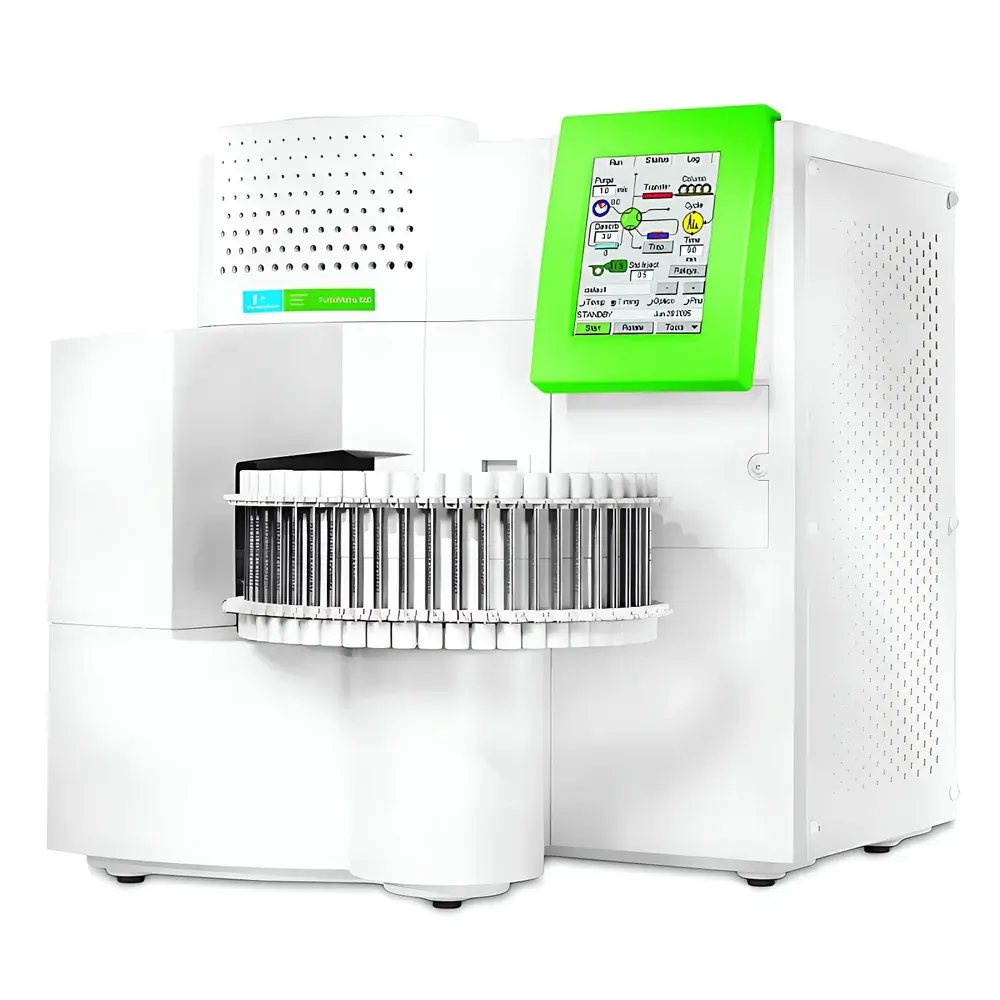

PerkinElmer TurboMatrix 650 ATD Automated Thermal Desorber

Overview

The PerkinElmer TurboMatrix 650 ATD is an automated, two-stage thermal desorption system engineered for high-precision analysis of volatile and semi-volatile organic compounds (VOCs and SVOCs) in air, soil, water, and polymer matrices. It operates on the principle of quantitative thermal desorption—where analytes pre-concentrated on sorbent tubes are thermally released, focused onto a cryogenically cooled trap, and then rapidly injected into a gas chromatograph (GC) as a narrow, well-defined band. This process eliminates solvent use, minimizes matrix interference, and delivers superior sensitivity (sub-ppt detection limits), reproducibility, and robustness compared to traditional solvent extraction or direct injection methods. Designed for compliance-critical laboratories, the TurboMatrix 650 ATD integrates seamlessly with EPA Methods TO-17, TO-14A, ASTM D6196, ISO 16017-1, and EU EN 14662—making it a reference platform for environmental monitoring, occupational health & safety testing, indoor air quality (IAQ) assessment, and materials outgassing studies.

Key Features

• Two-stage thermal desorption architecture with independent control of desorption oven (ambient to 400 °C) and electronically cooled cold trap (−30 °C, no liquid nitrogen or CO₂ required)
• 50-position automated sample carousel with barcode reader option for full sample traceability
• Electronic mass flow controllers (MFCs) for precise, pressure- and temperature-invariant carrier gas flow regulation across all operational phases (bake-out, desorption, trap focusing, GC transfer)
• Integrated sample recovery capability: unanalyzed or partially desorbed analytes can be redirected to a secondary collection tube for re-analysis or confirmatory testing
• Adsorbent tube integrity verification: real-time measurement of tube backpressure and optional gravimetric fill-mass estimation using integrated flow calibration routines
• Graphical 7-inch color touchscreen interface with intuitive workflow navigation, password-protected user levels, and firmware-upgradable architecture

Sample Compatibility & Compliance

The TurboMatrix 650 ATD supports standard 1/4″ OD stainless steel or glass sorbent tubes (e.g., Tenax TA, Carbopack B/C, Carboxen 1000, multi-bed configurations) and accommodates both single- and multi-bed tube formats. It is validated for use with EPA-compliant sampling protocols—including SUMMA canisters (via optional interface), diffusive badges, and solid-phase microextraction (SPME) fiber desorption modules (with adapter kit). System design adheres to IEC 61000-4 electromagnetic compatibility standards and meets CE marking requirements. For regulated environments, the instrument supports 21 CFR Part 11–compliant data handling when paired with PerkinElmer’s Chromera CDS or third-party LIMS-integrated GC software; audit trails, electronic signatures, and user access logs are configurable per GLP and GMP documentation requirements.

Software & Data Management

Control and method development are performed via the embedded TurboMatrix Touch OS, which stores up to 100 user-defined methods with parameter sets for desorption time, trap hold time, GC transfer ramp rates, and MFC setpoints. Raw thermal desorption event logs—including temperature profiles, flow deviations, and valve actuation timestamps—are saved in CSV format for external QA review. Optional integration with PerkinElmer’s Time-Based Instrument Control (TBIC) enables synchronized GC oven ramping, detector triggering, and data acquisition. All system diagnostics (cooling performance, heater stability, MFC drift) are logged automatically and accessible through the maintenance dashboard. Remote monitoring and firmware updates are supported over secure Ethernet or Wi-Fi (WPA2-Enterprise).

Applications

• Environmental laboratories performing VOC screening in ambient, workplace, and indoor air per EPA TO-17 and ISO 16017-1
• Automotive and aerospace suppliers conducting material emissions testing (e.g., DIN 54914, VDA 278) for cabin air quality certification
• Pharmaceutical QC labs assessing residual solvents in active pharmaceutical ingredients (APIs) and packaging materials per USP and ICH Q3C
• Consumer product safety testing for formaldehyde, benzene, and phthalate esters in textiles, adhesives, and laminates
• Forensic and academic research requiring trace-level hydrocarbon profiling in complex matrices (e.g., fire debris, contaminated soils)

FAQ

Can the TurboMatrix 650 ATD be used with non-PerkinElmer gas chromatographs?
Yes—it features universal GC interface hardware (standard 1/8″ Swagelok fittings and TTL/RS-232 trigger signals) compatible with Agilent 7890/8890, Thermo Fisher Trace 1300/1600, and Shimadzu GC-2030 systems.
Does the system support method validation per ISO/IEC 17025?
Yes—built-in performance qualification (PQ) routines include cold trap temperature verification, flow accuracy checks, carryover testing, and retention time stability assessments—all documented in IQ/OQ/PQ templates supplied with the system.
Is electronic cooling sufficient for trapping high-boiling-point SVOCs such as PAHs or phthalates?
Yes—the −30 °C trap temperature, combined with optimized trap geometry and inert surface deactivation, ensures quantitative retention of compounds up to ~400 °C boiling point under standard helium flow conditions.
How is data integrity maintained during long unattended runs?
All method parameters, instrument events, and environmental sensor readings (ambient temperature, internal cabinet humidity) are timestamped and written to non-volatile memory with cyclic overwrite protection; external NAS or network share backup is configurable.
What service and support options are available globally?
PerkinElmer offers factory-certified installation, annual preventive maintenance contracts, remote diagnostics, and application-specific method development support through its global network of Field Application Scientists and Service Engineers.
