PFA Distillation and Condensation System for Hydrogen Fluoride Handling – NJ-HF HF Separation Apparatus

Overview

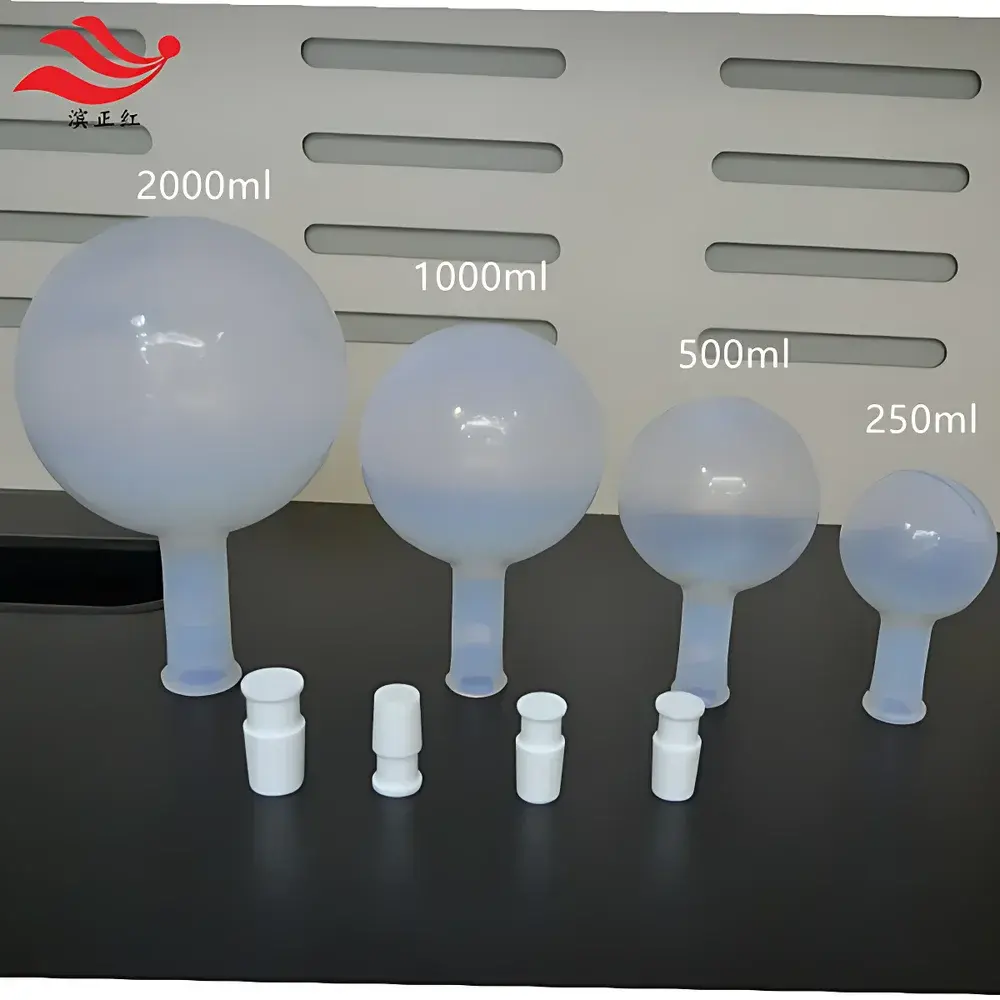

The NJ-HF HF Separation Apparatus is a fully PFA (perfluoroalkoxy alkane)-constructed distillation and condensation system engineered for safe, inert handling of highly corrosive hydrogen fluoride (HF) and related fluorinated reagents in high-purity inorganic synthesis and separation workflows. Designed specifically for the fractional separation and purification of vanadium oxychloride (VOCl₃) and mixed vanadium chlorooxide species, this apparatus operates on classical vacuum-assisted fractional distillation principles under chemically inert conditions. All wetted components—including the 250 mL PFA round-bottom distillation flask, inline PFA condenser, PFA thermometer adapter with integrated temperature probe port, and PFA absorption trap—are fabricated from high-purity, low-extractable PFA resin (ASTM D4894-compliant), ensuring negligible metal ion leaching, thermal stability up to 260 °C, and resistance to HF attack at concentrations up to 48 wt% and temperatures ≤120 °C. The system’s hermetic sealing architecture—achieved via PFA-to-PFA conical joints with embedded FEP O-rings—meets ASTM E2654 requirements for leak integrity in aggressive halogen chemistry environments.

Key Features

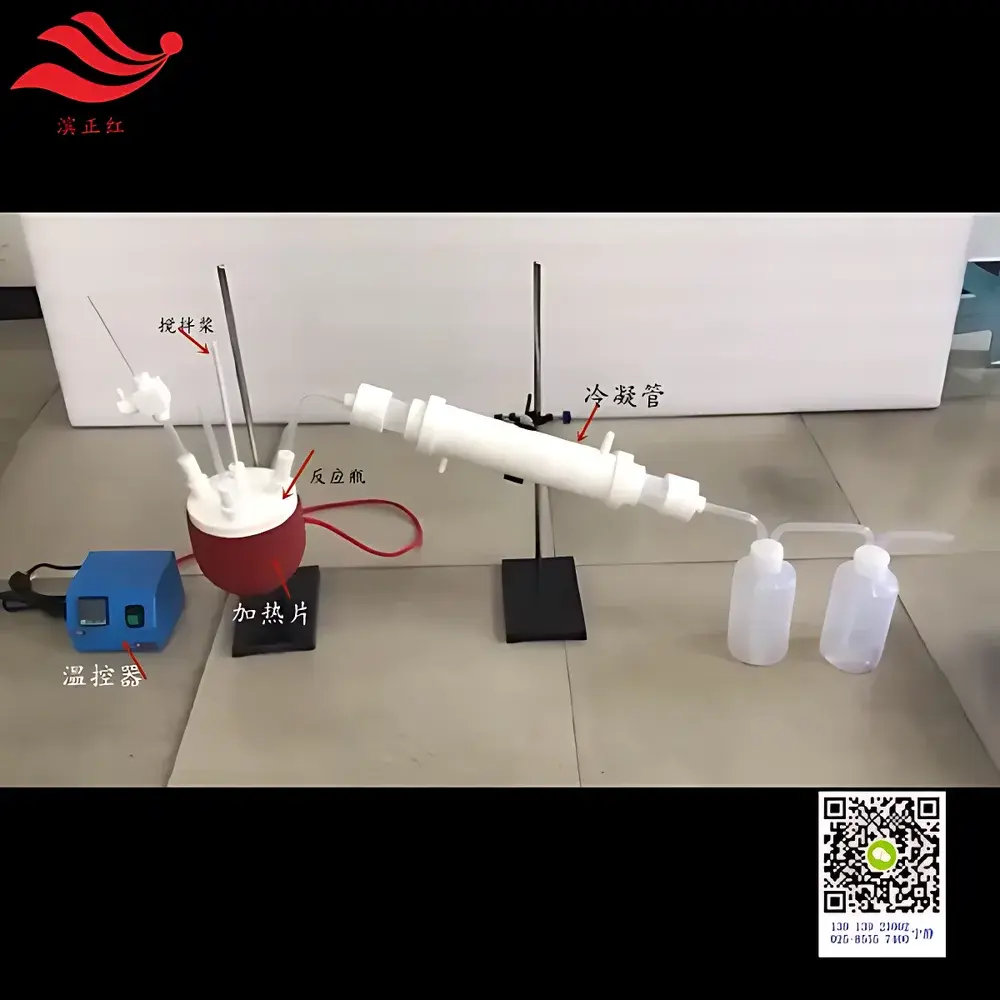

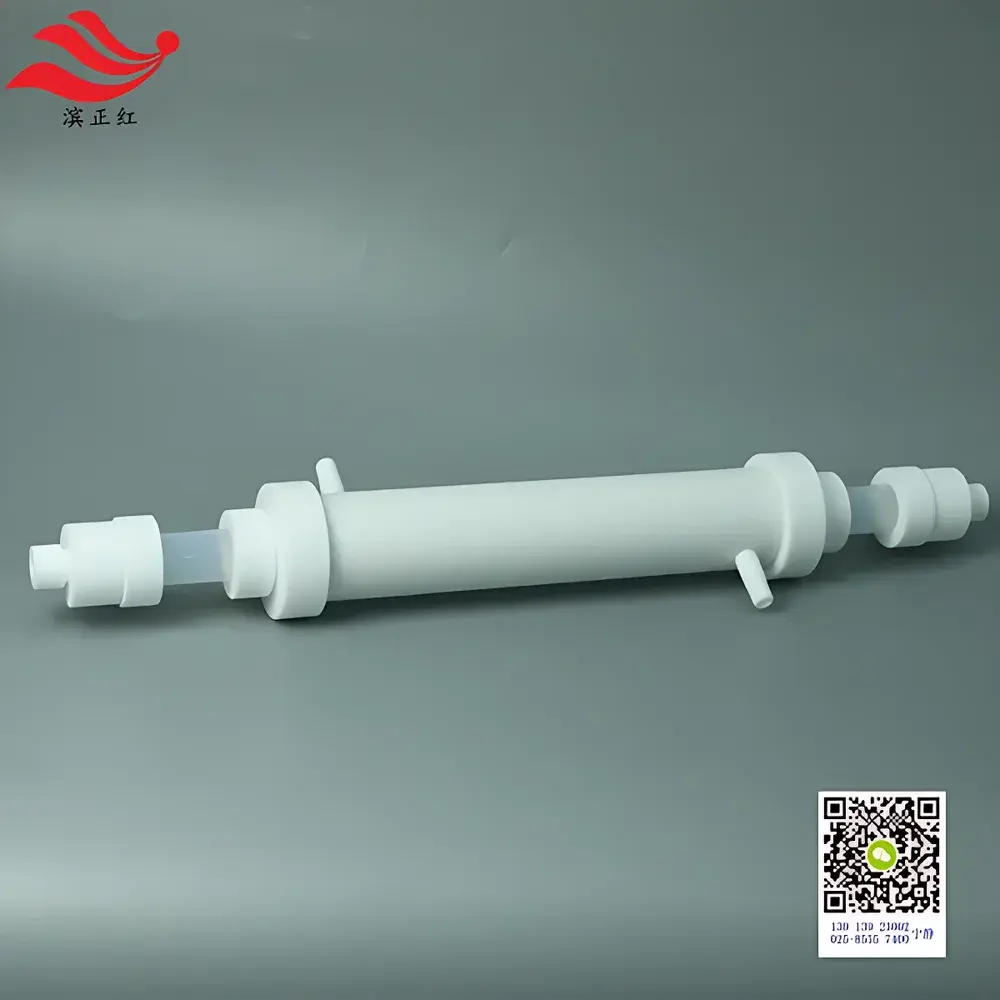

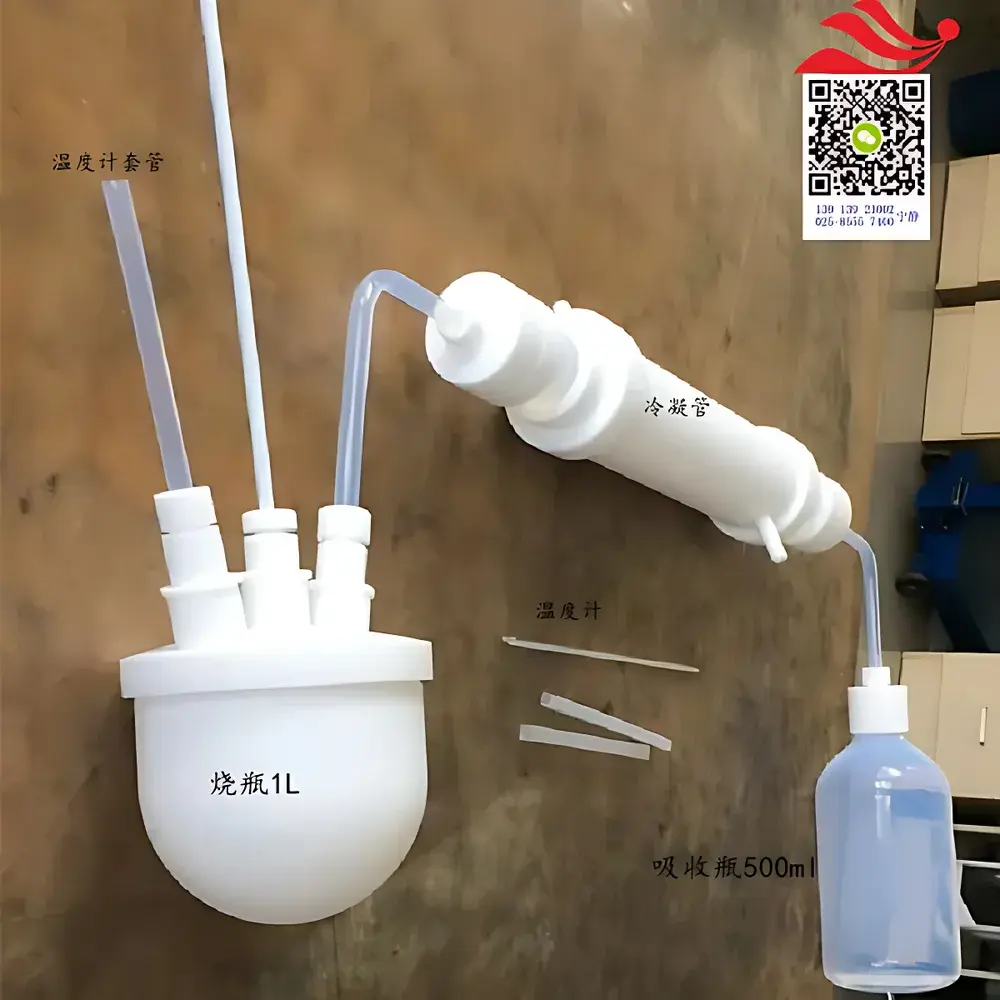

• Fully fluoropolymer-wetted construction: 250 mL PFA distillation flask, straight-tube PFA condenser (effective length 300 mm, inner diameter 12 mm), PFA thermometer adapter with 1/4″ NPT threaded port for digital PT100 or thermocouple integration, and PFA absorption bottle with dual-inlet gas dispersion frit.
• Chemically inert fluid path: No glass, metal, or silicone components contact process stream; eliminates risk of HF-induced etching, metal contamination, or seal degradation.
• Vacuum-compatible design: Rated for continuous operation under ≤10 mbar absolute pressure using standard PFA vacuum tubing and Swagelok®-compatible PFA compression fittings.
• Thermal stability: Maintains structural integrity and dimensional stability during repeated thermal cycling between −20 °C and +260 °C, supporting both ambient-pressure and reduced-pressure distillations.
• Modular assembly: Interchangeable PFA components enable rapid reconfiguration for batch distillation, reflux, or gas scrubbing applications without cross-contamination.

Sample Compatibility & Compliance

The NJ-HF apparatus is validated for use with anhydrous hydrogen fluoride, aqueous HF solutions (≤48 wt%), vanadium oxychloride (VOCl₃), vanadyl chloride (VOCI₂), chlorine monoxide (Cl₂O), and other halogen-rich intermediates encountered in catalyst precursor synthesis and nuclear fuel cycle chemistry. It complies with ISO 17025:2017 general requirements for competence of testing and calibration laboratories when operated within defined procedural controls. The PFA material conforms to USP Class VI biocompatibility standards and meets FDA 21 CFR 177.1550 for fluoropolymer food-contact compliance—indicative of low extractables and high purity. For GLP-regulated environments, the system supports traceable temperature logging (when paired with compliant data loggers) and is compatible with audit-ready documentation protocols.

Software & Data Management

As a benchtop passive apparatus, the NJ-HF system does not incorporate embedded electronics or proprietary software. However, it is fully interoperable with third-party laboratory data management systems via analog temperature output (0–5 V or 4–20 mA) when used with external calibrated transmitters. Temperature monitoring can be integrated into LIMS platforms (e.g., LabWare LIMS, Thermo Fisher SampleManager) through standard IEEE 1451.2 sensor interface modules. All PFA components are uniquely laser-engraved with batch traceability codes, enabling full material lineage tracking per ISO 9001:2015 clause 8.5.2.

Applications

• Purification of vanadium-based catalyst precursors via fractional distillation under inert atmosphere.
• Safe containment and controlled release of HF gas during fluorination reactions involving metal oxides or halides.
• Scrubbing and neutralization of HF vapors using CaF₂- or MgO-packed PFA absorption traps.
• Preparation of high-purity VOCl₃ for atomic layer deposition (ALD) precursor synthesis (ASTM F3192).
• Method development for EPA Method 301 validation studies involving fluorinated volatile compounds.

FAQ

Is the NJ-HF system suitable for use with anhydrous HF at elevated temperatures?

Yes—PFA maintains mechanical integrity and chemical resistance up to 120 °C with anhydrous HF; extended exposure above this temperature requires engineering review per NACE MR0175/ISO 15156.
Can standard laboratory vacuum pumps be used with this apparatus?

Yes, provided the pump is equipped with HF-resistant diaphragms (e.g., Viton-free PTFE or FFKM) and a cold trap to prevent backstreaming of corrosive vapors.
Does the system include calibration certificates for PFA components?

Material certification (including extractables test reports per ASTM D5224 and lot-specific fluoropolymer resin traceability) is supplied with each shipment.
What temperature measurement accuracy is achievable with the integrated thermometer port?

When paired with a calibrated Class A PT100 probe, system-level uncertainty is ±0.3 °C within 0–100 °C, per IEC 60751.
Are replacement PFA O-rings and joint sleeves available as spare parts?

Yes—genuine Binzhenghong PFA/FEP hybrid seals (PN: BZH-NJHF-SEAL-KIT) are stocked and shipped with documented shelf-life and lot-controlled certification.
