Pharma-test PTF Series Friability Tester

Overview

The Pharma-test PTF Series Friability Tester is a precision-engineered instrument designed for quantitative assessment of tablet mechanical integrity under controlled tumbling conditions. Based on the standardized rotating drum principle defined in pharmacopoeial monographs—including United States Pharmacopeia (USP) , European Pharmacopoeia (EP) 2.9.7, and Japanese Pharmacopoeia (JP) 6.05—the PTF series measures mass loss (%) after a specified number of revolutions at defined rotational speed (25 rpm ±1 rpm) and drum diameter (28.5 cm). This gravimetric evaluation provides critical data for formulation development, batch release testing, and stability studies. The PTF platform replaces the legacy PTF 100/200/300/600 models with enhanced ergonomics, structural robustness, and operational consistency while maintaining full functional equivalence in measurement methodology and software architecture.

Key Features

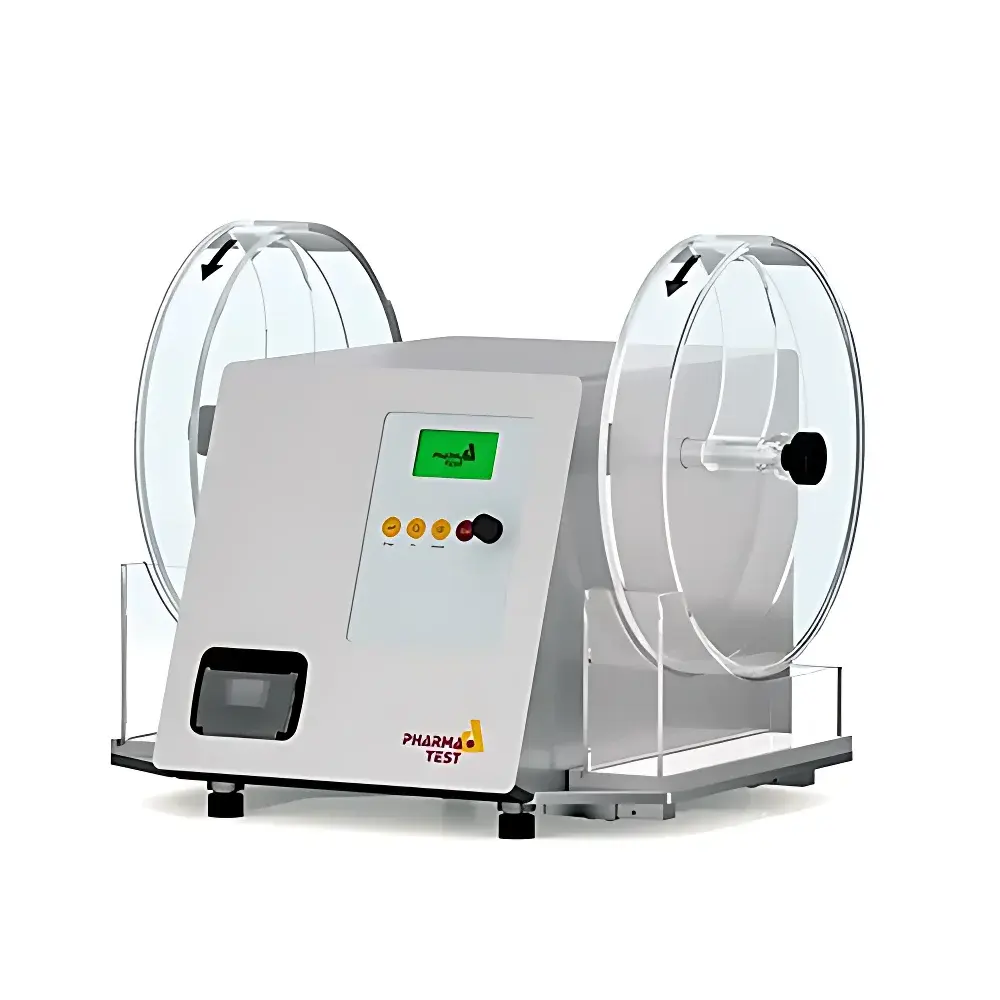

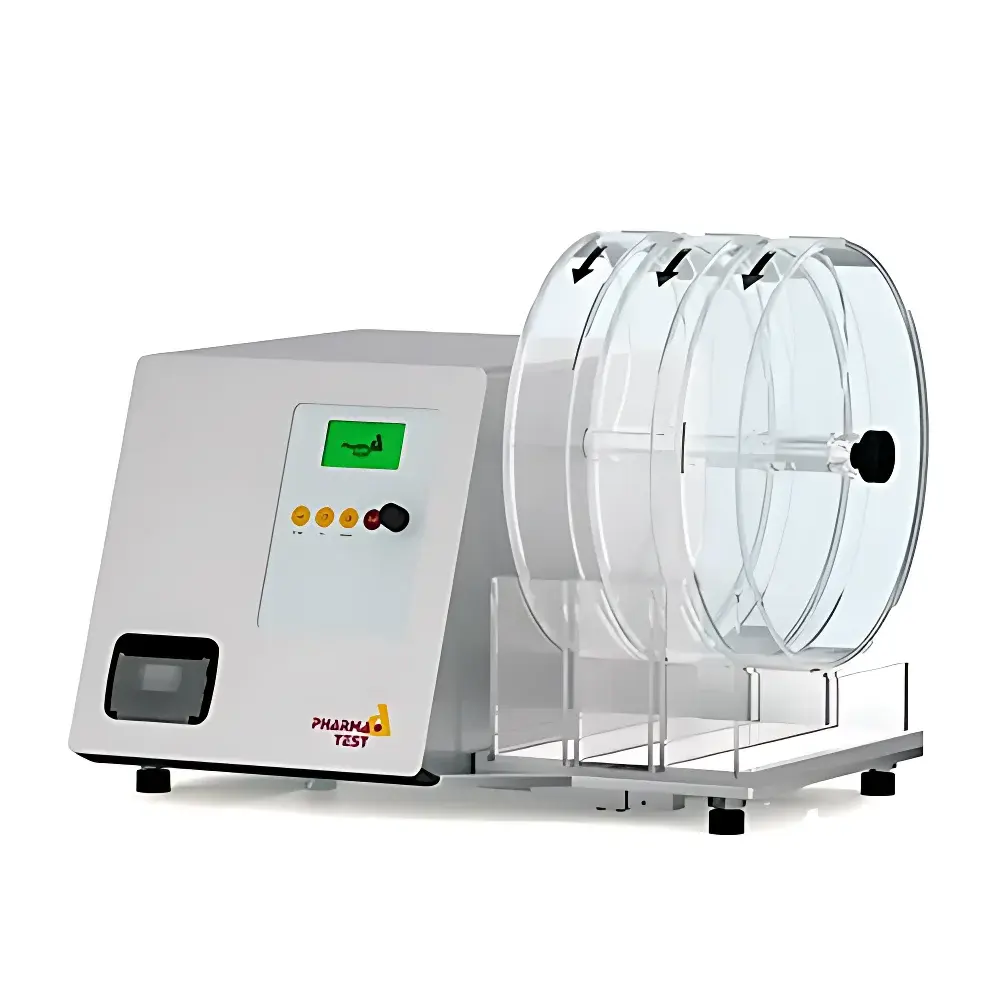

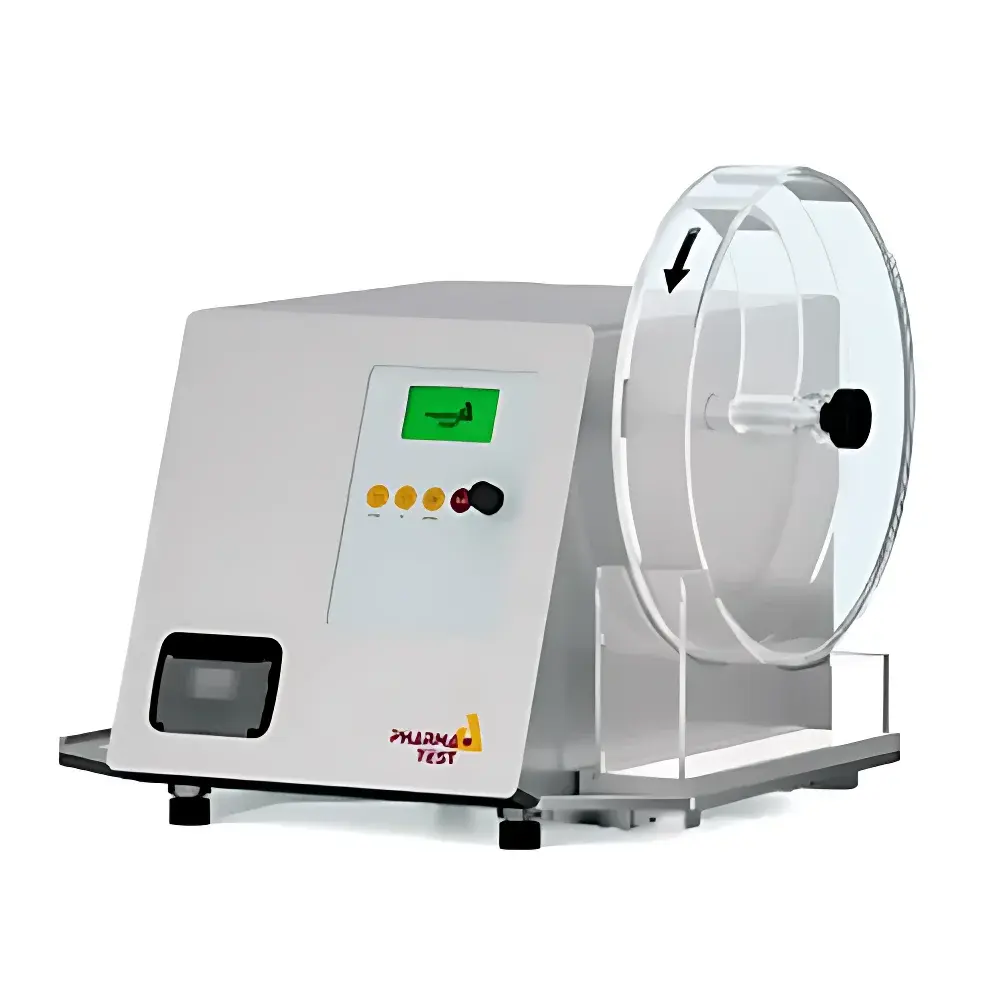

• Modular drum configuration: Four variants—PTF 110 (1 drum), PTF 210 (2 drums), PTF 310 (3 drums), and PTF 610 (6 drums)—support scalable throughput without compromising test uniformity.
• Brushed stainless steel enclosure: Corrosion-resistant, cleanroom-compatible housing engineered for long-term durability and ease of decontamination in GMP environments.
• Tool-free drum handling: In PTF 310 and PTF 610 models, individual drums slide axially onto precision-ground shafts—eliminating the need to lift entire drum assemblies during loading/unloading.

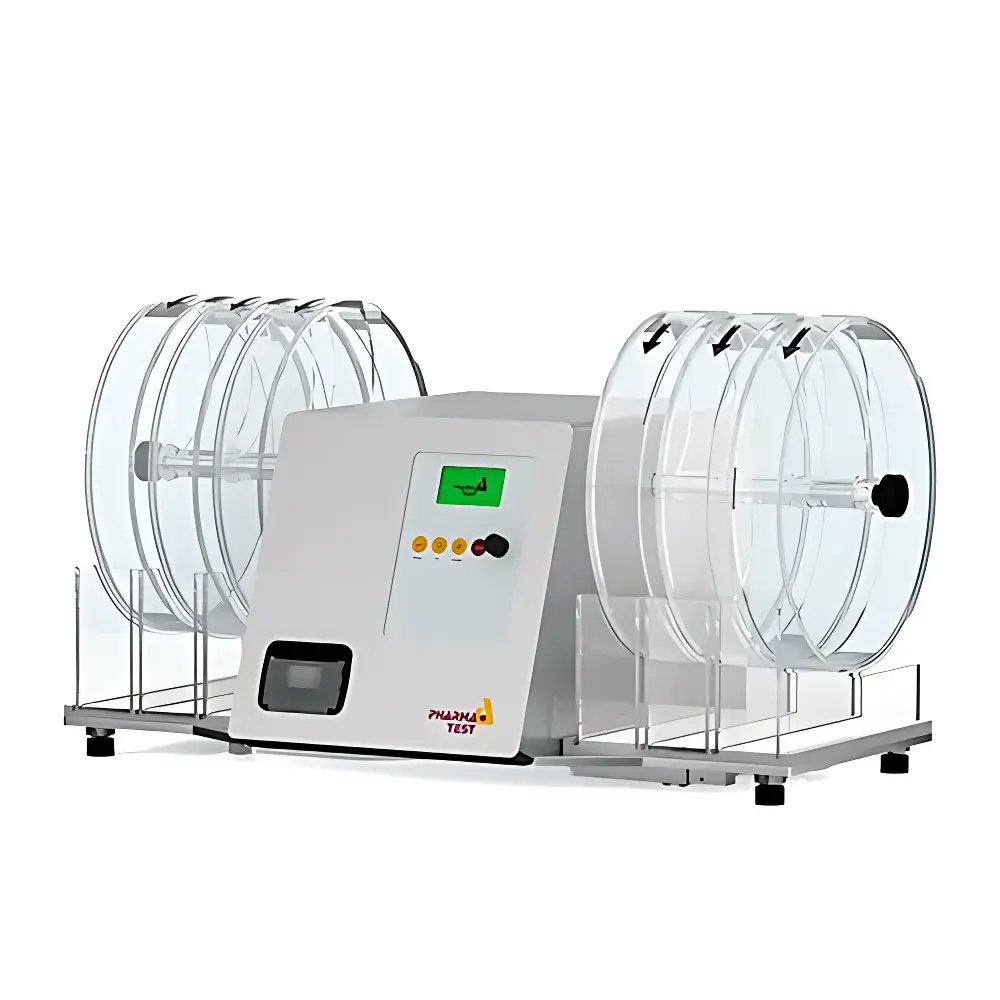

• Bilateral symmetry in PTF 610: Three drums mounted left and three right enable balanced weight distribution and reduce vibration-induced measurement drift during extended runs.
• Integrated thermal printer (standard): Real-time printout of test parameters (duration, rpm, drum ID), initial/final weights, mass loss %, and pass/fail status per USP criteria.
• Backward-compatible drum system: Identical drum geometry, surface finish (anti-static, abrasion-resistant coating), and material composition across all PTF generations—ensuring continuity in historical data comparison and method transfer.

Sample Compatibility & Compliance

The PTF series accommodates standard pharmaceutical tablets (diameter ≤ 30 mm, thickness ≤ 15 mm) and coated or uncoated formulations. Each drum holds up to 20 g of sample (or ≤ 6.5 g for low-mass tablets), adhering strictly to pharmacopoeial load specifications. All models comply with regulatory expectations for instrument qualification: IQ/OQ protocols are supported by documented traceable calibration procedures for rotational speed, timer accuracy, and weight measurement (when paired with certified analytical balances). Data integrity safeguards include audit-trail-enabled software logging (when used with PT-Node network integration), satisfying FDA 21 CFR Part 11 and EU Annex 11 requirements for electronic records in regulated laboratories.

Software & Data Management

The embedded firmware retains full compatibility with Pharma-test’s established PT-Soft suite, enabling seamless export of CSV-formatted datasets for statistical process control (SPC) analysis. Optional PT-Node network adapter allows centralized monitoring of multiple PTF units via Ethernet, supporting remote parameter configuration, real-time status visualization, and automated archival to LIMS or ELN systems. All printed reports and digital logs include timestamps, operator ID fields, and instrument serial numbers—facilitating GLP/GMP audit readiness and method validation documentation.

Applications

• QC release testing of commercial tablet batches against friability acceptance criteria (typically ≤1.0% mass loss).
• Preformulation screening of binder efficacy, granulation method impact, and excipient interactions on tablet cohesion.
• Stability-indicating studies evaluating packaging-related abrasion or environmental humidity effects on tablet surface integrity.
• Comparative assessment of film-coating robustness across different polymer systems and curing conditions.
• Educational use in pharmacy and pharmaceutical sciences curricula for hands-on demonstration of solid dosage form mechanical property evaluation.

FAQ

Are PTF 110–610 drums interchangeable with older PTF 100–600 instruments?
Yes—identical drum dimensions, coating specifications, and mounting interfaces ensure full cross-generational compatibility.
Does the PTF series support automated weight input from external balances?
Not natively; however, PT-Soft supports manual entry of pre-weighed values and can be configured to accept RS-232 or USB balance outputs via custom integration.
Is the thermal printer capable of generating GLP-compliant audit trails?
The built-in printer produces tamper-evident hardcopy records; full electronic audit trails require PT-Node network integration and validated PT-Soft configuration.
What maintenance intervals are recommended for optimal performance?
Drum surfaces should be inspected weekly for coating wear; rotational speed and timer accuracy must be verified quarterly using NIST-traceable standards.
Can the PTF 610 perform six independent tests simultaneously?
Yes—each of the six drums operates independently with individual start/stop controls and discrete result logging.
