Photek Velocitas VMI Velocity Map Imaging System

Overview

The Photek Velocitas VMI is a high-precision velocity map imaging (VMI) system engineered for advanced time-of-flight (TOF) ion and electron imaging in ultra-high vacuum (UHV) environments. Based on the fundamental principle of electrostatic ion optics—specifically, the inverse Abel transform reconstruction of 2D projection images into full 3D velocity distributions—the Velocitas VMI enables quantitative measurement of kinetic energy, angular distribution, and mass-resolved ion/electron velocities with sub-degree angular resolution and meV-level energy calibration fidelity. Designed as a modular upgrade platform rather than a standalone benchtop instrument, it integrates seamlessly with existing laser laboratories, synchrotron beamlines, or free-electron laser (FEL) end stations. Its architecture supports pump-probe experiments across ultrafast timescales—from nanosecond to attosecond laser pulses—and spectral regimes spanning infrared (IR), extreme ultraviolet (XUV), and soft X-ray photon energies. The system is not a mass spectrometer per se, but a velocity-resolving detection platform that delivers mass-correlated momentum space data essential for interpreting photoionization dynamics, Coulomb explosion pathways, and non-adiabatic fragmentation mechanisms.

Key Features

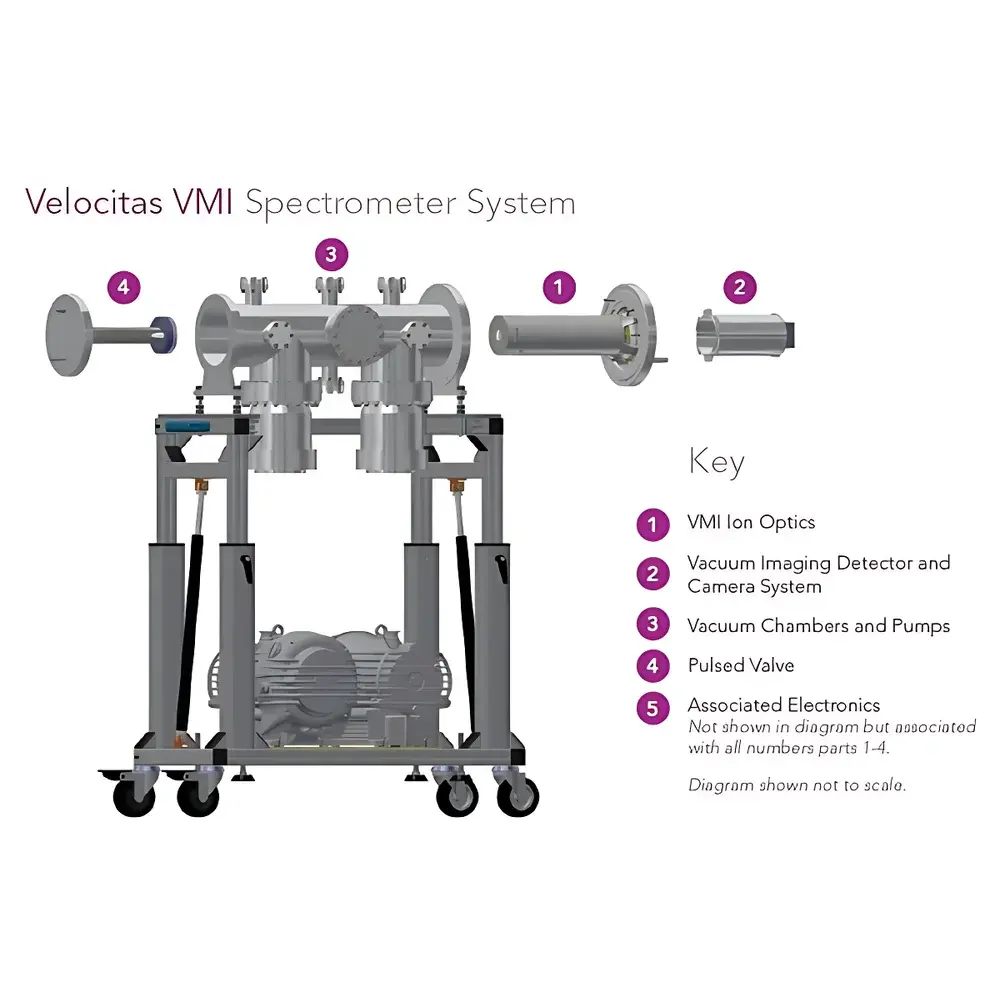

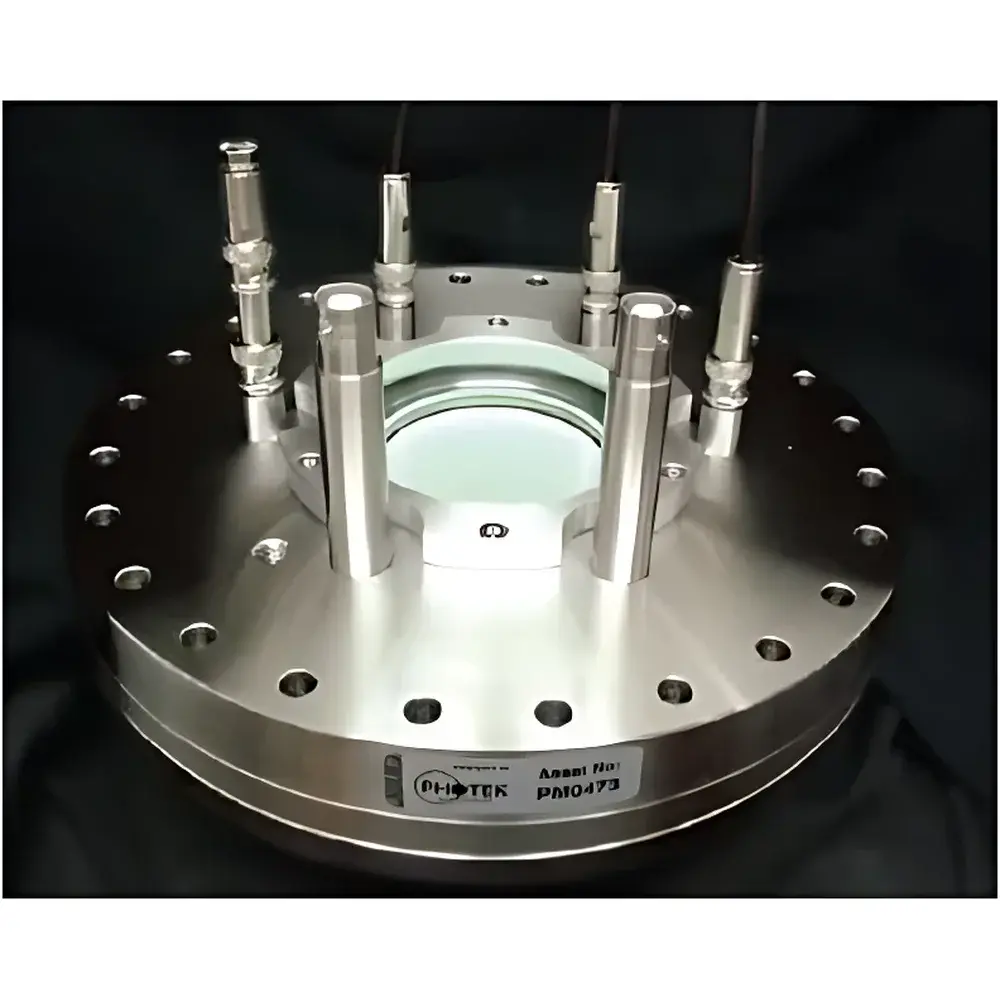

• Modular UHV-compatible design: All core components—including pulsed valve, electrostatic lens stack, field-free drift tube, and microchannel plate (MCP) detector with phosphor screen and high-speed sCMOS camera—are engineered for compatibility with standard 6-inch or 8-inch CF flanges and common vacuum pumping configurations (turbo-molecular + ion-getter or cryo-pumping).
• Attosecond-to-nanosecond temporal synchronization: Integrated timing electronics support precise delay control between laser excitation, ionization, and detector gating—critical for pump-probe photoelectron or coincidence imaging experiments.
• High-fidelity 3D reconstruction: Proprietary software implements optimized inverse Abel transformation algorithms with noise-robust regularization, enabling accurate recovery of isotropic and anisotropic velocity distributions without symmetry assumptions.
• Scalable ion optics: Adjustable extraction voltages and lens potentials allow optimization for species ranging from H⁺ to large organic cations or cluster ions, with tunable mass/charge discrimination via time-of-flight gating.
• Integrated control suite: Unified hardware interface manages high-voltage power supplies (±5 kV, <0.01% ripple), fast-gating electronics (<2 ns rise time), detector readout, and vacuum interlocks—all synchronized via TTL/USB/Ethernet protocols.

Sample Compatibility & Compliance

The Velocitas VMI accommodates gaseous, supersonic molecular beams (via custom pulsed valves), and laser-desorbed neutral precursors. It is routinely deployed in studies compliant with ISO/IEC 17025-accredited laboratory practices for fundamental physics measurements. While not certified for regulated pharmaceutical or clinical use, its data acquisition architecture supports audit-ready metadata logging—including timestamped laser energy monitoring, pressure logs, HV setpoints, and detector gain calibration—facilitating GLP-aligned experimental documentation. Vacuum performance meets UHV standards (<1×10⁻⁹ mbar base pressure with appropriate pumping), and all electrical subsystems conform to CE/UKCA safety directives (EN 61010-1). Integration with third-party laser systems complies with IEC 60825-1 (laser safety) when installed with appropriate beam enclosures and interlock loops.

Software & Data Management

The system ships with Photek’s VMI Control & Analysis Suite (VCAS), a Windows-based application supporting real-time image acquisition, live centroid tracking, and batch-mode Abel inversion. Raw data is saved in HDF5 format with embedded metadata (NIEM-compliant schema), ensuring long-term reproducibility and FAIR data principles compliance. Export options include ASCII, TIFF, and MATLAB .mat files. For regulatory environments requiring electronic records integrity, optional add-ons provide 21 CFR Part 11–compliant user authentication, electronic signatures, and immutable audit trails—fully traceable to individual experiment sessions, operator IDs, and hardware configuration states.

Applications

• Ultrafast photodynamics: Mapping dissociation pathways in polyatomic molecules following UV/XUV excitation.
• Photoelectron spectroscopy: Resolving vibrational and rotational state distributions in anion or neutral photoemission.
• Coulomb explosion imaging: Reconstructing geometric structure of transient molecular cations prior to fragmentation.
• Strong-field ionization: Quantifying tunneling vs. over-the-barrier ionization yields as a function of ellipticity and intensity.
• Time-resolved coincidence spectroscopy: Coupling with delayed extraction TOF-MS for correlated ion–electron event analysis.
• Reaction dynamics: Studying stereodynamic effects in bimolecular reactions using polarized pump–probe schemes.

FAQ

Is the Velocitas VMI a mass spectrometer?
No—it is a velocity map imaging detector system. Mass identification is achieved indirectly via time-of-flight calibration and kinetic energy correlation, not by mass filtering. It is often coupled with orthogonal acceleration TOF-MS or reflectron systems for enhanced mass resolution.
Can it be integrated with my existing Ti:sapphire laser system?
Yes. The system includes configurable TTL-triggered gating and adjustable HV synchronization inputs compatible with standard laser timing controllers (e.g., SRS DG535, Stanford Research Systems delays).
What vacuum pumps are supported?
All major UHV pumping technologies: turbomolecular pumps (with DN63/DN100 flanges), ion pumps, non-evaporable getter (NEG) pumps, and closed-cycle cryopumps—each supported via customizable flange adapters and pressure monitoring ports.
Do you supply complete turnkey installations?
Yes. Photek offers full system integration services—including vacuum chamber design, laser alignment support, shielding, and on-site commissioning—with documentation packages aligned to institutional safety and procurement requirements.
