Photovoltaic Junction Box PCT (Pressure Cooker Test) Chamber

Overview

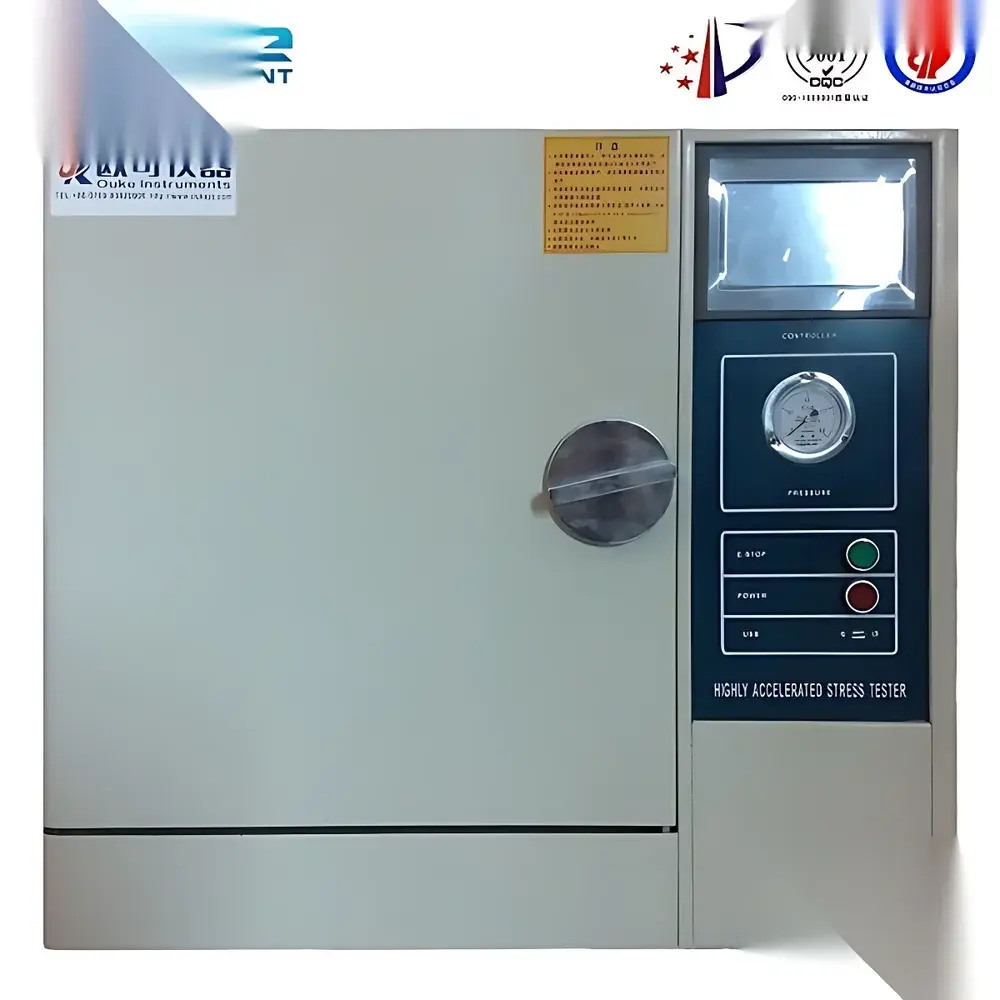

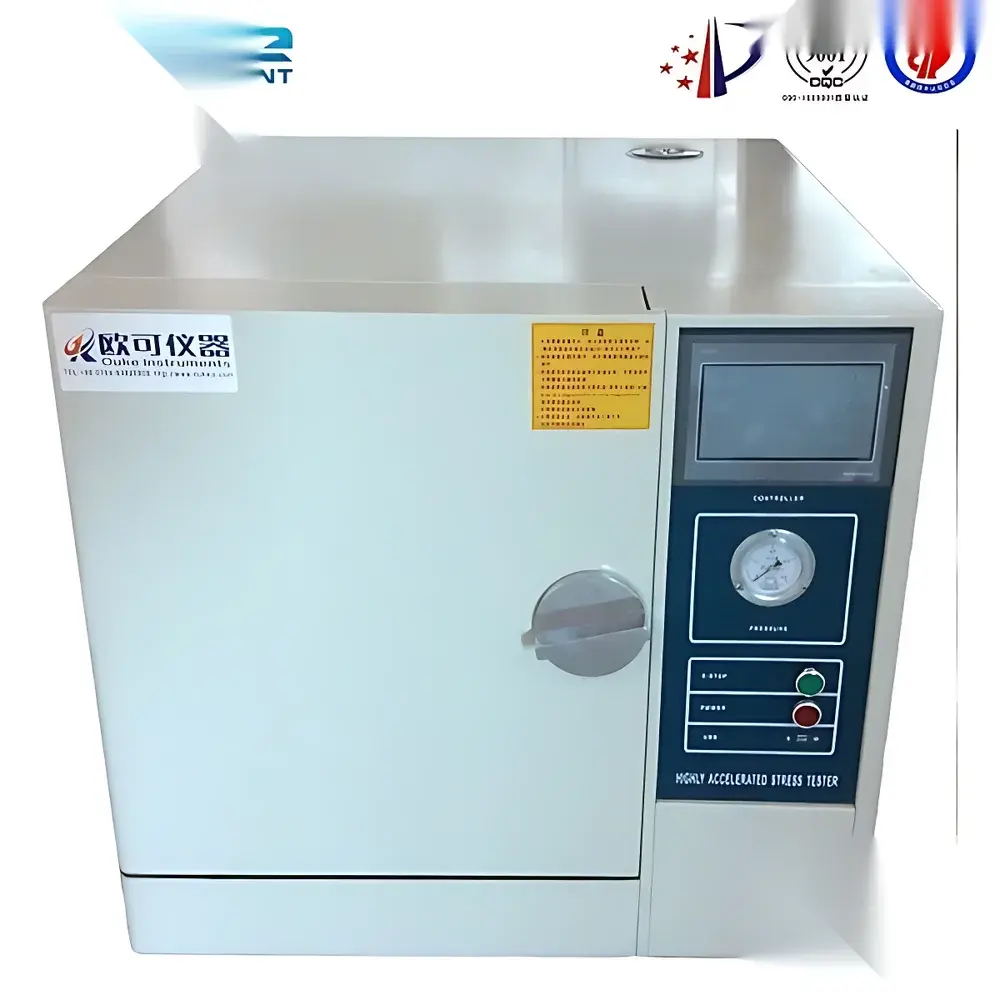

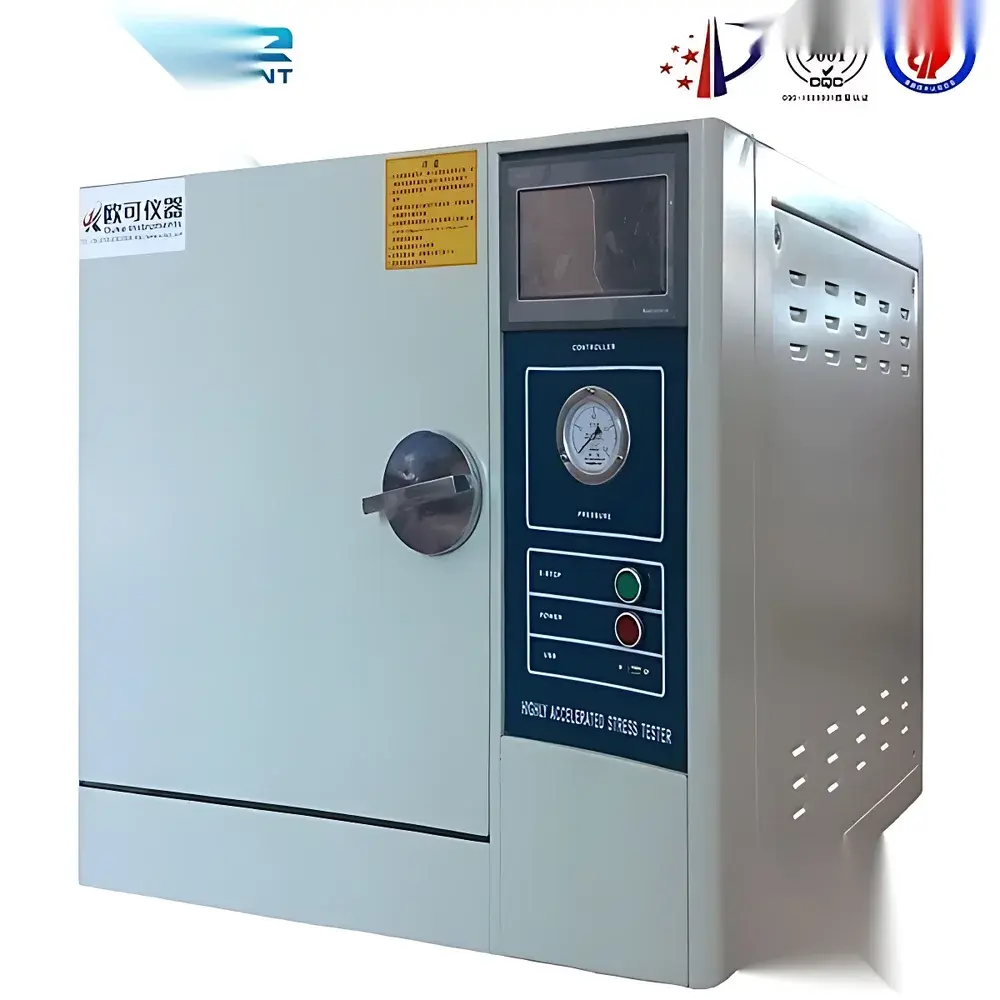

The Photovoltaic Junction Box PCT (Pressure Cooker Test) Chamber is a purpose-built environmental stress testing system engineered for accelerated reliability validation of photovoltaic (PV) junction boxes under high-temperature, high-humidity, and elevated-pressure conditions. It operates on the principle of saturated steam autoclave exposure—subjecting encapsulated PV components to controlled combinations of temperature, relative humidity, and absolute pressure that replicate and accelerate moisture ingress, hydrolysis, and interfacial delamination mechanisms observed during decades of field operation. Designed in accordance with IEC 61215-2:2016 (MQT 17), IEC 62790:2015, and UL 61730-2 requirements for junction box qualification, this chamber enables standardized Pressure Cooker Test (PCT) protocols—including the critical 121 °C / 100% RH / 1.04 kg/cm² (2 atm abs) condition—to assess long-term hermeticity, solder joint integrity, potting adhesion, and insulation resistance degradation.

Key Features

• Robust Pressure-Tight Chamber Architecture: Constructed with stainless steel 316 inner chamber and reinforced double-wall insulation, rated for continuous operation up to 4 kg/cm² internal design pressure—exceeding standard PCT test requirements by >35% safety margin.
• Self-Sealing Door Mechanism: Utilizes differential pressure-assisted sealing—increasing clamping force automatically as internal pressure rises—eliminating mechanical gasket compression fatigue and extending packing service life significantly versus conventional toggle-latch or hydraulic systems.
• Dual-Redundant Safety Protection: Integrated LIMIT-based fail-safe logic monitors real-time temperature, pressure, and door status; triggers immediate depressurization and visual/audible alarms upon deviation beyond preset thresholds—fully compliant with EN 61000-6-2 (EMC immunity) and EN 61000-6-4 (EMC emission) standards.
• Precision Environmental Control: PID-regulated steam generation with independent feedback loops for temperature (±0.1 °C resolution, ±0.5 °C uniformity) and pressure (±0.1 kg/cm² stability); humidity maintained at 100% RH via saturated steam equilibrium—no auxiliary humidification required.
• Intelligent Door Interlock System: Electromechanical safety lock prevents door opening whenever internal pressure exceeds ambient by >0.05 kg/cm²; manual override requires simultaneous dual-key activation and full depressurization confirmation.

Sample Compatibility & Compliance

This PCT chamber accommodates standard PV junction box configurations up to 300 mm × 250 mm × 120 mm (W × D × H), including IP67-rated enclosures with integrated bypass diodes, MC4-compatible terminals, and silicone/polyurethane-potted assemblies. Test specimens are mounted on non-reactive stainless steel trays to avoid thermal shadowing or condensate pooling. The system supports full traceability for GLP/GMP-aligned labs: all test parameters—including setpoints, actual values, ramp profiles, hold durations, and alarm events—are timestamped and logged with audit trail capability. Compliant with IEC 60068-2-66 (damp heat, accelerated), JIS C 5026-2, and aligned with FDA 21 CFR Part 11 data integrity expectations when paired with validated software.

Software & Data Management

The embedded controller provides local touchscreen operation with intuitive menu navigation and multi-level password protection (operator, engineer, administrator). Optional Ethernet/RS-485 interface enables integration into centralized lab management systems (LIMS) or SCADA platforms. Raw sensor data (temperature, pressure, elapsed time) is exportable in CSV format with ISO 8601 timestamps. For regulated environments, optional firmware upgrade supports electronic signatures, user access logs, and 21 CFR Part 11-compliant audit trails—including immutable record of parameter changes, calibration events, and emergency stops.

Applications

• Qualification testing of PV junction boxes per IEC 62790 Clause 9.3 (PCT endurance)
• Failure mode analysis of encapsulant–connector interfaces under thermo-hygromechanical stress
• Validation of new potting compound formulations for moisture barrier performance
• Accelerated aging studies correlating PCT exposure hours with field-equivalent degradation (e.g., contact resistance drift, dielectric breakdown voltage loss)
• Supplier qualification audits requiring third-party witnessed PCT cycles
• Root cause investigation of field returns linked to moisture-induced corrosion or delamination

FAQ

What is the maximum allowable test duration for continuous operation?
The chamber supports uninterrupted test cycles up to 999 hours; however, for safety and maintenance best practices, we recommend scheduling preventive inspection after every 500 operational hours.
Does the system support custom PCT profiles beyond the standard 121 °C / 1.04 kg/cm² condition?
Yes—users may define up to 10 programmable step profiles, each with independent temperature, pressure, and dwell settings, enabling simulation of non-standard stress sequences such as ramp-hold-ramp or multi-stage saturation protocols.
Is external cooling water required for condensate management?
No—this chamber employs an integrated air-cooled condensate recovery system; no external chiller or drain connection is needed for standard operation.
How is temperature and pressure calibrated and verified?
The unit ships with NIST-traceable calibration certificates for primary PT100 temperature sensors and piezoresistive pressure transducers; annual recalibration is recommended using certified reference standards per ISO/IEC 17025 guidelines.
Can multiple chambers be networked for synchronized testing across batches?
Yes—via Modbus TCP or optional OPC UA gateway, enabling centralized monitoring, alarm aggregation, and coordinated start/stop commands across up to 16 units within a single subnet.
