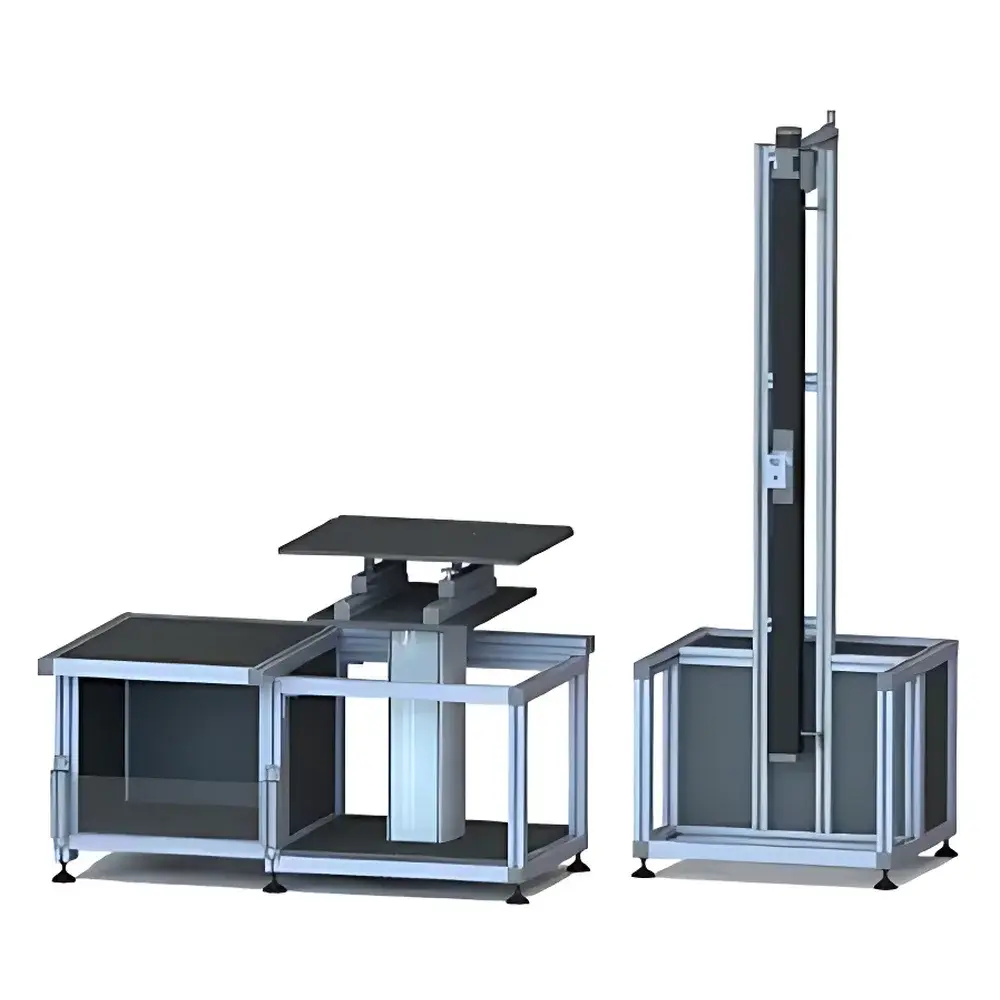

Pleiades CMS Photometric Cutoff Line Measurement System

Overview

The Pleiades CMS Photometric Cutoff Line Measurement System is a precision-engineered optical metrology platform designed specifically for the quantitative characterization and verification of headlamp photometric cutoff lines in accordance with international regulatory standards—including ECE Regulation No. 112, SAE J1383, and GB 4599. Unlike conventional manual photometer setups, the CMS implements a motorized two-axis (X–Y) positioning architecture to precisely locate and stabilize a calibrated silicon photodiode detector at predefined grid points across the photometric screen plane. This architecture enables fully automated, repeatable acquisition of luminous intensity distribution data along critical horizontal and vertical reference axes—most notably the sharp transition region between illuminated and non-illuminated zones known as the “cutoff line.” The system operates at standardized measurement distances: 10 m for low-beam (dipped-beam) headlamps and 25 m for high-beam (main-beam) configurations, ensuring compliance with geometric scaling requirements defined in ISO/CIE lighting test protocols.

Key Features

• Motorized X–Y translation stage with sub-millimeter positional repeatability (±0.1 mm), enabling precise detector placement at user-defined photometric test points.
• Integrated calibration traceability to national metrology institutes (NMI), with factory-certified photometric response curve matching CIE 1931 V(λ) luminosity function.
• Real-time luminance mapping capability via synchronized data acquisition and spatial indexing, supporting dynamic cutoff line profiling under stabilized lamp operating conditions.
• Modular optical bench design compatible with standard 2.5 m × 2.5 m or 3 m × 3 m photometric screens; adaptable to both vertical projection and inverted ceiling-mount configurations.
• Dedicated control interface compliant with Windows-based industrial automation frameworks, supporting deterministic timing synchronization (<10 ms jitter) between motion commands and photometric sampling.

Sample Compatibility & Compliance

The CMS accommodates all OEM and aftermarket headlamp assemblies—including halogen, HID, LED, and adaptive driving beam (ADB) modules—provided they conform to ECE/SAE mounting and aiming specifications. Each measurement sequence adheres to the point-grid sampling patterns prescribed in ECE R112 Annex 3 (low-beam) and Annex 4 (high-beam), with automatic validation of horizontal and vertical cutoff angles relative to HV (horizontal–vertical) reference lines. System output reports include full traceability metadata: detector calibration certificate ID, ambient illuminance logs, lamp warm-up duration, and thermal stabilization timestamps—ensuring audit readiness for GLP-compliant testing laboratories and Tier-1 automotive suppliers undergoing IATF 16949 surveillance audits.

Software & Data Management

The CMS is operated via Pleiades’ proprietary CutoffStudio v3.x software suite, which provides ISO/IEC 17025-aligned data integrity controls including role-based user authentication, electronic signatures, and immutable audit trails per FDA 21 CFR Part 11 requirements. All raw irradiance values (in lux) are stored in HDF5 format with embedded SI-unit metadata, enabling direct import into MATLAB, Python (via h5py), or LabVIEW environments for custom spectral analysis or statistical process control (SPC) charting. Export options include PDF test reports compliant with EN ISO/IEC 17025:2017 clause 7.8.2, CSV datasets for DOE correlation studies, and XML files structured per ASAM MCD-2 MC standards for integration with vehicle-level validation databases.

Applications

• Regulatory certification testing for ECE, DOT, and CCC headlamp homologation programs.
• R&D validation of adaptive front-lighting systems (AFS) and matrix LED beam-shaping algorithms.
• Production line end-of-line (EOL) photometric verification with pass/fail threshold mapping against customer-specific light pattern templates.
• Root-cause analysis of cutoff distortion due to lens warpage, reflector misalignment, or thermal drift during endurance cycling.
• Inter-laboratory comparison studies coordinated under ILAC MRA signatory frameworks.

FAQ

Does the CMS support real-time beam pattern visualization during measurement?
Yes—the system overlays live lux contours on a calibrated photometric screen image using synchronized camera feed integration (optional accessory).

Can the CMS be integrated into an existing automotive EMC or environmental test chamber?
Yes—its modular cabling architecture supports IP54-rated external junction boxes and fiber-optic signal transmission up to 30 m, minimizing electromagnetic interference in high-noise test cells.

Is NIST-traceable calibration documentation included with delivery?
Yes—each unit ships with a dual-certification package: (1) factory calibration report traceable to LNE (France) and (2) optional on-site recalibration service accredited to ISO/IEC 17025 by COFRAC.

What is the minimum measurable luminance gradient across the cutoff line?
The system resolves intensity transitions ≥0.5 lux/mm at 10 m distance, sufficient to detect edge blur exceeding ECE R112’s 15 mm maximum permissible penumbra width.

Are software updates provided under maintenance agreement?
Yes—annual maintenance contracts include version-controlled firmware patches, regulatory update modules (e.g., new UNECE amendments), and priority technical support escalation paths.
