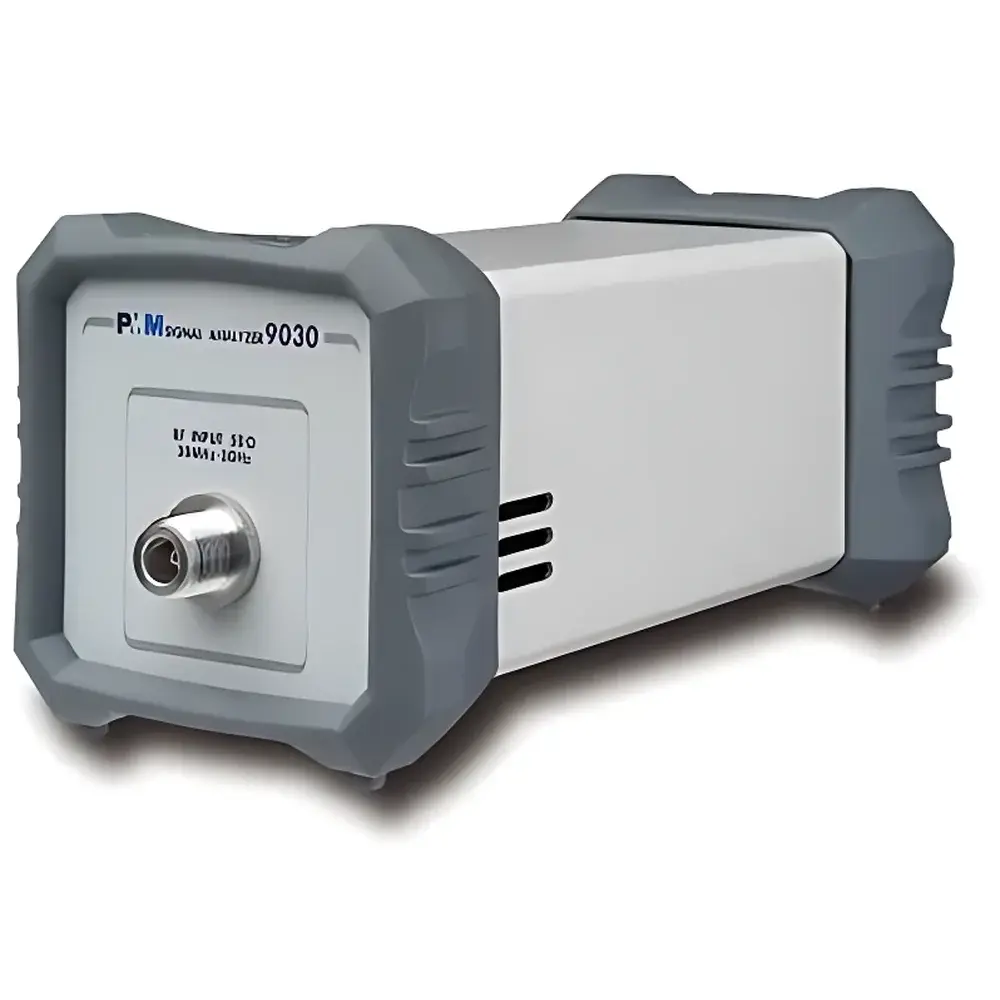

PMM 9030 3 GHz RF Receiver Frequency Extension Module

Overview

The PMM 9030 is a high-fidelity, fiber-optically coupled RF frequency extension module engineered to extend the operational bandwidth of the PMM 9010 digital EMI receiver from its native upper limit to 3 GHz. Designed in alignment with CISPR 16-1-1 and IEC 61000-4-2/3/6 measurement requirements, the 9030 functions as a precision analog-to-digital front-end—located directly at the antenna feed point—to eliminate coaxial cable-induced signal degradation, impedance mismatch, and ambient RF pickup. Unlike conventional analog extension solutions, the 9030 digitizes RF signals at the antenna interface using a calibrated, low-noise architecture, then transmits raw waveform data via high-speed optical link (>2.5 Gb/s) to the PMM 9010 for real-time spectral analysis, demodulation, and compliance evaluation. This distributed architecture preserves signal integrity across the full 30 MHz–3 GHz range while enabling full CISPR-compliant quasi-peak (QP), peak (PK), average (AV), RMS, and advanced APD (Amplitude Probability Distribution) detection modes.

Key Features

• Fiber-optic interface ensures galvanic isolation, immunity to EMI, and zero signal loss over distance—critical for anechoic chamber and open-area test site (OATS) deployments
• Integrated Li-ion rechargeable battery (10–15 VDC, 2.5 A) with 4-hour continuous operation; fully interchangeable with PMM 9010 battery pack for field continuity
• Compact form factor (235 × 105 × 105 mm, 2 kg) enables direct mounting behind broadband antennas—eliminating RF cable insertion loss and mode conversion artifacts
• High-dynamic-range RF front-end featuring preselector filters (1 LPF + 6 BPFs), 10 dB low-noise amplifier, and programmable 0–55 dB attenuation (5 dB steps)
• Compliance-ready IF bandwidths: 3 dB options include 3, 10, 30, 100, 300 kHz, and 1 MHz; 6 dB bandwidth conforms to CISPR 16-1-1 (120 kHz)
• Support for parallel multi-detector acquisition (PK/QP/AV/RMS) with dwell times from 1 ms to 30 s per measurement point

Sample Compatibility & Compliance

The PMM 9030 is exclusively compatible with the PMM 9010 base receiver and operates as a certified subsystem within PMM’s CISPR-compliant EMI test platform. It supports full conformance testing per EN 55032, EN 55035, MIL-STD-461G (RS103), FCC Part 15/18, and RTCA DO-160 Section 20. Its preselector architecture meets CISPR 16-1-1 requirements for spurious response suppression above 1 GHz. The module’s amplitude accuracy (< ±1.5 dB from 9 kHz–30 MHz; < ±1.0 dB from 10 Hz–9 kHz) and frequency stability (< 2 ppm) are traceably validated against national metrology institute standards. All firmware and calibration data are digitally signed and version-controlled to support GLP/GMP audit trails and FDA 21 CFR Part 11 compliance when used with PMM EMI software.

Software & Data Management

Controlled exclusively via PMM EMI v5.x or later, the 9030–9010 combination supports fully automated, semi-automated, or manual test execution. The software implements dual-path APD analysis—simultaneously evaluating amplitude-based and level-based statistical distributions—as required by emerging standards such as CISPR 16-4-2 Ed. 4.0. All measurement metadata—including detector settings, filter states, attenuation values, GPS timestamps, and battery voltage—are embedded in each .EMI result file. Export formats include CSV, XML, PDF (with customizable templates), and IEEE 1584-compliant binary archives. Remote operation is supported via RS-232 (service-only port) and Ethernet-over-fiber bridge configurations. Firmware updates are delivered via secure OTA channel with SHA-256 signature verification.

Applications

• Radiated emissions testing of ICT, automotive ECUs, avionics, and medical devices up to 3 GHz
• Pre-compliance screening in compact shielded enclosures where cable length and coupling paths compromise repeatability
• Time-domain EMI diagnostics using real-time spectrum capture and persistence mapping
• APD-based statistical interference characterization for 5G NR, Wi-Fi 6E, and UWB device certification
• Conducted emissions augmentation when paired with LISN modules via PMM 9010’s auxiliary input ports
• Field-deployable EMC troubleshooting with battery-powered autonomy and hot-swap capability

FAQ

Is the PMM 9030 compatible with receivers other than the PMM 9010?
No—the 9030 is a proprietary extension module designed exclusively for interoperability with the PMM 9010 digital receiver. Its optical protocol, timing synchronization, and calibration mapping are not compatible with third-party or legacy instruments.
Does the 9030 require external power when used inside a shielded room?
No—it operates autonomously on its internal Li-ion battery, eliminating ground loops and conducted noise injection from AC mains. Battery exchange with the 9010 takes less than 5 seconds.
Can the 9030 perform measurements independently without the 9010?
No—it contains no display, user interface, or standalone processing capability. All signal conditioning, demodulation, and reporting occur within the 9010 host unit.
What is the maximum allowable RF input level before damage occurs?
The absolute maximum undamaged input is 137 dBµV (1 W) for continuous sine-wave signals and 97 dBµV/MHz for pulsed RF energy, per IEC 61000-4-3 Annex D test limits.
How is calibration maintained across the 30 MHz–3 GHz range?
Each unit ships with NIST-traceable factory calibration data stored in non-volatile memory. Field recalibration requires PMM-certified service centers using RF reference standards compliant with ISO/IEC 17025.
