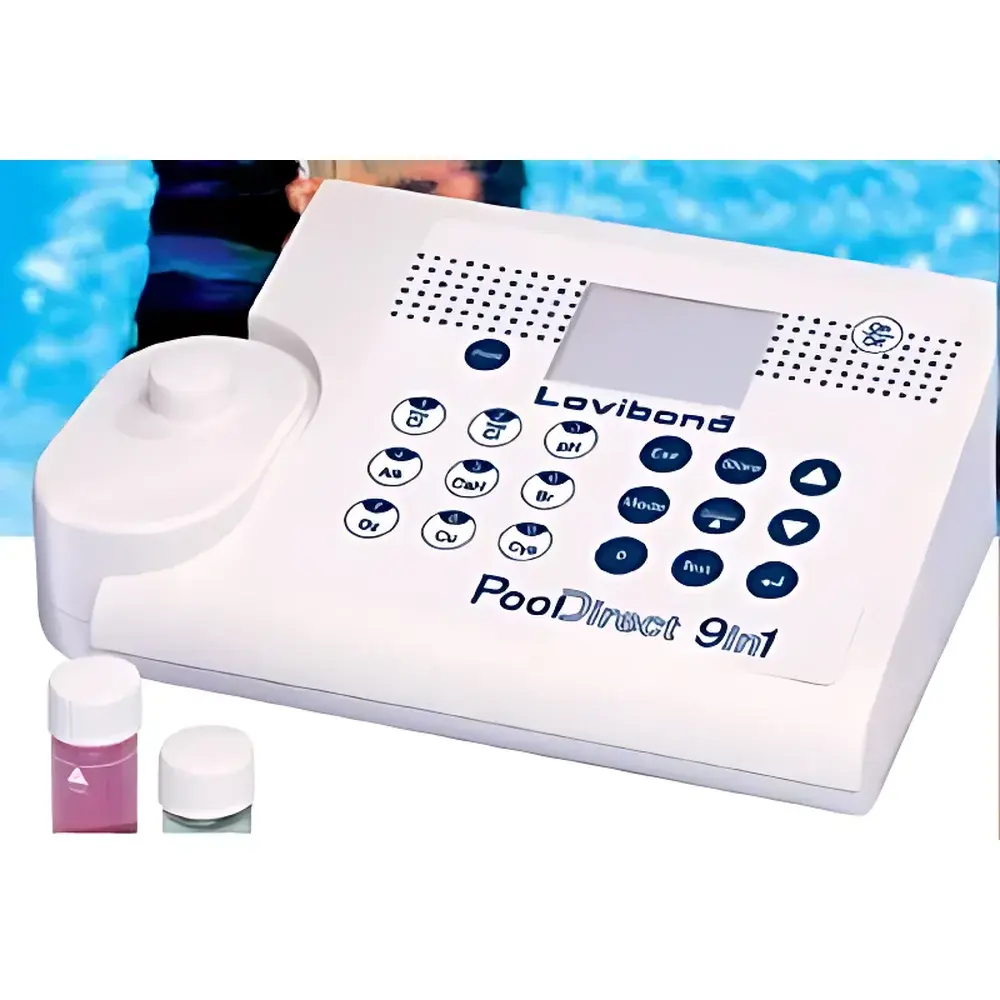

PoolDirect 9-in-1 Photometer

Overview

The PoolDirect 9-in-1 Photometer is a dedicated benchtop photometric analyzer engineered for routine, high-reliability water quality assessment in recreational water environments—including swimming pools, spas, and aquatic facility management systems. Unlike general-purpose UV-Vis spectrophotometers, this instrument operates on fixed-wavelength photometry using discrete LED-based optical channels optimized for specific analyte chemistries. Each measurement follows standardized colorimetric or turbidimetric reaction protocols aligned with ASTM D1293 (pH), ASTM D511 (calcium hardness), ASTM D1253 (residual chlorine), and APHA Standard Methods 4500-Cl G (free/total chlorine), ensuring method traceability and regulatory coherence. The device implements dual-beam referencing architecture to compensate for LED drift and cuvette path-length variability, delivering stable absorbance readings across extended operational cycles without daily recalibration.

Key Features

• Integrated Langelier Saturation Index (LSI) calculator with real-time input prompts—automatically computes saturation index, calcium carbonate precipitation potential, and pH adjustment recommendations based on user-entered temperature, TDS, alkalinity, calcium hardness, and cyanuric acid concentration
• Nine pre-programmed, EPA- and APHA-aligned test methods: Total Alkalinity (as CaCO₃, mg/L), Bromine (Br₂, ppm), Calcium Hardness (CaCO₃, ppm), Free & Total Chlorine (Cl₂, ppm), Copper (Cu²⁺, ppm), Cyanuric Acid (C₃H₃N₃O₃, ppm), Ozone (O₃, ppm), pH (0.01 resolution), and Saturation Index (unitless)
• Sealed, IP65-rated enclosure with chemical-resistant polycarbonate housing—designed for humid, chlorinated, or splashed environments adjacent to pool decks, filtration rooms, or greenhouse irrigation stations
• Long-life, thermally stabilized LEDs (630 nm, 525 nm, 470 nm, 420 nm) with <±0.5 nm wavelength tolerance and <0.002 AU/h intensity drift over 8-hour operation
• Onboard memory stores up to 1,000 measurement records with timestamp, operator ID, test method, and raw absorbance values—exportable via USB-C to CSV-compatible software

Sample Compatibility & Compliance

The PoolDirect 9-in-1 accepts standard 13 mm round glass or disposable plastic cuvettes (10 mm path length). Reagent kits are supplied as stabilized dry-powder or liquid formulations compliant with ISO 8655-5 (volumetric accuracy of dispensers) and CLSI EP21-A (reagent stability validation). All embedded test protocols satisfy EN 15288-1:2018 (swimming pool water treatment requirements) and align with U.S. CDC Model Aquatic Health Code (MAHC) Section 4.3.1.1 for field-deployable verification of disinfectant residual and scaling potential. Data logging meets GLP audit trail requirements per 21 CFR Part 11 when used with optional password-protected user accounts and electronic signature activation.

Software & Data Management

Instrument firmware supports direct data export via USB-C mass storage mode—no proprietary drivers required. Exported .CSV files include columns for Date/Time (ISO 8601), Test ID, Parameter Name, Measured Value, Unit, Method Version, Cuvette ID (if scanned), and Operator Code. Optional PoolDirect Connect desktop application (Windows/macOS) enables trend visualization, LSI heat-mapping across multiple sampling points, automated report generation in PDF/HTML, and configurable alarm thresholds for out-of-spec results. Audit logs record all configuration changes, calibration events, and user logins with immutable timestamps—fully compliant with internal QA documentation standards.

Applications

• Daily operational monitoring of municipal and commercial pool facilities under health department inspection regimes
• Preventive maintenance diagnostics for scale formation, corrosion risk, and sanitizer efficacy loss in recirculating water systems
• Validation of chemical dosing equipment performance (e.g., chlorine injectors, CO₂ pH controllers) through time-series absorbance tracking
• Training and competency assessment for lifeguards and facility technicians using standardized, non-subjective endpoint detection
• Field verification of third-party lab results during dispute resolution or compliance audits

FAQ

Does the PoolDirect 9-in-1 require annual factory calibration?
No—each LED channel is factory-characterized against NIST-traceable reference filters; users perform only zero-point verification with blank cuvettes before each testing session.
Can custom test methods be loaded onto the device?
No—the firmware contains only the nine validated methods listed; no user-defined method programming or wavelength tuning is supported to maintain regulatory consistency.
Is cyanuric acid measurement affected by high chlorine concentrations?
The included DPD-free cyanuric acid assay uses a turbidimetric indophenol derivative method resistant to interference from free chlorine up to 10 ppm.
What is the operating temperature range for reliable photometric performance?
10–40 °C ambient, with relative humidity ≤85 % non-condensing—LED thermal compensation algorithms remain active across this full range.
How is data integrity ensured during power interruption?
All measurements are written to non-volatile flash memory immediately upon confirmation; no unsaved data is lost during unexpected shutdown.
