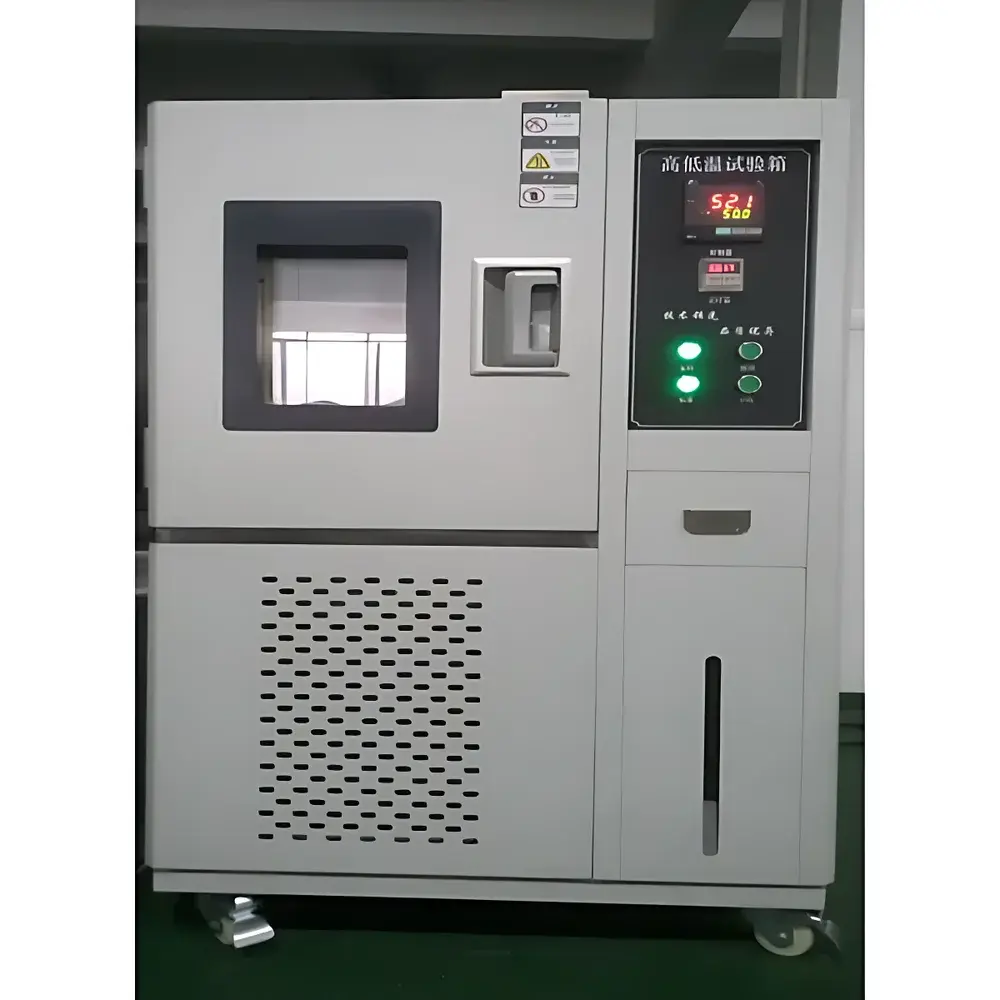

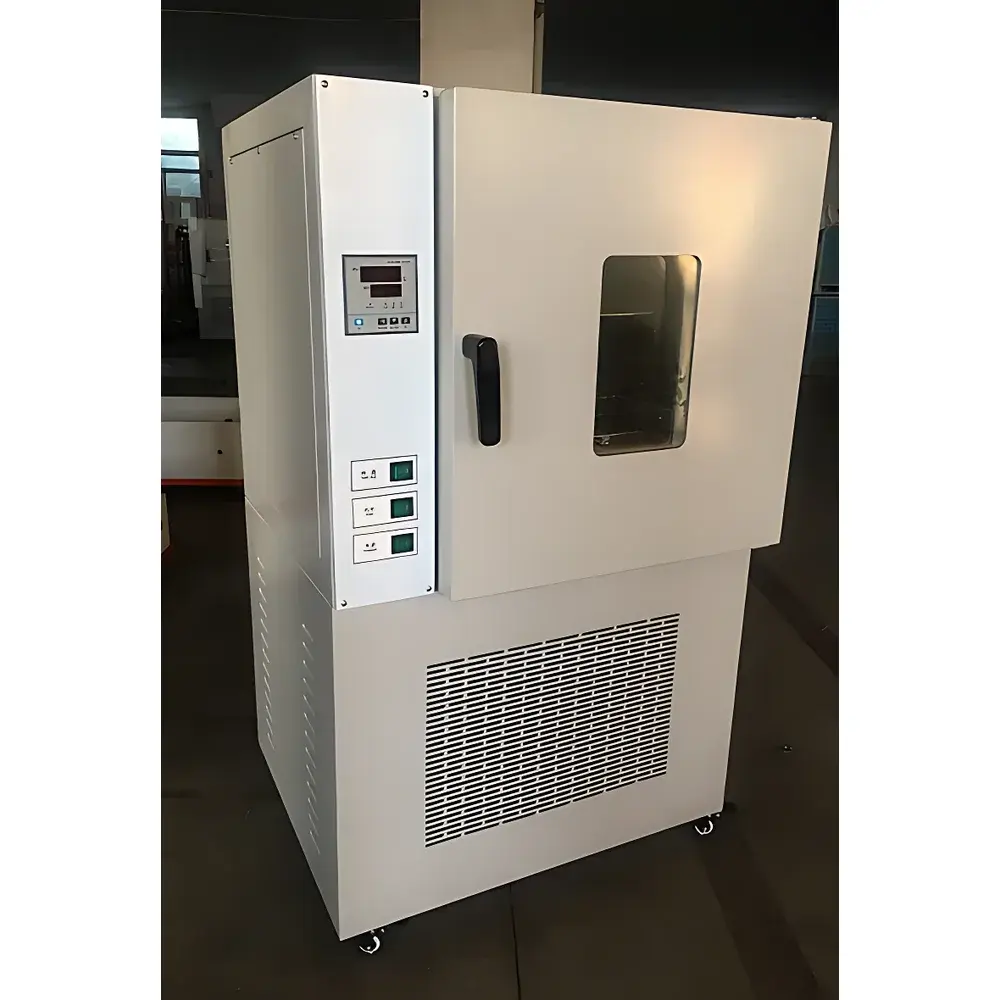

All Precision Instrument BG-400A1 Thermal UV Aging Test Chamber

Overview

The All Precision Instrument BG-400A1 Thermal UV Aging Test Chamber is a precision-engineered environmental simulation system designed to accelerate material degradation under controlled thermal and ultraviolet radiation stress. It operates on the principle of combined thermal aging and UVA-340 fluorescent lamp irradiation—mimicking the most damaging portion of terrestrial sunlight (295–365 nm)—to replicate long-term outdoor exposure in condensed laboratory timeframes. Unlike general-purpose ovens, this chamber integrates calibrated UV irradiance control, black panel temperature monitoring, and forced-air convection for uniform thermal distribution—enabling reproducible evaluation of polymer stability, coating durability, electrical insulation integrity, and elastomer resistance to photo-oxidative degradation. Its architecture conforms to the physical and functional requirements of international accelerated weathering standards, including ASTM G154 (Cycle A1–A4), ISO 4892-3 (Method A), and IEC 60068-2-5, making it suitable for R&D validation, QC release testing, and regulatory submission support in regulated industries.

Key Features

• Intelligent digital PID temperature controller with ±1 °C stability and programmable ramp/soak profiles
• UVA-340 fluorescent lamp array (standard configuration) delivering spectral output closely matching solar UV at ground level
• Black panel thermometer (BPT) sensor mounted inside chamber for direct specimen surface temperature measurement
• Forced-air circulation system with rear-mounted heating elements and optimized duct geometry ensuring ±1.5 °C uniformity across 450 × 450 × 500 mm working volume
• Double-layer tempered glass observation window with high-temperature silicone gasket seal and heat-resistant asbestos rope door interface
• Interior constructed from stainless steel or high-temp silver-painted cold-rolled steel; exterior finished with baked enamel coating
• Insulation layer composed of ≥50 mm thick ultra-fine glass wool (thermal conductivity ≤0.04 W/m·K)
• Configurable shelf support structure (2–5 adjustable stainless steel trays); optional rotating sample holder available upon request

Sample Compatibility & Compliance

The BG-400A1 accommodates flat, rigid, or flexible specimens up to 300 mm in height, including wire & cable insulation strips (per GB/T 2951.12–2008), automotive trim panels, printed circuit board laminates, medical device housings, and cosmetic packaging films. Specimens are mounted vertically with ≥20 mm spacing to minimize shadowing and ensure uniform irradiance exposure. The chamber supports standard test cycles defined in ASTM G154 (e.g., 4-h UV + 4-h condensation; 8-h UV only), ISO 4892-3 (UV-A or UV-B modes), and proprietary OEM protocols requiring precise black panel temperature setpoints (40–80 °C). All operational parameters—including irradiance intensity, BPT temperature, cycle timing, and runtime—are traceable and documented per GLP-compliant practices. The system meets mechanical and electrical safety requirements per IEC 61010-1 and carries CE marking for EMC and LVD compliance.

Software & Data Management

While the base model features standalone digital control, optional RS485/Modbus RTU interface enables integration with LabVIEW, MATLAB, or custom SCADA platforms for remote parameter logging and alarm triggering. Real-time temperature and irradiance data (via external calibrated sensor input) can be recorded at user-defined intervals (1–60 s resolution) and exported as CSV or Excel-compatible files. Audit trail functionality—including operator ID, parameter changes, start/stop timestamps, and error codes—is supported when paired with compliant third-party data acquisition software meeting FDA 21 CFR Part 11 requirements (electronic signatures, audit logs, data integrity controls). Calibration certificates for temperature sensors and UV radiometers are provided with initial commissioning and recommended annually per ISO/IEC 17025 guidelines.

Applications

This chamber serves critical roles across multiple industrial sectors: in wire & cable manufacturing, it validates insulation thermal endurance per IEC 60811 and UL 1581; in automotive supply chains, it verifies dashboard material colorfastness and crack resistance under SAE J2527; in pharmaceutical packaging development, it assesses HDPE/PP container UV-induced oxidation per USP ; and in aerospace composites R&D, it screens matrix resin yellowing and interlaminar shear loss after simulated service life. It also supports comparative formulation studies—e.g., evaluating antioxidant efficacy in polyolefins or UV stabilizer performance in acrylic coatings—by enabling statistically robust inter-batch repeatability (CV < 2.5% for ΔE*ab after 500 h exposure).

FAQ

Does the BG-400A1 support humidity control?

No—this is a dry-heat UV aging chamber. For combined UV + humidity cycling, consider the companion BG-400AH model with integrated steam humidification and condensation modules.

What UV lamp types are compatible?

Standard configuration uses UVA-340 lamps (peak 340 nm). Optional UVB-313 lamps (peak 313 nm) are available for more aggressive, non-solar-simulating stress testing per ASTM G154 Cycle B.

Is calibration documentation included?

Yes—each unit ships with factory calibration reports for temperature uniformity, black panel sensor accuracy, and irradiance output (traceable to NIM, China), plus a full maintenance manual and GB/T 2951.12–2008 conformance statement.

Can the chamber be validated for GMP environments?

Yes—IQ/OQ documentation packages are available, including installation checklists, operational boundary testing, and performance qualification protocols aligned with Annex 15 and ASTM E2500.

What is the typical lamp service life?

UVA-340 lamps maintain ≥90% rated irradiance output for 1,600 hours; replacement is recommended at 2,000 hours or when irradiance falls below specification during routine verification.
