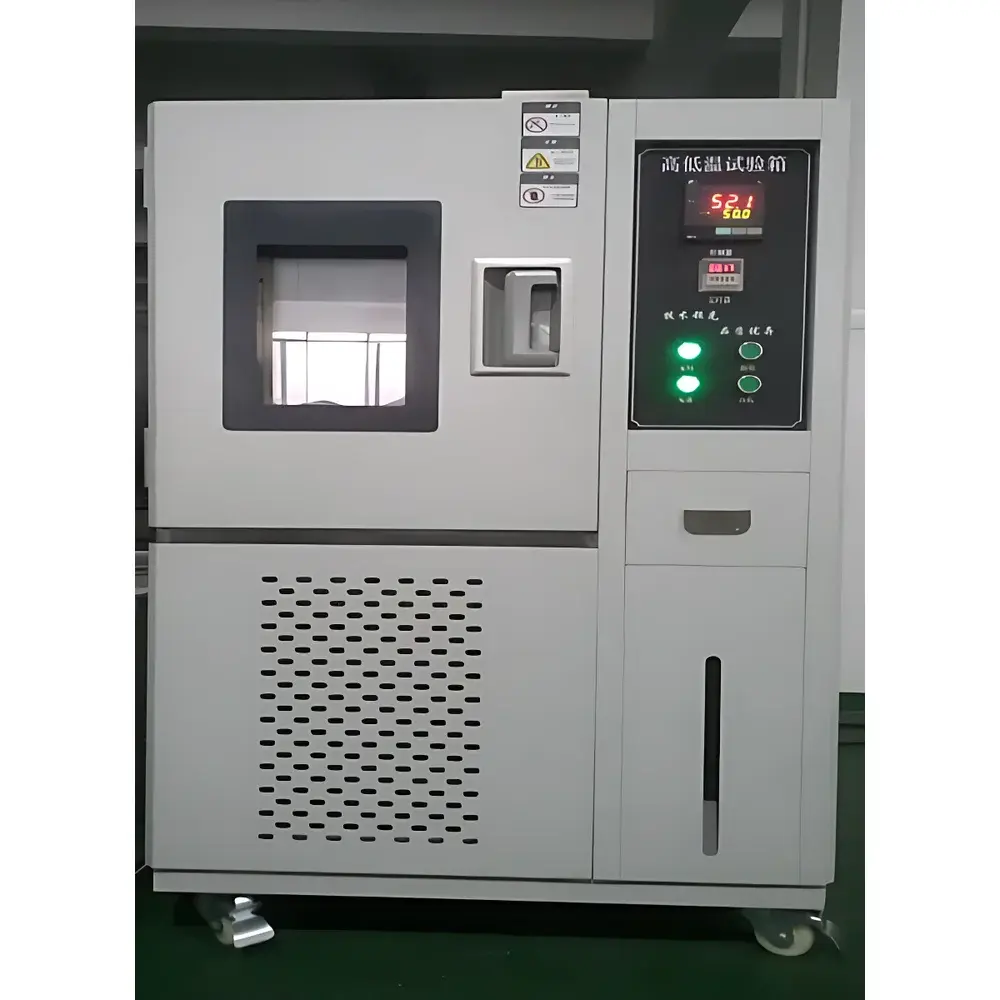

All Precision Instrument BG-800 High-Low Temperature Test Chamber

Overview

The All Precision Instrument BG-800 High-Low Temperature Test Chamber is an engineered environmental simulation system designed for precise, repeatable thermal stress testing of materials, components, and finished products across a wide operational temperature spectrum. Based on forced-air convection architecture with dual independent refrigeration and heating circuits, the chamber maintains stable thermal conditions through PID-controlled air circulation, high-efficiency insulated double-wall construction (polyurethane foam insulation ≥100 mm thick), and a stainless-steel interior chamber resistant to oxidation and corrosion. Its core function is to replicate extreme ambient thermal environments—ranging from −40 °C (simulating arctic storage or cold-start conditions) to +150 °C (mimicking under-hood automotive exposure or industrial process heat)—to assess thermal endurance, dimensional stability, seal integrity, and functional reliability under controlled, documented conditions. The system complies with fundamental environmental test standards required for product qualification in electronics, automotive, aerospace, polymer, and packaging industries.

Key Features

• Wide operational temperature range: −40 °C to +150 °C, calibrated and verified per IEC 60068-3-5 procedures
• High thermal uniformity (±2.0 °C across working volume) and stability (±0.5 °C at setpoint), achieved via symmetrical airflow distribution and multi-point sensor feedback
• Fast thermal transition capability: approx. 35 minutes for +25 °C → +150 °C (heating); approx. 60 minutes for +25 °C → −40 °C (cooling), both measured under no-load conditions per ISO 16750-4 Annex B
• Stainless-steel inner chamber (SUS304) with rounded corners for easy cleaning and resistance to chemical exposure during accelerated aging tests
• Double-layer insulated outer enclosure with high-density polyurethane foam (thermal conductivity ≤0.022 W/m·K) minimizing energy consumption and external surface temperature rise
• Integrated safety interlocks including over-temperature cutoff, compressor high-pressure protection, and door-open alarm to ensure operator and sample safety
• Standard RS485 interface supporting Modbus RTU protocol for integration into centralized lab monitoring systems or MES platforms

Sample Compatibility & Compliance

The BG-800 accommodates samples up to 350 mm × 350 mm × 410 mm (L×W×H), suitable for PCB assemblies, polymer specimens (e.g., ASTM D638 tensile bars), automotive connectors, battery modules, and sealed electronic enclosures. It supports static thermal cycling, steady-state exposure, and step-stress profiles defined in MIL-STD-810H Method 502.7 and JEDEC JESD22-A104F. The chamber’s design conforms to national and international regulatory frameworks: it meets the structural and performance requirements of GB/T 2423.1–2022 (cold testing) and GB/T 2423.2–2022 (dry heat), and its control algorithm and data logging capabilities align with GLP/GMP documentation expectations for validation studies. Optional IQ/OQ documentation packages are available upon request to support FDA 21 CFR Part 11–compliant validation.

Software & Data Management

The chamber operates via a programmable 7-inch color touchscreen HMI with embedded real-time data logging (sampling interval: 1–60 seconds, configurable). All temperature readings—including chamber setpoint, actual chamber temperature, and optional external thermocouple inputs—are timestamped and stored internally (≥10,000 data points) with automatic backup to USB flash drive. Export formats include CSV and PDF reports compatible with LIMS integration. The controller supports up to 99 programmable test steps, including ramp/soak cycles, dwell times, and user-defined alarms. Audit trail functionality records all parameter changes, operator logins, and system events—essential for traceability in regulated quality systems. Remote monitoring via Ethernet (optional) enables access through standard web browsers without proprietary software installation.

Applications

• Thermal aging of elastomers, adhesives, and encapsulants per ASTM D573 and ISO 188
• Preconditioning of lithium-ion battery cells prior to electrical performance testing (UN 38.3 Section 4.3)
• Environmental stress screening (ESS) of printed circuit board assemblies (IPC-J-STD-001, IPC-A-610)
• Validation of material behavior under low-temperature brittleness (ISO 974, ASTM D746) and high-temperature creep (ASTM D2990)
• Storage condition verification for medical devices (ISO 11607-1) and pharmaceutical packaging (ICH Q1A–Q1E)
• Qualification testing of automotive ECUs per ISO 16750-4 and LV-124

FAQ

What is the maximum sample weight the BG-800 can accommodate?
The chamber does not specify a maximum load weight; however, thermal performance metrics (uniformity, transition rates) are validated under no-load conditions. For loaded operation, users must ensure adequate air clearance around samples (≥50 mm from walls and ceiling) to maintain specified thermal performance.
Does the BG-800 support thermal cycling with programmable ramp rates?
Yes—the controller supports multi-step programs with user-defined ramp rates (°C/min), soak durations, and cycle counts. Ramp rate resolution is 0.1 °C/min, with typical achievable rates constrained by thermal mass and load configuration.
Is calibration certification included with delivery?
A factory calibration report (traceable to CNAS-accredited standards) is provided with each unit. Full ISO/IEC 17025 calibration with uncertainty budget is available as an optional service.
Can external sensors be connected for multi-point monitoring?
Yes—two analog input channels (0–5 V or 4–20 mA) are available for integrating external PT100 or thermocouple probes, enabling spatial temperature mapping or sample-surface monitoring.
What maintenance is required for long-term reliability?
Routine maintenance includes quarterly cleaning of condenser coils, biannual inspection of door gasket integrity, and annual verification of refrigerant pressure and heater continuity—detailed in the included maintenance logbook and aligned with ISO 55001 asset management principles.
