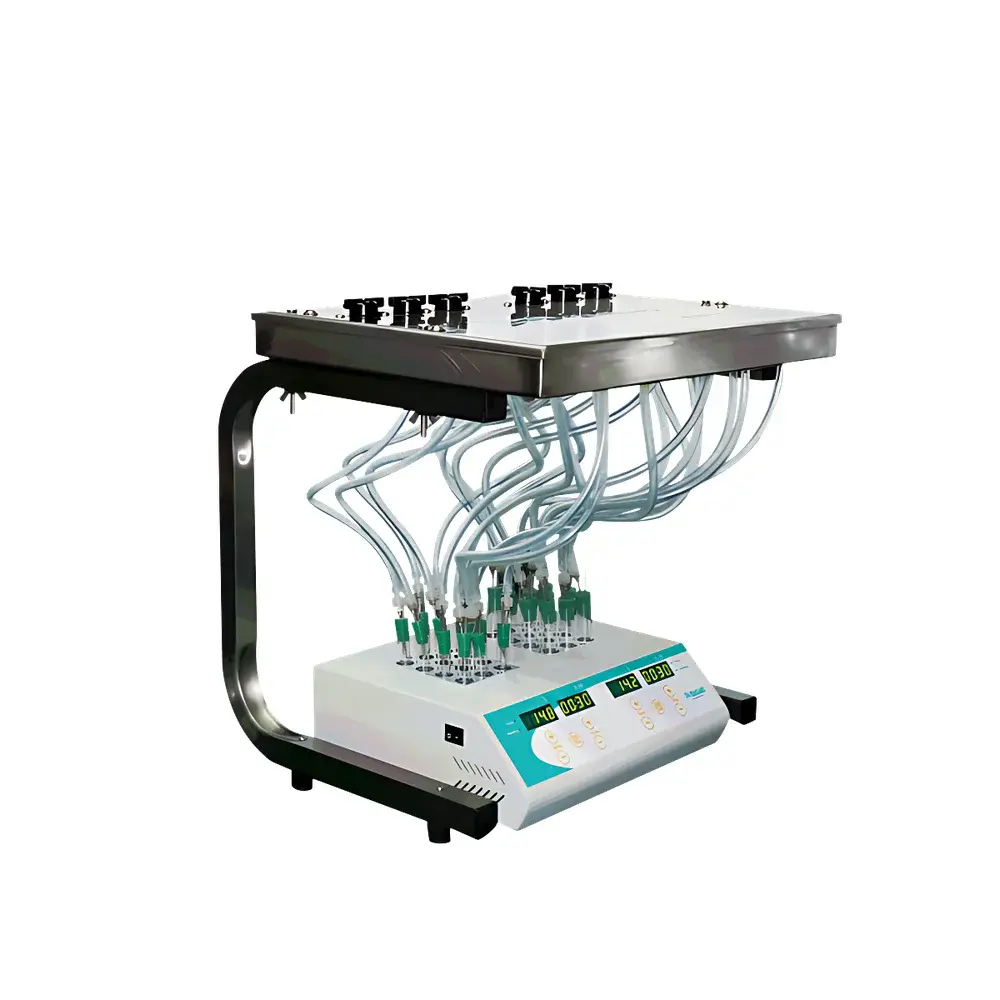

Pribolab EQ-EVP 3024 High-Efficiency Mycotoxin Concentrator

Overview

The Pribolab EQ-EVP 3024 High-Efficiency Mycotoxin Concentrator is an engineered benchtop solvent evaporation system designed specifically for the controlled, reproducible concentration of trace-level mycotoxins and other small-molecule analytes in complex biological and food matrices. It operates on the principle of vacuum-assisted, dry-block-heated solvent removal under fully enclosed conditions—eliminating atmospheric exposure and minimizing analyte loss, degradation, or cross-contamination. Unlike open-vessel nitrogen blow-down systems, the EQ-EVP 3024 integrates a sealed gas flow path, dual independent temperature zones, and precision vacuum regulation to maintain consistent evaporation kinetics across multiple samples simultaneously. Its architecture supports method robustness in regulated environments where analytical traceability, operator safety, and process standardization are critical—particularly in laboratories performing routine testing per AOAC Official Method® 2005.02, ISO/IEC 17025-accredited mycotoxin workflows, or internal SOPs aligned with FDA’s Guidance for Industry on Aflatoxin M1 in Milk and Dairy Products.

Key Features

• Stainless steel chassis and chemically resistant fluid pathways compatible with acetonitrile, methanol, chloroform, ethyl acetate, and other common extraction solvents used in mycotoxin cleanup protocols.
• Dry-block heating module with programmable temperature range from ambient to 150 °C; thermal uniformity ≤ ±0.7 °C across all wells ensures inter-sample consistency during parallel concentration.
• Modular heating block configuration (single or dual block) accommodates varying throughput requirements without compromising thermal stability or gas flow integrity.
• Integrated 4-port or 6-port stainless steel continuous-flow evaporator with individual needle valve controls—enabling precise, independent regulation of gas flow rate per sample channel or complete shutoff.
• Dual independent temperature control system allows simultaneous processing of samples requiring different evaporation conditions—e.g., sequential removal of low-boiling solvents followed by high-boiling residue reduction.
• Vacuum manifold equipped with dual adjustment knobs for fine-tuning inlet vacuum pressure and exhaust backpressure—critical for optimizing solvent removal rate while preserving thermally labile analytes such as ochratoxin A or T-2 toxin.

Sample Compatibility & Compliance

The EQ-EVP 3024 is validated for use with standard 12–15 mL glass test tubes, conical-bottom centrifuge tubes, and custom vials commonly employed in immunoaffinity column (IAC) eluate concentration steps. It supports post-extraction cleanup workflows involving multifunctional columns (MFCs), solid-phase extraction (SPE), and QuEChERS-based extractions. All wetted components comply with USP Class VI biocompatibility standards, and the unit meets IEC 61010-1:2010 safety requirements for laboratory electrical equipment. When operated within defined parameters, it contributes to GLP-compliant documentation practices by enabling standardized, operator-independent concentration steps—reducing variability associated with manual nitrogen blow-down techniques. The system does not require external certification for 21 CFR Part 11 compliance but supports audit-ready operation when paired with LIMS-integrated logging of run parameters (time, temperature, vacuum setpoint).

Software & Data Management

The EQ-EVP 3024 is a standalone hardware platform with analog user interface—no embedded firmware or digital connectivity. Temperature is monitored via calibrated bimetallic dial thermometer; vacuum level is indicated through mechanical gauge readout. While it lacks native data export capability, its operational repeatability enables full integration into paper-based or electronic batch records. Laboratories may log setpoints manually or via external time-stamped video recording for QA/QC review. For facilities implementing electronic record systems, the device’s deterministic behavior—consistent ramp rates, stable plateau temperatures, and repeatable vacuum response—facilitates retrospective validation against chromatographic recovery data from LC-MS/MS or HPLC-FLD assays.

Applications

• Routine quantification of aflatoxins (B1, B2, G1, G2, M1), deoxynivalenol (DON), zearalenone (ZEN), fumonisins (B1/B2), and T-2/HT-2 toxins in cereals, nuts, spices, dairy, and infant formula.
• Concentration of IAC eluates prior to instrumental analysis—especially where low detection limits (<0.1 µg/kg) demand maximal analyte recovery and minimal matrix interference.
• Downstream processing of extracts from herbal medicines and traditional Chinese medicine (TCM) formulations where co-eluting pigments or polysaccharides necessitate clean-up before LC separation.
• Environmental monitoring of mycotoxin contamination in soil leachates, air filter extracts, and water concentrates following solid-phase microextraction (SPME) or liquid–liquid partitioning.
• Method development and validation studies in academic and contract research organizations (CROs), where comparative evaluation of evaporation efficiency versus rotary evaporation or centrifugal concentration is required.

FAQ

What types of solvents are compatible with the EQ-EVP 3024?
Acetonitrile, methanol, ethanol, ethyl acetate, dichloromethane, and chloroform are routinely used. Avoid highly corrosive solvents such as concentrated sulfuric acid or hydrofluoric acid.
Can the system be used for non-mycotoxin applications?
Yes—it is broadly applicable to any small-molecule analyte requiring gentle, reproducible solvent removal, including pesticides, veterinary drug residues, and environmental contaminants.
Is calibration required before first use?
No factory calibration is shipped with the unit; however, users should verify block temperature accuracy using a NIST-traceable probe prior to initial qualification and at scheduled intervals per internal SOP.
Does the system include a vacuum pump?
No—the EQ-EVP 3024 requires connection to an external diaphragm or oil-free vacuum pump capable of achieving ≤100 mbar absolute pressure.
How is cross-contamination prevented between samples?
By maintaining a closed-loop gas path, isolating each sample channel via independent needle valves, and eliminating ambient air ingress—thereby preventing vapor-phase carryover or aerosol transfer.
