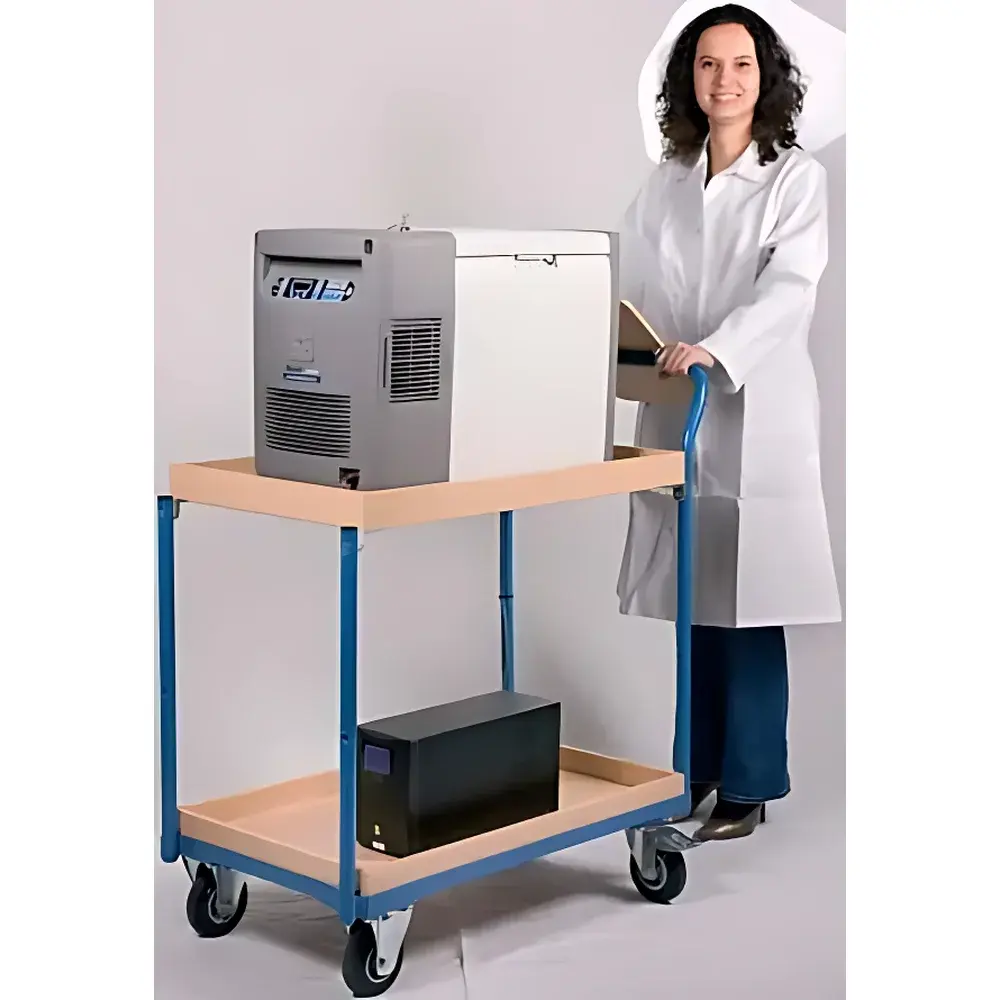

PRIMA PF8025 Portable Ultra-Low Temperature Freezer

Overview

The PRIMA PF8025 Portable Ultra-Low Temperature Freezer is an engineered solution for mission-critical sample preservation and transport where conventional static ULT freezers are impractical. Unlike vapor-compression systems, the PF8025 employs a Free-Piston Stirling Cooler (FPSC)—a hermetically sealed, oil-free thermodynamic engine that uses helium as the sole working fluid. This closed-cycle technology delivers precise, stable cooling from −20 °C to −86 °C without ozone-depleting refrigerants (e.g., R404A or R508B), aligning with EU F-Gas Regulation (EU No 517/2014) and global sustainability mandates. Its compact footprint (695 × 350 × 460 mm), 18 kg net weight, and dual-power architecture (AC mains or 12 V DC vehicle supply) make it uniquely suited for field deployment, mobile labs, point-of-care biobanking, and inter-facility sample transfer under strict thermal continuity requirements.

Key Features

• Free-Piston Stirling Cooling (FPSC): Eliminates compressor wear, refrigerant leakage risk, and lubricant contamination—ensuring >15,000 hours MTBF and consistent −86 °C stability even at ambient temperatures up to +35 °C.
• Vacuum Insulation Panel (VIP) Construction: Achieves effective thermal resistance (R-value > 15 m²·K/W) in minimal wall thickness, enabling 25 L usable volume within a footprint smaller than standard lab centrifuge rotors.

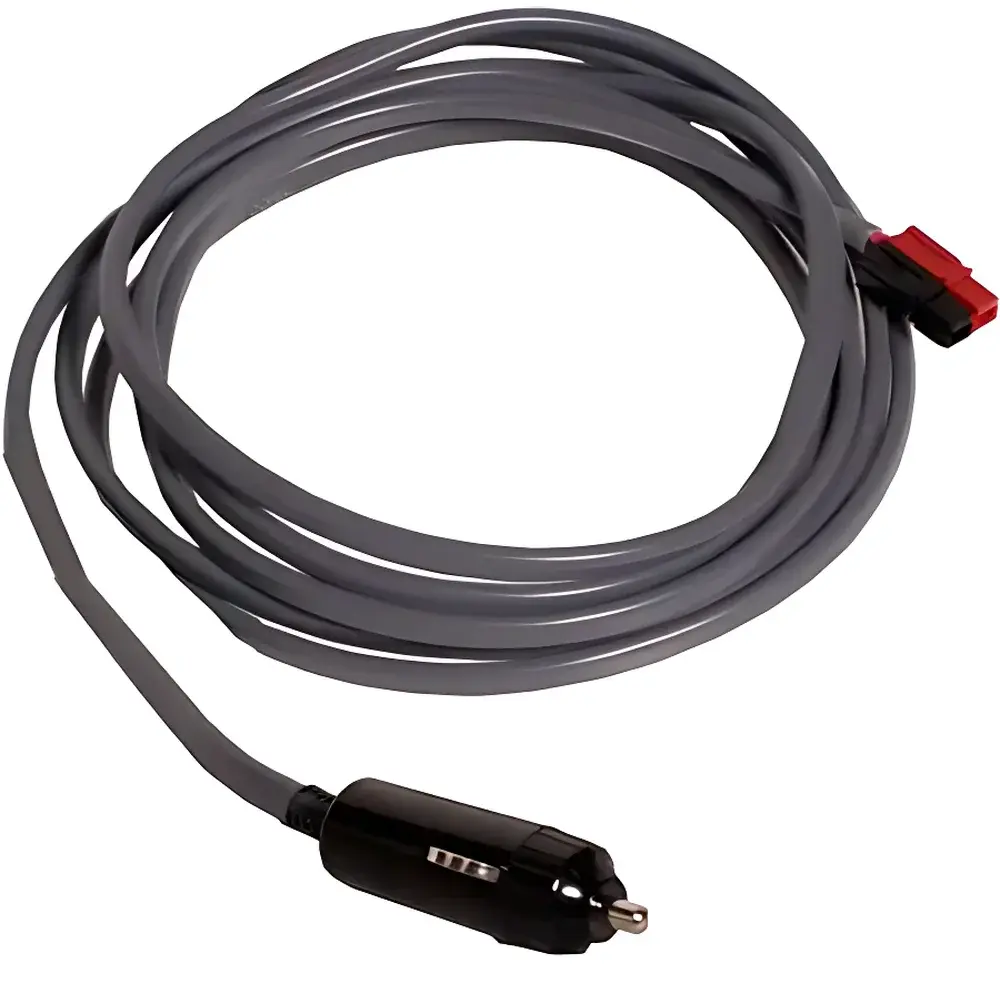

• Dual-Mode Power Flexibility: Operates seamlessly on AC (100–240 V, 50/60 Hz) for benchtop use or DC 12 V (via CL100 adapter) for integration into ambulances, research vessels, or off-grid field stations.
• Intelligent Thermal Management: Microprocessor-controlled PID algorithm maintains setpoint accuracy ±0.5 °C over full range; real-time deviation triggers simultaneous visual LED alert and audible alarm (85 dB at 1 m).
• Contamination-Controlled Interior: Anodized aluminum chamber with seamless welds and non-porous surface resists microbial adhesion; removable condenser filter simplifies maintenance per ISO 14644-1 Class 7 cleanroom protocols.
• Security & Audit Readiness: Mechanical door lock prevents unauthorized access; event log stores timestamped temperature excursions, power cycles, and alarm activations—supporting GLP/GMP documentation workflows.

Sample Compatibility & Compliance

The PF8025 is validated for long-term storage of cryosensitive biologicals including primary human stem cells (hematopoietic, mesenchymal), peripheral blood mononuclear cells (PBMCs), cryopreserved ovarian tissue, mRNA vaccine intermediates, and genomic DNA extracted via silica-column or phenol-chloroform methods. Chamber uniformity meets ASTM F745-22 Annex A2 criteria (±2.5 °C across all zones at −80 °C). All electrical components comply with IEC 61010-1:2010 for laboratory equipment safety, while electromagnetic emissions conform to EN 61326-1:2013. The unit carries UKCA and CE markings, and its FPSC core is qualified to MIL-STD-810G for shock/vibration resilience during vehicular transit.

Software & Data Management

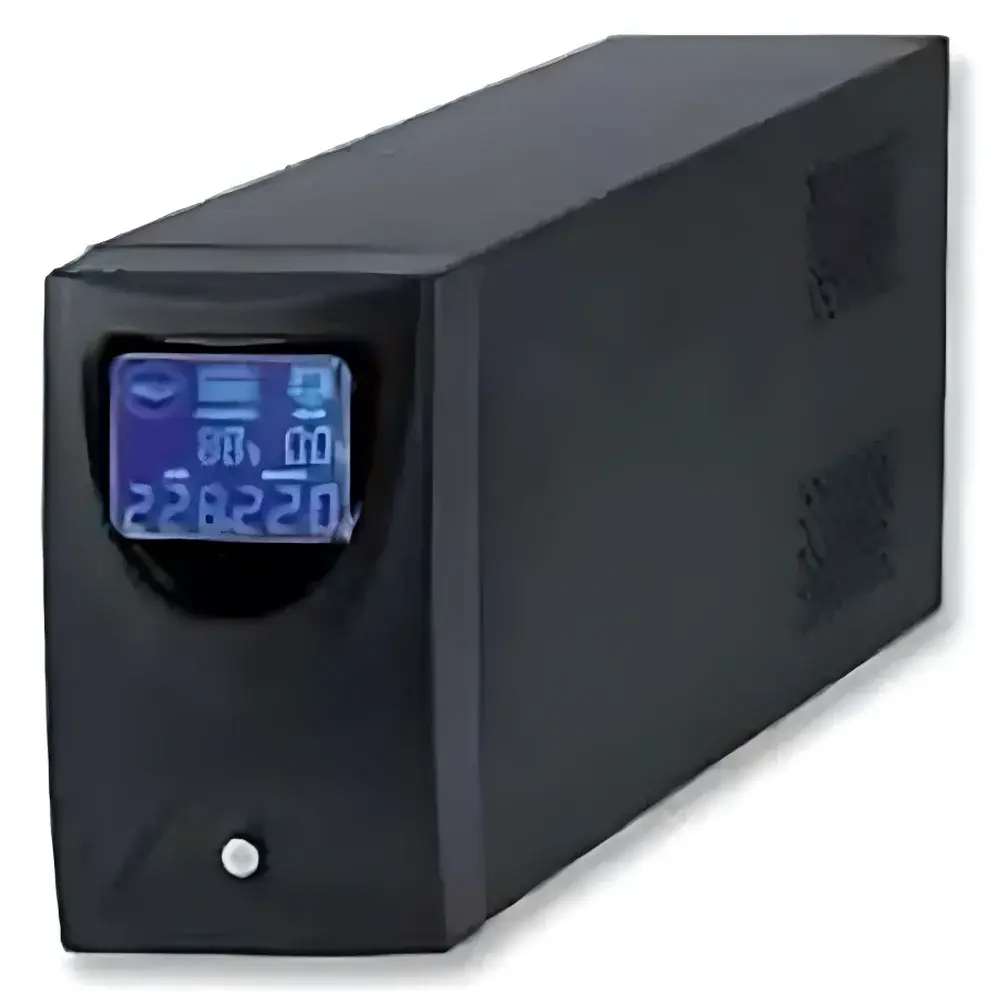

While the PF8025 operates autonomously via front-panel controls, optional BAC200 UPS integration enables uninterrupted operation during grid failure (≥30 min runtime at −80 °C). Temperature logs are stored locally in non-volatile memory (10,000-entry capacity, timestamped to ±1 sec) and exportable via USB-C to CSV for traceability. Though no proprietary software suite is bundled, raw log files are compatible with common LIMS platforms (e.g., LabVantage, Thermo Fisher SampleManager) and support FDA 21 CFR Part 11 compliance when paired with validated electronic signature workflows.

Applications

• Field-based clinical trials: Transporting autologous CAR-T cell products between decentralized manufacturing sites and infusion centers while maintaining chain-of-custody integrity.
• Arctic/Antarctic research stations: Providing −86 °C storage where diesel-powered compressors face fuel logistics constraints and cold-start reliability issues.
• Hospital pathology networks: Enabling same-day transfer of frozen section specimens between satellite labs and central diagnostics hubs without dry ice dependency.
• Biotech process development: Serving as a portable “cold node” for intermediate storage of purified monoclonal antibodies during fill-finish line qualification runs.
• Regulatory submissions: Supporting ICH M4 Q5C stability studies by replicating ultra-low temperature conditions across geographically dispersed testing laboratories.

FAQ

Can the PF8025 maintain −86 °C when powered solely by a vehicle’s 12 V system?
Yes—tested per ISO 15031-5:2021, it achieves and sustains −86 °C from ambient 25 °C within 120 minutes on DC 12 V, provided battery capacity ≥75 Ah and alternator output ≥100 A.
Is the vacuum insulation panel (VIP) replaceable in the field?
No—VIPs are permanently bonded during manufacturing to preserve helium barrier integrity; replacement requires factory service and recalibration per ISO/IEC 17025.
Does the unit meet transportation validation requirements per WHO Technical Report Series No. 961?
Yes—the PF8025’s thermal mass, VIP efficiency, and FPSC dynamic response satisfy WHO’s “passive + active” hybrid classification for Category II cold chain devices when used with BAC200 UPS backup.
What is the maximum allowable ambient operating temperature?
+35 °C continuous operation is verified per IEC 60068-2-14; performance degrades above this threshold, triggering automatic high-ambient warning at +38 °C.
Are calibration certificates available for GxP environments?
Factory-calibrated units ship with NIST-traceable certificate (as-tested at −80 °C); IQ/OQ protocols and annual recalibration services are offered through PRIMA’s UKAS-accredited service network.
