Programmable Temperature and Humidity Environmental Chamber (Wholesale)

Overview

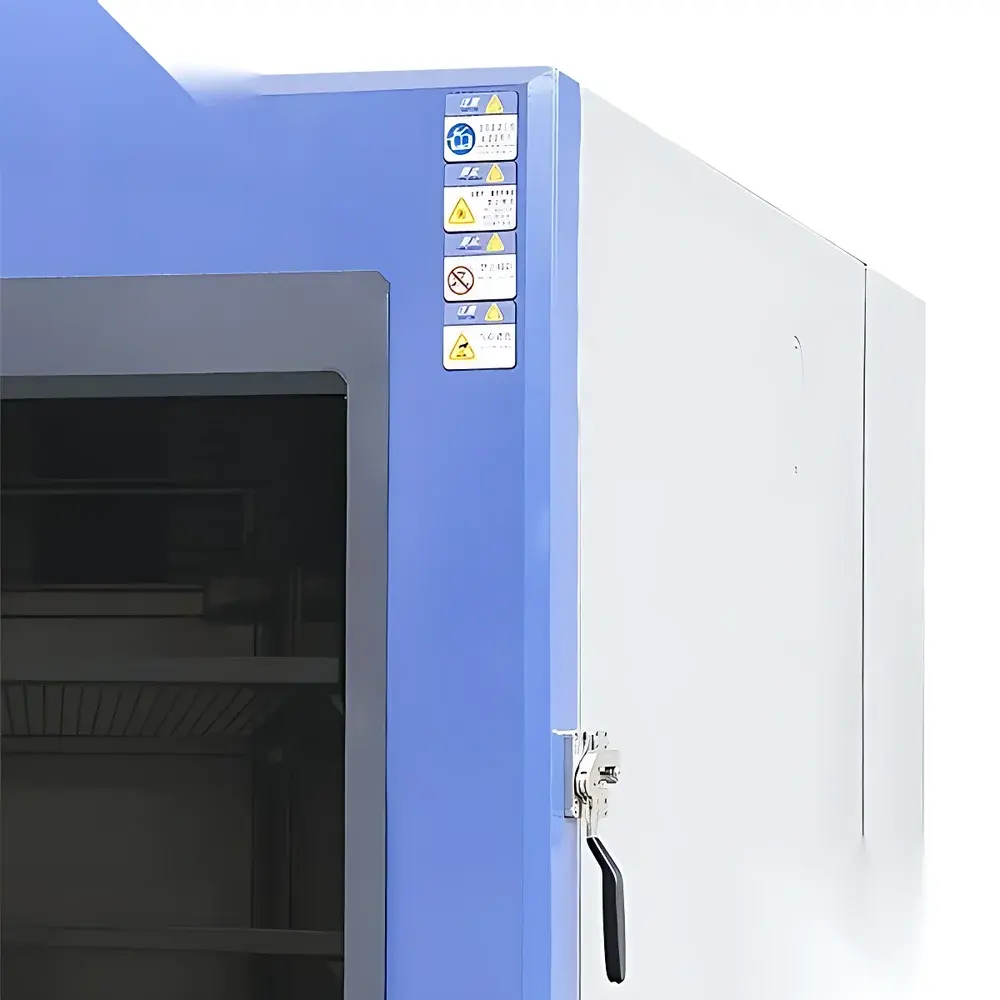

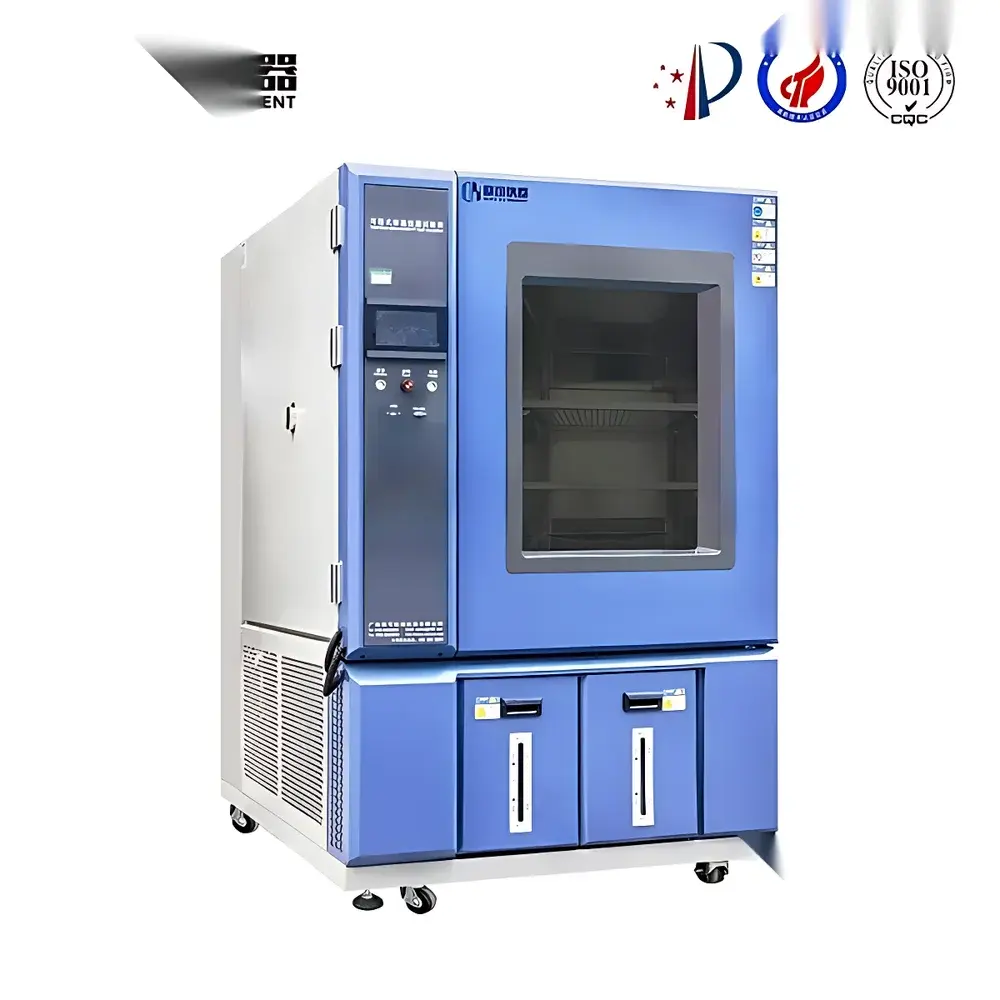

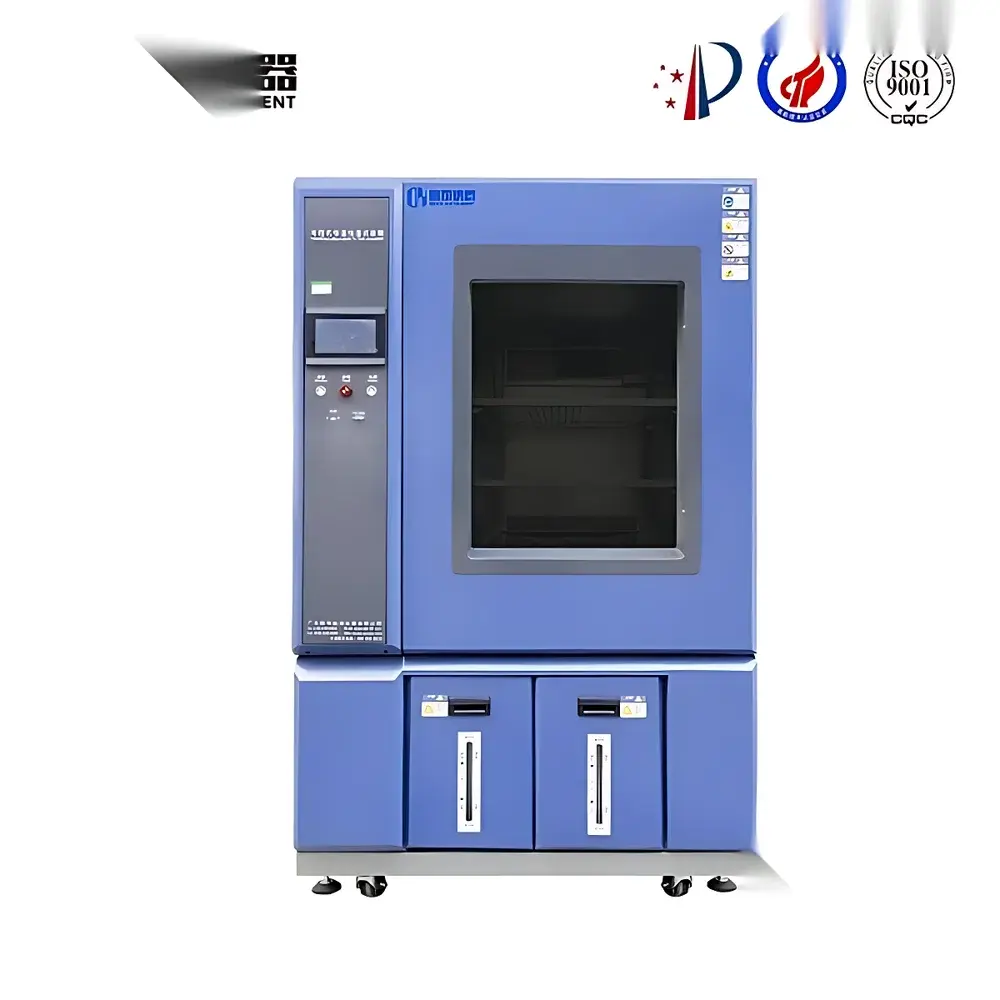

The Programmable Temperature and Humidity Environmental Chamber is an industrial-grade climatic test system engineered for precise, repeatable simulation of temperature and relative humidity conditions across defined operational ranges. It operates on a dual-loop control architecture—separate PID-regulated refrigeration and humidification subsystems—enabling stable maintenance of setpoints under dynamic load conditions. Designed for reliability in quality assurance laboratories, R&D centers, and production-line validation environments, this chamber supports both steady-state (e.g., constant 40°C/93% RH per GB/T 2423.3) and cyclic profiles (e.g., 24-hour damp heat cycles per GB/T 2423.4). Its structural design incorporates insulated double-wall construction with high-efficiency compressors, stainless-steel interior chambers, and corrosion-resistant condensate management systems—ensuring long-term thermal integrity and minimal drift over extended operation.

Key Features

• Full programmability with 120 stored profiles, each supporting up to 999 segments—including ramp, soak, and transition phases
• Dual independent time signal outputs for synchronized external device triggering (e.g., data loggers or power sequencers)
• Intelligent compressor cycling logic with auto-shutdown during idle or low-load periods to extend service life and reduce energy consumption
• RS-232 serial interface compliant with standard Modbus RTU protocol, enabling remote program upload/download, real-time parameter monitoring, and automated start/stop commands from host PC software
• Comprehensive safety architecture: non-fuse circuit breakers, dry-run protection for humidifiers, dual-stage over-temperature and over-humidity cutoffs, phase-loss detection, ground-fault interruption, and low-water-level lockout
• User-accessible sensor calibration offset adjustment for both temperature (±5.0°C range) and humidity (±10% RH range), traceable to NIST-traceable reference standards
• Power failure recovery mode retaining all active program data and runtime counters for up to 6 months without backup power
• Configurable cold-box vs. hot-box startup modes to minimize thermal shock during initial conditioning
• Pause/resume functionality for interrupt-driven testing protocols requiring manual intervention or sample inspection

Sample Compatibility & Compliance

This environmental chamber accommodates standard test specimens up to 500 mm × 500 mm × 500 mm (W×D×H) within its internal workspace. It supports rigid enclosures, printed circuit boards, polymer housings, and sealed electronic modules—provided samples do not emit volatile organic compounds (VOCs) or particulates that may contaminate the chamber’s humidity generation system. The unit complies fully with national and defense-related environmental testing standards, including GB/T 2423.1–2001 (cold testing), GB/T 2423.4–2008 (cyclic damp heat), and GJB 150.9A–2009 (military-grade湿热 testing). While not certified to ISO/IEC 17025 for accredited calibration, its control system meets GLP-aligned operational requirements for audit-ready test documentation when paired with validated PC-based logging software.

Software & Data Management

Chamber operation is managed via optional Windows-compatible configuration software (sold separately), which provides graphical profile editing, real-time trend visualization, alarm event logging, and CSV export of timestamped temperature/humidity datasets. All logged data includes operator ID, program name, segment number, and system status flags—supporting basic 21 CFR Part 11 readiness when deployed with user-authenticated login and electronic signature workflows. Audit trails record all parameter modifications, program executions, and safety-triggered events with immutable timestamps. Data retention is configurable up to 30 days onboard (internal flash memory), with continuous streaming capability to network-attached storage via RS-232-to-Ethernet gateways.

Applications

• Electronics reliability validation: solder joint fatigue assessment under thermal cycling combined with high-humidity exposure
• Material stability testing: evaluating hygroscopic expansion, coating adhesion loss, or dielectric degradation in polymers and composites
• Pharmaceutical packaging qualification: verifying seal integrity and moisture barrier performance per ICH Q1A(R2) guidelines
• Military equipment environmental screening: compliance verification against GJB 150-series specifications for field-deployable hardware
• Automotive component endurance: simulating under-hood conditions with simultaneous temperature ramping and humidity modulation
• Academic research in atmospheric corrosion kinetics, where controlled dew-point trajectories are required

FAQ

Does this chamber support Ethernet or USB connectivity?
No—only RS-232 serial communication is natively integrated. Ethernet or USB interfaces require third-party protocol converters.
Is calibration certificate included with shipment?
A factory-as-tested report is provided; full ISO/IEC 17025 calibration with uncertainty budgets must be requested separately.
Can the chamber operate continuously at 85°C and 85% RH?
Yes—within its specified operating envelope of –40°C to +150°C and 20–98% RH (non-condensing), with sustained stability of ±0.5°C and ±3% RH at steady state.
What is the maximum allowable sample weight inside the chamber?
The internal load capacity is rated for ≤15 kg total mass to ensure uniform airflow and thermal homogeneity per GB/T 2423.1 Annex B.
Is firmware upgrade support available post-purchase?
Firmware updates are distributed free-of-charge via the manufacturer’s secure portal, with version history and release notes published quarterly.
