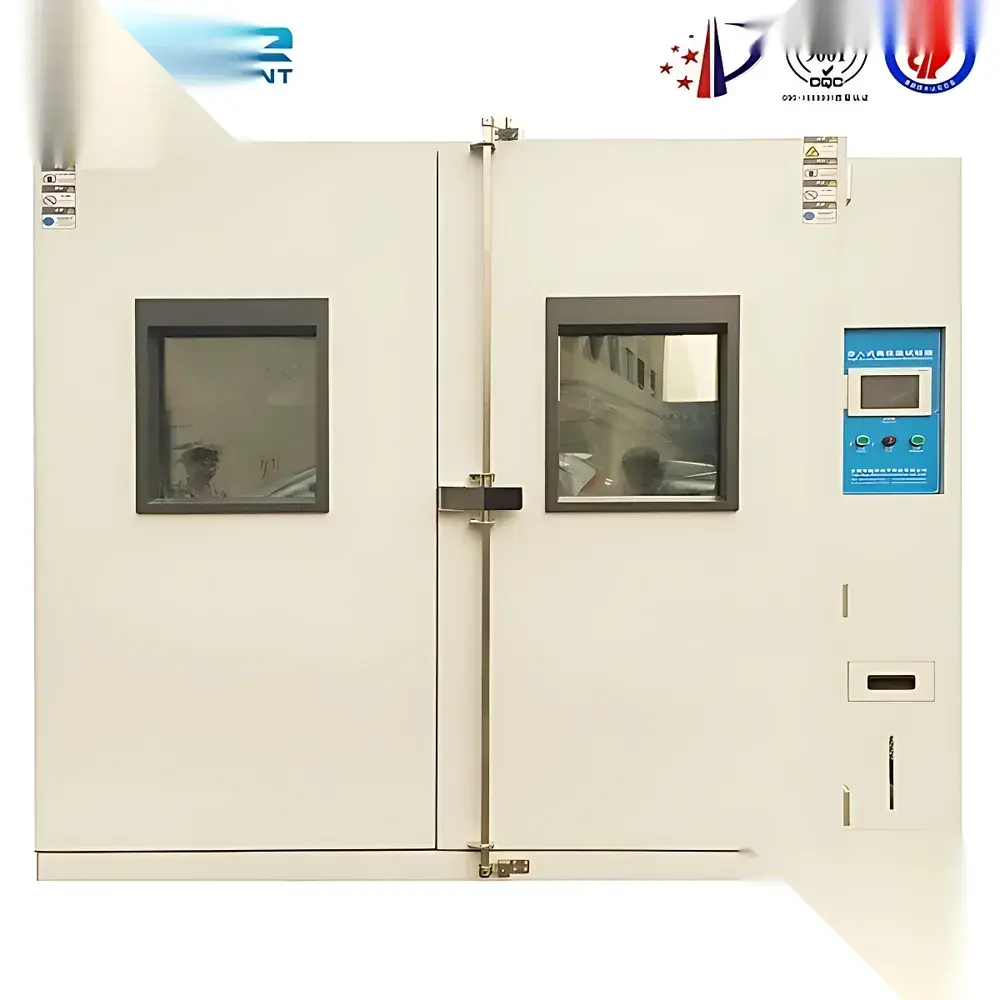

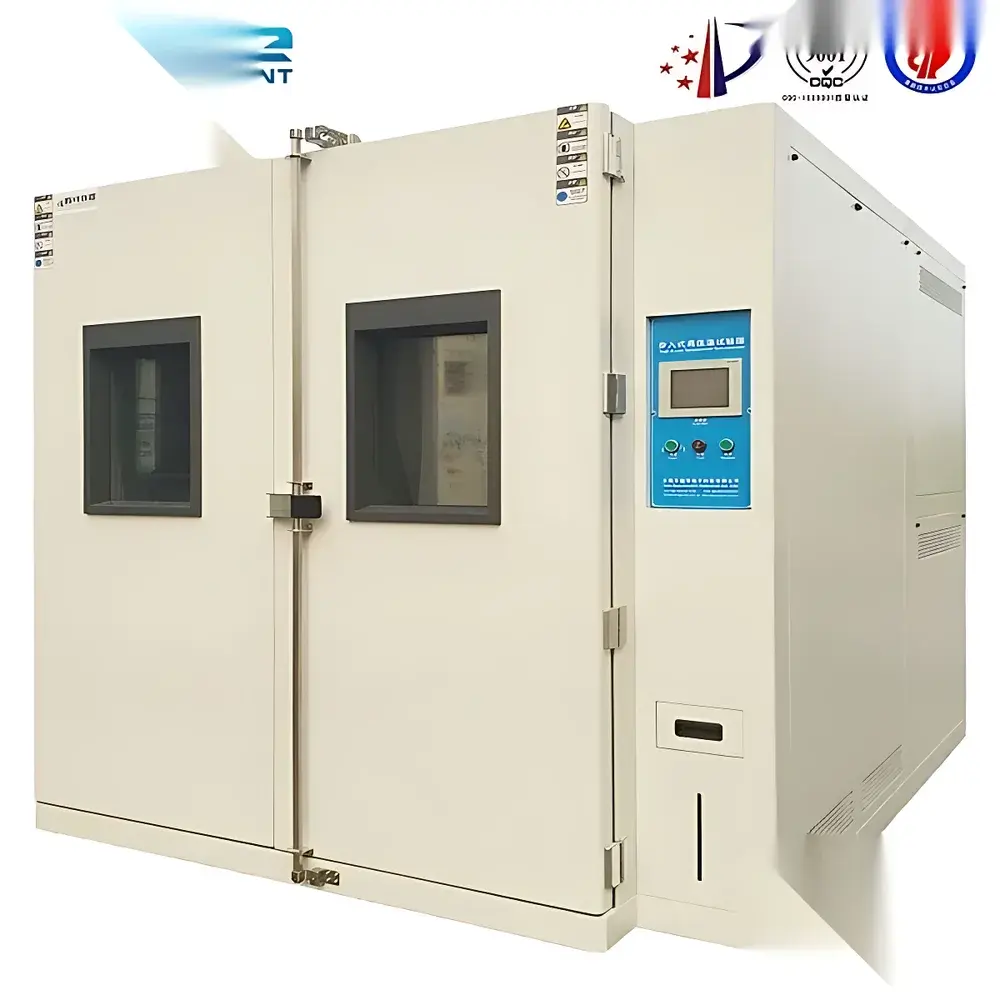

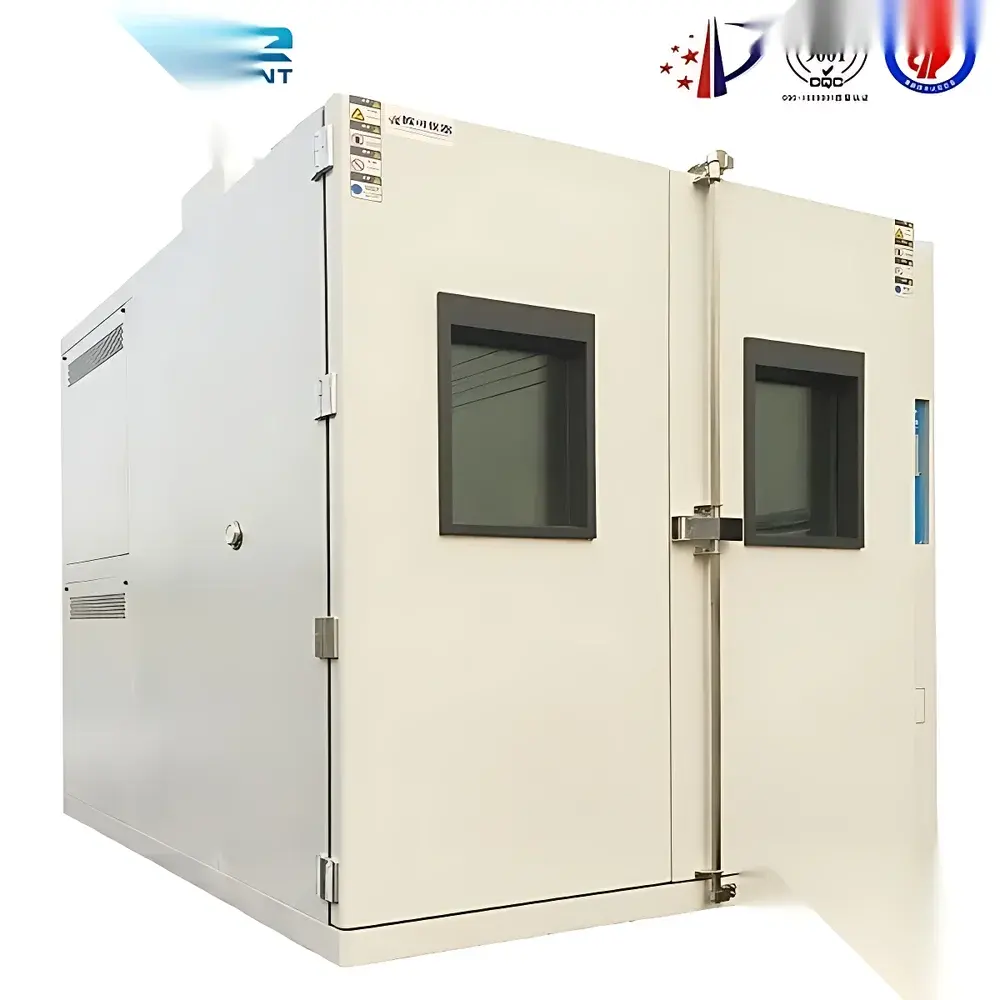

Programmable Walk-in Temperature & Humidity Chamber – Customizable Environmental Test Room

Overview

The Programmable Walk-in Temperature & Humidity Chamber is an engineered environmental test solution designed for validation, reliability testing, and accelerated aging of large-scale industrial components, subassemblies, and finished goods. Unlike benchtop climate chambers, this walk-in system employs a modular, field-configurable architecture—enabling internal volume adaptation to meet evolving laboratory or production-line spatial requirements. Its core thermal management system operates on the principle of dual-refrigerant cascade cooling (R404A for primary stage, R23 for ultra-low sub-zero capability), coupled with precision steam-based humidification and desiccant-assisted dehumidification. The chamber maintains traceable, repeatable control across a standard operating range of −70 °C to +180 °C and 10–98% RH (non-condensing), with temperature uniformity ≤ ±0.5 °C and humidity stability ≤ ±2.0% RH (per IEC 60068-3-5). Designed for continuous-duty operation in ISO 17025-accredited labs and manufacturing environments, it supports regulatory-compliant test execution under ASTM D4332, IEC 60068-2-1/2/30, and MIL-STD-810H environmental test methods.

Key Features

• Modular panel construction using high-strength SUS#304 stainless steel with multi-layer passivated surface finish—resistant to corrosion, thermal cycling fatigue, and cleaning agent exposure.
• High-efficiency insulation combining ≥100 mm thick high-density glass wool and closed-cell rigid PU foam (thermal conductivity ≤ 0.022 W/m·K), minimizing energy consumption and external surface condensation.
• Ceiling-mounted, low-velocity air distribution system with multi-wing centrifugal fans and aluminum alloy impellers rated for −70 °C to +180 °C operation—ensuring uniform airflow (≤0.3 m/s at test load center) and minimal specimen disturbance.
• Explosion-proof, multi-layer vacuum-insulated viewing window with integrated anti-fog heating circuit—providing real-time visual monitoring without thermal leakage or optical distortion.
• Comprehensive safety architecture including over-temperature/over-humidity cut-off, door interlock with mechanical latch, power-loss memory retention (retains setpoints and runtime data for ≥72 h), and GFCI-protected electrical supply.
• Standard auxiliary interfaces: two adjustable stainless steel shelves, one 100 mm diameter test port with silicone gasket seal, four casters with locking mechanism, and wide-angle LED lighting compliant with IEC 62471 photobiological safety standards.

Sample Compatibility & Compliance

This chamber accommodates large-format samples—including automotive ECUs, aerospace avionics enclosures, medical device sterilization trays, and battery module packs—without requiring disassembly or reconfiguration. Its internal geometry allows unrestricted access for instrument cabling, sensor placement, and thermal mapping per ISO/IEC 17025 clause 5.4.3. All materials in direct contact with the test environment comply with RoHS Directive 2011/65/EU and REACH Annex XVII restrictions. Refrigerants R404A and R23 are certified zero-ozone-depletion-potential (ODP = 0) substances meeting EU F-Gas Regulation (EU) No 517/2014. Optional calibration certificates (NIST-traceable) and IQ/OQ documentation packages are available for GLP, GMP, and FDA 21 CFR Part 11–aligned validation protocols.

Software & Data Management

The embedded controller features a 7-inch capacitive touchscreen interface with intuitive menu navigation, real-time trend graphing, and up to 100 programmable test profiles (each supporting ramp-soak cycles, step transitions, and humidity coupling logic). Standard RS-485 Modbus RTU and optional Ethernet TCP/IP connectivity enable integration into centralized SCADA or MES platforms. Data logging occurs at user-defined intervals (1 s to 60 min) with automatic CSV export to USB storage or network share. Audit trail functionality records all parameter changes, operator logins, alarm events, and system resets—with timestamped, non-erasable entries compliant with ALCOA+ data integrity principles.

Applications

• Automotive: Thermal shock validation of ADAS sensors, infotainment systems, and EV battery thermal management units per SAE J2380 and ISO 16750-4.
• Electronics: Burn-in testing of server racks, telecom base station cabinets, and industrial PLCs under combined temperature/humidity stress.
• Pharmaceutical: Stability studies for packaging integrity (blister packs, vials) under ICH Q1A(R2) long-term and accelerated conditions.
• Aerospace: Environmental screening of flight-critical components per DO-160 Section 4 (Temperature) and Section 5 (Humidity).
• Energy Storage: Cycle-life assessment of lithium-ion modules under dynamic thermal-hygrometric profiles simulating depot and operational environments.

FAQ

What is the standard warranty coverage for this chamber?
Standard warranty includes 24 months parts-and-labor coverage for refrigeration, control, and structural subsystems, extendable to 36 months with annual preventive maintenance contract.
Can the chamber be integrated with existing LIMS or LabWare systems?
Yes—via Modbus TCP or OPC UA (optional add-on license), enabling bidirectional data exchange for test initiation, status reporting, and raw dataset ingestion.
Is on-site IQ/OQ validation support available?
Certified field engineers provide installation qualification (IQ), operational qualification (OQ), and protocol development aligned with ISO/IEC 17025 and FDA 21 CFR Part 11 requirements.
What is the typical lead time for custom dimension configurations?
Standard configuration ships within 8–10 weeks; custom internal volumes (±20% from baseline) require 12–14 weeks after final dimensional approval and deposit receipt.
Does the system meet electromagnetic compatibility (EMC) requirements for laboratory use?
Yes—fully compliant with EN 61326-1:2013 (industrial EMC) and EN 61000-6-3:2011 (emission limits), with CE marking affixed and full technical construction file available upon request.
